S7B-A7 Double Button Time Temperature Display LED Touch Sensor Switch For Bathroom
Short Description:
This touch mirror sensor can not only turn on/off/dimmer, but also display the current time and temperature, which is more intelligent and modern.
WELCOME TO ASK FREE SAMPLES FOR TESTING PURPOSE
Why Choose this item?
Advantages:
1.【Mirror sensor】installed behind the mirror or board, touch the mirror or board to control the switch.
2.【More beautiful】Mirror Sensor installation rearview mirror can not see the switch accessories, only see the backlight exposed touch traces, beautiful.
3.【Easy installation】3M stickers, no need to slot, more convenient installation.
4.【Multi-function】It can not only open/close/dimmer, but also display the current time and temperature
5.【Reliable after-sales service】3-year after-sales guarantee, you can contact our business service team at any time, easily troubleshoot and replace, or have any questions about the purchase or installation, we will do our best to help you.

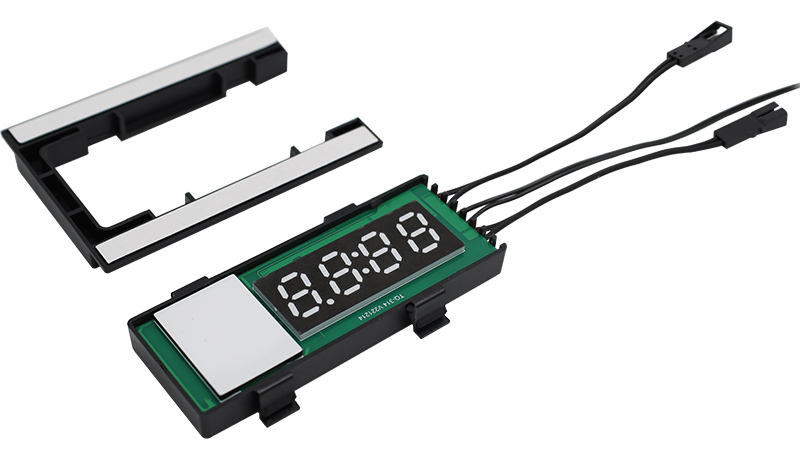

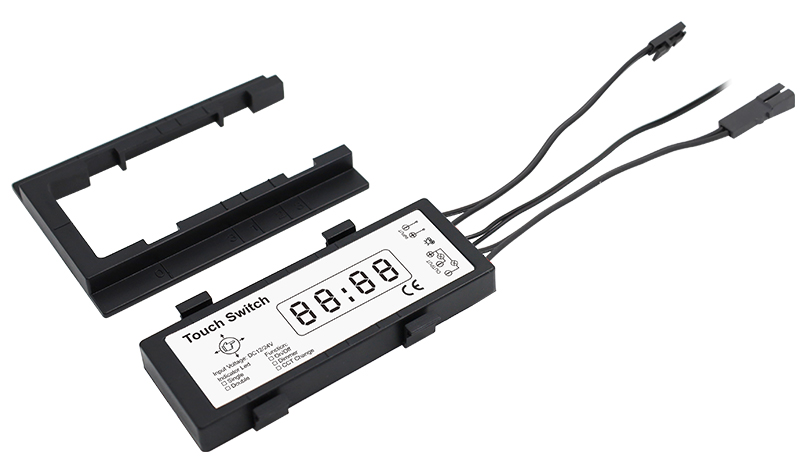

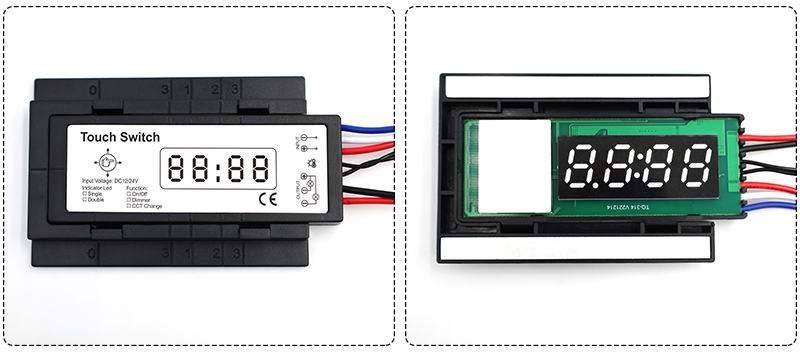

Product Details
It is more convenient to install with 3M Sticker.
The switch sticker is labeled with functional parameters and has a blue and white backlight on the back.
Function Show
The touch mirror sensor is installed on the back of the mirror and does not affect the overall beauty. The backlight of the switch will show the position and status of the sensor mirror for bathroom, and gently press the light to turn it on/off/dimmer. Long press to adjust the brightness. The current time can also be adjusted.
Application
Because the touch dimmer switch has the ability to penetrate the mirror, the sensor switch for mirror can be applied to various mirrors such as bathroom mirrors, shopping malls bathroom mirrors and makeup tables, which is easy to install and use, and does not affect the overall beauty of the mirror.

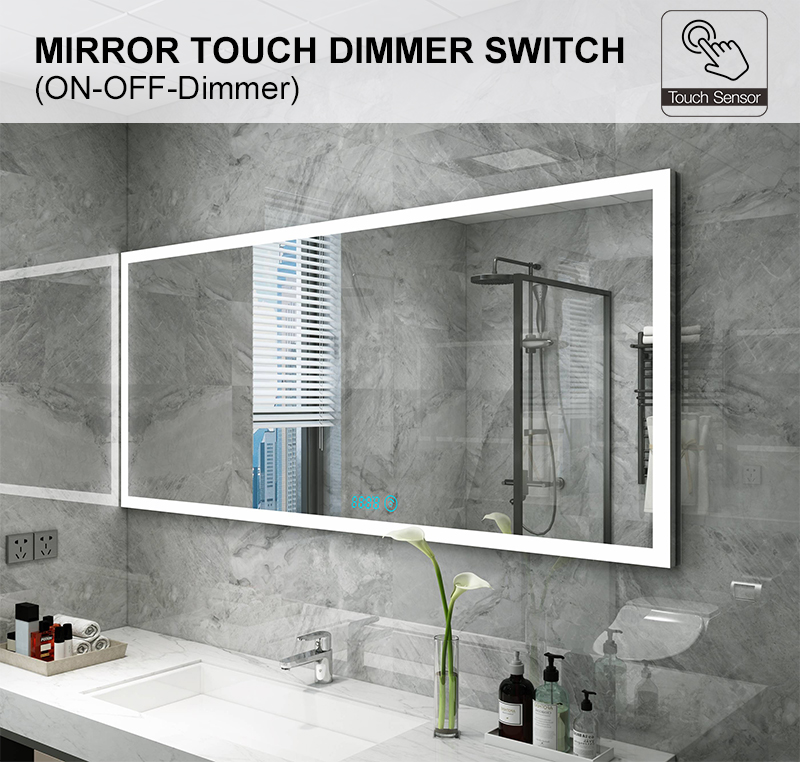

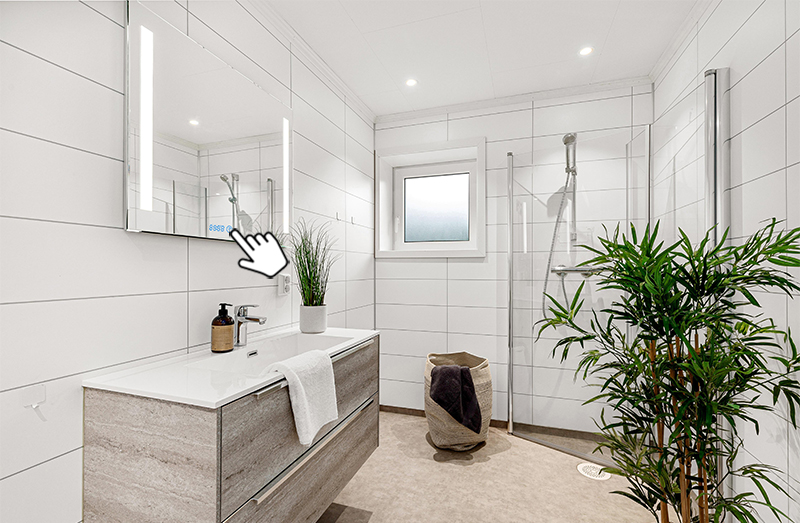

1.Bathroom scene application

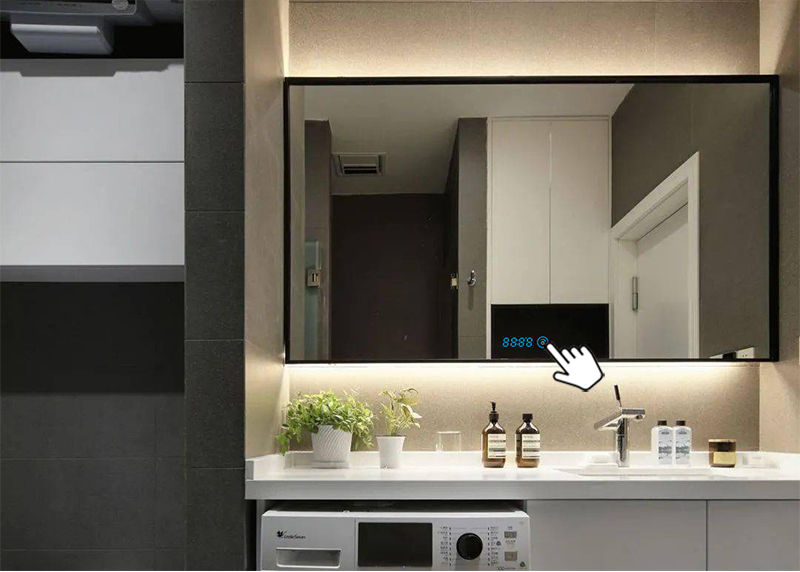

2.Bathroom scene application
Connection and Lighting solutions

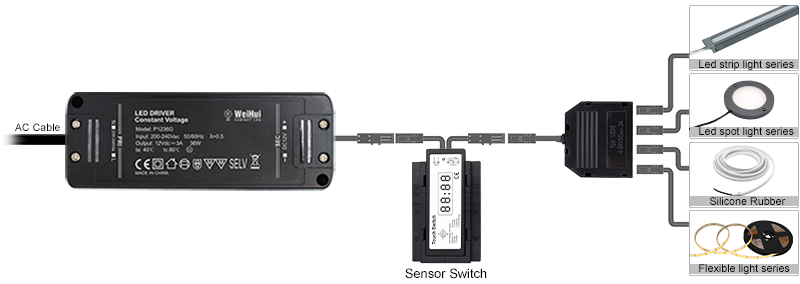

1. Separate Controlling system
When you use the normal led driver or you buy led driver from other suppliers, You can still use our sensors.
At first, You need to connect led strip light and led driver to be as a set.
Here when you connect led touch dimmer between led light and led driver successfully, You can control the light on/off.

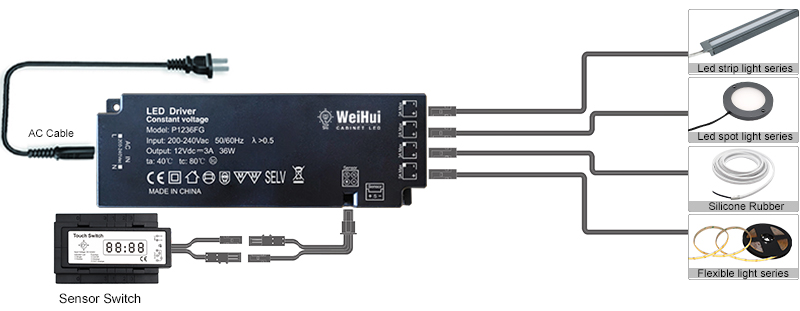

2. Central Controlling system
Meanwhile, If you can use our smart led drivers, You can control the whole system with only one sensor.
The sensor would be much competitive. and No need to worry about compatibility with led drivers too.
1. Part One: Mirror Switch Parameters
| Model | S7B-A7 | S7D-A7 | ||||||
| Function | ON/OFF/Dimmer | ON/OFF/Dimmer/CCT Change | ||||||
| Size | 93x35x10mm, 88x62x6mm(Clips) | |||||||
| Voltage | DC12V / DC24V | |||||||
| Max Wattage | 60W | |||||||
| Detecting Way | Touch Type | |||||||
| Protection Rating | IP20 | |||||||

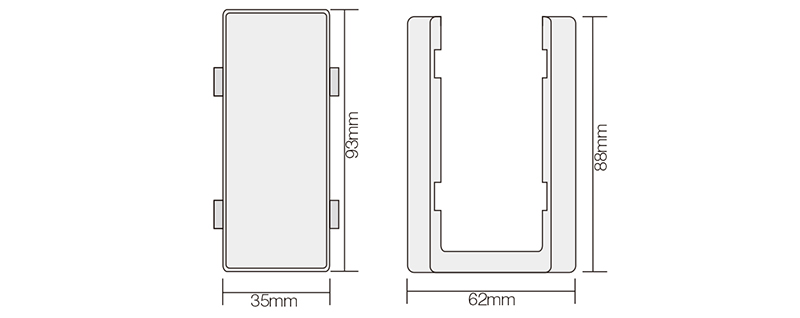

2. Part Two: Size information

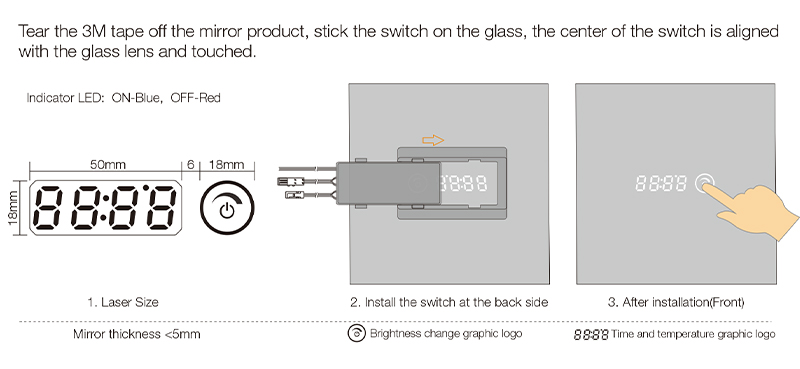

3. Part Three: Installation

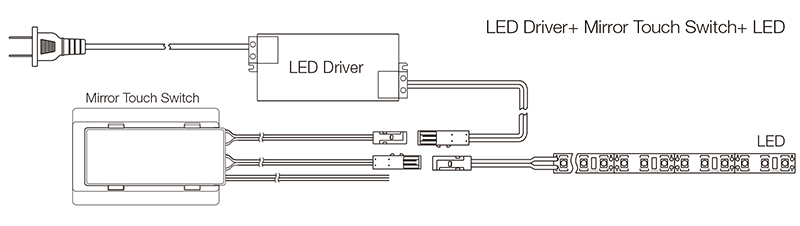

4. Part Four: Connection Diagram
