FC576W10-3 10MM Width 24V RGB led strip
COB&SCOB Light Series
FC576W10-3 10MM Width 24V RGB led strip
FC576W10-3 10MM Width 24V RGB led strip
FC576W10-3 10MM Width 24V RGB led strip
FC576W10-3 10MM Width 24V RGB led strip
FC576W10-3 10MM Width 24V RGB led strip
FC576W10-3 10MM Width 24V RGB led strip

FC576W10-3 10MM Width 24V RGB led strip

Short Description:

This is a great choice for colorful decorative lighting. running led strip lights use the latest chip-on-board technology to form a seamless light strip without dots or spots. Paired with a multi-color LED controller for dimming and color control.

Customizable single-color, dual-color, RGB, RGBW, RGBCW and other light strip options.

Free sample test is welcome.



ce
    Follow us on YouTube Send email to us
    Product Details
    Technical Data
    Video
    Download
    OEM&ODM Service
    Product Tags

    Product Advantages

    1.【New-Gen COB Technology】RGB COB technology can adjust multiple colors on a single strip light to achieve a variety of dynamic effects such as gradient, jump, running, breathing, etc., giving the space more creativity and vitality.
    2. 【Stepless Dimming】  Dimmable, Brightness adjustable from 0% to 100%. With the color temperature adjustment of 3000K-6000K, it can meet the lighting needs of different times and scenes.
    3. 【Full color gamut flexible color adjustment】 Supports more than 16 million vibrant tones, realizes full color gamut flexible color adjustment, and can freely customize personalized lighting atmosphere according to scenes and preferences.
    4. 【Light follows rhythm】 The RGB CCT led strip can respond intelligently according to external sound or music rhythm, realize the synchronous change of light and melody, create an immersive dynamic atmosphere, and enjoy both visual and auditory enjoyment.

    68d10cb3be0fc17459

    Product Details

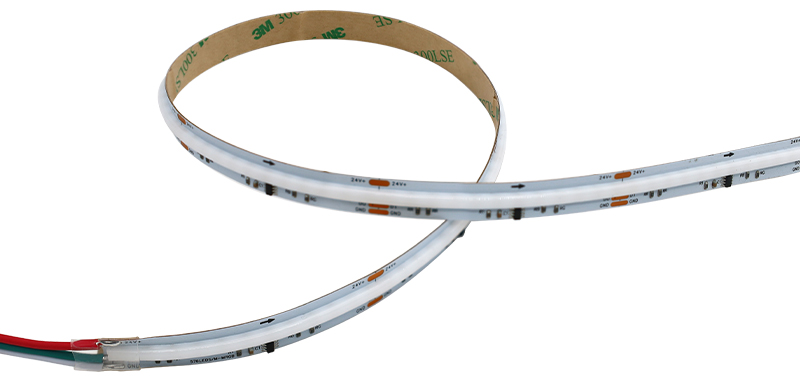

    Available in Single Color, Dual Color, RGB, RGBW, RGBCW and other light strip options, we must have the right COB light strip for you.

    • Roll: 5M/roll, 720 LEDs/m, Length is customizable.
    • Color rendering index: >90+
    • 3M adhesive backing, suitable for the surface best suited to the surrounding reflective surface or application
    • Max run: 12V-5 meters, small voltage drop. If you are worried about the impact of voltage drop, you can inject voltage at the end of the long light strip to eliminate the voltage drop.
    • Cutting length: one cutting unit per 50mm
    • 10mm strip width: suitable for most places
    • Power: 10.0w/m
    • Voltage: DC 12V low-voltage addressable rgb led strip, safe and touchable, with good heat dissipation performance.
    • Whether it is direct lighting or exposed installation, or using a diffuser, the moving led strip lights is soft and not dazzling
    • Certificate & Warranty: RoHS, CE and other certifications, 3-year warranty
    68d10cc88bdae12556

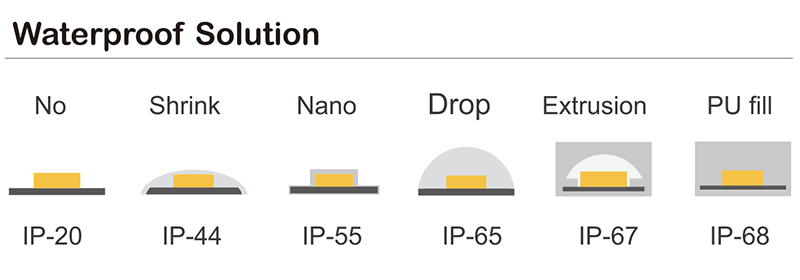

    Waterproof level: Choose our multicolor light strip for indoor and outdoor installation or use in wet environments. The waterproof level can be customized.
    68d10cb76054a11964

    More Details

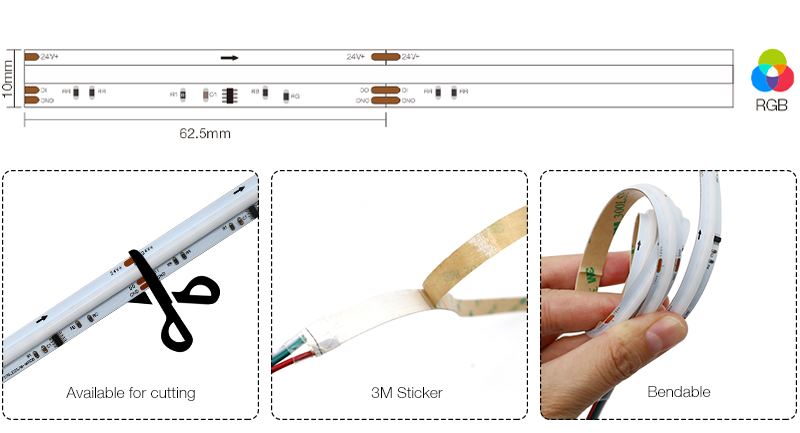

    1. The led strip lights for kitchen ceiling can be cut, one cutting unit per 62.5mm.
    2. Easy to install, please tear off the tape film on the back before installation.
    3. Bendable, it is more bendable than any other SMD light strip , can be easily made into any shape.
    68d10ccb9537b94399

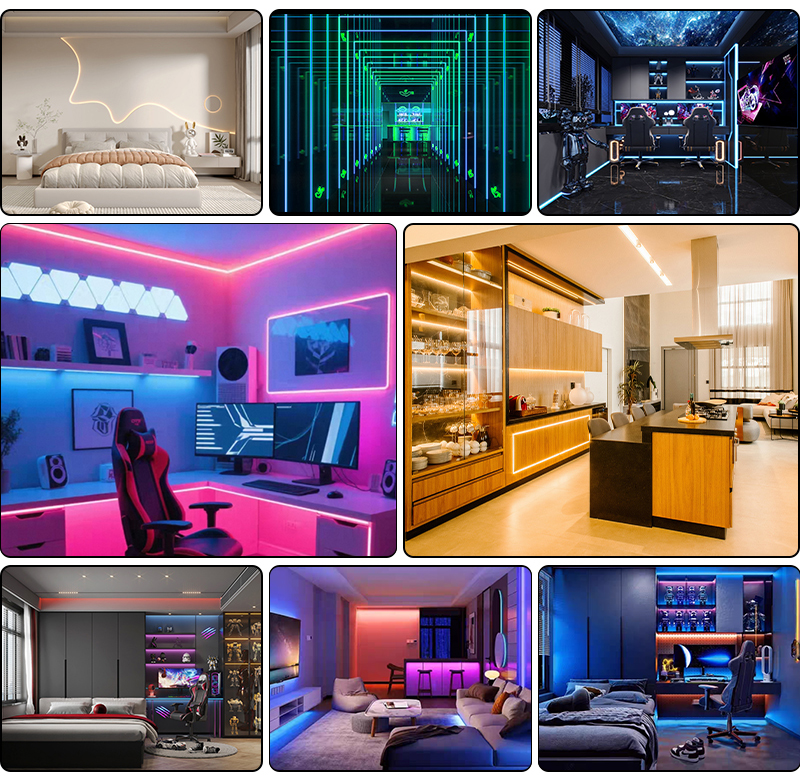

    Application

    The colorful light makes the game more exciting; it is dynamic and static, and the color is endless, creating a wonderful commercial space.

    1. Relying on the new generation of COB flip-chip packaging technology, the Indoor strip light can achieve flexible control of 16 million+ colors, and supports a variety of dynamic modes and voice-controlled rhythms. Through high-density LED arrangement and stepless dimming function, it ensures that the light effect is uniform and the color temperature is accurate in complex lighting environments. The dreamy light effect meets the needs of professional-level light effect customization.

    68d10cbabe43958120

    2. Music rhythm mode, the light flashes intelligently with the rhythm of the music, and it is easy to create multiple application scenarios such as game e-sports, commercial display, smart home, immersive experience space, etc. Whether it is to create a cool shop window or personalized home decoration, a light strip can light up the whole space!
    Tips: The colour changing led strip comes with a strong 3M self-adhesive backing. Before installation, please ensure that the installation surface is thoroughly cleaned and dry.

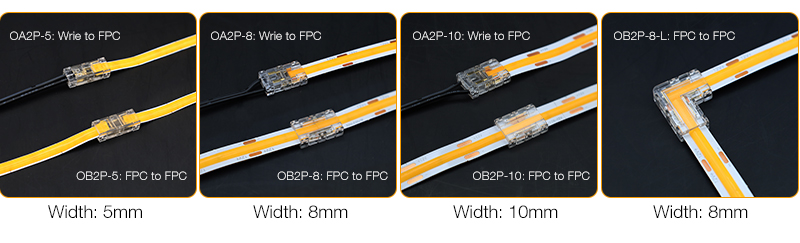

    Connection and Lighting solutions

    The light strip can be cut and reconnected, suitable for various quick connectors, and no welding is required.
    【PCB to PCB】 For connecting two pieces of different COB strips, such as 5mm/8mm/10mm,etc
    【PCB to Cable】Used to light up the COB strip, connect the COB strip and wire
    【L-type Connector】Used to extend Right Angle Connection COB Strip.
    【T-type Connector】Used to extend T Connector COB Strip.
    68d10cbd2a7a491236

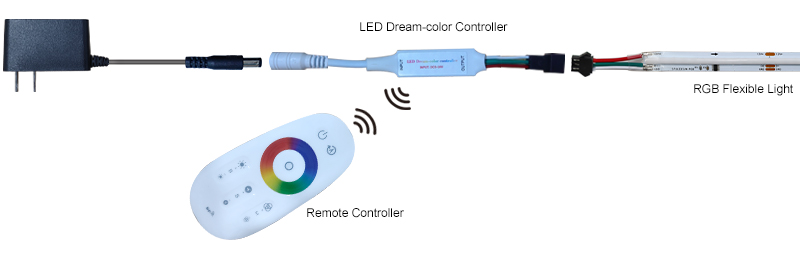

    When using 24v rgb led strips in cabinets or other home spaces, you need to pair them with a dimming and color adjustment controller or APP to give full play to their excellent lighting effects. As a professional one-stop cabinet lighting solution provider, we also provide compatible wireless RGB controllers (LED Dream-color Controller and Remote Controller, model: SD3-S1-R1) to bring you a more convenient and intelligent lighting experience.

    Fully furnished, please start your action.
    68d10cbef253c41467

    FAQ

    Frequently Asked Questions
    Q1: Is Weihui a manufacturer or a trading company?
    We are a factory and trading company, with more than ten years of experience in factory R&D,located in SHENZHEN. Expecting your visit at anytime.

    Q2: How to install the strip light?
    1. Be sure to slowly peel off the 3M adhesive protective paper layer on the strip light.
    2. Use a dust-free cloth to remove dust and oil from the mounting surface. 3. Install the strip light on a dry, clean surface.
    4. Do not touch the adhesive surface with your fingers. Press for 10 to 30 seconds after applying the tape.
    5. The ideal operating temperature range of the strip light is -20°C to 40°C (-68°F to 104°F). If the mounting temperature is below 10°C, use a hair dryer to heat the glue before sticking the strip light.

    Q3: How to get Weihui price list?
    Please feel free to contact us by email, phone or send us an inquiry, then we can send you the price list and more information by email: sales@wh-cabinetled.com.
    Also contact us directly via Facebook/Whatsapp:+8613425137716

    Q4: How do Weihui ship the goods and how long does it take to arrive?
    We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Air and sea shipping are also optional. Or you can deliver the goods through your own freight forwarder.

    Q5: What is another name for light strips?
    Light strips are often called LED light strips, LED tape light, or LED strip lights. These are long, narrow, flexible strips with embedded light-emitting diodes that can provide ideal lighting effects. LED light strips are often used for decorative purposes, accent lighting, or functional lighting in various scenarios.
    1. Part One: RGB COB LED Strip Light Parameters
    Model FC576W10-3
    Color Temperature CCT 3000K~6000K
    Voltage DC24V
    Wattage 16.0w/m
    LED Type COB
    LED Quantity 576pcs/m
    PCB Thickness 10mm
    Length of Each Group 62.5mm
    2. Part Two: Size information
    3. Part Three: Installation
    4. Part Four: Connection Diagram
