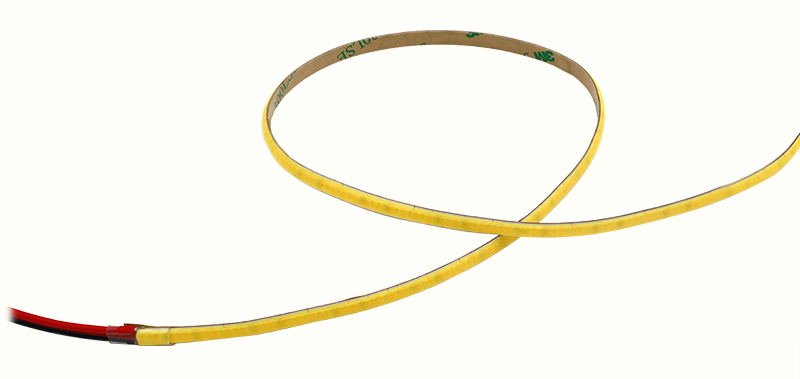

FC600W5-1 5MM Width dual white COB led strip
1. Double-sided thickened electroplated board, 5mm width, no space, beautiful installation.
2. 600 LEDs/m, no granular light, cold and warm switching, meet the daily home and atmosphere lighting.
3. High flexibility and strong adhesive backing, can be bent arbitrarily to meet your various styling needs.
4. High-density light-emitting chip, silicone integrated package, 180° wide-area light, wider and brighter.
5. Passed CE/ROHS and other certifications.
Free sample test is welcome.
Product Details & Features
1.【Technical parameters】 5mm width, 600leds/M, Power7+7w/m, cutting size 20mmmm, more conducive to the personalized design and general assembly of quick connectors.
2.【Colour rendering index & color temperature】 High colour rendering index, Ra>90, the color of the object is more real and natural. Color temperature 2700K-6500K, CCT is the main type, and different color temperatures can be customized.
3.【High-quality 3M Adhesive】Waterproof, strong adhesion, compact structure, small size, no need for additional packaging and support, time-saving and labor-saving installation.
4.【Various quick connectors】Quick connectors such as PCB to PCB, PCB to cable, L-type connector, T-type connector, etc.
5.【Soft and bendable】Can be bent arbitrarily, suitable for installation needs of various complex shapes.
6.【Constant voltage power supply】Low-voltage light strip, strong adaptability, suitable for 12V universal power supply.
7.【Professional R&D customization】Professional R&D team, customized according to your needs. Competitive price, good quality, affordable price. 3-year warranty, worry-free purchase.

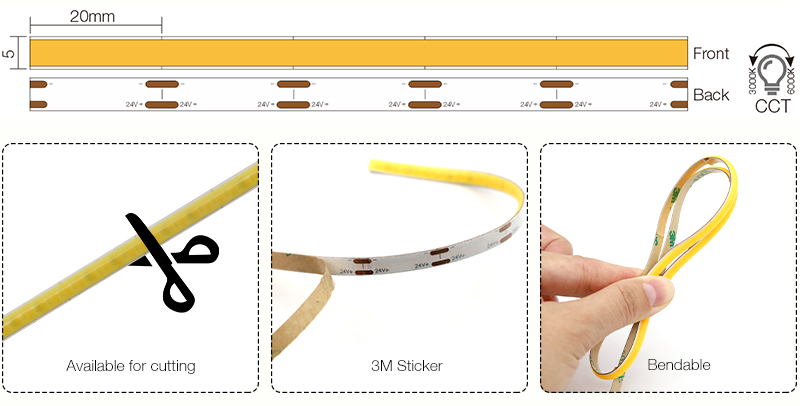

The cutting size of 20mm can be cut arbitrarily, solving the pain point of customized length.
Technical Specifications
The following Data are basic for COB strip light
We can make different quantity/Different Watt/Different Volt,etc
| Item Number | Product Name | Voltage | LEDs | PCB width | Copper thickness | Cutting Length |
| FC600W5-1 | COB-600 Series | 12V | 600 | 5mm | 35/35um | 20mm |
| Item Number | Product Name | Power(watt/meter) | CRI | Efficiency | CCT (Kelvin) | Feature |
| FC600W5-1 | COB-600 Series | 7+7w/m | CRI>90 | 60Lm/W - 80Lm/W | 2700K-6500K CCT | CUSTOM-MADE |
Color Rendering Index >90, the object's color is more real, natural, reduce color distortion.

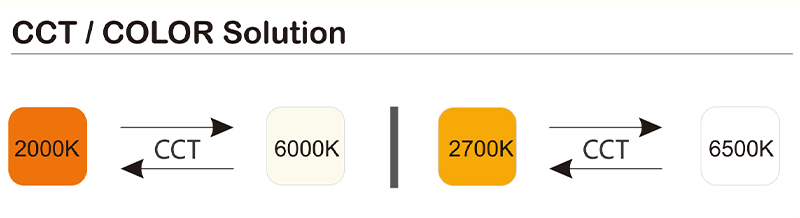

Color Temperature is welcome to customize from 2200K to 6500k.
Single color/Dual Color/RGB/RGBW/RGBCCT.etc
Application
COB strips can be used in a variety of scenarios: Installing COB strips in cabinets, living rooms, bedrooms, hotels, ceilings, bathrooms, walls, etc. can illuminate the area, reduce shadows, and enhance the atmosphere of the space.

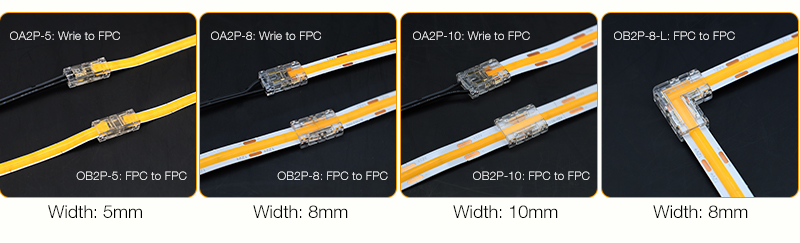

Connection and Lighting solutions
【Various Quick Connector】Applicable to various quick connector, Welding Free Design
【PCB to PCB】 For connecting two pieces of different COB strips, such as 5mm/8mm/10mm,etc
【PCB to Cable】Used to light up the COB strip, connect the COB strip and wire
【L-type Connector】Used to extend Right Angle Connection COB Strip.
【T-type Connector】Used to extend T Connector COB Strip.

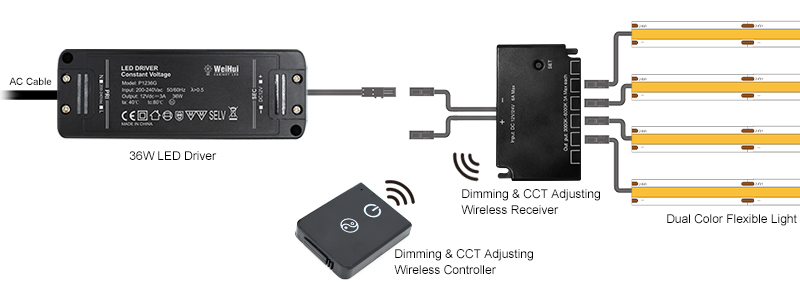

When we use COB LED light strips in cabinets or other home places, you can use them in combination with dimming and color-adjusting switches to maximize the effect of the light strips. As a one-stop cabinet lighting solution provider, we also have matching dimming & CCT adjusting wireless controllers (remote control S5B-A0-P3 + receiver: S5B-A0-P6). Please continue reading below for the connection method:

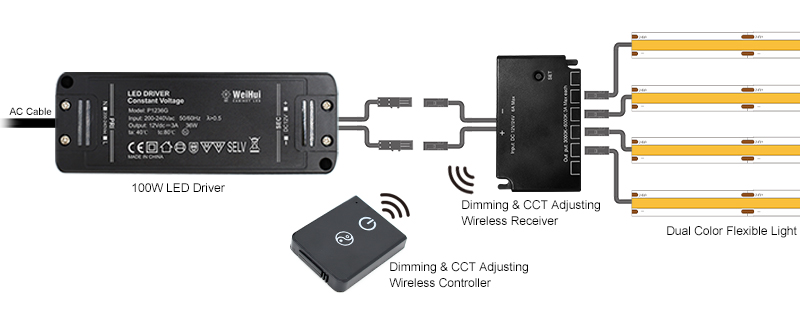

1. To carry higher power light strips, the receiver is equipped with two input wires:
2. Of course, if the total power of your light strip is very small, you can also connect only one of the receiver wires.
FAQ
Q1: Is Weihui a manufacturer or a trading company?
We are a factory and trading company, with more than ten years of experience in factory R&D,located in SHENZHEN. Expecting your visit at anytime.
Q2: What is the lead time?
3-7 working days for samples if in stock.
Bulk orders or customized design for 15-20 working days.
Q3: Can WeiHui's COB-LED light strips be cut?
How to cut led light strips? To cut the COB strip, you only need a pair of scissors. The PCB board of the light strip has clearly marked the places that can be cut, and it can be cut along these lines.
Q4: How do we develop new products?
1. Market research;
2. Project establishment and formulation of project plan;
3. Project design and review, cost budget estimation;
4. Product design, prototype making and testing;
5. Trial production in small batches;
6. Market feedback.
| Model | FC600W5-1 | |||||||
| Color Temperature | 2700K-6500K CCT | |||||||
| Voltage | DC24V | |||||||
| Wattage | 7+7w/m | |||||||
| LED Type | COB | |||||||
| LED Quantity | 600pcs/m | |||||||
| PCB Thickness | 5mm | |||||||
| Length of Each Group | 20mm | |||||||
