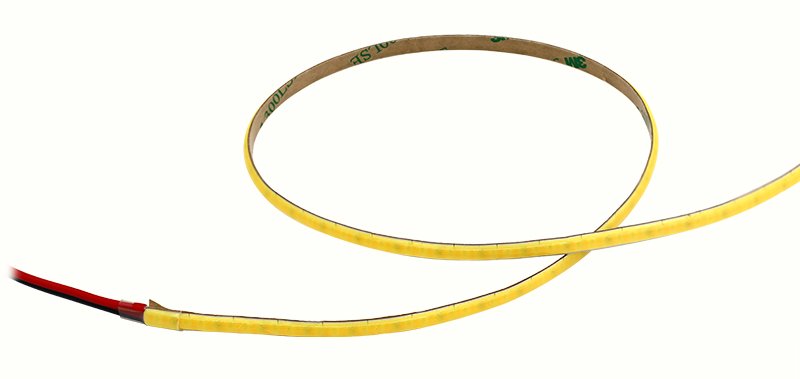

FC600W5-2 5MM COB Dual Color Strip Light with CCT Change
5MM ultra-thin narrow COB light strip, 2700-6500K Tunsble Color Temperature, can be bent and cut arbitrarily, 600 LEDs/M, high-density lamp beads, using sealed silicone technology, 180° uniform light emission, high brightness, soft light. Concealed led strip light has no main light, enriches the home decoration environment atmosphere, and enhances the home taste.
Free sample test is welcome.
Product Details & Features
1.【Light Efficiency】Flexible lights have a high color rendering index, Ra>90, high-quality production of light strips are not afraid of any contrast, 180° ultra-wide-angle luminous surface, linear light, more uniform, no spots, and no dark areas.
2.【Low Voltage Light Strip】12V safe voltage, human body contact will not cause electric shock, use with confidence.
3.【High Quality 3M Adhesive】Strong back glue, using high-quality 3M glue, temperature resistance, strong viscosity, easy to use.
4.【Soft and bendable】 With strong flexibility, high folding resistance and strong adhesion, it can be made into a variety of shapes, so you can enjoy your DIY journey.

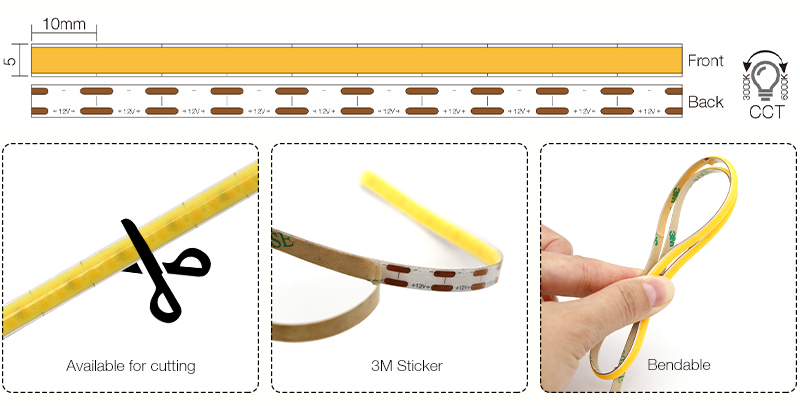

5.【Cuttable】 5mm CCT strip light can be cut. When you don't need to use the whole strip, you can cut it freely according to your needs, 10mm per cut to avoid waste.
6.【After-sales service】 3-year warranty, worry-free purchase. If you encounter any problems during the use of the product, please contact Weihui in time, Weihui will provide you with professional guidance and satisfactory solutions!
The cutting size of 10mm can be cut arbitrarily, solving the pain point of customized length.
Technical Specifications
The following Data are basic for COB strip light
We can make different quantity/Different Watt/Different Volt,etc
| Item Number | Product Name | Voltage | LEDs | PCB width | Copper thickness | Cutting Length |
| FC600W5-2 | COB-600 Series | 24V | 600 | 5mm | 35/35um | 20mm |
| Item Number | Product Name | Power(watt/meter) | CRI | Efficiency | CCT (Kelvin) | Feature |
| FC600W5-2 | COB-600 Series | 7+7w/m | CRI>90 | 60Lm/W - 80Lm/W | 2700K-6500K CCT | CUSTOM-MADE |
Color Rendering Index >90, the object's color is more real, natural, reduce color distortion.

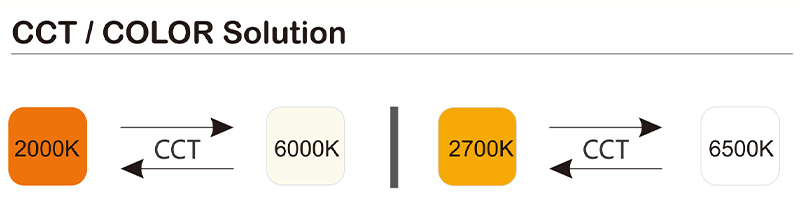

Color Temperature is welcome to customize from 2200K to 6500k.
Single color/Dual Color/RGB/RGBW/RGBCCT.etc

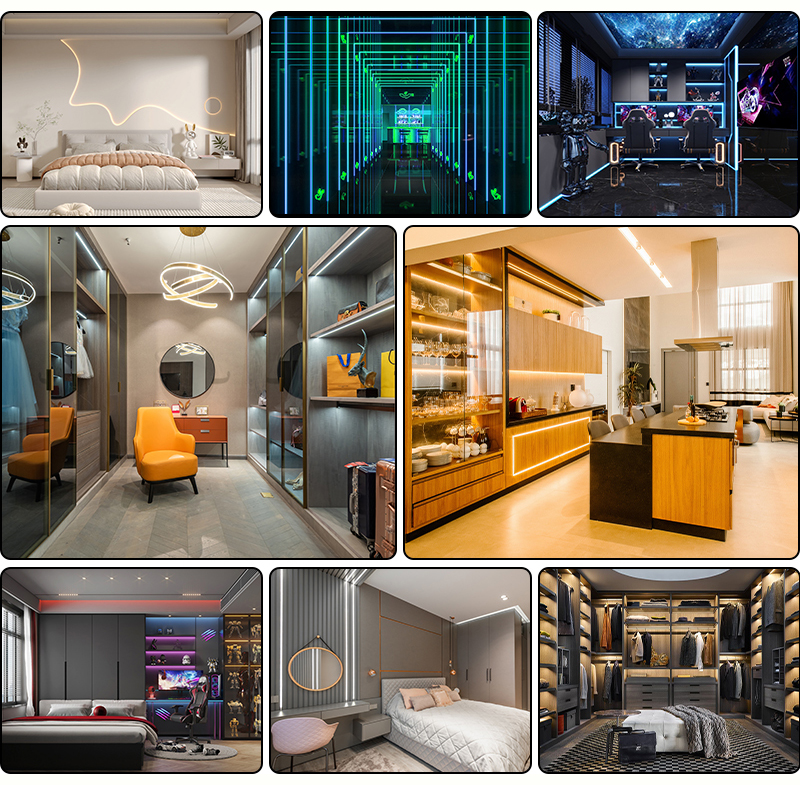

Application
Durable and widely used： Bright strip lights are different from single-sided PCBs. They truly adopt double-layer PCB design, which is more resistant to pressure and not easy to be damaged or deformed. With sturdy 3M tape, 5mm CCT strip light can be connected and installed with the ground. It is very suitable for kitchens, cabinets, bedrooms, stairs, mirrors, corridors, DIY backlights, and other home places.

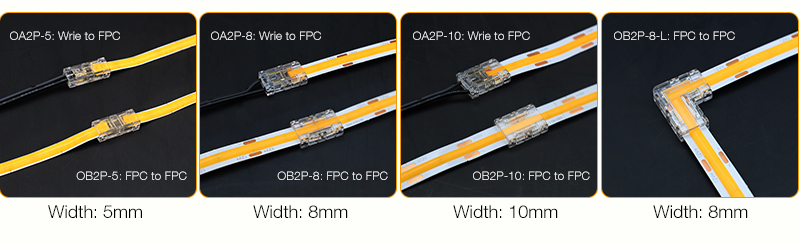

Connection and Lighting solutions
【Various Quick Connector】Applicable to various quick connector, Welding Free Design
【PCB to PCB】 For connecting two pieces of different COB strips, such as 5mm/8mm/10mm,etc
【PCB to Cable】Used to light up the COB strip, connect the COB strip and wire
【L-type Connector】Used to extend Right Angle Connection COB Strip.
【T-type Connector】Used to extend T Connector COB Strip.

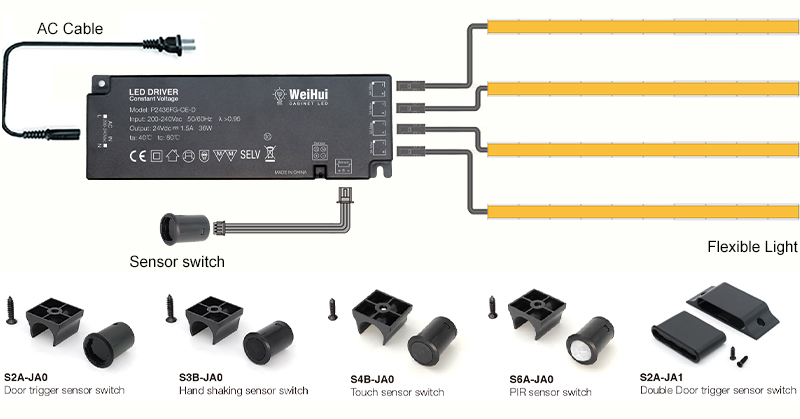

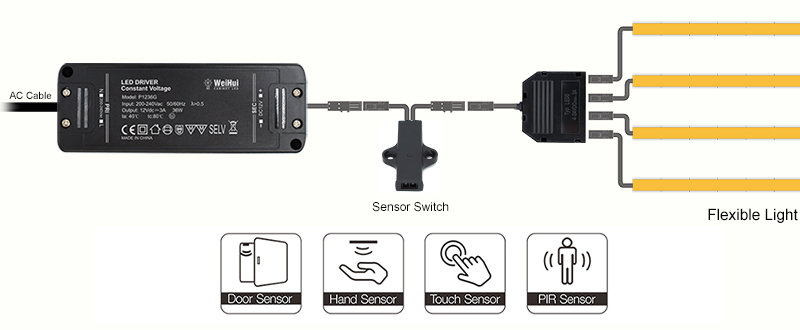

When we use COB LED light strips in cabinets or other home places, you can use them in combination with dimming and color-adjusting switches to maximize the effect of the light strips. As a one-stop cabinet lighting solution provider, we also have matching dimming & CCT adjusting wireless controllers (remote control S5B-A0-P3 + receiver: S5B-A0-P6). Please continue reading below for the connection method:
1. To carry higher power light strips, the receiver is equipped with two input wires:
2. Of course, if the total power of your light strip is very small, you can also connect only one of the receiver wires.
FAQ
Q1: Is Weihui a manufacturer or a trading company?
We are a factory and trading company, with more than ten years of experience in factory R&D,located in SHENZHEN. Expecting your visit at anytime.
Q2: Can you costomize products according to our request?
Yes, you can customize the design or choose our design (OEM / ODM is very welcome). Actually Custom-made with small quantity is our unique advantages, such as LED Sensor switches with different programming, We can make it with your request.
Q3: How to get samples from Weihui?
Yes, Free samples are available with small quantities.
For prototypes, The sample fee will be returned to you when order is confirmed.
Q4: What are the advantages of WEIHUI and its items ?
1.WEIHUI has more than 10 years LED factory research and development experience.
2.We have a professional R&D team and launch new products every month.
3.Provide three or Five-year warranty service, quality guaranteed.
4. WEIHUI provides a variety of smart LED lights, which could satisfy different customers' demands. Also we could meet the requirements of high –quality and high cost –effective.
5.Custom-made/ no MOQ and OEM available.
6.Only focus on complete solutions on cabinet & furniture lighting;
7.Our products have passed CE, EMC RoHS WEEE, ERP and other certifications.
| Model | FC600W5-2 | |||||||
| Color Temperature | 2700K-6500K CCT | |||||||
| Voltage | DC12V | |||||||
| Wattage | 7+7w/m | |||||||
| LED Type | COB | |||||||
| LED Quantity | 600pcs/m | |||||||
| PCB Thickness | 5mm | |||||||
| Length of Each Group | 10mm | |||||||
