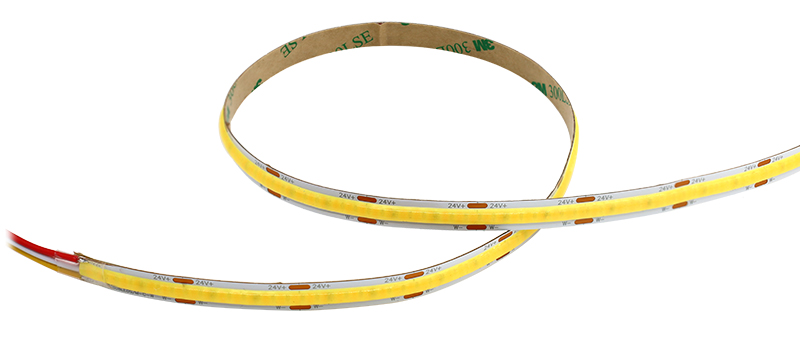

FC608W8-2 8MM CCT COB LED Strip Tunable 2700K-6500K
COB&SCOB Light Series

FC608W8-2 8MM CCT COB LED Strip Tunable 2700K-6500K

Short Description:

The COB LED strip adopts a high-density chip layout of 608LEDs/M and a color rendering index of 90+, providing uniform, soft, flicker-free lighting. The light strip can be cut at the cutting mark, and the cutting size is 26.30mm. The cut strip light can also be reconnected at these cutting marks by soldering or using connectors. The 8mm width and bendable flexible design are very convenient for DIY in various scenes. Smart home led strip adopts a compact, lightweight design and a flexible 3M adhesive mounting method, excellent energy efficiency, provides high brightness at low power consumption, and helps reduce energy consumption.

Free sample test is welcome.

ce

    Product Details & Features


    1.【Professional R&D】Weihui is a leader in professional lamps! Provide customers with professional lamps and accessories. This CCT COB LED Strip is made of double-layer pure copper PCB, which makes the COB LED lamp have excellent conductivity and heat dissipation. 608 LEDs on each meter of light strip light up at the same time, and there seems to be almost no black spots, giving the strip light amazing brightness!
    2.【Lighting effect】 COB recessed strip lighting has higher brightness than traditional LED light strips, high-density lamp beads 180° luminous wide angle, high luminous efficiency, uniform light without spots, smooth and soft light, avoiding color difference, light attenuation and dead light.
    3.【High color rendering index, enhanced visual effect】 CCT strip lights have a color rendering index of up to 90+, with excellent color reproduction, making objects more realistic and vivid! High color rendering index can relieve visual fatigue and make your eyes comfortable and relaxed!
    4.【Cutable and cuttable】 Adhesive led lights are very flexible! You can cut the strip light every 26.30mm at the cutting mark of the strip light, or you can also reconnect the strip lights at these cutting marks by welding or using 8mm connectors, excellent flexibility allows you to get a perfect DIY project solution!
    5.【Easy to install】 Plug and play side emitting LED, can be bent as needed, with 3M high-quality adhesive on the back, which can be easily attached to the wall or any smooth and clean location.
    6.【Support Customized Service and Warranty】Support large-scale customized services to meet your business needs! 5-year warranty, if you have any questions or installation needs, please ask Weihui for help.

    68d10d03819c538074

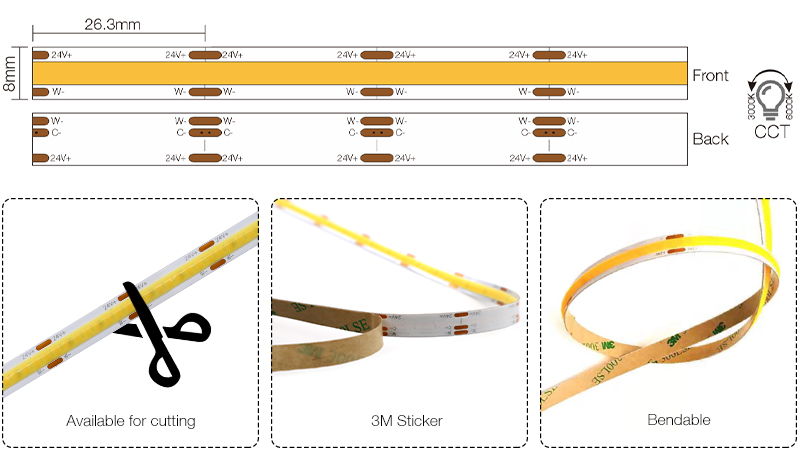

    The cutting size of 26.3mm can be cut arbitrarily, solving the pain point of customized length.

    68d10d050f49380040

    Technical Specifications


    The following Data are basic for COB strip light
    We can make different quantity/Different Watt/Different Volt,etc

    Item Number Product Name Voltage LEDs PCB width Copper thickness Cutting Length
    FC608W8-2 COB-608 Series 24V 608 5mm 25/25um 26.3mm
    Item Number Product Name Power(watt/meter) CRI Efficiency CCT    (Kelvin) Feature
    FC608W8-2 COB-608 Series 6+6w/m CRI>90 80Lm/W-100Lm/W 2700K-6500K CCT CUSTOM-MADE

    Color Rendering Index >90, the object's color is more real, natural, reduce color distortion.

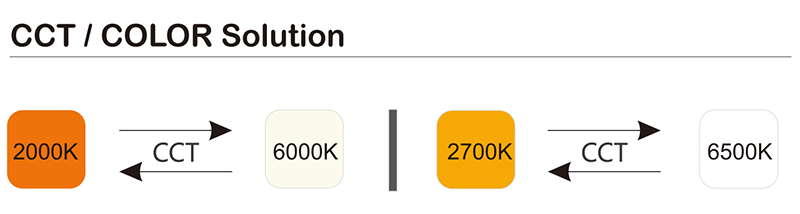

    Color Temperature is welcome to customize from 2200K to 6500k.
    Single color/Dual Color/RGB/RGBW/RGBCCT.etc



    68d10d06e36bc94456

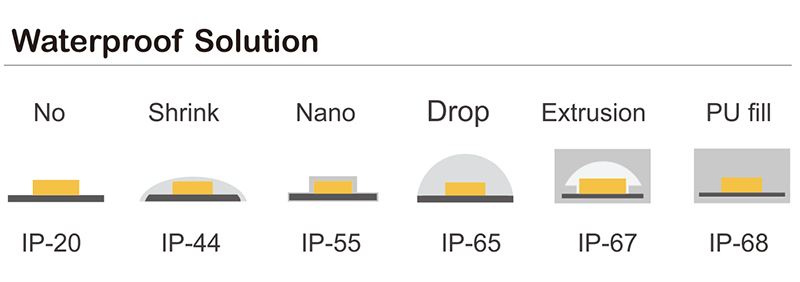

    Waterproof IP Level, This COB strip is IP20 and can be customized with a waterproof and dustproof rating for outdoor, wet or special environments.
    68d10cb76054a11964

    Application

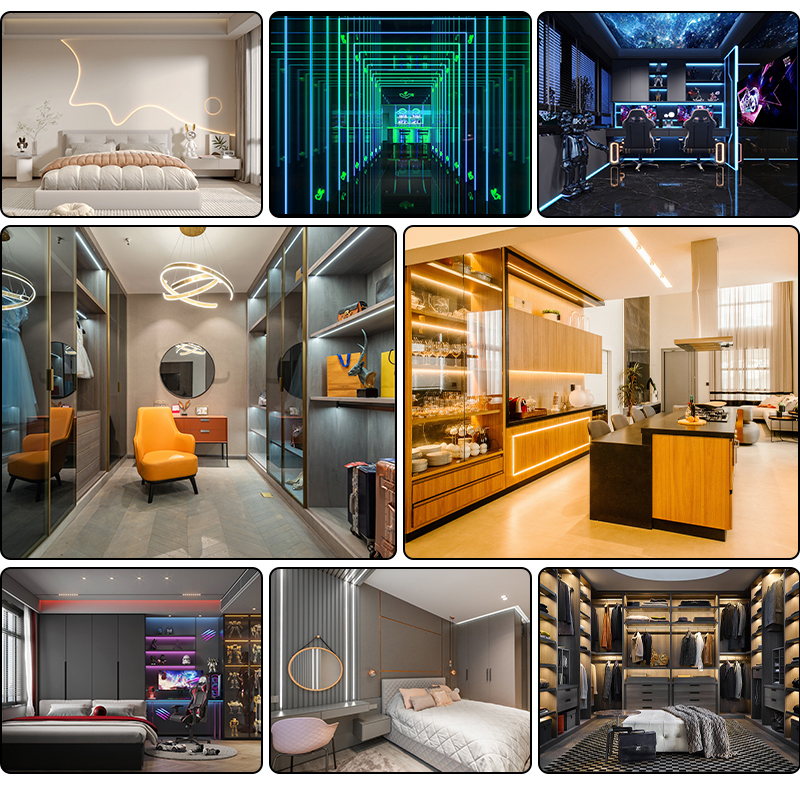

    This flexible COB strip can be installed and mounted on a clean surface. It is suitable for home lighting such as living room, kitchen, cabinet, dining room, bedroom, staircase, etc. Let every corner of your home be filled with light.

    68d109e4cc82471591

    Connection and Lighting solutions

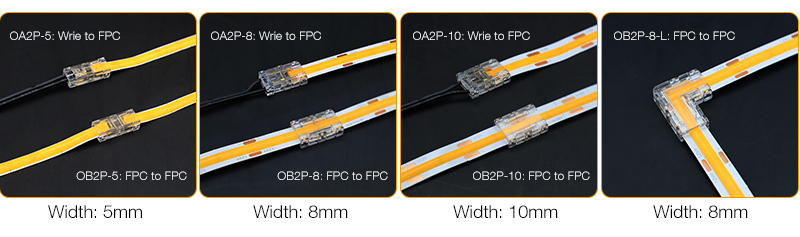

    【Various Quick Connector】Applicable to various quick connector,  Welding Free Design
    【PCB to PCB】 For connecting two pieces of different COB strips, such as 5mm/8mm/10mm,etc
    【PCB to Cable】Used to light up the COB strip, connect the COB strip and wire
    【L-type Connector】Used to extend Right Angle Connection COB Strip.
    【T-type Connector】Used to extend T Connector COB Strip.

    68d109e73abf470411

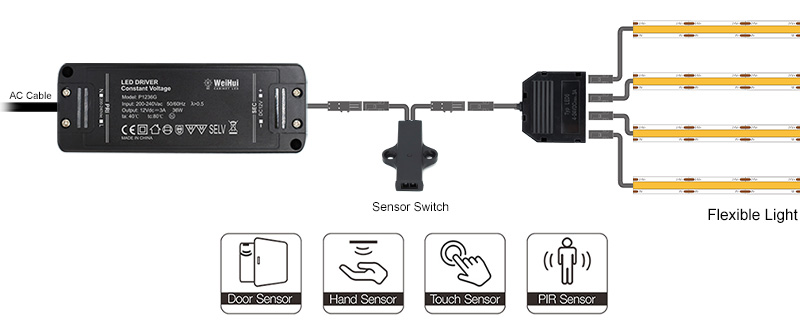

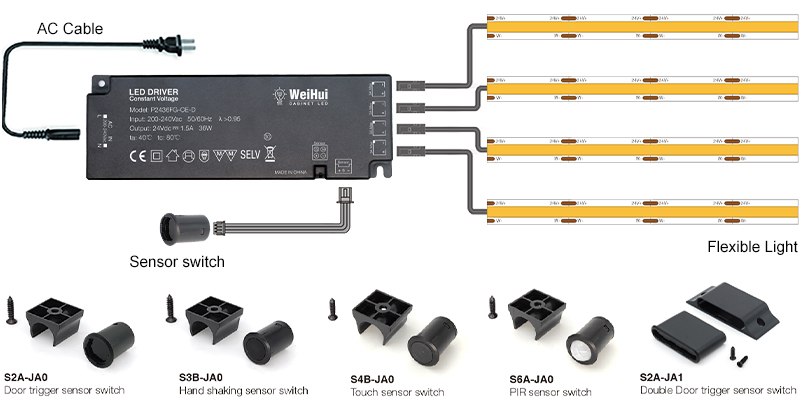

    When we use COB LED light strips in cabinets or other home places, you can use them in combination with dimming and color-adjusting switches to maximize the effect of the light strips. As a one-stop cabinet lighting solution provider, we also have matching dimming & CCT adjusting wireless controllers (remote control S5B-A0-P3 + receiver: S5B-A0-P6). Please continue reading below for the connection method:

    1. To carry higher power light strips, the receiver is equipped with two input wires:



    68d10d0e7a07388237

    2. Of course, if the total power of your light strip is very small, you can also connect only one of the receiver wires.



    68d109e7b06a532352

    FAQ


    Q1: Is Weihui a manufacturer or a trading company?
    We are a factory and trading company, with more than ten years of experience in factory R&D,located in SHENZHEN. Expecting your visit at anytime.



    Q2: How to pay for the products?
    Our regular payment terms are T/T (T/T payment Terms: 30% deposit in advance and 70% before shipping). For long term cooperation clients, We can accept the payment after they get the goods.



    Q3: Is it OK to print my logo on product?
    Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



    Q4: How can Weihui guarantee the quality?
    1. Formulate corresponding company inspection standards to suppiers, production departments and qualty control center, etc.
    2. Control strictly the quality of raw material, inspection production in multiple directions.
    3. 100% Inspection and aging testing for finished product, storage rate no less than 97%
    4. All inspections have records and responsible persons. All records are reasonable and well-documented.
    5. All employees would be given professional training bofore officially working. Perodic training update.

    1. Part One: COB Flexible Light Parameters
    Model FC608W8-2
    Color Temperature 2700K-6500K CCT
    Voltage DC24V
    Wattage 6+6w/m
    LED Type COB
    LED Quantity 608pcs/m
    PCB Thickness 8mm
    Length of Each Group 26.3mm
    2. Part Two: Size information and Installation
    68d10d050f49380040
    33. Part Three: Connection Diagram
    68d10d0ca163f61938
    Solution DesignCustom-made ColorCustom-made LogoPackage Design
