S7B-A5P Mirror Cabinet LED Lighting Hand Motion Sensor Switch With Stepless Dimming
Short Description:
Hand Motion Sensor Switches, no longer need to worry about wet hand control switch, do not need to touch the switch can be controlled, keep the mirror clean, will not leave fingerprints on the mirror.
WELCOME TO ASK FREE SAMPLES FOR TESTING PURPOSE
Why Choose this item?
Advantages:
1.【 Characteristic 】Hand wave sensor, Installed behind a mirror or wooden board, Touch the mirror or board to control the light.
2.【 More beautiful】Switch installation rear mirror can not see the switch accessories, just see the backlight exposed touch mark, beautiful.
3.【Easy installation】3M sticker, no slot drilling, more convenient installation.
4. 【More intelligent】 Do not need to touch the switch, wet hands can also directly control the switch, to avoid leaving stains on the mirror
5.【Reliable after-sales service】With a 3-year after-sales guarantee, you can contact our business service team at any time for easy troubleshooting and replacement, or have any questions about purchase or installation, we will do our best to help you.

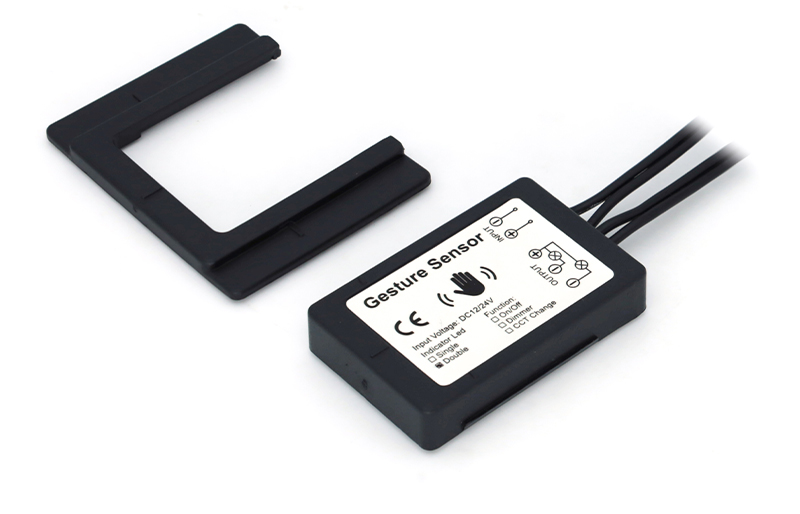

Product Details
The sticker on the cables also show our details to you. TO POWER SUPPLY OR TO LIGHT with different marks
It remind you the positivie and negative clearly too.
3M sticker, more convenient installation.

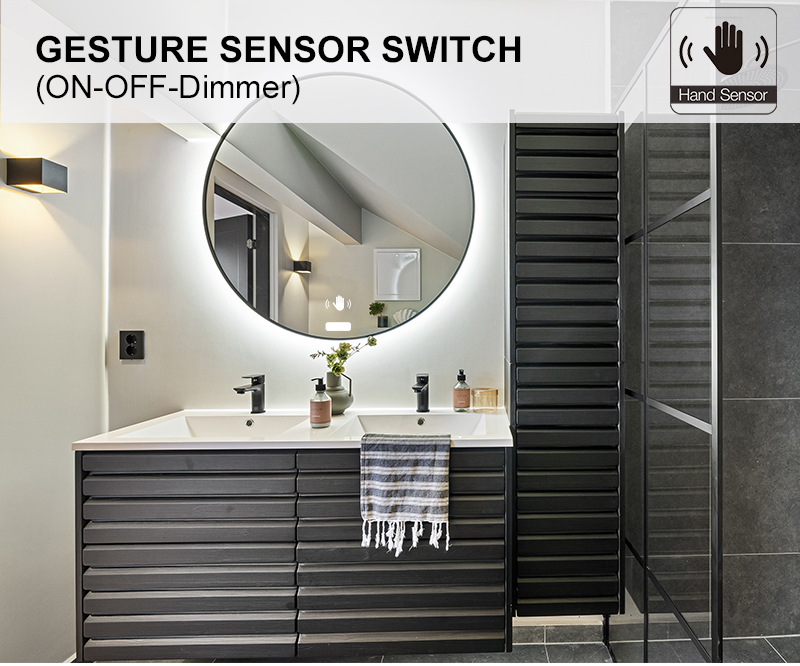

Function Show
Proximity Smart Sensor For Mirror gently wave the light will turn on, wave the light will turn off, keep the hand in front of the switch for dimming, do not need to touch the switch can control, will not leave stains on the mirror
Application
Because the Mirror Cabinet Led Lighting Hand Wave Sensor has the ability to penetrate the mirror, the switch can be applied to various mirrors such as bathroom mirrors, shopping malls bathroom mirrors and makeup tables, which is easy to install and use, and does not affect the overall beauty of the mirror.

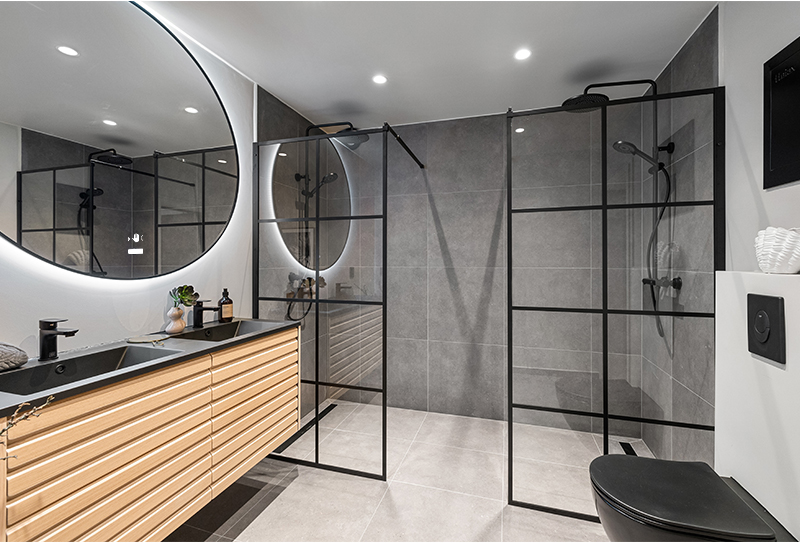

1.Bathroom scene application
Picuture from: Ice Baths Australia

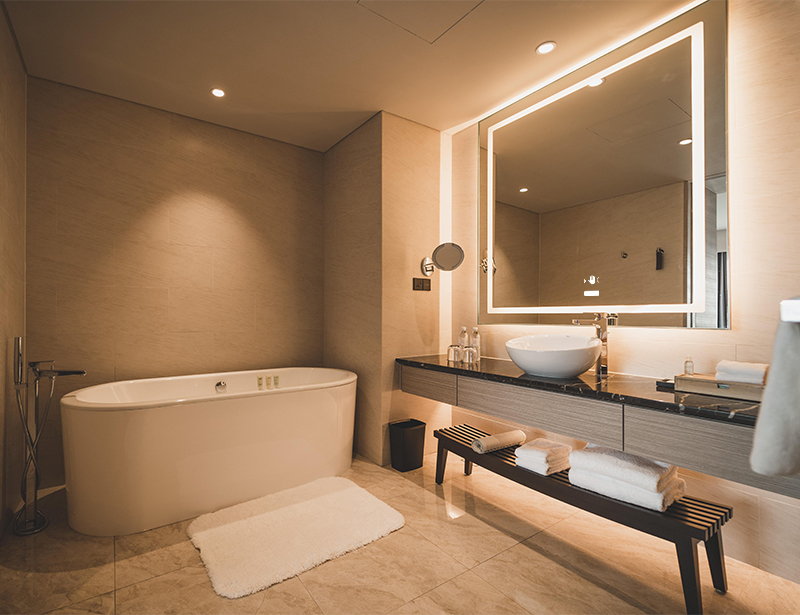

2.Bathroom scene application
Connection and Lighting solutions
1. Separate Controlling system
When you use the normal led driver or you buy led driver from other suppliers, You can still use our sensors.
At first, You need to connect led strip light and led driver to be as a set.
Here when you connect led touch dimmer between led light and led driver successfully, You can control the light on/off.

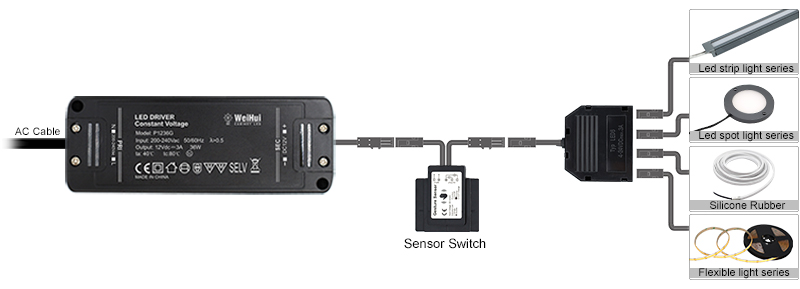

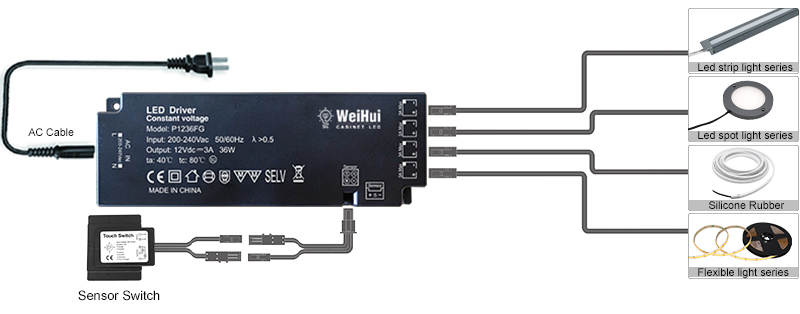

2. Central Controlling system
Meanwhile, If you can use our smart led drivers, You can control the whole system with only one sensor.
The sensor would be much competitive. and No need to worry about compatibility with led drivers too.
1. Part One: Mirror Switch Parameters
| Model | S7B-A5P | S7D-A5P | ||||||
| Function | ON/OFF/Gesture sensor | ON/OFF/Gesture sensor/CCT Change | ||||||
| Size | 37x51x12mm, 65x45x4mm(Clips) | |||||||
| Voltage | DC12V / DC24V | |||||||
| Max Wattage | 60W | |||||||
| Detecting Range | 5-8cm | |||||||
| Protection Rating | IP20 | |||||||

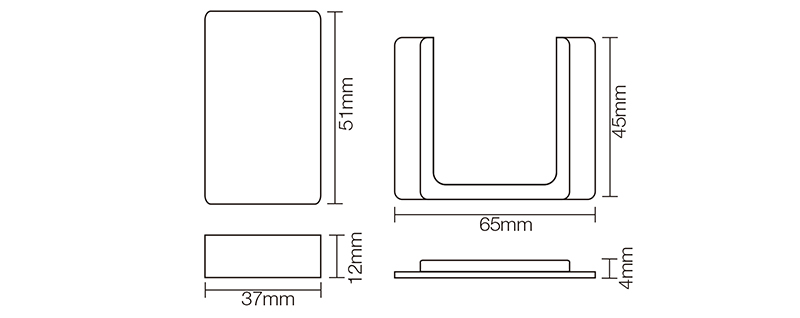

2. Part Two: Size information

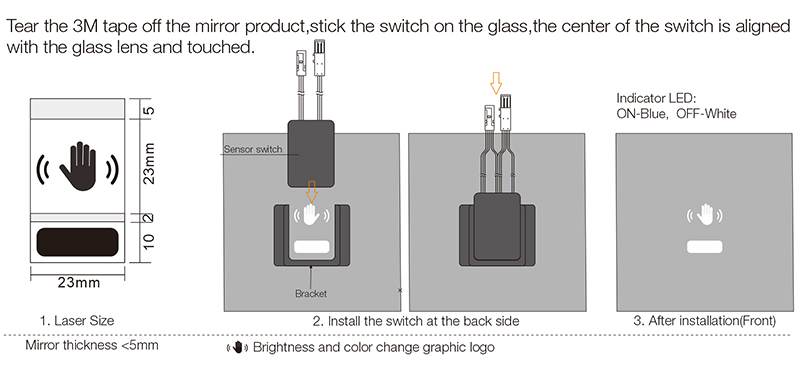

3. Part Three: Installation

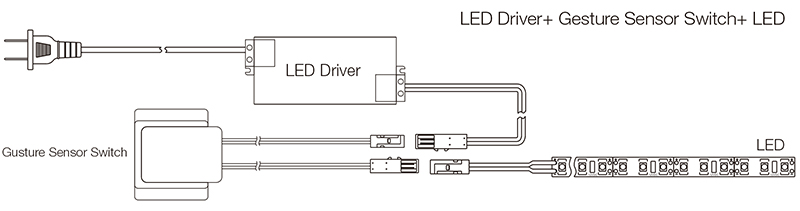

4. Part Four: Connection Diagram
