S7B-A1 Mirror IR Touch Sensor With Dimmer
Short Description:
The Led Ir Sensor Switch For Mirror is installed on the back of the mirror, and it is switched at any time when the light needs to be filled, and does not affect the beauty of the mirror, and the backlight indicator indicates the switch position at any time.
WELCOME TO ASK FREE SAMPLES FOR TESTING PURPOSE
Why Choose this item?
Advantages:
1.【 Characteristic 】Touch Mirror Sensor Switches, Installed behind a mirror or wooden board, Touch the mirror or board to control the switch.
2.【 More beautiful】Switch installation rear mirror can not see the switch accessories, just see the backlight exposed touch mark, beautiful.
3.【Easy installation】3M sticker, no slot drilling, more convenient installation.
4.【Enhance atmosphere】The dimming function can adjust the brightness according to the scene to enhance the atmosphere.
5.【Reliable after-sales service】With a 3-year after-sales guarantee, you can contact our business service team at any time for easy troubleshooting and replacement, or have any questions about purchase or installation, we will do our best to help you.

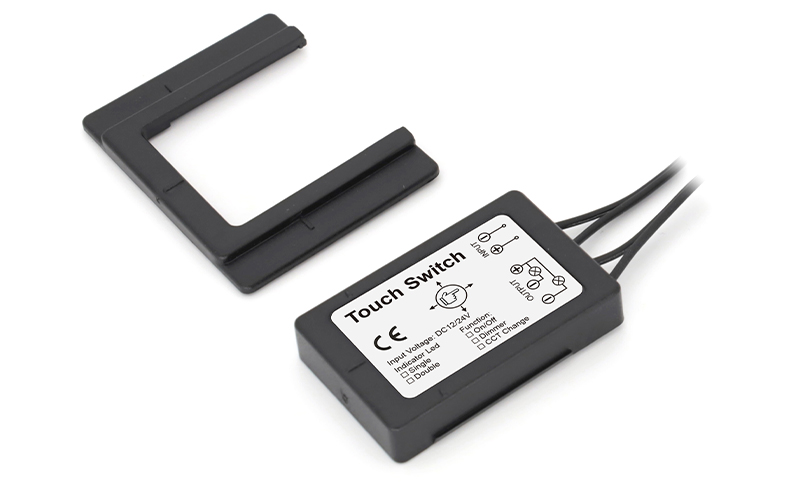

Product Details

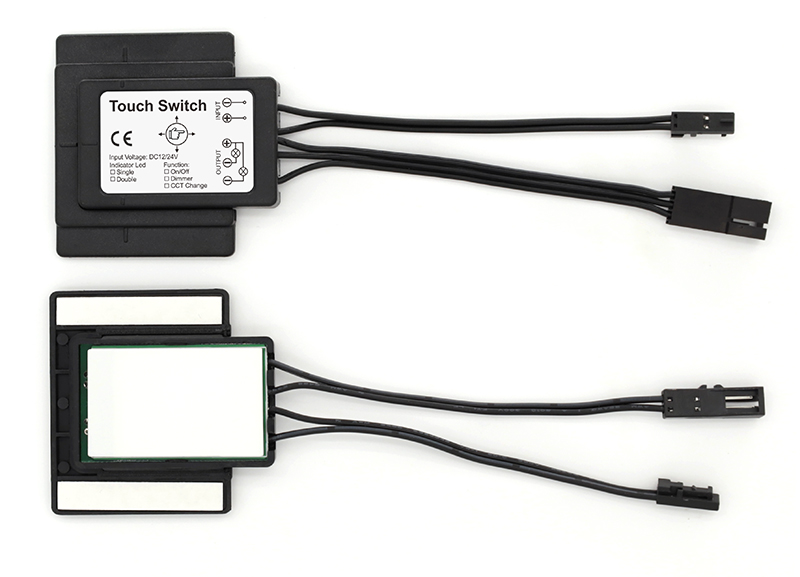

Led Sensor For Mirror parameters are posted on the switch, and blue and white indicators are displayed on the back.

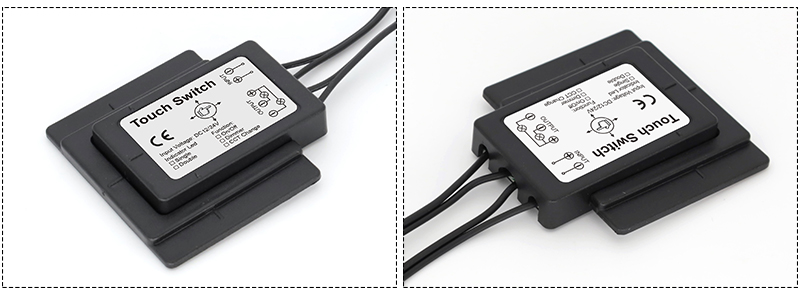

3M sticker, more convenient installation

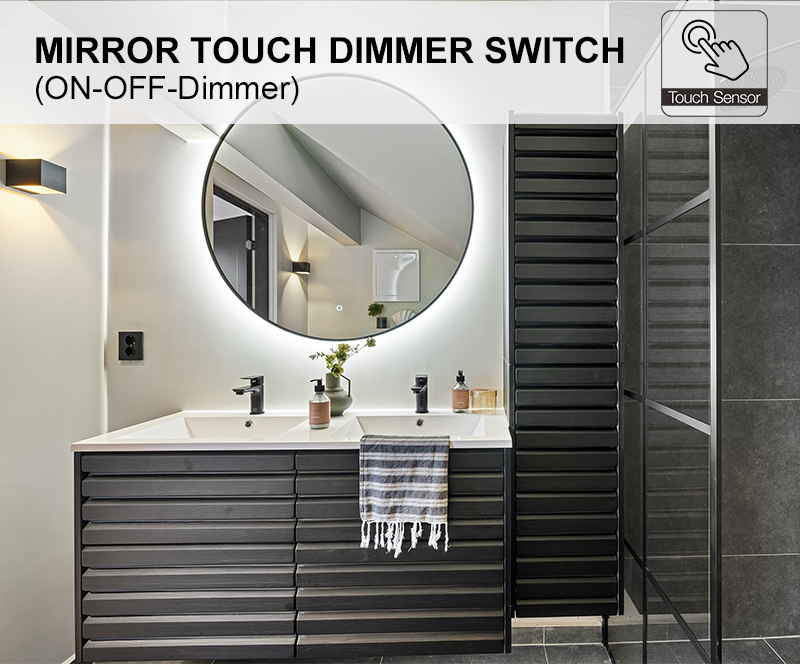

Function Show
The Mirror Touch Dimmer Sensor is installed on the back of the mirror, which does not affect the overall aesthetic feeling. The backlight of the switch will show the position and status of the mirror touch switch, and the light will be on/off with a slight press. The long press can adjust the brightness you want.
Application
Because the led mirror touch sensor has the ability to penetrate the mirror, the low voltage led dimmer switch can be applied to various mirrors such as bathroom mirrors, shopping malls bathroom mirrors and makeup tables, which is easy to install and use, and does not affect the overall beauty of the mirror.

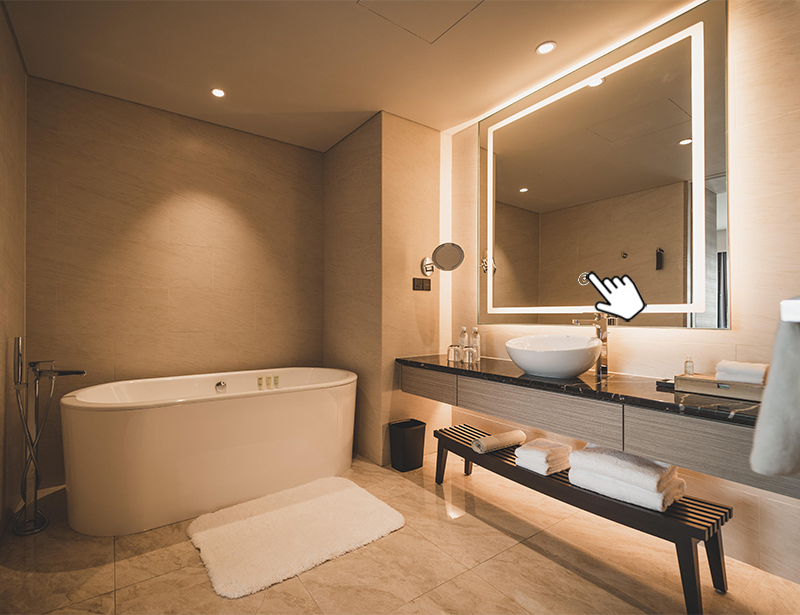

1.Bathroom scene application
Picuture from: Ice Baths Australia

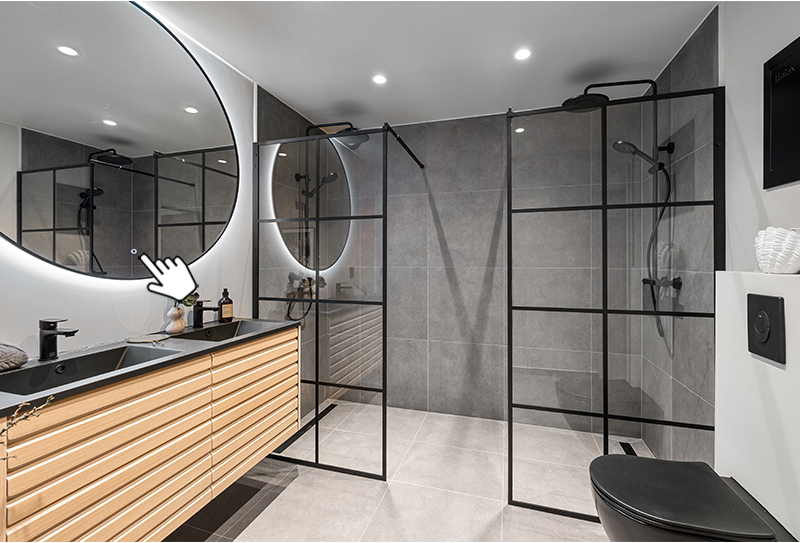

2.Bathroom scene application
Connection and Lighting solutions

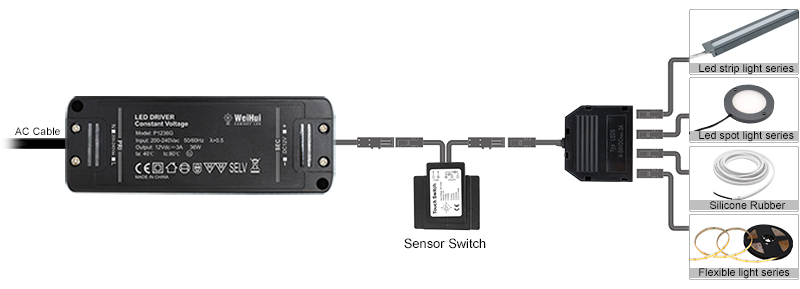

1. Separate Controlling system
When you use the normal led driver or you buy led driver from other suppliers, You can still use our Led Ir Sensor Switches For Mirror.
At first, You need to connect led strip light and led driver to be as a set.
Here when you connect led touch dimmer between led light and led driver successfully, You can control the light on/off.
2. Central Controlling system
Meanwhile, If you can use our smart led drivers, You can control the whole system with only one sensor.
The sensor would be much competitive. and No need to worry about compatibility with led drivers too.
1. Part One: Mirror Switch Parameters
| Model | S7B-A1 | S7D-A1 | ||||||
| Function | ON/OFF/Dimmer | ON/OFF/Dimmer/CCT Change | ||||||
| Size | 50x33x10mm, 57x46x4mm(Clips) | |||||||
| Voltage | DC12V / DC24V | |||||||
| Max Wattage | 60W | |||||||
| Detecting Way | Touch Tyoe | |||||||
| Protection Rating | IP20 | |||||||

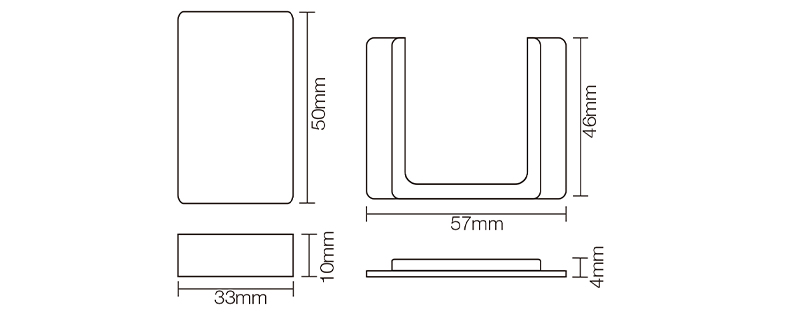

2. Part Two: Size information

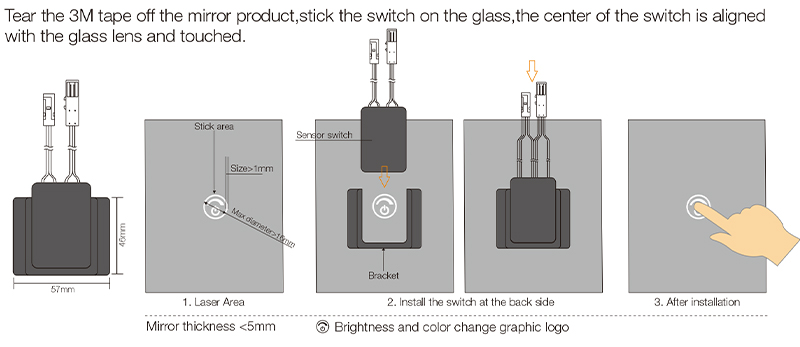

3. Part Three: Installation

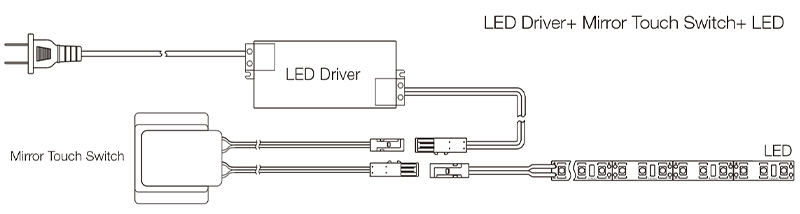

4. Part Four: Connection Diagram
