S5B-A0-P5 Multi-terminal Junction Box-LED Strip Light Receiver
Short Description:
1. This multi cable junction box (It’s also a junction box.) is a high-performance accessory designed by Weihui specifically for LED smart lighting systems.It integrates wireless dimming and six output ports, simplifying the lighting installation and wiring process, improving system connection efficiency and stability.
2. It is a crucial component of smart lighting systems and is particularly suitable for clients who demand minimal installation and system stability. When used with Weihui smart controllers and lighting products, it significantly enhances lighting system integration and construction efficiency.
We also offer full customization and OEM products.
WELCOME TO ASK FREE SAMPLES FOR TESTING PURPOSE
Why Choose this item?
Advantages:
1. 【Six-way Output, Improved Wiring Efficiency】 Multi terminal junction box supports simultaneous connection of six lighting channels, solving complex lighting wiring issues.
2. 【Wireless Receiver, Flexible Pairing】 Compatible with Weihui's wireless dimming controllers (models: S5B-A0-P1 and S5B-A0-P2), led light receiver enables unified control and brightness adjustment of multiple lights, enhancing the user experience.
3. 【Sleek Appearance, Simple Wiring】 Standardized input and output ports eliminate the need for soldering, making installation easy.
4. 【High Load Capacity, Stable Operation】 Supports a maximum current of 8A, meeting the needs of high-power light strips and fixtures. It features low power consumption, sensitive sensing, low heat generation, and stable reliability.
5. 【Optional Technical Solutions】 The electrical junction box is available in standard and upgraded versions. The standard version saves brightness after power failure, while the upgraded version saves status and brightness after power failure.
Product Details
Features:
| Item Name | Feature Description |
| Model | S5B-A0-P5 |
| Name | Multi cable junction box and Wireless Dimmer Receiver |
| Woking Voltage | DC12V/24V |
| Maximum Load | 100W |
| Control Method | GFSK, smooth and seamless dimming, no visible flicker |
| Size | 76x47x15mm, small and light |
| Function | 5%-100% dimming gradient (requires use with S5B-A0-P1 or S5B-A0-P2) |
| Technical Options | Available with status and brightness retention after power failure or brightness retention after power failure |
Product Details:
1. Clear port markings prevent device damage caused by incorrect polarity.
2. High-quality ABS material is heat-resistant and flame-retardant, extending its service life.
3. Miniature and lightweight, its compact size makes it easy to conceal within furniture structures.
Function Show
The dimmer switch can fully play its dimming function only by combining with this led strip light receiver. If you need to connect more light strips, this multi cable junction box can also help you. It has 6 terminals to meet your lighting needs.
Application
This wireless dimming receiver can be used with various wireless switch controllers and is compatible with various smart devices, including motion sensors and touch switches. It allows for dimming and features flexible connection options, making it ideal for centralized power supply and control of multiple lighting locations, such as cabinet lights, shelf lights, and wardrobe lights.
For more applications, please contact our sales managers or refer to our Specifications.

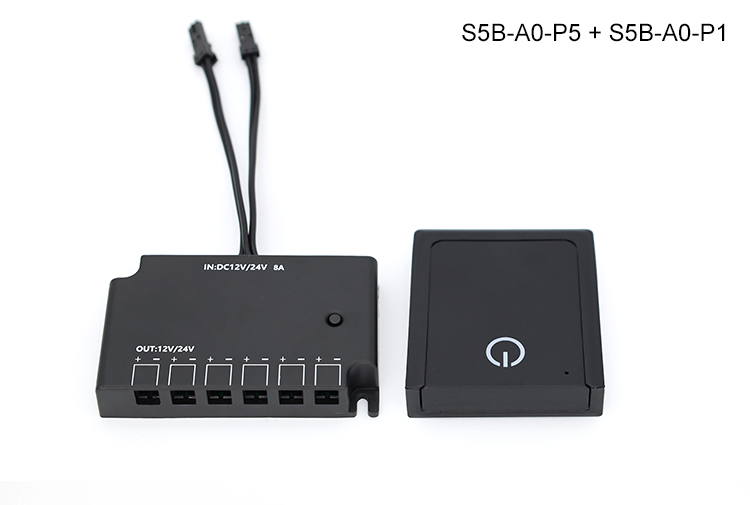

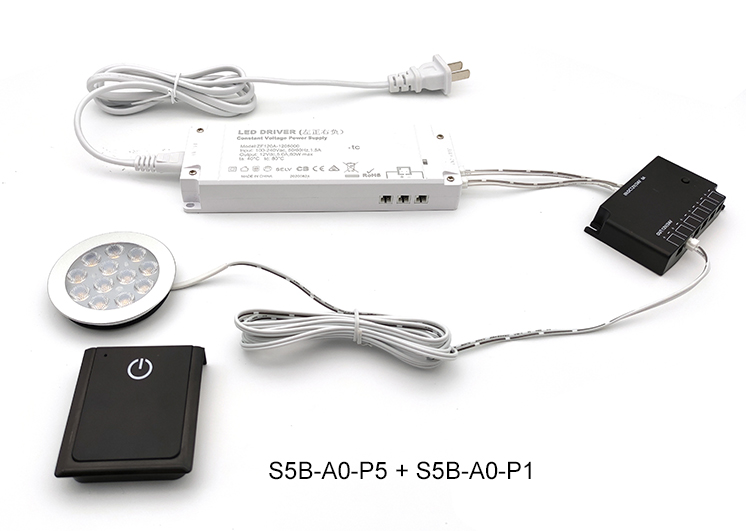

Scenario 1: Wireless Dimming Receiver + Single Touch Wireless Controller (Model: S5B-A0-P1)

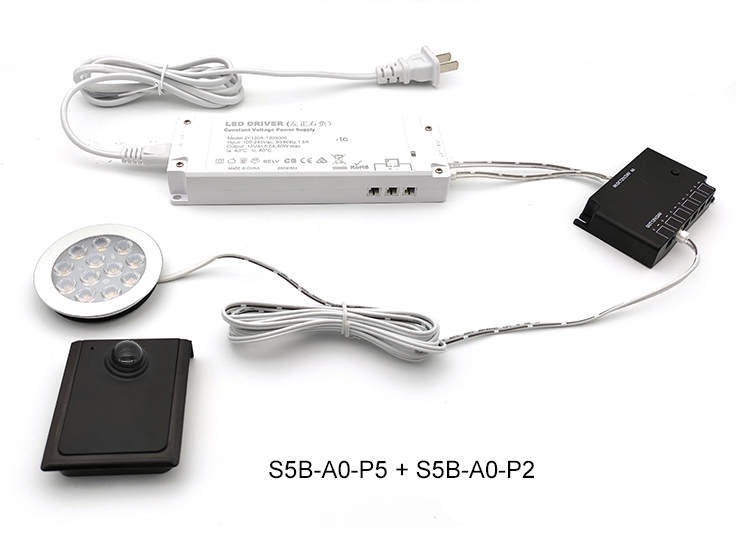

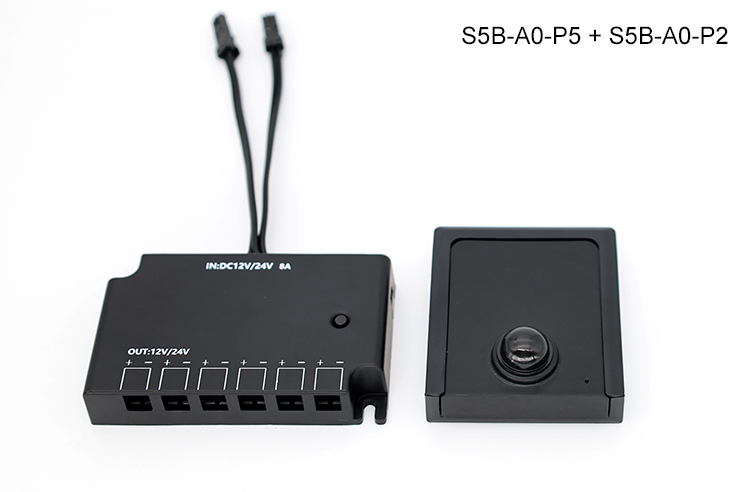

Scenario 2: Wireless Dimming Receiver + Wireless Motion Sensor Controller (Model: S5B-A0-P2)
Connection and Lighting solutions
*This dimmer receiver uses standard DuPont cable connectors for plug-and-play operation, no soldering required. The Junction Box receiver offers three connection methods:In addition to One-to-one control (One switch controls one receiver), there are two other control methods:
1. One-to-multi control: One sender can control multiple receivers (theoretically, unlimited within the receiving range).
2. Multi-to-one control: One receiver can be controlled by multiple senders (<5).
To learn more, please consult our sales manager or download the product brochure.

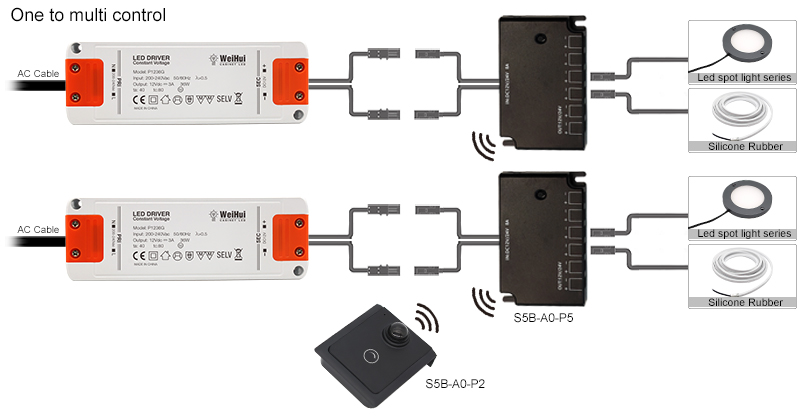

One-to-multi control

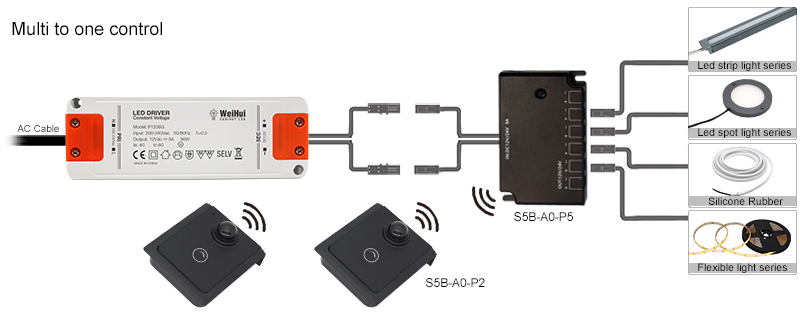

Multi-to-one control
1. Part One: Smart Wireless Remote Controller Parameters
| Model | S5B-A0-P5 | |||||||
| Function | Wireless dimming receiver & Junction Box | |||||||
| Size | 76X47X15mm | |||||||
| Working Voltage | DC 12V&24V | |||||||
| Maximum Load | 100W | |||||||
| Launch Distance | 20m(Without barrier) | |||||||
| Protection Rating | IP20 | |||||||

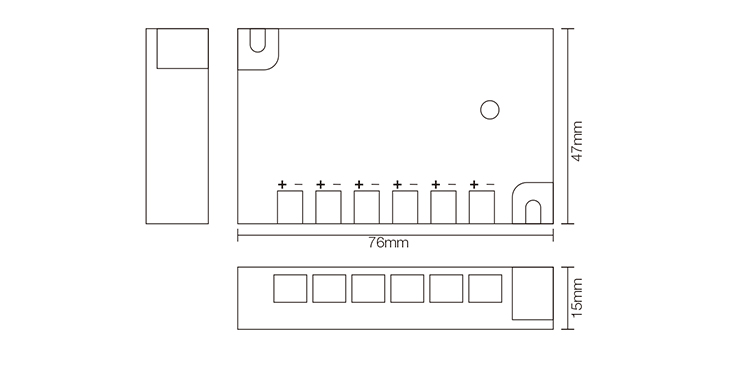

2. Part Two: Size information

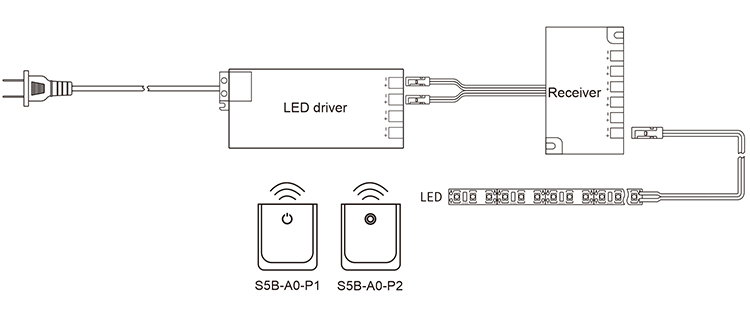

3. Part Four: Connection Diagram
