Tr6 PCBA Hand Sweeping Sensor Switch for LED cabinet lighting
PCBA Sensor Switches
Tr6 PCBA Hand Sweeping Sensor Switch for LED cabinet lighting
Tr6 PCBA Hand Sweeping Sensor Switch for LED cabinet lighting
Tr6 PCBA Hand Sweeping Sensor Switch for LED cabinet lighting
Tr6 PCBA Hand Sweeping Sensor Switch for LED cabinet lighting
Tr6 PCBA Hand Sweeping Sensor Switch for LED cabinet lighting
Tr6 PCBA Hand Sweeping Sensor Switch for LED cabinet lighting
Tr6 PCBA Hand Sweeping Sensor Switch for LED cabinet lighting

Tr6 PCBA Hand Sweeping Sensor Switch for LED cabinet lighting

Short Description:

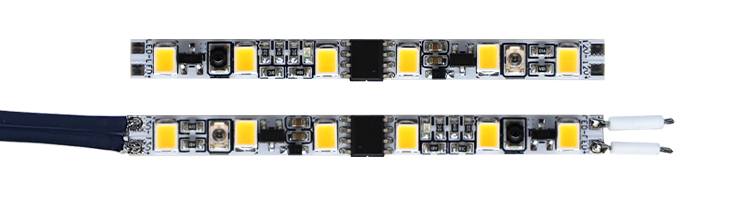

1. This is a NAKE-Board PCBA hand sweeping sensor with an integrated LED light source and control circuit. Its compact design allows for direct soldering to the light board, eliminating the need for drilling holes and saving space.

2. The built-in high-brightness LED chip achieves uniform illumination without dark areas, and supports dimming and touch control. It is widely used in furniture cabinet lighting, cabinet lighting, and custom lighting solutions, meeting the needs of high-end home and commercial lighting.

3. The PCBA board can be directly soldered to the light board without requiring additional drilling, making installation easy. Integrated gesture sensing and stepless dimming make it suitable for cabinets, wardrobes, bookcases, and display lighting systems, combining practicality with intelligence.

WELCOME TO ASK FREE SAMPLES FOR TESTING PURPOSE

ce
    Follow us on YouTube Send email to us
    Product Details
    Technical Data
    Video
    Download
    OEM&ODM Service
    Product Tags

    Why Choose this item?

    Advantages:

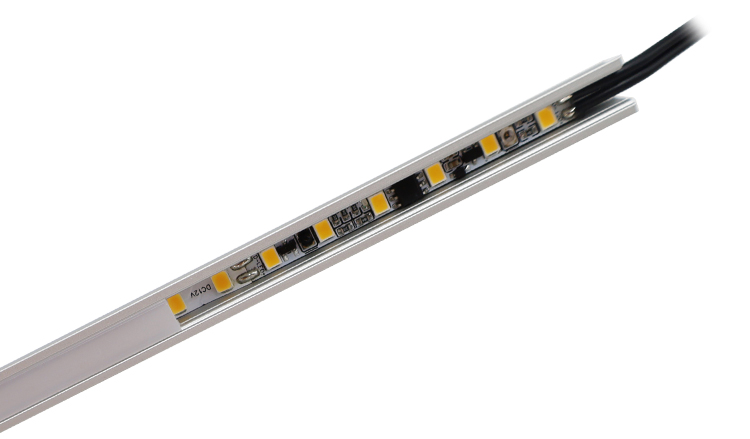

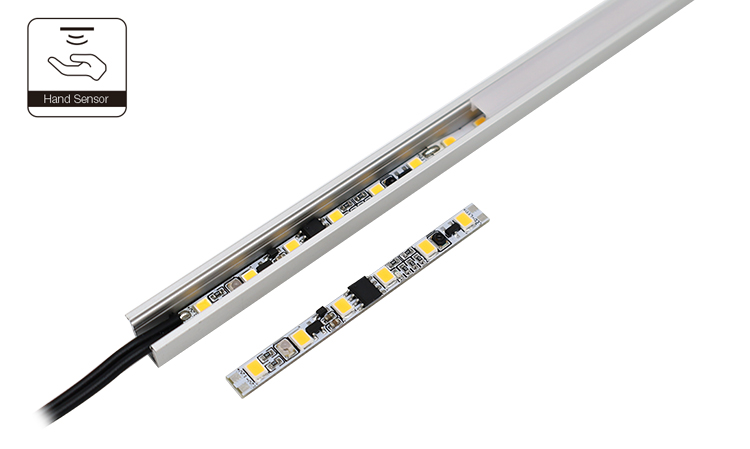

    1. 【Nake Board PCBA Construction】 This Mini IR Switch for Indoor LED Light can be directly soldered (or wired) to the LED board and integrated into the aluminum profile slot for a compact design and easy installation.
    2. 【No Dark Zones】 LED chips are directly integrated into the Hand Sweeping Sensor PCBA, which integrates the LED light source and control circuitry. It functions as both a switch sensor and a light, delivering uniform light without dark zones, improving lighting quality.

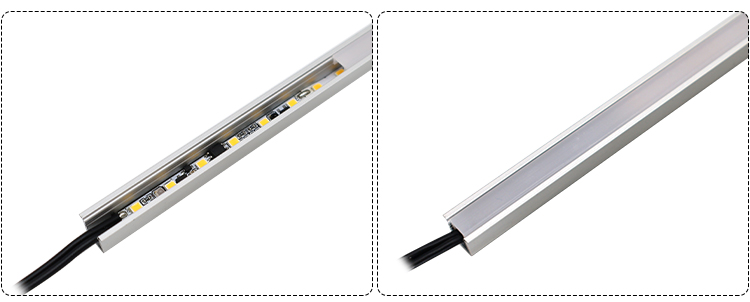

    3. 【No Slotting, No Holes Required】 The Non-Touch Hand Sweep Switch PCBA Module is soldered directly to the LED light board, eliminating the need for additional slotting. The hand sweep PCBA can be installed through a mask without drilling.
    4. 【Non-Contact Sensing】 Utilizing infrared sensing technology, control is achieved by simply sweeping your hand across the sensing area. Highly sensitive hand sweep sensing provides fast response. The sensing distance for the bare board is 15-20 cm, while the sensing distance with the mask installed is 5-8 cm.
    5.【Nake Board PCBA Construction】 The Short Distance Scan Sensor Switch can be customized based on your needs: size, function (touch, hand sweep, PIR sensing), single color, dual color temperature, dimming function, sensing distance, sensing time, and more.
    27

    Product Details

    Item Name  Feature Description
    Model Tr6
    Name Hand Shaking Switch Sensor PCBA  Module
    Woking Voltage DC12V/24V
    Maximum Load 40W

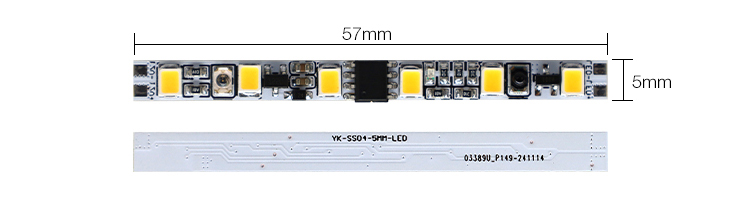

    Size 57x5mm
    Function ON/OFF/Stepless Dimmer
    Detecting Range 5-8cm(With Mask) / 15-20cm(Nake Board)
    Feature Power-off Memory
    28
    More Details:
    1. No dark Area： The board features integrated high-brightness LED chips for uniform illumination without dark areas.
    2. Only 5mm wide: The PCBA Hand Sweep Sensor Switch Module is only 5mm wide, highly adaptable and suitable for a wide range of applications.
    3. SMT technology: High-density wiring and compact layout ensure stable signal transmission.
    4. Clear solder pad interface: The Non-Touch Hand Sweep Switch PCBA Module features clear pad interfaces, making soldering the light board quick and easy, simplifying installation.
    30

    The Hand Shaking Switch Sensor PCBA  Module is available in two formats: One is a NAKE Board, and the other is a NAKE Board with L813 male connector and solder wires. For more product details, please contact our sales manager.

    31

    Category

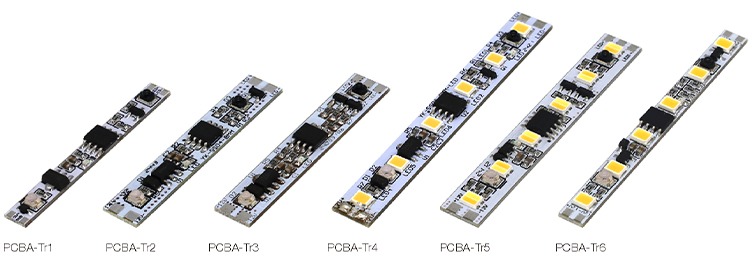

    The PCBA series sensing modules are available in a variety of styles, including 5cm and 8cm sizes, single-color dimming and dual-color dimming options. LEDs are also available with the infrared sensor directly integrated into the PCBA module. With a variety of styles, there's always one that suits you. Customization is also possible.
    32

    Function Show

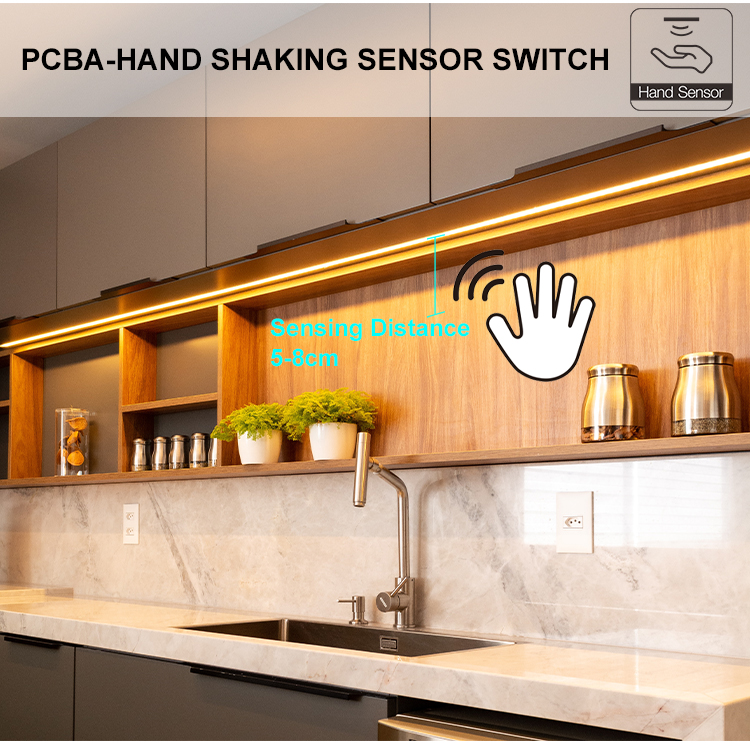

    1. Hand-sweep on/off control: A light swipe of your hand within the sensing area (5-8cm) switches the LED light on and off.
    2. Dimmer function: A long hold adjusts the brightness, supporting stepless dimming and maintaining 8-second adaptive sensitivity.
    3. Power-off memory function: The Wardrobe Short Distance Scan Sensor features a power-off memory function, restoring the brightness and state to the last used state upon power-on, enhancing the user experience.

    33

    Application

    1. The Hand Sweep Sensor Switch Module is widely used in various home lighting scenarios, especially for fixtures with limited installation space and a simple, aesthetically pleasing design. It can be directly soldered to the LED light board for concealed installation without requiring a cutout, seamlessly integrating into the fixture structure.

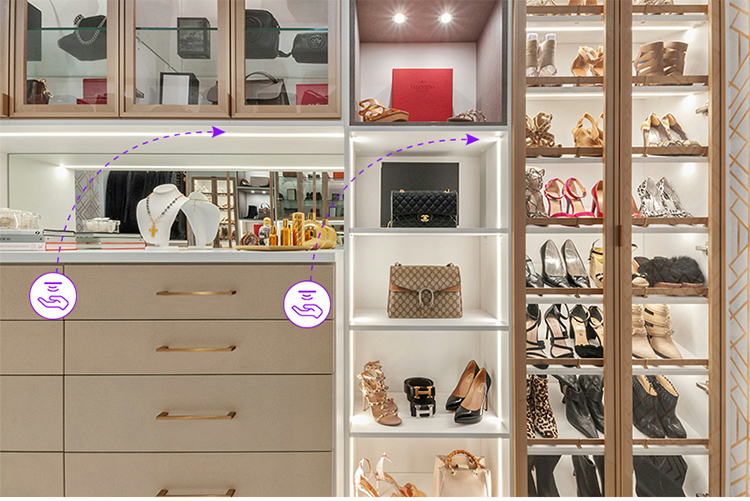

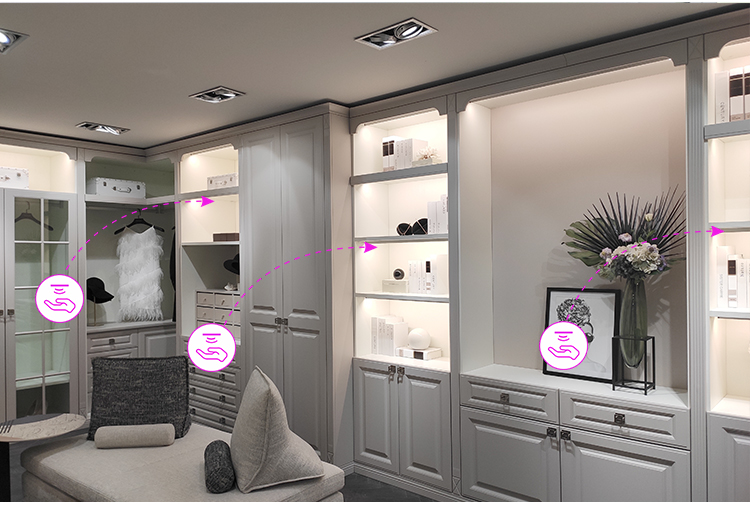

    2. The Hand Shaking Switch Sensor PCBA Module is suitable for a variety of scenarios, including cabinet lights, wardrobe lights, bookcases, wine cabinets, display cabinets, smart home lighting, and commercial showcases, meeting the high-end lighting needs of modern homes and commercial spaces.

    Scenario 1: Cabinets...

    34

    Scenario 2: Kitchen storage cabinets, wine cabinets, shoe cabinet...

    35
    1. Part One: Mechanical Switch Parameters
    Model Tr6
    Function ON/OFF/Stepless Dimmer
    Size 57X5mm
    Working Voltage DC 12V&24V
    Maximum Load 40W
    Detecting Range (With Mask) 5-8cm
    Detecting Range (Nake Board) 15-20cm
    Feature Power-off Memory
    2. Part Two: Size information
    28
    3. Part Three: Installation
    27
  • User Manual--S1A-A3 Mechanical Switch
    PCBA Sensor Switch Series(Hand Shaking)--Specification
    Download
    • Solution DesignCustom-made ColorCustom-made LogoPackage Design
