Tr1 PCBA Mini Single Color Led Dimmer for Home
PCBA Sensor Switches

Tr1 PCBA Mini Single Color Led Dimmer for Home

Short Description:

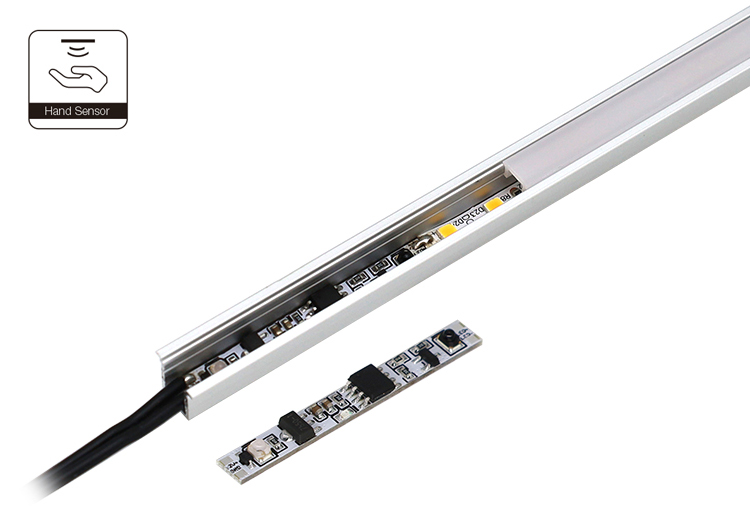

1.  This NAKE small-size IR sensor PCBA module features a compact, integrated design and can be directly soldered to the LED light board, eliminating the need for additional drilling and saving installation space.

2. The lamps can be turned on/off and dimmed steplessly by contactless hand scanning, along with a power-off save function. PCBA Sensing Modulet combines sensitive operation and beautiful installation, making it suitable for smart lighting applications such as cabinet lights, wardrobe lights, and display cabinets.

WELCOME TO ASK FREE SAMPLES FOR TESTING PURPOSE

ce

    Why Choose this item?


    Advantages:

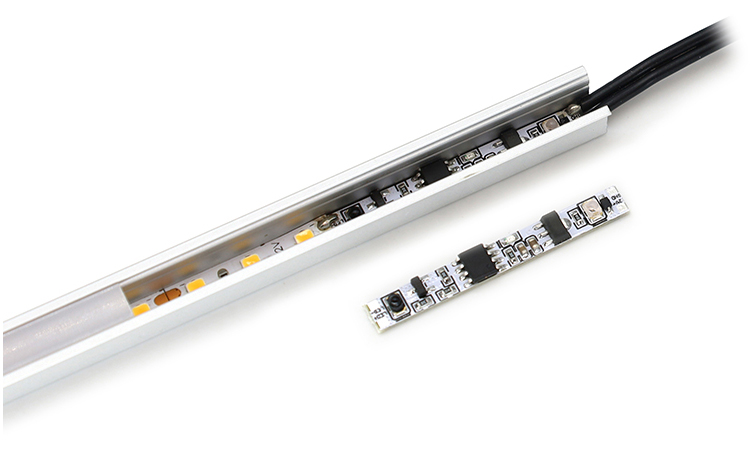

    1. 【Modular PCBA Design】 The PCBA board is compact, measuring only 40x5mm, offering high integration in a small package. It is suitable for small light strips and can be directly soldered (or wired) to the LED light board, integrating it into the aluminum profile slot for a compact and easy installation.
    2. 【No need for slotting or drilling】 The PCBA Sensing Module is directly soldered to the LED light board, eliminating the need for additional slotting and ensuring an aesthetically pleasing installation.
    3. 【Excellent Compatibility】 With a wide range of applications, the PCBA Sensor Switch is available in multiple sizes and can perfectly adapt to even ultra-narrow 5mm light strips.
    4. 【Contactless Sensing】 Utilizing infrared sensing technology, control is achieved by simply swiping your hand across the sensing area. The sensing distance for the bare board is 15-20 cm, and with the mask installed, it is 5-8 cm.
    5. 【Customization Supported】 The PCBA board can be customized based on your needs, including size, function (touch, hand swipe, PIR sensing), single color, dual color temperature, dimming function, sensing distance, sensing time, and more.

    16

    Product Parameter & Details


    Parameter:
    Item Name  Feature Description
    Model Tr1
    Name Small Size IR Sensor PCBA Module
    Woking Voltage DC12V/24V
    Maximum Load 40W
    Size 40x5mm
    Function ON/OFF/Stepless Dimmer
    Detecting Range 5-8cm(With Mask) / 15-20cm(Nake Board)
    Feature Power-off Memory
    17
    Details & Dimensions:

    1. SMT Processing: High-density wiring and compact layout ensure stable signal transmission.

    2. Clear solder pad interface: Easy to solder the light board, simplifying installation.

    3. Power-off Memory: The 12V/24V PCBA Module Infrared Sensor has a power-off memory function. After powering off and then back on, the brightness and status used last time can be restored, improving the user experience.

    1819

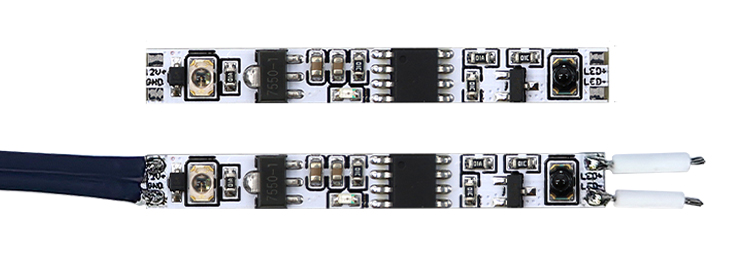

    The PCBA Switch Sensor Board is available in two formats: One is a NAKE Board, and the other is a NAKE Board with L813 male connector and solder wires. For more product details, please contact our sales manager.

    20

    Category

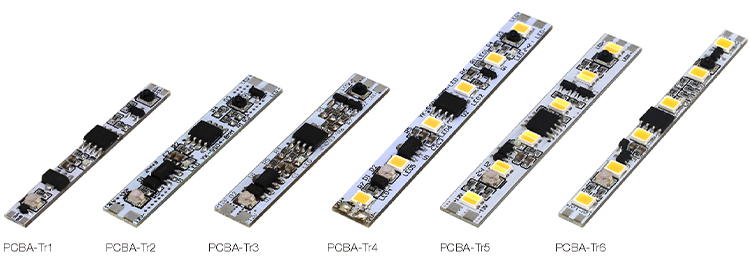

    The PCBA series sensing modules are available in a variety of styles, including 5cm and 8cm sizes, single-color dimming and dual-color dimming options. LEDs are also available with the infrared sensor directly integrated into the PCBA module. With a variety of styles, there's always one that suits you. Customization is also possible.

    21

    Function Show

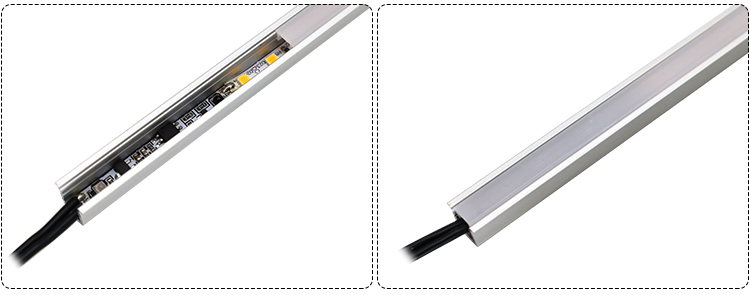

    1. This PCBA sensor switch, integrated into the profile light, requires no cutouts. It's a built-in hand sweep sensor switch with a sensing distance of 5-8cm. It offers on/off, stepless dimming, and power-off saving.


    2. Waving your hand can control the light: A quick wave turns the light on or off. Holding your hand over the PCBA sensor for about 1S adjusts the light brightness. The switch also saves the brightness and status (on or off) even after a power failure.

    5mm Hand scanning sensor module

    Application

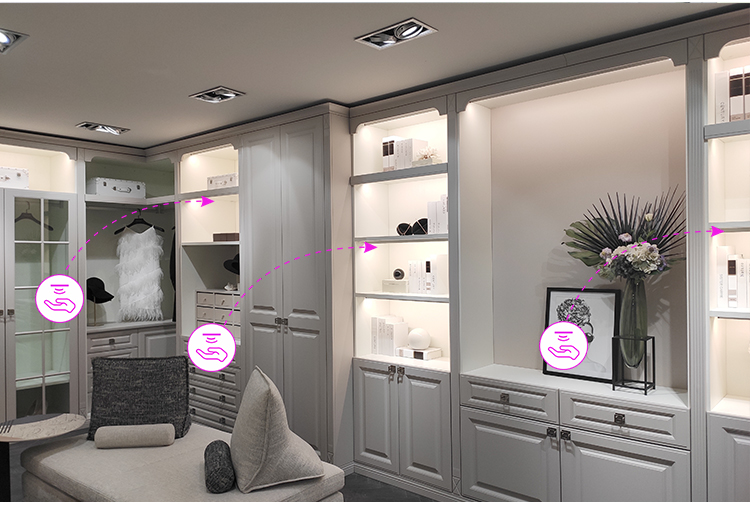

    The DC12V/24V ON/OFF Switch Sensor Board has a wide range of applications, supports 12V/24V systems, and is compatible with 5mm single-color light strips. It is suitable for wardrobes, cabinets, drawers, etc, and is the perfect choice for furniture lighting sensors.

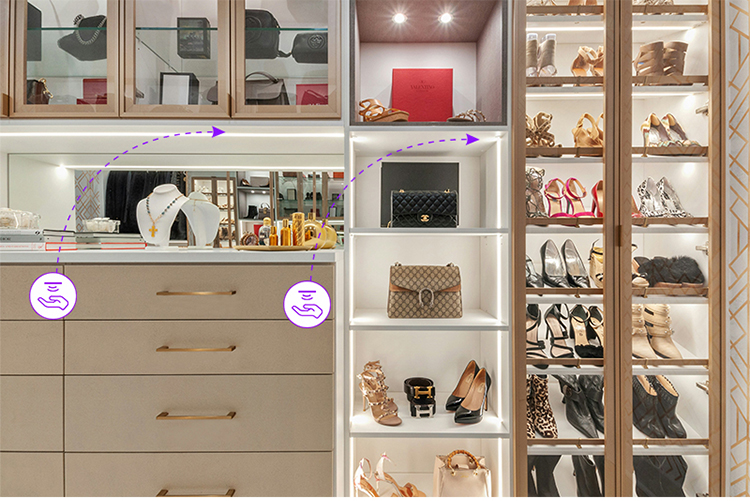

    Scenario 1: Show Cabinets,wine cabinets...
    DC12V24V Inductive Switches for Cabinet Light

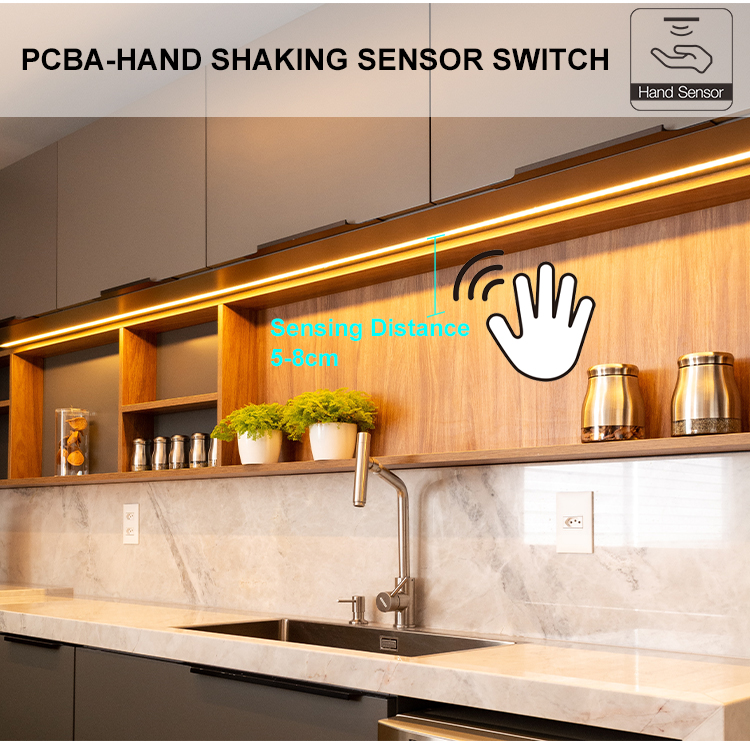

    Scenario 2: Shoe cabinet, Kitchen storage cabinets...
    Single Color Mini LED PCBA Hand Sweep Dimmer Sensor
    1. Part One: PCBA Sensor Switch Parameters
    Model Tr1
    Function ON/OFF/Stepless Dimmer
    Size 40X5mm
    Working Voltage DC 12V&24V
    Maximum Load 40W
    Detecting Range (With Mask) 5-8cm
    Detecting Range (Nake Board) 15-20cm
    Feature Power-off Memory

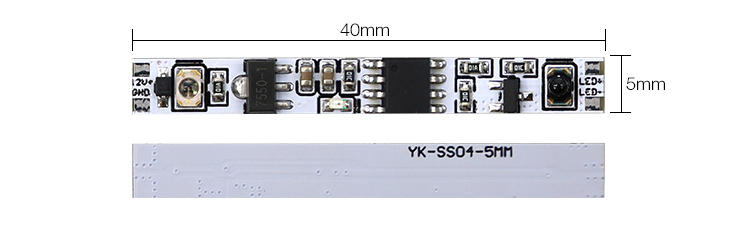

    2. Part Two: Size information
    17
    3. Part Four: Connection Diagram
    18
    Download_file
    sp1 pcba sensor switch series hand shaking touch sensor pir sensor specification
