S5B-A0-P2 PIR Motion Sensor Wireless Controller
Short Description:
The Wireless PIR Sensor Switch is an innovative and convenient solution for automating your lighting needs. With its no-wiring installation, black finish, and built-in replaceable button battery, it combines simplicity with efficiency. Enhance the convenience and efficiency of your space with this wireless IR sensor switch.
WELCOME TO ASK FREE SAMPLES FOR TESTING PURPOSE
Why Choose this item?
Advantages:
1.【 Characteristic 】Wireless 12v Motion Sensor, no wiring installation, more convenient to use.
2.【 High sensitivity】20m barrier-free launch distance, wider range of use.
3.【ultra-long standby time】Built-in cr2032 button battery, standby time up to 1 years.
4.【Wide application】 one sender can control multiple receivvers,used for local decorative lighting control in wadrobes,wine cabinets,kitchens,etc.
5.【Reliable after-sales service】 With a 3-year after-sales guarantee, you can contact our business service team at any time for easy troubleshooting and replacement, or have any questions about purchase or installation, we will do our best to help you.
Product Details
Built-in CR2032 button battery,low power consumption,low heat generation,tstable and reliable.Standby time up to 1 years.
The decoder clear key can be paired with the corresponding receiver at any time, and the magnetic mounting accessories are also configured for more diverse installation methods.
Can be combined with different wireless receivers to achieve different needs.（The combination of S5B-A0-P2 and S5B-A0-P6 only has on/off/dimming functions and does not have CCT function.）
Function Show
When the sensor senses you are near, it will automatically prepare the light for you, and when you leave the sensor will automatically turn off the light, you can also adjust the brightness of the light to create the perfect atmosphere for any occasion. The Wireless Ir Sensor Switch has a sensing distance of up to 20 meters. With a remote control, you can easily control your lights from anywhere in the room.
Application
Ideal for homes, offices, and hotels. Control lights from anywhere in the room. Perfect for the elderly or disabled. You don't need to control the light, the sensor automatically controls it for you.
Scenario 1: Wardrobe application
Scenario 2: Desktop application
Connection and Lighting solutions

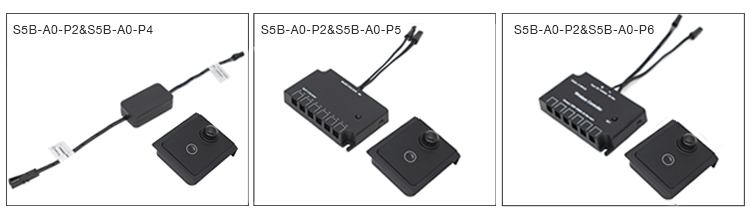

*This wireless led dimmer receiver uses standard DuPont cable connectors for plug-and-play operation, eliminating the need for soldering. S5B-A0-P2 is compatible with 3 different receivers (splitter boxes):

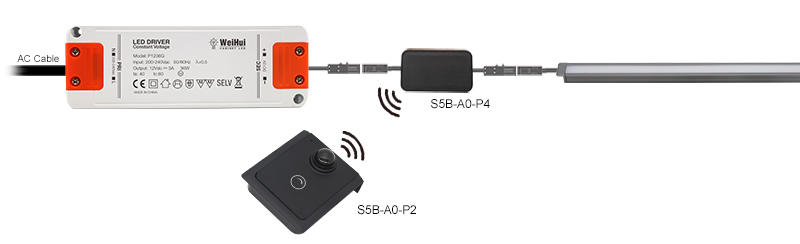

S5B-A0-P2 & S5B-A0-P4

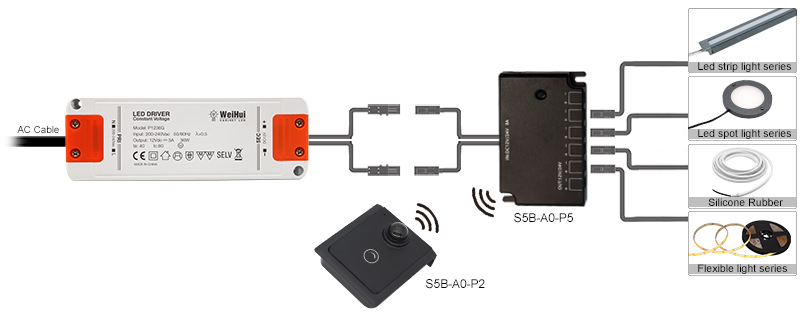

S5B-A0-P2 & S5B-A0-P5
S5B-A0-P2 & S5B-A0-P6
The combination of S5B-A0-P2 and S5B-A0-P6 only has on/off/dimming functions and does not have CCT function.
In addition to One-to-one control (One switch controls one receiver), there are two other control methods:
1. One-to-multi control: One sender can control multiple receivers (theoretically, unlimited within the receiving range).
2. Multi-to-one control: One receiver can be controlled by multiple senders (<5).
For more info, Pls send your request to us! We would be happy to provide free samples upon request for your evaluation.
1. Part One: Smart Wireless Remote Controller Parameters
| Model | S5B-A0-P2 | |||||||
| Function | PIR Sensor | |||||||
| Size | 56x50x13mm | |||||||
| Working Voltage | 2.3-3.6V (Battery type: CR2032) | |||||||
| Working Frequency | 2.4 GHZ | |||||||
| Launch Distance | 20m(Without barrier) | |||||||
| Protection Rating | IP20 | |||||||
2. Part Two: Size information
3. Part Three: Installation
4. Part Four: Connection Diagram
