FC420W10-1 10MM Width 12V/24v RGB COB LED Strip Light
Short Description:
1. 【Seamless light】 High-density lamp bead design, 420 LEDs/m, creating smooth and seamless light.

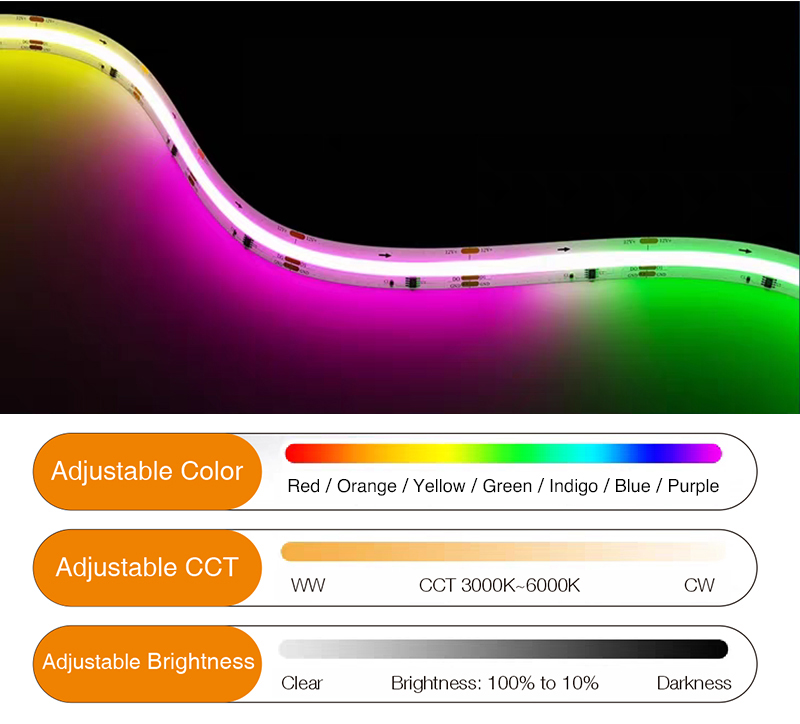

2. 【High color expression】 Adjustable color, 0-100% brightness, color temperature, and realize a variety of dynamic effects such as gradient, jump, running, breathing, etc.
3. 【Super bright without dark area】 Cob RGB led strip 180° wide lighting angle, super bright and uniform light, no spot area.
4. 【No flicker】 High-quality COB LED light strip, stable light, no flickering when recording videos with mobile phones or cameras.
5. 【Easy to install】 Flexible, cuttable, 100mm cutting unit and 3M adhesive back design, easy to install.
Available in Single Color, Dual Color, RGB, RGBW, RGBCW and other light strip options, we must have the right COB light strip for you.
• Roll to roll: 5M/ Roll
• Color rendering index: Ra>90+
• 3M adhesive backing, suitable for the surface best suited to the surrounding reflective surface or application
• Max run: 12V-5m, 24V-10m
• Cuttable length: one cutting unit per 100mm
• 10mm strip width: suitable for most places
• Power: 14.0w/m
• Voltage: DC 12V/24 V low-voltage light strip, safe and touchable, good heat dissipation performance
• Whether it is direct lighting or exposed installation, or using a diffuser, the light is soft and not dazzling
• Certificate & Warranty: RoHS, CE and other certifications, 3-year warranty

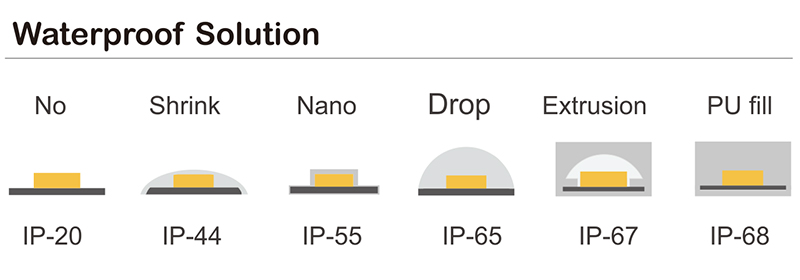

Waterproof level: Choose our RGB light strips for indoor and outdoor installation or use in wet environments. The waterproof level can be customized.

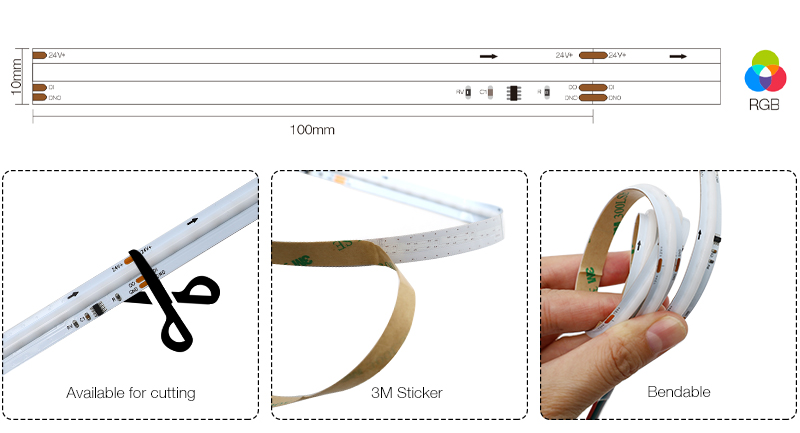

1. The light strip can be cut, Light strip width 10mm, one cutting unit per 100mm.
2. High-quality 3M adhesive installation, stable and convenient.
3. Soft and bendable, convenient for your DIY design.
1. COB RGB light strip can be controlled by key controller, RF remote control and smart App, and the color, brightness, color temperature of the light strip can be adjusted, as well as a variety of dynamic effects such as gradient, jump, running, breathing, etc. The red, green and blue independent channels are clear, and the halo of the mixed light area is soft and has no edges. Amazing mixed colors produce a variety of fantasy colors, RGB can be mixed into 16 million different colors, 0-100% dimmable. Customize the lighting effects of different scenes to make more flexible and smarter light strips meet your lighting needs.

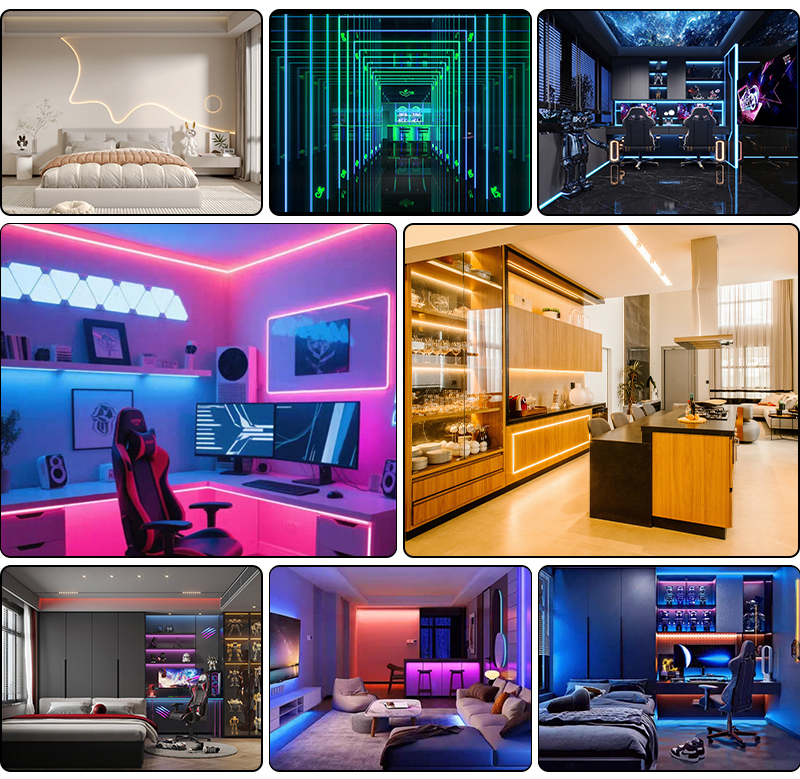

2. Our RGB COB LED The light strip is suitable for various indoor/outdoor decorations. Such as living room, bedroom, corridor, kitchen, decorative lighting, cabinet lighting, stairs, mirrors, corridors, DIY backlight, DIY lighting, outdoor garden and other special purposes and other commercial and residential lighting projects.
Tips: The light strip comes with a strong 3M self-adhesive backing. Before installation, please ensure that the installation surface is thoroughly cleaned and dry.

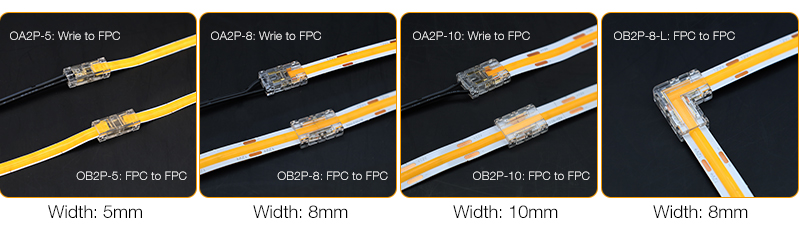

The running led strip can be cut and reconnected, suitable for various quick connectors, no soldering required
【PCB to PCB】 For connecting two pieces of different COB strips, such as 5mm/8mm/10mm,etc
【PCB to Cable】Used to light up the COB strip, connect the COB strip and wire
【L-type Connector】Used to extend Right Angle Connection COB Strip.
【T-type Connector】Used to extend T Connector COB Strip.

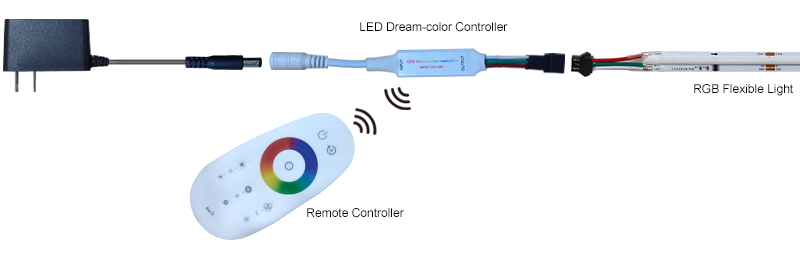

When we use COB RGB light strips in cabinets or other home places, you can use it with dimming and color adjustment controllers to customize color tones and settings. To give full play to the effect of the light strip. As a one-stop cabinet lighting solution provider, we also provide matching wireless RGB horse racing controllers (LED Dream-color Controller and Remote Controller, model: SD3-S1-R1), bringing you a more convenient and intelligent lighting experience.
Fully furnished, please start your action.
Frequently Asked Questions
We are a factory and trading company, with more than ten years of experience in factory R&D,located in SHENZHEN. Expecting your visit at anytime.
To power this cob light strip, you will definitely need a power supply. Other accessories, such as connecting segments and aluminum channels, dimmers, switches and remote controls, we can provide you with a complete system kit.
Weihui has many light strips, indoor and waterproof; COB light strips, SCOB light strips, SMD lights;. Single color, dual color, RGB, RGBW, RGBCW and other light strip options, we must have the right COB light strip to serve you.
Yes, we can offer low MOQ, That is One of our main advantages too.
We have many types of light strips: COB light strips, SMD light strips, SCOB light strips, etc., which can be divided into:
1. Single Color LED light strips (Single Color): composed of chips of only one color, such as warm white, cold white, red, blue, etc., can only emit a single fixed color light, with stable light effect, low cost, and easy installation. It is suitable for basic lighting, cabinet lights, local lighting, stair lights, etc.
2. Dual Color LED Light Strips (CCT Tunable or Dual White): composed of two LED chips, cold white (C) + warm white (W), with adjustable color temperature (usually from 2700K~6500K), adjust the white light atmosphere, adapt to morning and evening/situation changes, suitable for home main lighting, bedrooms, living rooms, office places, etc.
3. RGB LED Light strip: It is composed of three-color chips of red (R), green (G), and blue (B), which can mix a variety of colors and support color change and dynamic lighting effects. It does not support pure white light, and white is an approximate color of RGB mixing. It is suitable for atmosphere lighting, decorative lighting, parties, e-sports rooms, etc.
4.2. RGBW LED light strip: It is composed of four LED chips of red, green, blue + independent white light (C). RGB mixed color + independent white light has richer colors and can achieve purer and more natural white light. It is suitable for multi-functional lighting, such as home atmosphere lighting + main lighting, commercial space, etc.
5.RGBCW LED light strip: It is composed of five LED chips of red, green, blue + cold white (C) + warm white (W). It can adjust the color temperature (cold and warm white) + colorful RGB. It has the most comprehensive functions and strong scene adaptability. It is suitable for high-end smart lighting, hotels, exhibition halls, and home lighting.
1. Part One: RGB COB LED Strip Light Parameters
| Model | FC420W10-1 | |||||||
| Color Temperature | CCT 3000K~6000K | |||||||
| Voltage | DC12V/24V | |||||||
| Wattage | 14.0w/m | |||||||
| LED Type | COB | |||||||
| LED Quantity | 420pcs/m | |||||||
| PCB Thickness | 10mm | |||||||
| Length of Each Group | 100mm | |||||||
2. Part Two: Size information
3. Part Three: Installation
4. Part Four: Connection Diagram
