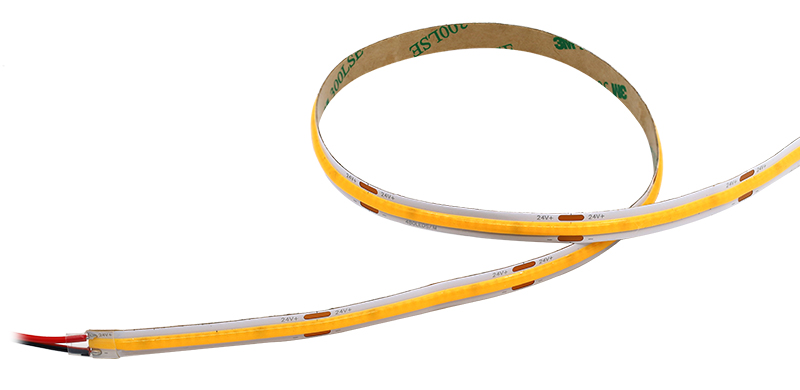

FC480W8-6 8MM Width Customizable 24V LED Strip Light
Short Description:
1. 【High-quality lighting】 24V smart light strip provides excellent lighting effects. Each meter of light strip has 480 LEDs emitting light at the same time, making the LED light strip present a continuous glowing effect. Unlike traditional SMD LED light strips, this led light tape strip has almost no dark spots, and the 180-degree beam angle can provide a wider lighting range.
2. 【Customization available】 Supports large-scale customization services to meet your business needs. We support waterproof customization, color temperature customization, quantity customization, and length customization. Professional-level customization to enhance your installation projects!
3. 【High-quality】 Passed CE/ROHS and other certifications. The double-layer pure copper PCB design is not only for LED The light strip provides excellent and reliable stability, and also significantly improves the heat dissipation effect of the light strip! The COB LED light strip has stable performance and a service life of more than 65,000 hours, which fully meets your needs!
4. 【Wide Application】 24V COB LED light strips are widely used. You can use these COB LED light strips as supplementary lighting in dark areas to enhance the layering of the space! Therefore, these "upgraded" LED light strips are very suitable for kitchen cabinets, bedrooms, ceilings, stairs, restaurant bars, TVs and other locations! Excellent lighting effect, it is a decorative choice for home occasions.
5. 【After-sales service】 We not only provide high-quality products, but also provide professional installation guidance. Professional quality, choose Weihui! For troubleshooting and replacement, or any questions about purchase or installation, please feel free to contact us.
The following Data are basic for COB strip light
We support customization of Warm White Strip Light of different sizes, different quantities, different color temperatures, different wattages, etc.
| Item Number | Product Name | Voltage | LEDs | PCB width | Copper thickness | Cutting Length |
FC480W8-6 |
COB-480 Series | 24V | 480 | 8mm | 28/28um | 50mm |
| Item Number | Product Name | Power(watt/meter) | CRI | Efficiency | CCT (Kelvin) | Feature |
FC480W8-6 |
COB-480 Series | 10w/m | CRI>90 | 90Lm/W | 3000K/4000K/6000K | ROLL TO ROLL |
Color Rendering Index >90, truly restore the original color of the object and reduce distortion.

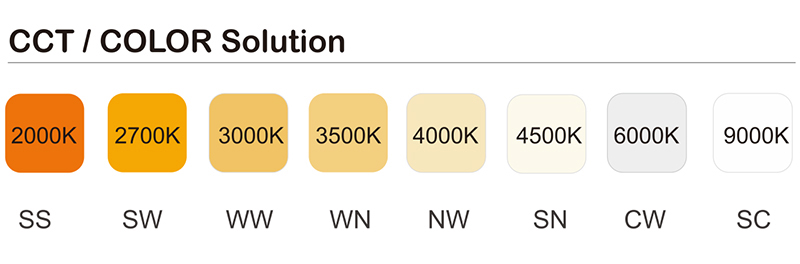

Color Temperature is welcome to customize:Support color temperature customization 2200K-6500k, single color/dual color/RGB/RGBW/RGBCCT, etc.
Waterproof IP Level: This led strip light has a waterproof IP rating of IP20, and can be customized for outdoor, humid or special environments with waterproof and dustproof ratings.

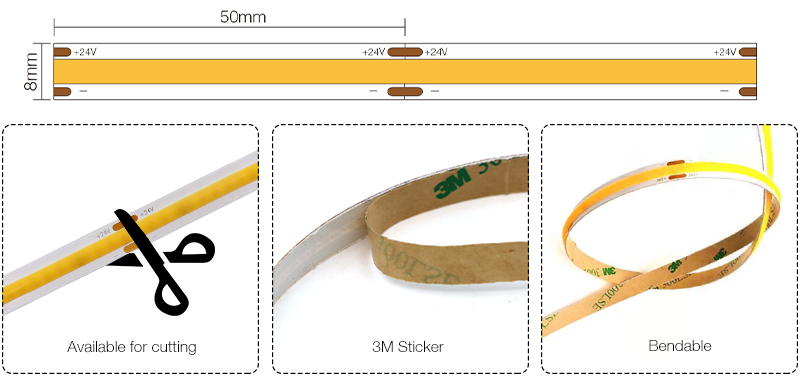

1. 【Flexible DIY】 The ceiling led strip solder joints can be cut, and the light strips can also be connected in series through quick-connect terminals. Note: The cuttable length of each light strip is different.
2. 【High-quality 3M glue】 8mm led strips are equipped with a firm adhesive backing. Tips: Please clean and dry the installation surface thoroughly before installation.
3. 【Soft and bendable】 Flexible led lights can be bent and can be concave into various shapes to meet the customer's complex installation needs. The excellent flexibility of led light strips allows you to get the perfect solution for your DIY project!
【Wide range of applications】 led light strips, 180° beam angle design, 50% larger lighting range, multiple chips on board, uniform lighting, say goodbye to dark spots! Unlike traditional SMD LED strips, each LED on the COB LED strip is very tight, so when the strip is working, you see continuous linear light instead of individual lamp beads!

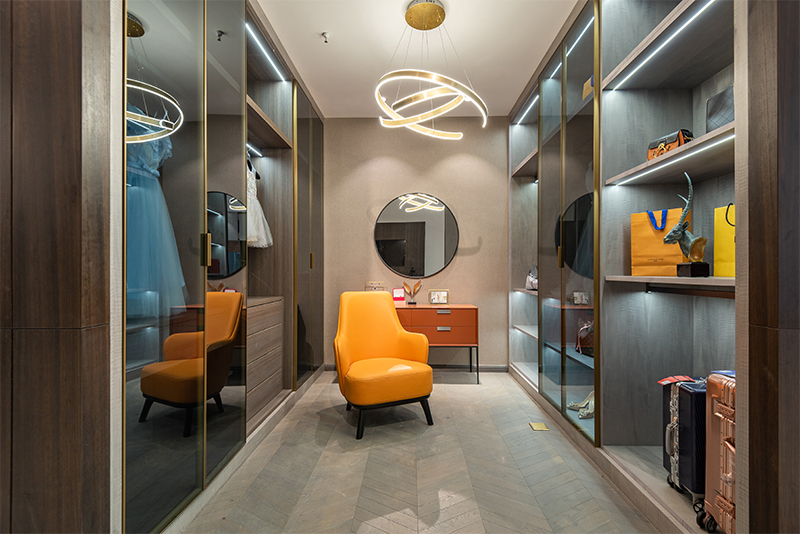

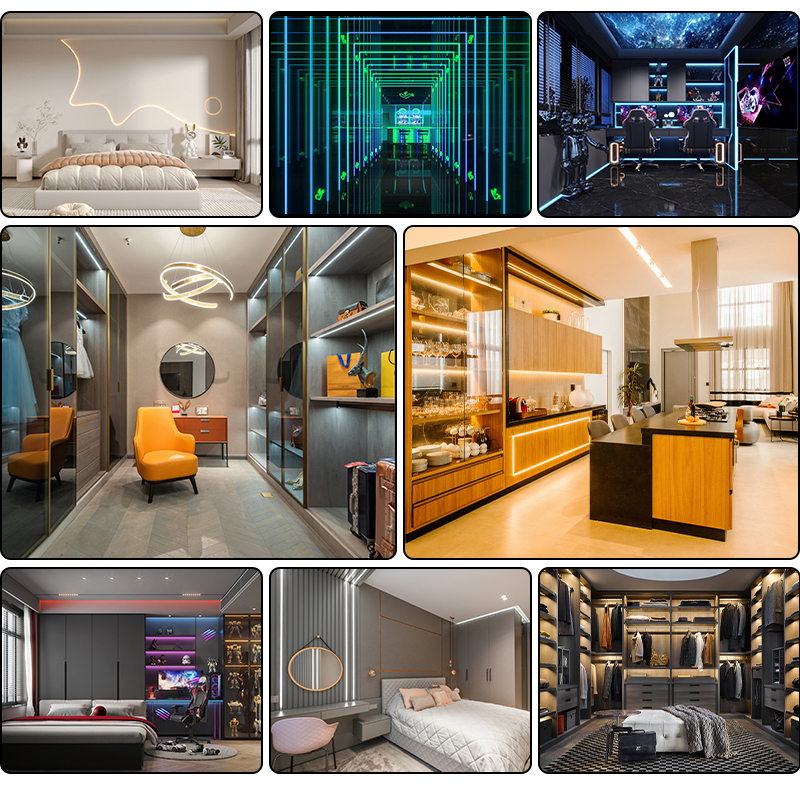

Our warm white LED strips can be installed in various corners that need light decoration, suitable for various indoor applications, such as living rooms, corridors, bedrooms, kitchens, accent lighting, cabinet lighting, stairs, mirrors, corridors, DIY backlighting, DIY lighting, special purposes and other commercial and residential lighting projects. It can illuminate the area, reduce shadows and enhance the atmosphere.
COB LED strips are the ultimate in energy saving, high brightness and uniform lighting. Inlaid in cabinets, ceilings or walls, it not only increases the practicality of the space, but also enhances the overall beauty. Compared with traditional lighting, COB light strips significantly reduce energy consumption and meet green environmental protection requirements.

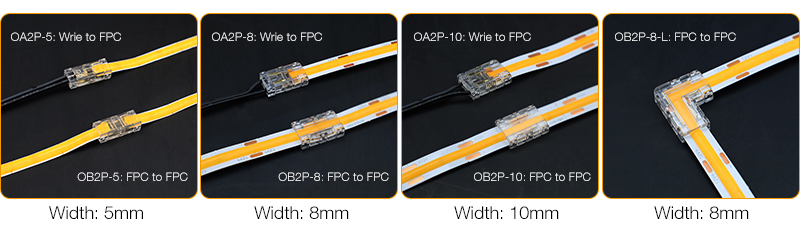

【Various Quick Connector】Applicable to various quick connector, Welding Free Design
【PCB to PCB】 For connecting two pieces of different COB strips, such as 5mm/8mm/10mm,etc
【PCB to Cable】Used to light up the COB strip, connect the COB strip and wire
【L-type Connector】Used to extend Right Angle Connection COB Strip.
【T-type Connector】Used to extend T Connector COB Strip.
When we use COB led strip lights in kitchen cabinet or furniture, We can combine with smart led drivers and sensor switches. Here it is a example of Centrol control smart system

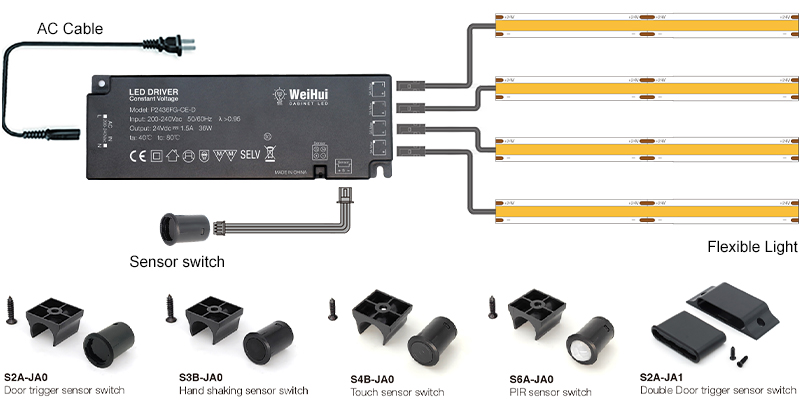

Smart LED Driver System with different sensors( Centrol Control)

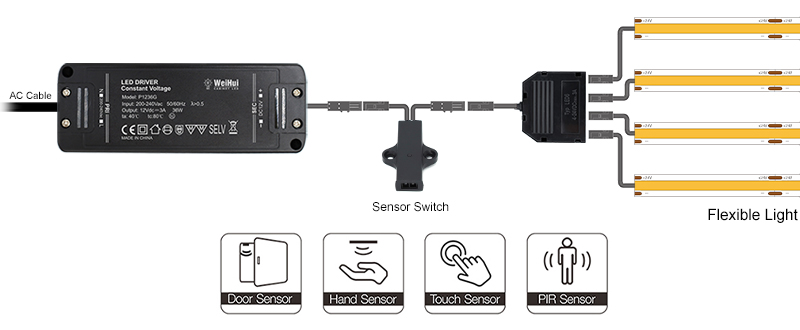

Smart led driver system-Separate Control
Frequently Asked Questions
Need help? Be sure to visit our support forums for answers to your questions!
A: We are a factory and trading company, with more than ten years of experience in factory R&D,located in SHENZHEN. Expecting your visit at anytime.
A: 3-7 working days for samples if in stock.
Bulk orders or customized design for 15-20 working days.
A: As we al know, Simple lighting with easy installation are major characterisics of furiture lighting applications. WEIHUI Lighting is the first factory who applied COB led strip ight into furniture lighting solution system, which solved long-term problems in dot lighting source with very soft lighting eftect. Meanwhile, Recent Cutting free led strip ight make the customm-made installation and after service super easily too. Free cut and Free reconnect without any soldering. Weihui LED cabinet light, it is simple but " Not Simple".
A: 1. Market research;
2. Project establishment and formulation of project plan;
3. Project design and review, cost budget estimation;
4. Product design, prototype making and testing;
5. Trial production in small batches;
6. Market feedback.
A: If you don't want to cut at corners or use quick connectors, you can bend the strip lights. Be careful to avoid folding the soft light strips, as it may cause overheating or damage the life of the product. For more details, you can communicate with us online or offline.
Ready to get started? Contact us today for a free quote!
1. Part One: COB Flexible Light Parameters
| Model | FC480W8-6 | |||||||
| Color Temperature | 3000k/4000k/6000k | |||||||
| Voltage | DC24V | |||||||
| Wattage | 10W/m | |||||||
| LED Type | COB | |||||||
| LED Quantity | 384pcs/m | |||||||
| PCB Thickness | 8mm | |||||||
| Length of Each Group | 50mm | |||||||
2. Part Two: Size information and Installation
3. Part Three: Connection Diagram
