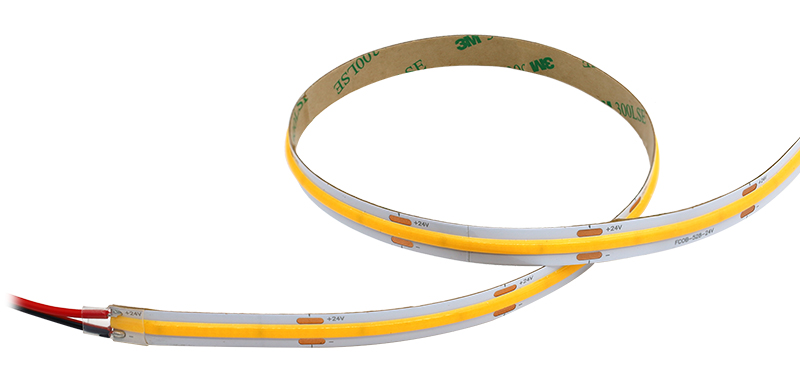

FC528W10-2 8MM Width DC 24V Warm White Flexible LED Lights

Short Description:

Weihui’s flexible COB LED light series creates seamless light from beginning to end. The new chip-on-board technology not only improves light quality, but also thermal management and strip flexibility. Smaller LEDs can be packed tighter and weigh much less than larger LEDs, resulting in a strip that can meet application needs. Spotless output makes COB LED strips ideal for narrow applications such as display cabinets and backlighting, or using reflective surfaces such as granite and tiles. High output, high quality light COB LED retractable strips hold 528 LEDs per meter, producing 100Lm/W of smooth, continuous light at 180°.
WELCOME TO ASK FREE SAMPLES FOR TESTING PURPOSE！

Send email to us

Product Detail

Technical Data

Video

Download

OEM&ODM Service

Product Tags

Advantages & Features

1.【Lighting Effect】Compared to SMD LED strips, COB LED strips integrate multiple chips on the PCB, resulting in ultra-uniform lighting effects with no dark spots! This COB light strip has 480 high-quality LED beads per meter, allowing you to enjoy extremely bright lights and better color quality.
2. [Easy to DIY] COB LED light strips are very flexible and can even be bent. They are cut and connected. There is a cutting mark in the middle of the metal point on the light strip (one cutting unit every 45.44mm), and the light strip can also be reconnected after cutting, which is very convenient for DIY! The width of the light strip is 8mm, allowing you to install it in very narrow places.
3. [Safe and Durable] The light strip has a working voltage of 24V low voltage and is very safe to touch! They are certified by CE/ROHS and other certifications. Made of lead-free materials, reliable quality, and harmless to human health. Using double-layer pure copper PCB board, the light strip has better conductivity and heat dissipation, is not easy to crack, and has a service life of more than 65,000 hours!
4. [High color rendering index] The color rendering index is >90+. The higher the display index, the better the color rendering of the light source and the stronger the ability to restore the color of the object. Therefore, the higher the color rendering, the less damage to vision. The color rendering index is as high as 90+, and the color restoration is more realistic.
5. [Support customized services and warranty] Support large-scale customized services to meet your business needs! 5-year warranty, if you have any questions or installation needs, please ask Weihui for help.

Technical Specifications

The following Data are basic for COB strip light
We support customization of Warm White Strip Light of different sizes, different quantities, different color temperatures, different wattages, etc.

Item Number	Product Name	Voltage	LEDs	PCB width	Copper thickness	Cutting Length
FC528W10-2	COB-528 Series	24V	528	10mm	18/35um	45.44mm
Item Number	Product Name	Power(watt/meter)	CRI	Efficiency	CCT (Kelvin)	Feature
FC528W10-2	COB-528 Series	14w/m	CRI>90	90Lm/W	3000K/4000K/6000K	ROLL TO ROLL

Color Rendering Index >90, truly restore the original color of the object and reduce distortion.

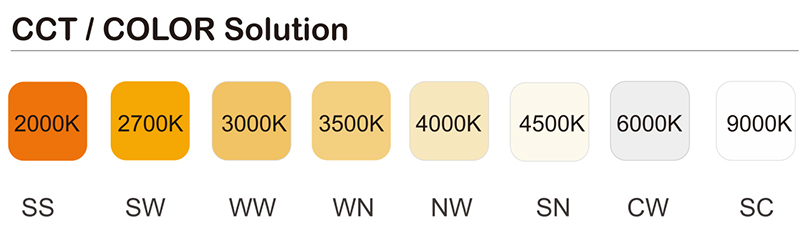

Color Temperature is welcome to customize:Support color temperature customization 2200K-6500k, single color/dual color/RGB/RGBW/RGBCCT, etc.

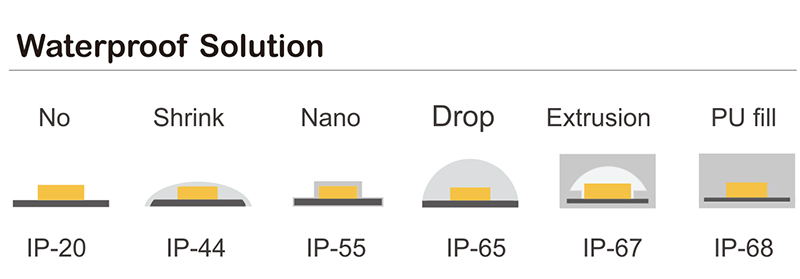

Waterproof IP Level: This led strip light has a waterproof IP rating of IP20, and can be customized for outdoor, humid or special environments with waterproof and dustproof ratings.

Product Details

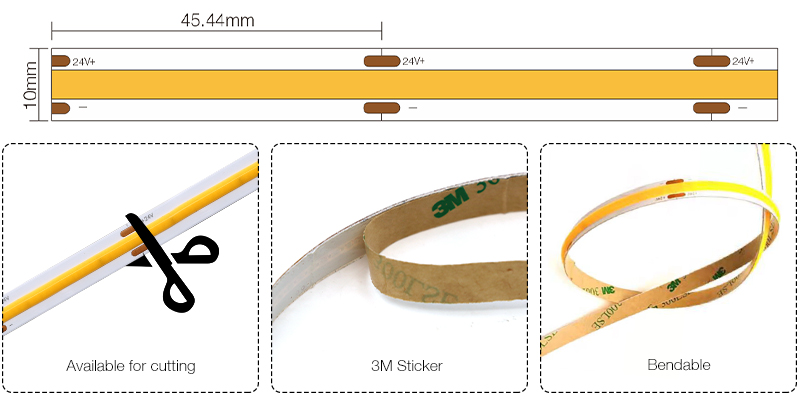

1. [Cutable] The ceiling led strip solder joints can be cut, and the light strips can also be connected in series through quick-connect terminals. Note: The cuttable length of each light strip is different.
2. [High-quality 3M adhesive] Self-adhesive led strip lights are equipped with a strong self-adhesive backing. Warm Tips: Please thoroughly clean and dry the installation surface before installation.
3. [Soft and bendable] Strip light for false ceiling can be bent and can be concave into various shapes to meet the customer's complex installation needs. The excellent flexibility of led light strips allows you to get the perfect solution for your DIY project!

Application

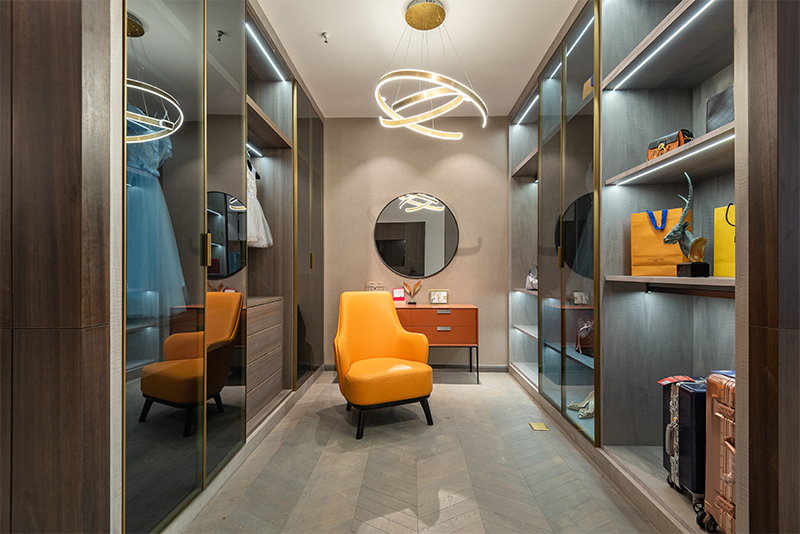

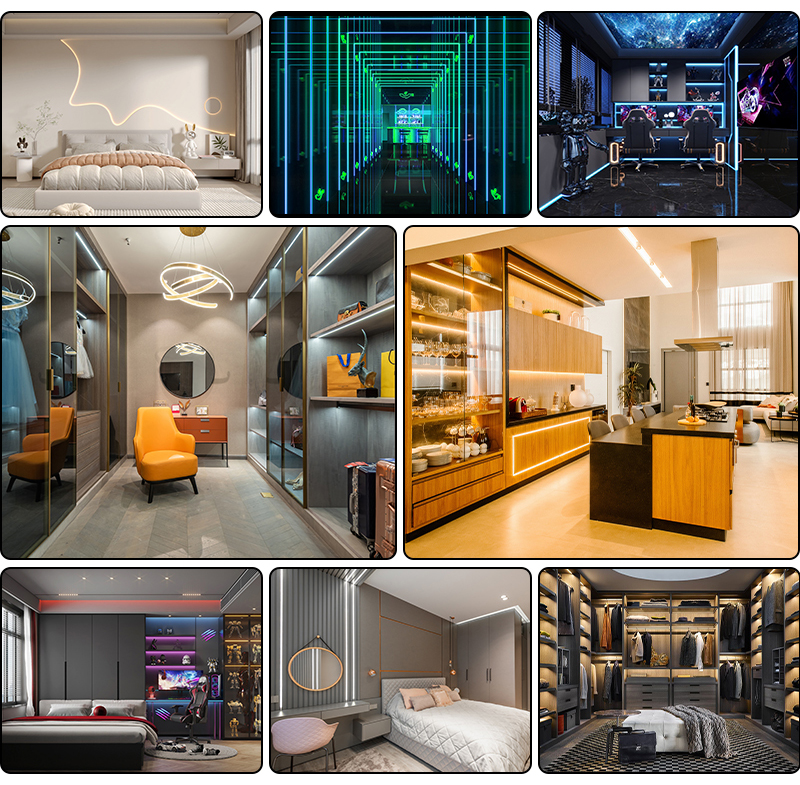

Wide range of uses: These COB LED light strips can be used to replace traditional SMD LED light strips to provide higher brightness lighting! PAUTIX 2700K warm white COB LED light strips are very suitable for high-end business clubs, under cabinets, dressing mirrors, dressing tables, wardrobes, bunk bed lights, bookshelves, wine racks, stairs, TV backlights and other places that need to be dry, clean and flat, and are very suitable for DIY lighting decoration.

LED strip light is the ultimate in energy saving, high brightness and uniform lighting. When embedded in cabinets, ceilings or walls, it not only increases the practicality of the space, but also enhances the overall aesthetics. Compared with traditional lighting, COB light strips significantly reduce energy consumption and meet green environmental protection requirements.

Connection and Lighting solutions

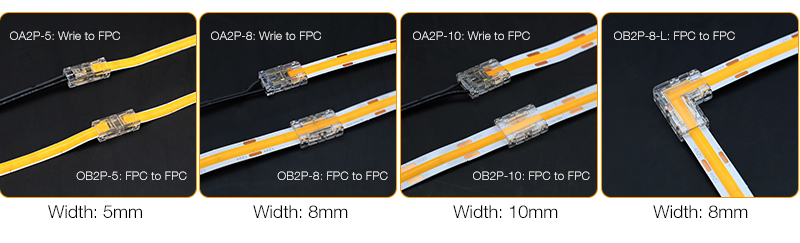

【Various Quick Connector】Applicable to various quick connector, Welding Free Design
【PCB to PCB】 For connecting two pieces of different COB strips, such as 5mm/8mm/10mm,etc
【PCB to Cable】Used to light up the COB strip, connect the COB strip and wire
【L-type Connector】Used to extend Right Angle Connection COB Strip.
【T-type Connector】Used to extend T Connector COB Strip.

When we use COB led strip lights in kitchen cabinet or furniture, We can combine with smart led drivers and sensor switches. Here it is a example of Centrol control smart system

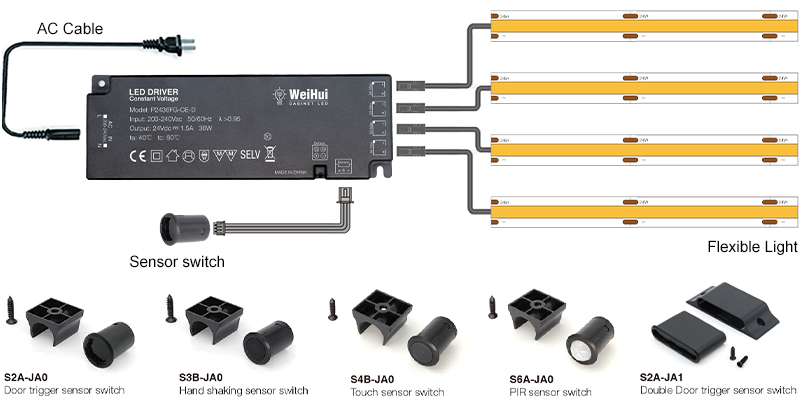

Smart LED Driver System with different sensors( Centrol Control)

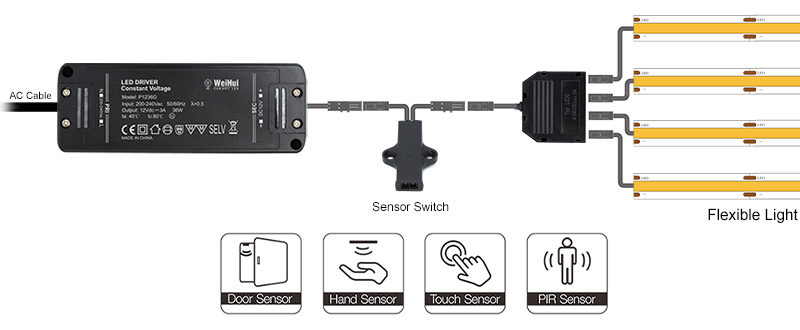

Smart led driver system-Separate Control

FAQ

Frequently Asked Questions

Need help? Be sure to visit our support forums for answers to your questions!

Q1: Is Weihui a manufacturer or a trading company?

A: We are a factory and trading company, with more than ten years of experience in factory R&D,located in SHENZHEN. Expecting your visit at anytime.

Q2: Can you costomize products according to our request?

A: Yes, you can customize the design or choose our design (OEM / ODM is very welcome). Actually Custom-made with small quantity is our unique advantages, such as LED Sensor switches with different programming, We can make it with your request.

Q3: How do we plan our future?

A: The future will be the era of global intelligence. Weihui lighting will continue to dedicate itsef to the intelligence of cabinet lighting solution, develop smart lighting control system with wireless control, blue-tooth control, Wi-Fi control, etc.
Weihui LED cabinet light, it is simple but " Not Simple".

Q4: How to install the strip light?

A: 1. Be sure to slowly peel off the 3M adhesive protective paper layer on the strip light.

2. Use a dust-free cloth to remove dust and oil from the mounting surface.
3. Install the strip light on a dry, clean surface.
4. Do not touch the adhesive surface with your fingers. Press for 10 to 30 seconds after applying the tape.
5. The ideal operating temperature range of the strip light is -20°C to 40°C (-68°F to 104°F). If the mounting temperature is below 10°C, use a hair dryer to heat the glue before sticking the strip light.

Q5: How to install strip lights at corners? Can cob light strips be bent?

A: If you don't want to cut at corners or use quick connectors, you can bend the strip lights. Be careful to avoid folding the soft light strips, as it may cause overheating or damage the life of the product. For more details, you can communicate with us online or offline.
