Furniture Track Lighting System – LED Power Cable
Short Description:
Highlights:
1. 【Compact Structure, Secure Connection】 The miniaturized design, featuring an integrated cable and modular connector, perfectly matches the ultra-thin track, maintaining a neat and tidy cabinet.
2. 【Easy Installation, Flexible Wiring】 A single-wire direct connection between the power supply and the track eliminates the need for additional intermediate connections and cumbersome wiring, providing flexibility and convenience.
3. 【Pure Copper Conductive Core Design】 High-quality copper pins ensure stable contact and excellent conductivity, reducing energy consumption and signal loss.
4. 【Spring pin Structure Port】 Internal pogo pins ensure a stable connection with no polarity differences. Contact-based electrical conduction with no exposed wires ensures safety and aesthetics.
( For more details, Pls check Vidio Part or contact our sales manager),Tks.
The ultra-thin cabinet track lighting system has three types of conductive heads, namely power wiring conductive heads, "I" type and "L" type conductive heads, also called quick connectors or corner connectors.
Product Details:

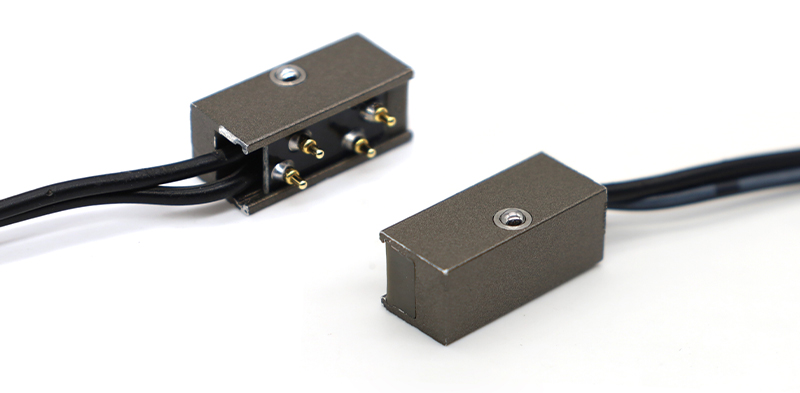

1. Connector features a metal housing with four spring-loaded copper pin contacts for stable contact and excellent conductivity.
2. The cable length is suitable for most cabinet layouts.
3. The power cord includes a connector for quick docking with the DIN rail.

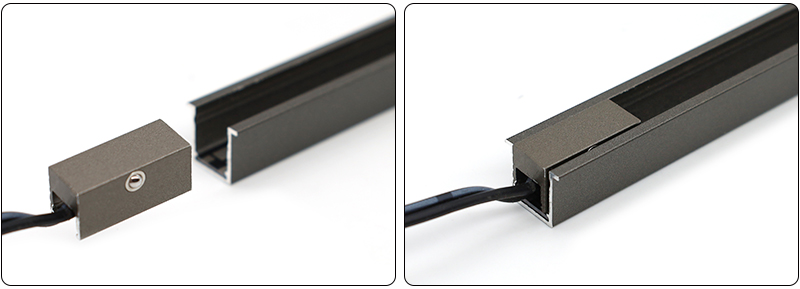

Push-to-install, easy installation: Simply press the conductive connector, and the spring-loaded pins on the bottom mate with the track to power it on. The solderless design allows for quick assembly and disassembly, saving construction time.

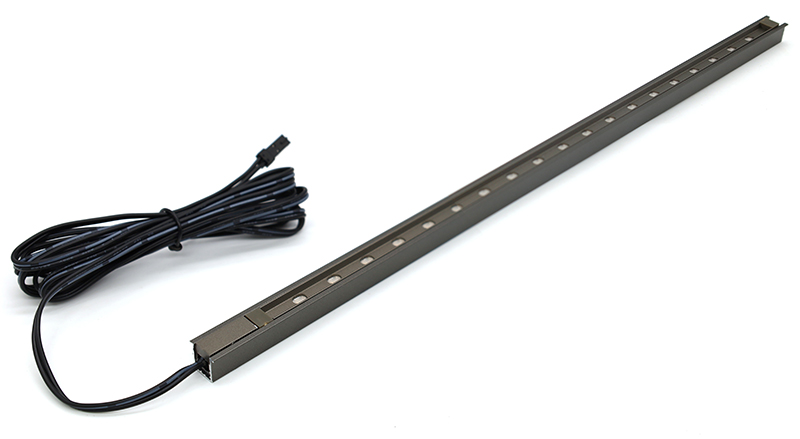

Wire connectors provide stable power to the track lighting system, ensuring efficient current transmission and reducing energy loss. Directly snap into the track for power, it fits snugly into the track structure, simplifying wiring and allowing for quick installation.

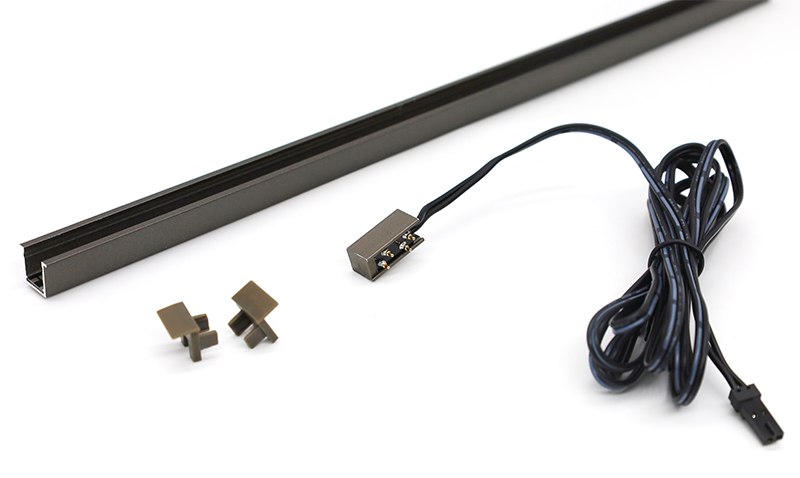

LED light corner connectors are a key component of cabinet track lighting systems. One end of the conductive wire uses a standard male 813 DuPont terminal for connecting to the driver. The other end is a conductive connector, which connects to the track power supply. Simply press and install.

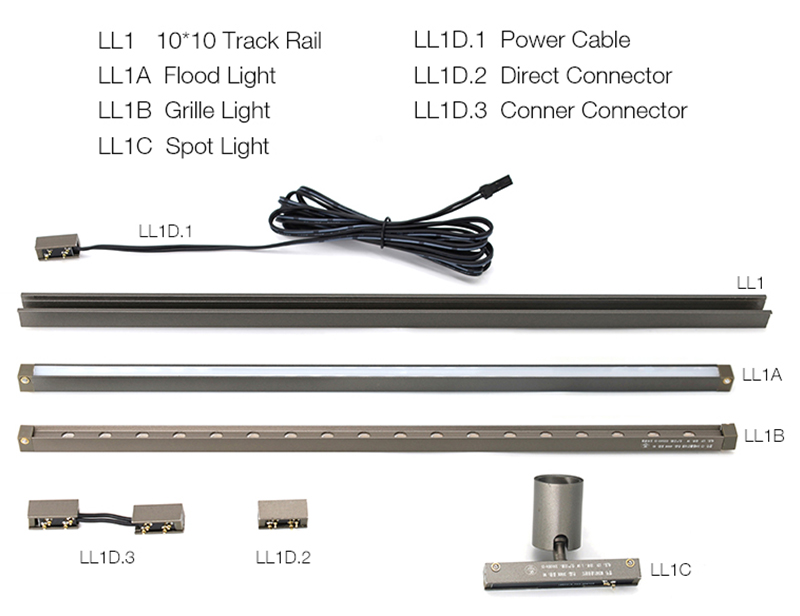

1. The full range of products includes: Tracks, cabinet track spotlights, cabinet track grille lights, cabinet track floodlights, power wiring connectors, direct connectors, butt connectors, and track plugs.
2. These lighting fixtures are modular in design, allowing you to customize your setup to meet your specific needs.
3. The whole cabinet is powered by just one set of power wires, which solves the wiring trouble during installation. The whole series of products have no positive and negative polarity distinction and can be installed and removed at any time, making installation and replacement more convenient.
Frequently Asked Questions
Need help? Pls send your request to us!
We are a factory and trading company, with more than ten years of experience in factory R&D,located in SHENZHEN. Expecting your visit at anytime.
Yes, you can customize the design or choose our design (OEM / ODM is very welcome). Actually Custom-made with small quantity is our unique advantages, such as LED Sensor switches with different programming, We can make it with your request.
Please feel free to contact us by email, phone or send us an inquiry, then we can send you the price list and more information by email: sales@wh-cabinetled.com.
Also contact us directly via Facebook/Whatsapp:+8613425137716
① Series of mini lights: small spotlights, grille lights, floodlights;
② Accessories: tracks, power cable, direct connectors, corner connectors.
For more details, please see the parameters, or contact our sales manager. TEL:+8618123624315 or email: sales@wh-cabinetled.com.
Of course, the maximum length is 3 meters.
1. Part One: 12V Cabinet Track lighting System
| Model | LL1D.1 | ||||||||||||||
| Dimensions | Cable: 1800mm Connector: L20*W8*H7.7mm |
||||||||||||||
| Input | DC 12V/24V | ||||||||||||||
| Wattage | / | ||||||||||||||
| Material | Aluminum | ||||||||||||||
| Color | Black, Silver, Dark grey | ||||||||||||||
| Length | Customized | ||||||||||||||
