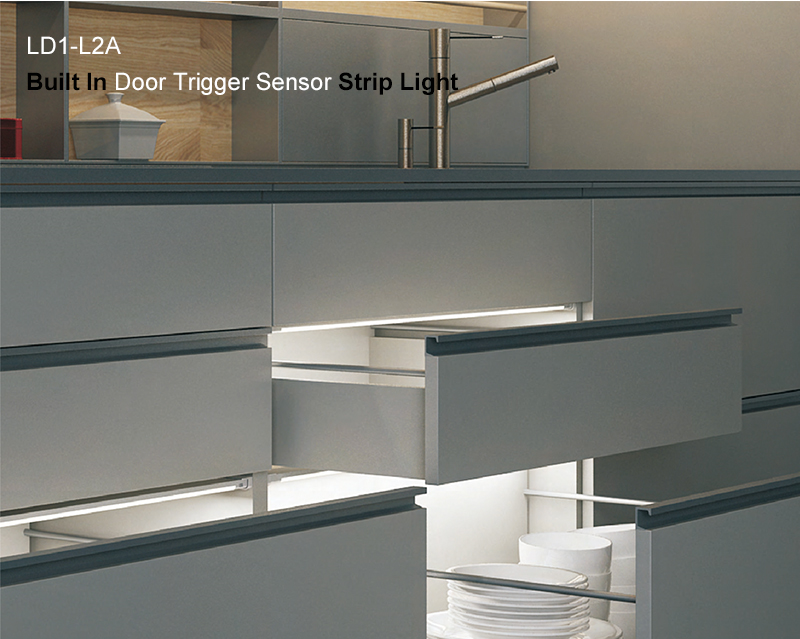

LD1-L2A Aluminum Led cabinet light with sensor
Short Description:
Main Advantages:
1.【Any Cutting & No Soldering Required】Led sensor drawer light can be cut into any required length without soldering, making installation simple and flexible.

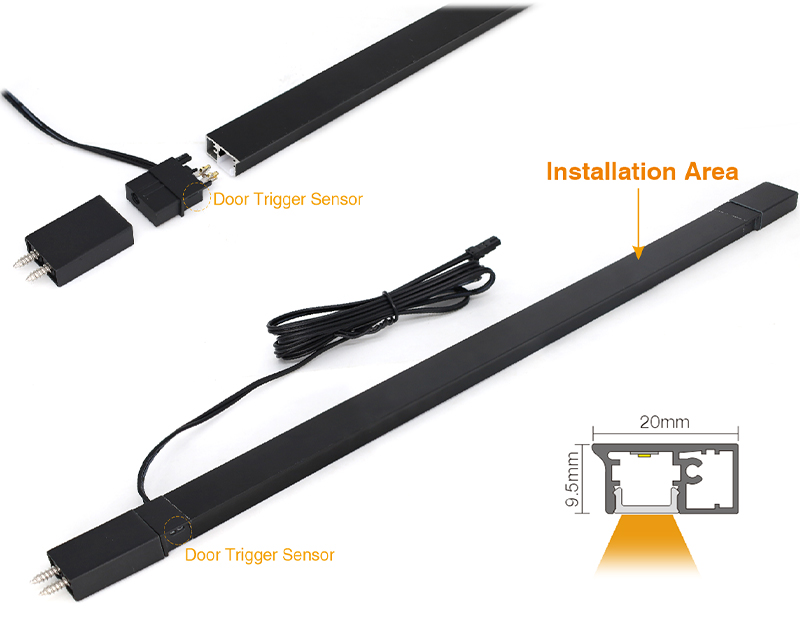

2.【Lightweight and thin design】Drawer lights 9.5X20mm ultra-thin aluminum shape, the back outlet design makes it fit closely with the installation surface, smooth and beautiful.
3.【Integrated design】Underneath cabinet lighting integrates the switch into the light strip to reduce redundant wiring.
More advantages:
1.【High-quality aluminum】Door activated closet light is made of high-quality aluminum, with a high-end and luxurious appearance, anti-corrosion, no rust, and no discoloration. Square design for easy embedded installation.

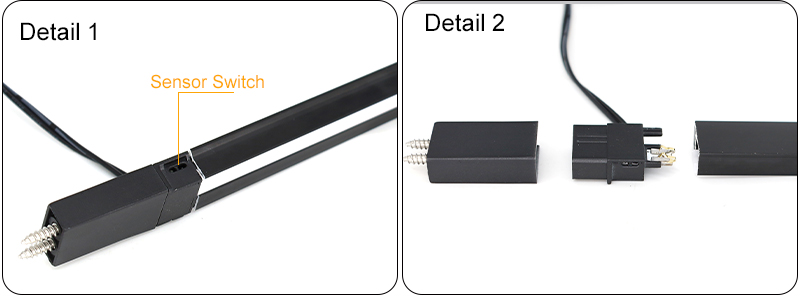

2.【Built-in sensor switch】Built-in door-controlled sensor switch, open the drawer, the light turns on, close the drawer, the light turns off
3.【Compact design】Small size, light weight, designed for cabinets, wardrobes and furniture lighting.
4.【Quality assurance】Three-year warranty, under cabinet led lighting is CE and RoHS certified. If you have any questions about LED lights, please contact us, we are happy to answer them for you.
Product more details
1.【Technical parameters】 Closet light with sensor uses SMD soft light strip with high color rendering index (CRI＞90), the width of the lamp bead is 6.8mm, supports 12V/24V voltage, and the power is 30W.
· Power cord length: 1500mm
· Standard lamp length: 1000mm (customizable)
2.【Safe and stable low-voltage design】 It adopts constant 12V or 24V low-voltage power supply to ensure safe and reliable use, effectively reduce safety hazards, and extend the service life of the lamp, so that you can use it more safely in daily life.

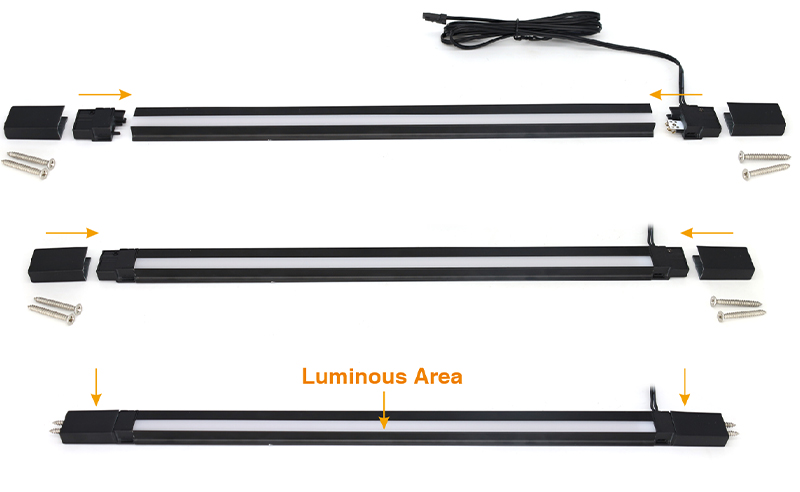

3.【Convenient detachable structure】 The plugs at both ends of the light strip are fixed by screws, the structure is stable, easy to disassemble and maintain, and convenient for later replacement of parts or maintenance.
4.【Installation method】 Use screws to fix both ends, firm and safe. The light strip contains accessories, 2 plugs, 2 clamps, and 6 screws. Small screws are used to fix the plugs at both ends. Large screws fix the clamps on both sides of the drawer, and then the light strip is clamped into the clamps. The installation process is simple and fast, while keeping the lamp firm and unshakable.

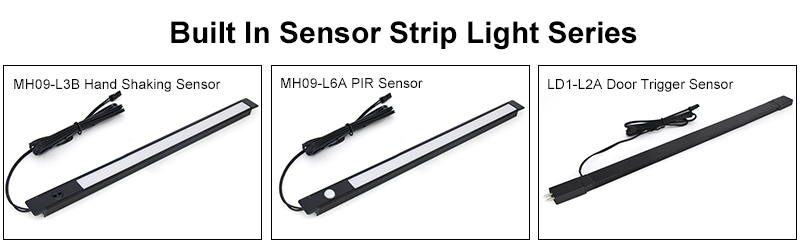

Built-in sensor light bar has a variety of styles to choose from, there is always one that suits you.
More types of different applications, this aluminum LED light box strip cutting-free series, we also have other applications. Such as LED welding-free strip light A/B series, etc. (If you want to know about these products, please click on the blue corresponding position, thank you.)
1. Use high-quality SMD soft light strip, 200leds per meter, with environmentally friendly flame-retardant PC cover, due to the high clarity and high light transmittance of the lampshade, LED The sensor drawer light has more adequate illumination, softer light surface, no glare, uninterrupted light, and is very friendly to our eyes.

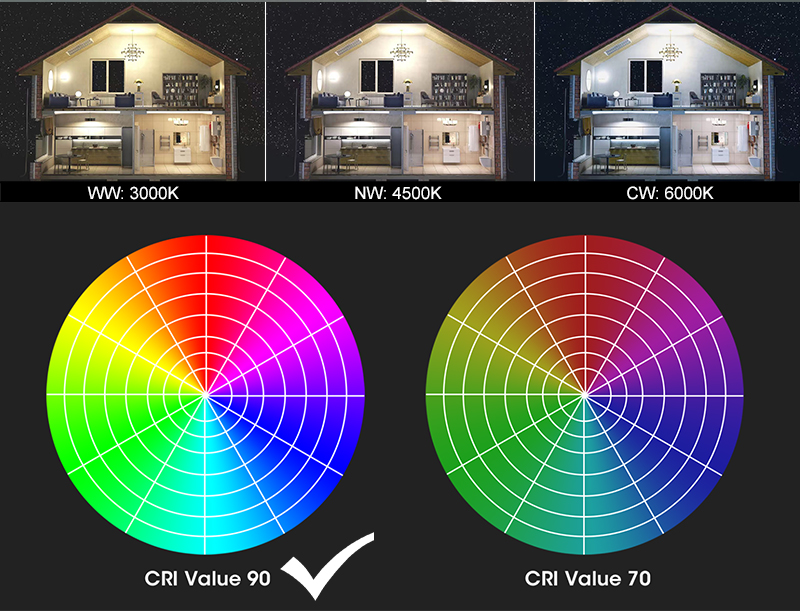

2. Color temperature: Everyone has different adaptability to light or favorite lighting styles, so the LED light strip can be customized to any LED color temperature according to your preferences or the characteristics of the cabinet.
3. Color rendering index: All LED lights of Led cabinet light with sensor are customized with high-quality LED chips, with a color rendering index of Ra>90, which truly restores the original color of the object.
Underneath cabinet lighting works at DC12V and DC24V, is energy-saving and safe, and can be used in any drawer and door cabinet settings (Note: Pay attention to the distance between the built-in switch and the cabinet door/drawer door during installation: 5-8cm). Whether it is the clothes in the wardrobe or the small items in the drawer, it can provide you with sufficient lighting. Our lights can be used for lighting kitchen sink cabinets, floor-to-ceiling door cabinets, door-type wardrobes, etc. Our Gola drawer series LED lights provide a perfect combination of function and style.

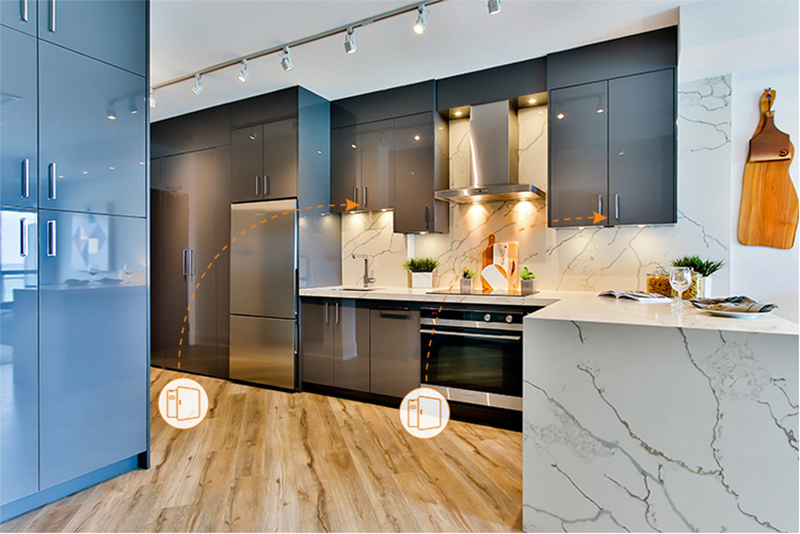

Application scene1:Kitchen under Cabinet lighting

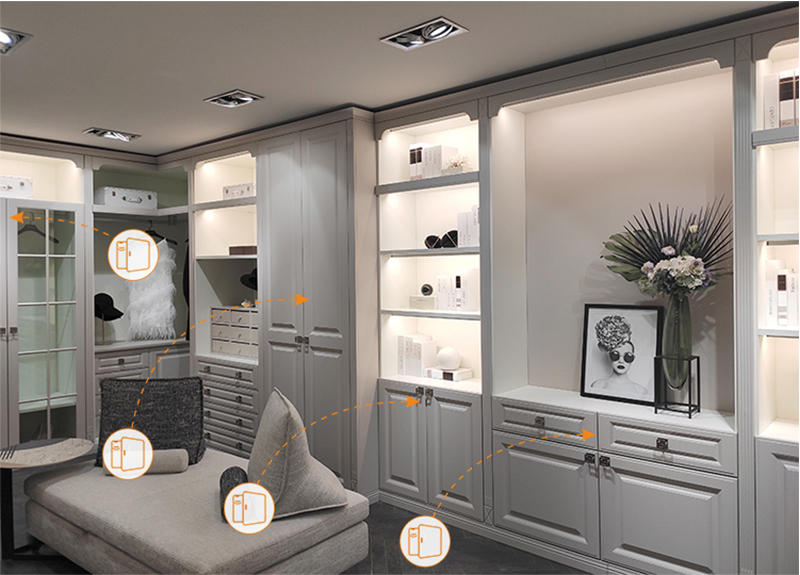

Application scene2: Bedroom drawer and door-type wardrobes
For this led sensor drawer light, after installation, you can directly connect the LED driver to use it, without the need to connect other wires or switches, which is convenient and quick.
Frequently Asked Questions
Need help? For more info, Pls send your request to us!
We are a factory and trading company, with more than ten years of experience in factory R&D,located in SHENZHEN. Expecting your visit at anytime.
Yes, Free samples are available with small quantities.
For prototypes, The sample fee will be returned to you when order is confirmed.
1. Induction switch: infrared switch, touch switch, wireless induction switch, human body switch, mirror touch switch, hidden switch, radar induction switch, high voltage switch, mechanical switch, All kinds of sensor switches in cabinet wardrobe lighting.
2. LED lights: drawer lights, cabinet lights, Wardrobe light, shelf lights, welding-free lights, anti-glare strip lights, black strip lights, silicone light strips, battery cabinet lights, panel lights, Puck lights, jewelry lights;
3. Power supply: Cabinet smart led drivers, Line in adpters, Big Watt SMPS, etc.
4. Accessories: Distribution box, Y cab; DuPont extension cable, Sensor head extension cable, wire clip, Custom-made led show panel for fair, Show box for client visiting,etc
We accept delivery methods: Free Alongside Ship (FAS), Ex Works (EXW), Delivered at Frontier (DAF), Delivered Ex Ship (DES), Delivered Ex Queues (DEQ), Delivered Duty Paid (DDP), Delivered Duty Unpaid (DDU)
We accept payment currencies: USD, EUR, HKD, RMB,etc
We accept payment methods: T/T, D/P, PayPal, Cash.
Yes, we provide one-stop assembly service.
1. Part One: Led cabinet light with door sensor
| Model | LD1-L2A | |||||||
| Install style | Surfaced Mounted | |||||||
| color | Black | |||||||
| light color | 3000k | |||||||
| Voltage | DC12V/DC24V | |||||||
| Wattage | 20W/m | |||||||
| CRI | >90 | |||||||
| LED Type | SMD2025 | |||||||
| LED Quantity | 200pcs/m | |||||||
2. Part Two: Size information
3. Part Three: Installation

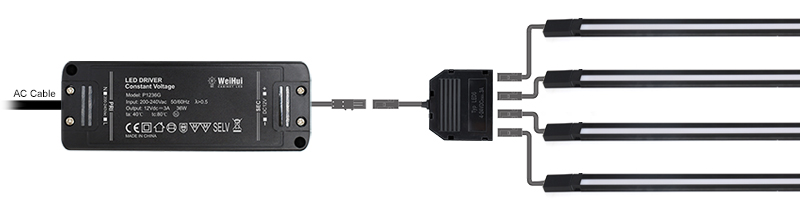

4. Part Four: Connection Diagram
