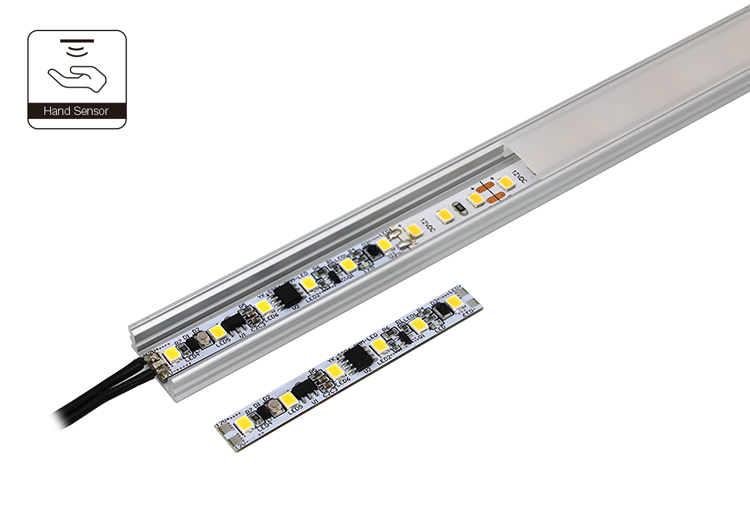

PCBA LED Dimmer Hand Sensor for Wardrobe (Tr4)

Advantages:

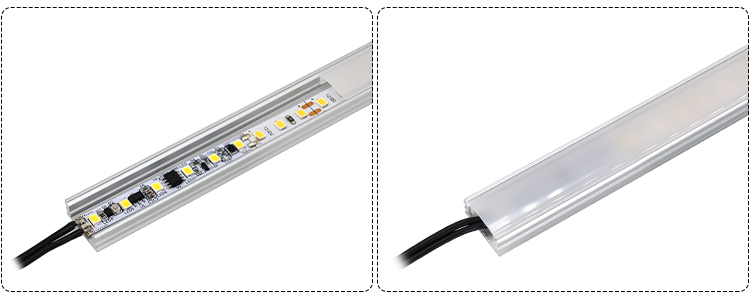

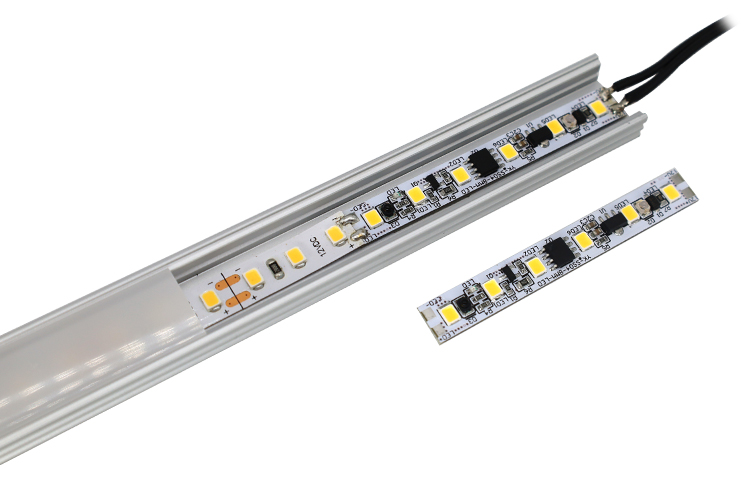

1. 【Nake Board PCBA Construction】 The PCBA Hand Shaking Sensor Circuit Board is compact and can be directly soldered (or wired) to the LED light board. It can be integrated into the aluminum profile slot for a compact design and easy installation.

2. 【No Dark Area】 The LED chips are directly integrated into the PCBA hand sweeping sensor , integrating the LED light source and control circuitry. This sensor acts as both a switch sensor and a light, delivering uniform light without dark areas, improving lighting quality.
3. 【No Slotting or Hole Cutting Required】 The PCBA sensor module board assembly is directly soldered to the LED light board, eliminating the need for additional slotting. A hand-sweep PCBA can be operated through a mask without drilling.

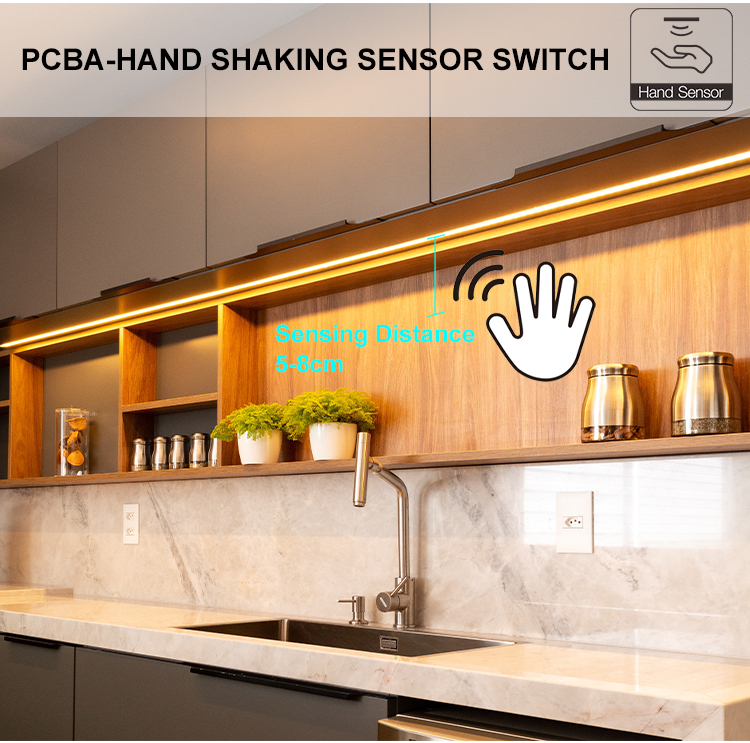

4. 【Non-Contact Sensing】 Utilizing infrared sensing technology, control is achieved by simply sweeping your hand across the sensing area. Highly sensitive hand-sweep sensing provides fast response. The sensing distance for a bare board is 15-20cm, while the sensing distance with the mask installed is 5-8cm.

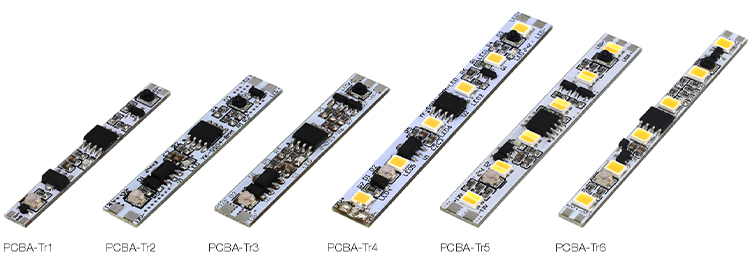

5. 【Customization Supported】 The Short Distance Scan Sensor Switch can be customized based on your needs: size, function (touch, hand-sweep, PIR sensing), single color, dual color temperature, dimming function, sensing distance, sensing time, and more.
Parameters:

1. Hand-Scan On/Off Control: Simply swipe your hand across the sensing area (5-8cm) to toggle the LED light on and off.
2. Dimmer Function: Hold for a long period of time to adjust brightness, supporting stepless dimming and maintaining 8-second adaptive sensitivity.
3. Power-Off Memory Function: The IR Hand Sweep ON-OFF Sensor Module features a power-off memory function, restoring the brightness and state to the last used state upon power-on, enhancing the user experience.
