Low Voltage Track Lighting System – L Shape Connectors
Short Description:
Highlights:
1. 【Compact Structure, Invisible Installation】 The combination of sophisticated conductive connectors and flexible wiring perfectly matches the ultra-thin track, maintaining an aesthetically pleasing overall appearance.

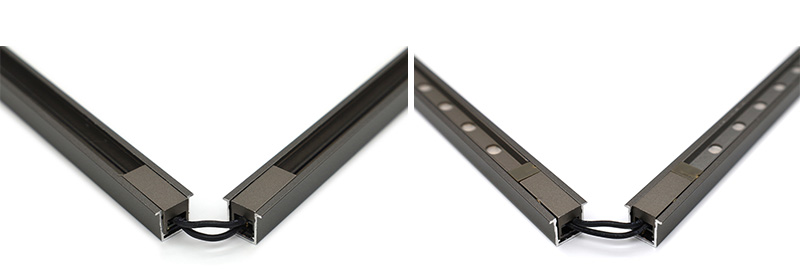

2. 【L-Shaped Corner Connection, Flexible Wiring】 The 360° adjustable corner design supports right-angle layouts, allowing the lighting system to smoothly navigate around corners or cabinet structures without affecting light spread.
3. 【Pure Copper Conductive Core Design】 The use of high-quality copper pins ensures stable contact and excellent conductivity, reducing energy consumption and signal loss.
4. 【Spring pin Structure Port】 Internal pogo pin structure ensures a stable connection with no polarity differences.
( For more details, Pls check Vidio Part or contact our sales manager),Tks.

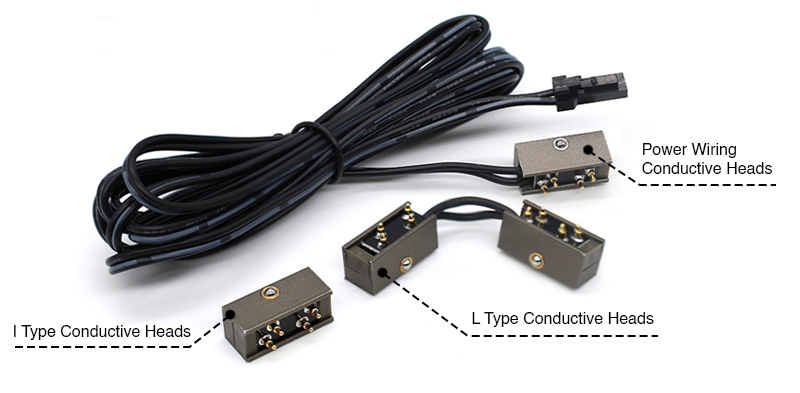

The ultra-thin cabinet track lighting system has three types of conductive heads, namely power wiring conductive heads, "I" type and "L" type conductive heads, also called quick connectors or corner connectors.
Product Details:
1. High-quality anodized aluminum housing for durability.

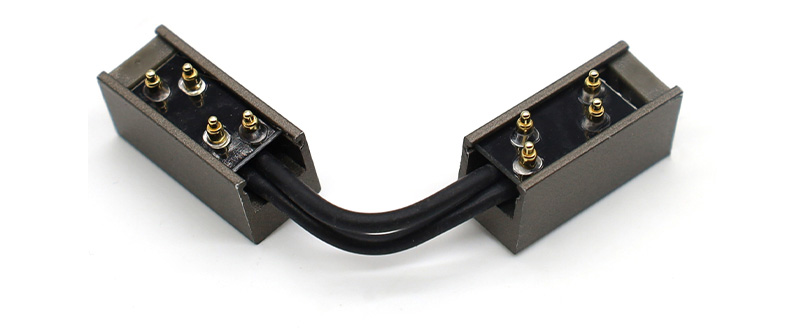

2. Four-point spring contact copper structure for stable contact and excellent conductivity.
Push-to-install, easy installation: Simply press the conductive connector, and the spring-loaded pins on the bottom mate with the track to power it on. The solderless design allows for quick assembly and disassembly, saving construction time.

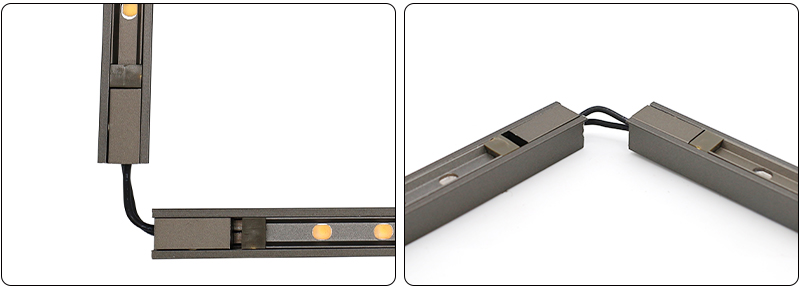

The LED corner connector connects two sections of track, ensuring complete current and signal transmission, enabling synchronized control of multiple lighting sections and perfecting corner lighting layouts.

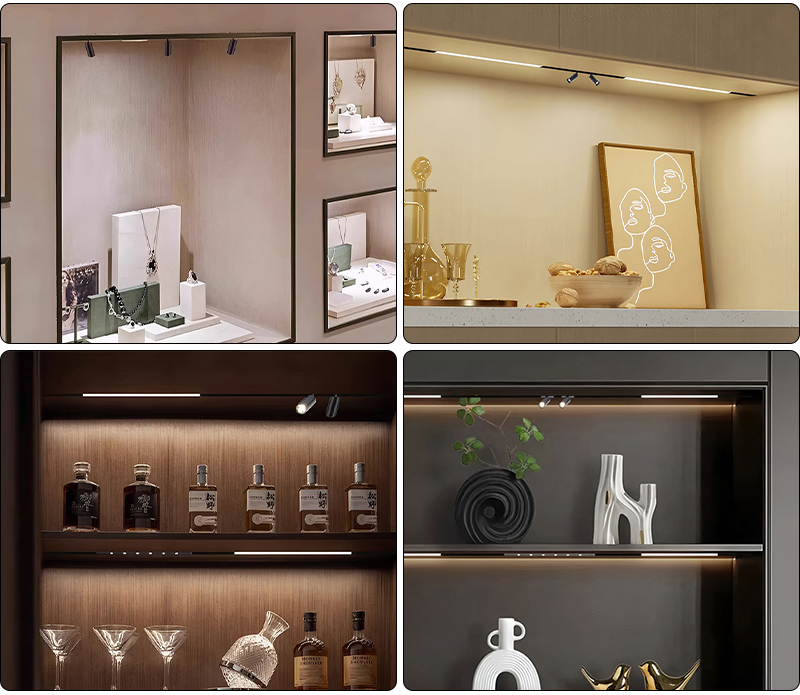

LED light corner Connectors, a key component of cabinet track lighting systems, play a vital role in connecting tracks. They are suitable for L-shaped layouts such as cabinets, wardrobes, and wine cabinets, meeting lighting needs regardless of spatial structure.
1. Cabinet Lighting System: Connect tracks at cabinet corners for seamless lighting.
2. Cloakroom: Connect L- or U-shaped cabinet light strips for continuous, uninterrupted illumination.

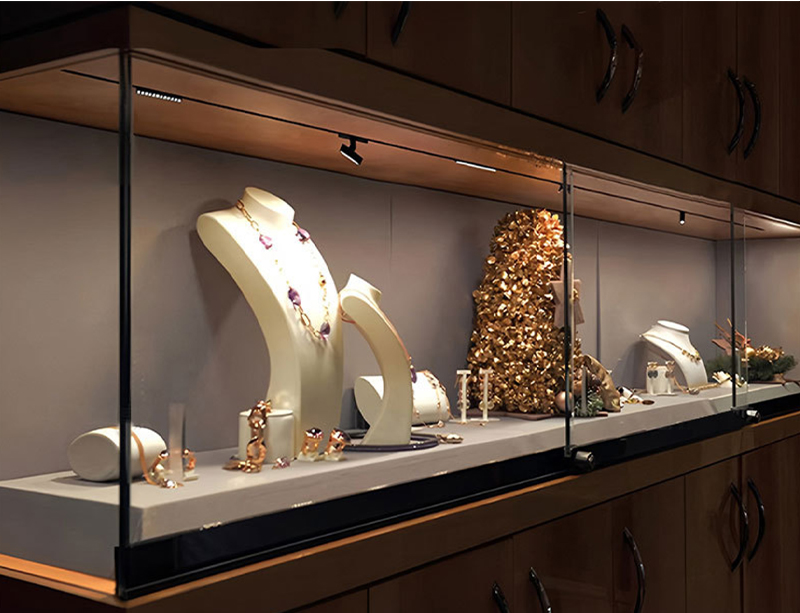

3. Display Cabinets and Shelves: Use them to illuminate corners of exhibits, enhancing the overall aesthetic.
4.Study room/Kitchen: Connect corner bookshelves and under-counter lighting to create a unified lighting style.

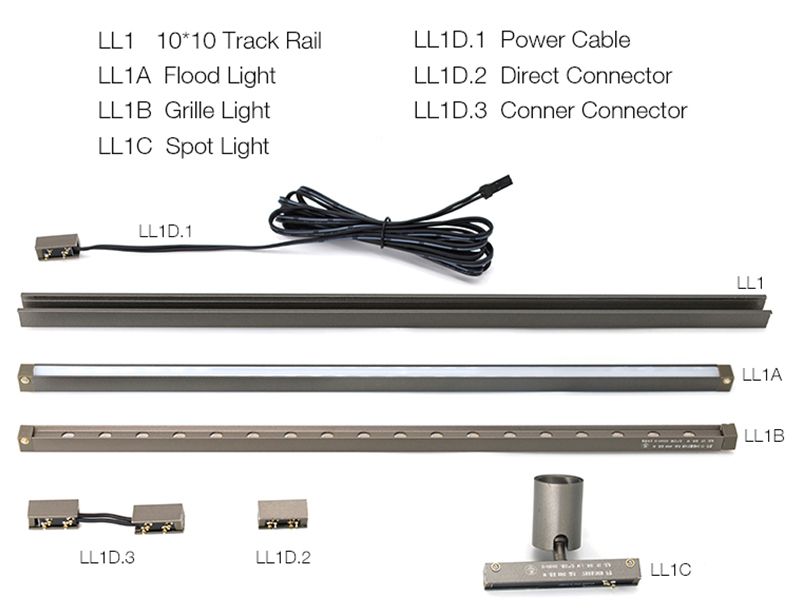

1. The full range of products includes: Tracks, cabinet track spotlights, cabinet track grille lights, cabinet track floodlights, power wiring connectors, direct connectors, butt connectors, and track plugs.
2. These lighting fixtures are modular in design, allowing you to customize your setup to meet your specific needs.
3. The whole cabinet is powered by just one set of power wires, which solves the wiring trouble during installation. The whole series of products have no positive and negative polarity distinction and can be installed and removed at any time, making installation and replacement more convenient.
Frequently Asked Questions
Need help? Pls send your request to us!
We are a factory and trading company, with more than ten years of experience in factory R&D,located in SHENZHEN. Expecting your visit at anytime.
Yes, you can customize the design or choose our design (OEM / ODM is very welcome). Actually Custom-made with small quantity is our unique advantages, such as LED Sensor switches with different programming, We can make it with your request.
Please feel free to contact us by email, phone or send us an inquiry, then we can send you the price list and more information by email: sales@wh-cabinetled.com.
Also contact us directly via Facebook/Whatsapp:+8613425137716
① Series of mini lights: small spotlights, grille lights, floodlights;
② Accessories: tracks, power cable, direct connectors, corner connectors.
For more details, please see the parameters, or contact our sales manager. TEL:+8618123624315 or email: sales@wh-cabinetled.com.
Of course, the maximum length is 3 meters.
1. Part One: 12V Cabinet Track lighting System
| Model | LL1D.3 | ||||||||||||||
| Dimensions | L20*W8*H7.7mm | ||||||||||||||
| Input | DC 12V/24V | ||||||||||||||
| Wattage | / | ||||||||||||||
| Material | Aluminum | ||||||||||||||
| Color | Black, Silver, Dark grey | ||||||||||||||
| Length | Customized | ||||||||||||||
