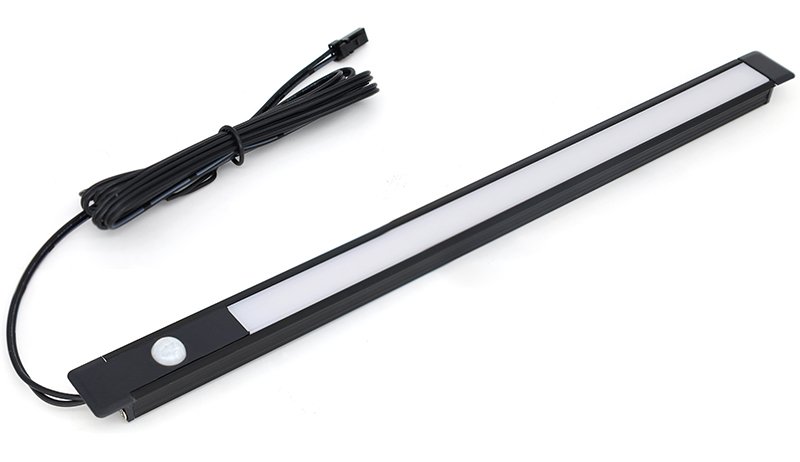

MH09-L6A Motion activated light-No polarity difference
Short Description:
Main Advantages:

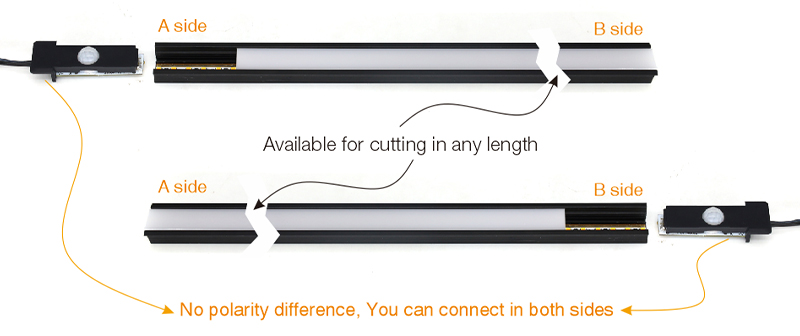

1. 【Any Cutting & No Soldering Required】 Movement sensor light can be cut into any required length without soldering, making installation simple and flexible.
2. 【No Positive and Negative Polarity Difference】 Movement sensor led lights support wiring in any direction without positive and negative polarity restrictions.
3. 【Integrated Design】 Motion sensor led strip integrates the switch into the light strip to reduce redundant wiring.
More advantages:
1. 【High-quality Design】 Motion sensor lamp is made of high-quality aluminum, with a high-end and luxurious appearance, anti-corrosion, no rust, and no discoloration. Square design for easy embedded installation.
2. 【Built-in sensor switch】 Movement sensor light has a built-in human body sensing switch, which can sensitively capture human activities, ultra-long sensing distance within 3 meters, 120° wide-angle reaction, and large-scale recognition, so you can say goodbye to looking for switches in the dark. It lights up as soon as people come, without waiting.
3. 【Compact Design】 Motion sensor cabinet light is small in size and light in weight, and is designed for cabinets, wardrobes and furniture lighting.
4.【Quality Assurance】Three-year warranty, motion closet light has passed CE and RoHS certifications. If you have any questions about LED lights, please contact us and we will be happy to answer them for you.
Product more details
1.【Technical parameters】Closet motion sensor light uses SMD soft light strip with high color rendering index (CRI＞90), the width of the lamp bead is 6.8mm, supports 12V/24V voltage, and the power is 30W.

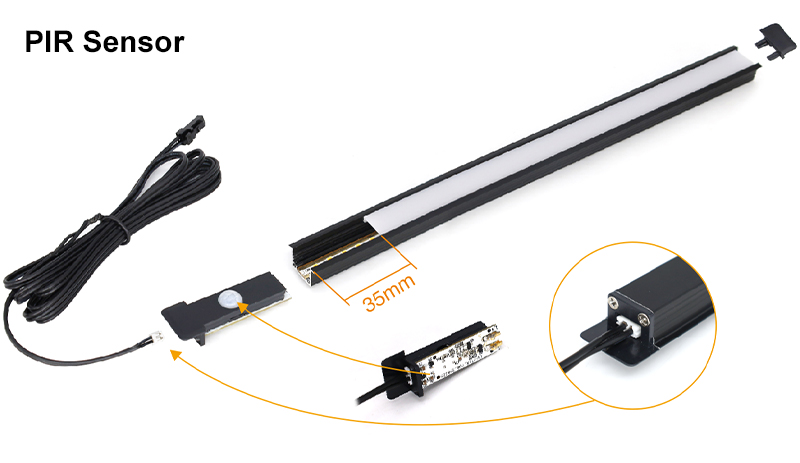

· Built-in human body induction switch size: 35mm
· Power cord length: 1500mm
· Standard strip light length: 1000mm (customizable)

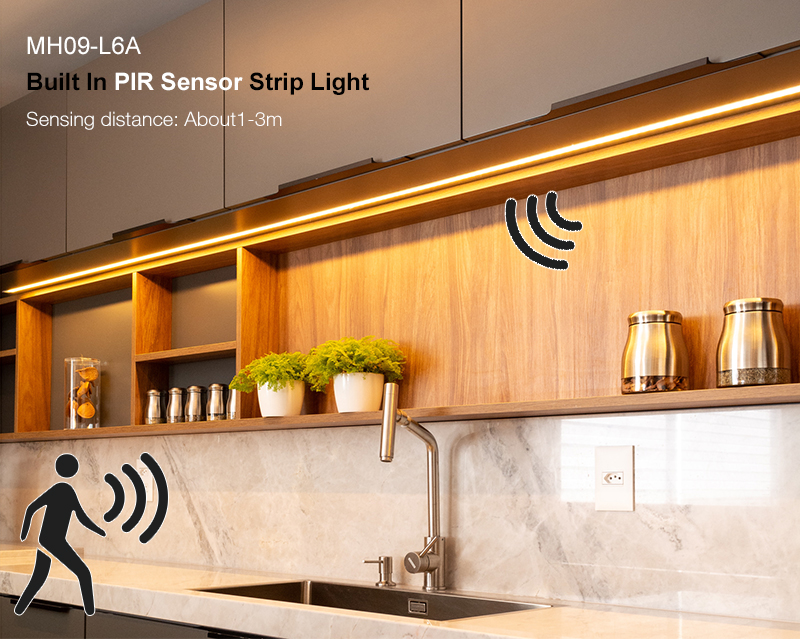

2.【Sensing function】Built-in PIR sensor switch, the sensing distance is 1-3m. When it exceeds the sensing range, the cabinet lighting is in the off state; within the sensing range, the cabinet lighting automatically lights up; after leaving the sensing range, the cabinet lighting automatically turns off in about 30 seconds.
3. 【Safe and stable low-voltage design】 It uses a constant 12V or 24V low-voltage power supply to ensure safe and reliable use, effectively reduce safety hazards, and extend the service life of the lamp, making your daily use more secure.

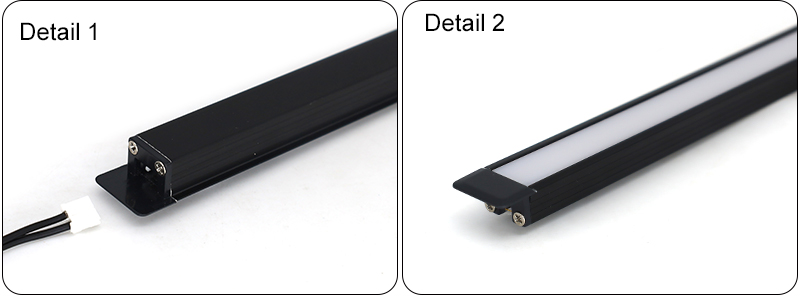

4. 【Convenient detachable structure】 The plugs at both ends of the light strip are fixed by screws, the structure is stable, easy to disassemble and maintain, and convenient for later replacement of parts or maintenance.

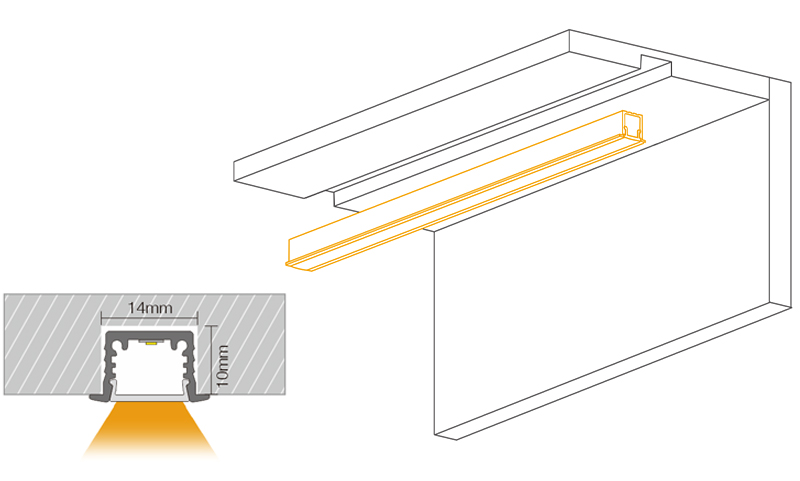

Installation method: Embedded installation, just dig a 10X14mm groove on the board, it can be embedded in wardrobes, cabinets and other cabinets. The groove installation design allows for neat and concealed wiring, creating a clean and professional appearance.

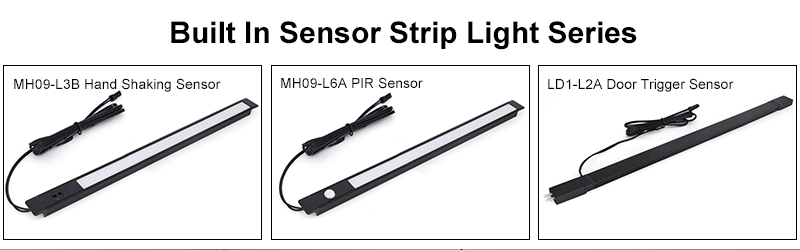

Built-in sensor light bar has a variety of styles to choose from, there is always one that suits you.
More types of different applications, this aluminum LED light strip cutting-free series, we also have other applications. Such as LED welding-free strip light A/B series, etc. (If you want to know about these products, please click on the blue corresponding position, thank you.)
1. Adopt high-quality SMD soft light strip, with 200 leds per meter, with environmentally friendly flame-retardant PC cover, due to the high clarity and high light transmittance of the lampshade, the led motion sensor light is soft, no harmful blue light, no visible flicker, always protect your family's eyes.

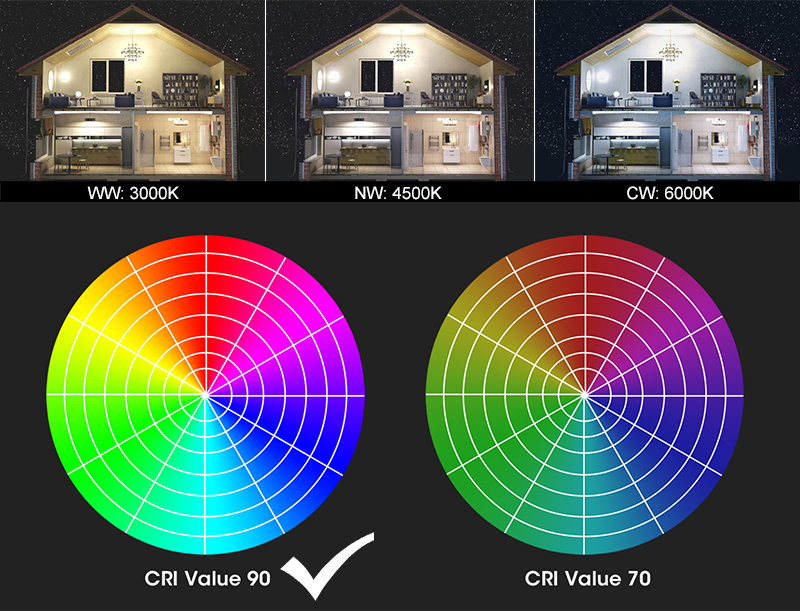

2. Color temperature: Everyone has different adaptability to light or different lighting styles, so the LED light strip can be customized to any LED color temperature according to your preferences or the characteristics of the cabinet.
3. Color rendering index: All LED lights of PIR sensor light are customized with high-quality LED chips, with a color rendering index of Ra>90, which truly restores the original color of the object.
The motion sensor closet light works at DC12V and DC24V, which is energy-saving and safe. It can be used in indoor places such as wardrobes, cabinets, corridors, stairs, etc. Whether it is the clothes in the closet or the dark corridor, the led motion sensor light can provide you with instant and sufficient lighting.

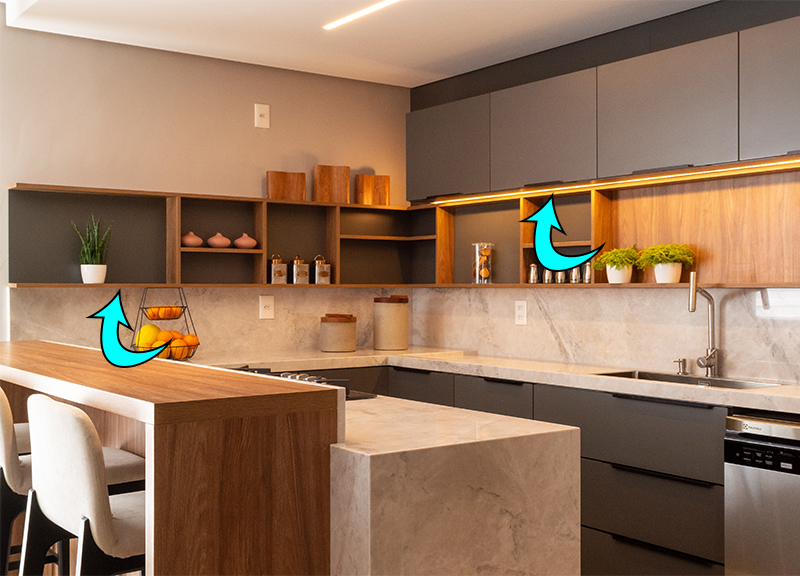

Application scene1:Kitchen under Cabinet lighting

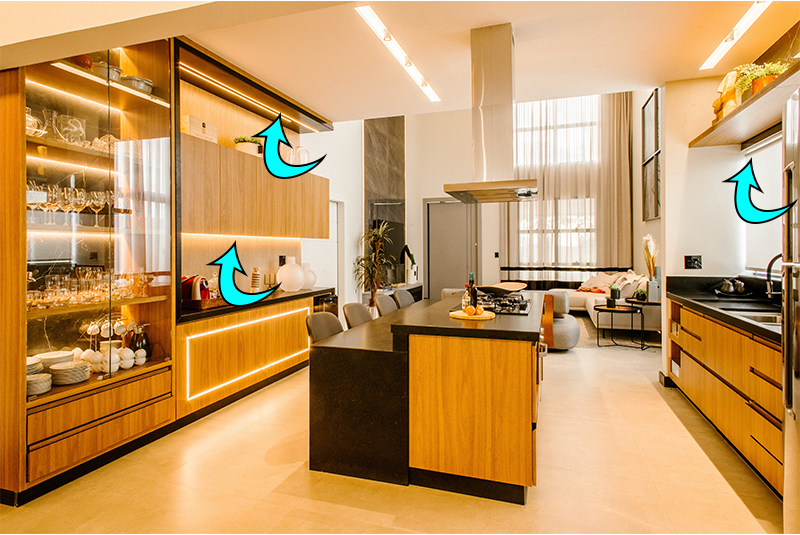

Application scene2: Wine Cabinet

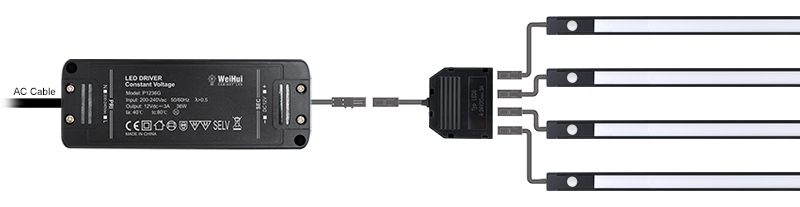

For this motion activated light, after installation, you can directly connect the LED driver to use it without connecting the switch. Embedded installation, the light strip is flush with the installation surface, smooth and beautiful.
Frequently Asked Questions
Need help? For more info, Pls send your request to us!
We are a factory and trading company, with more than ten years of experience in factory R&D,located in SHENZHEN. Expecting your visit at anytime.
3-7 working days for samples if in stock.
Bulk orders or customized design for 15-20 working days.
Step 1 - Provide the product model or picture link, quantity, shipping method, and payment method you need.
Step 2 - We will make a PI invoice for you to confirm the order.
Step 3 - Check the invoice and confirm it. We will help you arrange the order and shipment after receiving the payment.
Step 4 - Provide inspection report before delivery, After client confirm, We will arrange shipping accordingly.
Step 5- Take a photo to confirm and track the shipping information, such as the waybill number.
Please feel free to contact us by email, phone or send us an inquiry, then we can send you the price list and more information by email: sales@wh-cabinetled.com.
Also contact us directly via Facebook/Whatsapp:+8613425137716
Yes, we are one stop solution supplier for cabinet lighting solutions. You can buy all parts including led driver/power supply from Weihui Directly. One stop solutions is also much better for after service too.
1. Part One: Motion activated light
| Model | MH09-L6A | |||||||
| Install style | Embedded Mounted | |||||||
| color | Black | |||||||
| light color | 3000k | |||||||
| Voltage | DC12V/DC24V | |||||||
| Wattage | 20W/m | |||||||
| CRI | >90 | |||||||
| LED Type | SMD2025 | |||||||
| LED Quantity | 200pcs/m | |||||||
2. Part Two: Size information
3. Part Three: Installation
4. Part Four: Connection Diagram
