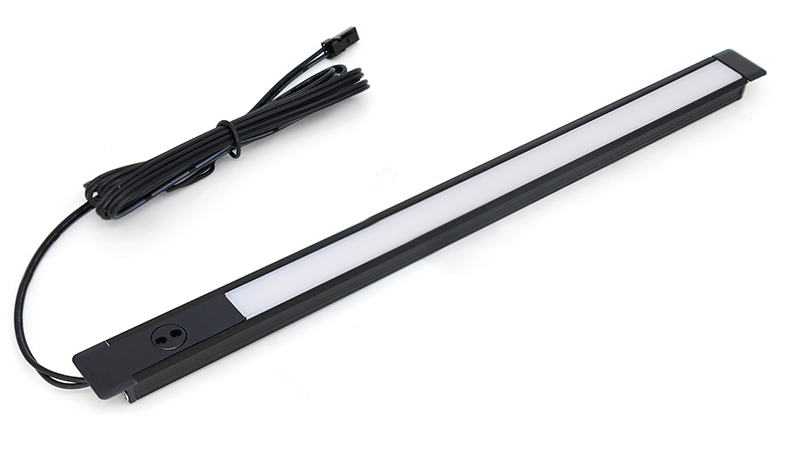

MH09A-L3B Led strip light with switch-No polarity difference
Short Description:
Features:
1. 【High-quality design】 Under cabinet lighting is made of high-quality aluminum, with a high-end and luxurious appearance, anti-corrosion, no rust, and no discoloration. Square design for easy embedded installation.
2. 【Built-in sensor switch】 Built-in hand-sweep induction switch, using IR induction technology, sensing distance: 5-8cm, to meet various lighting needs in various places. Just a wave of your hand will illuminate the entire countertop. You can turn on and off the light even if you have something in your hand or your hands are wet.
3. 【Cutable & No Soldering】 Smart under cabinet lighting can be cut to any length, no welding or other quick-connect terminals are required, just connect to the power supply and it can be used.
4. 【No difference in positive and negative polarity】 Cabinet light has no polarity difference between the positive and negative poles, and the light can be on no matter which end is connected.
5. 【Integrated Design】 Under Cabinet Lighting integrates both switches and light strips, and its compact size makes it easy to install in closets, wardrobes, cabinets and drawers, etc. It is small in size and light in weight, and is designed for cabinets, wardrobes and furniture lighting.
6. 【Quality Assurance】 With a three-year warranty, under cabinet led lighting has passed CE and RoHS certifications. If you have any questions about LED lights, please contact us, and we will be happy to answer them for you.

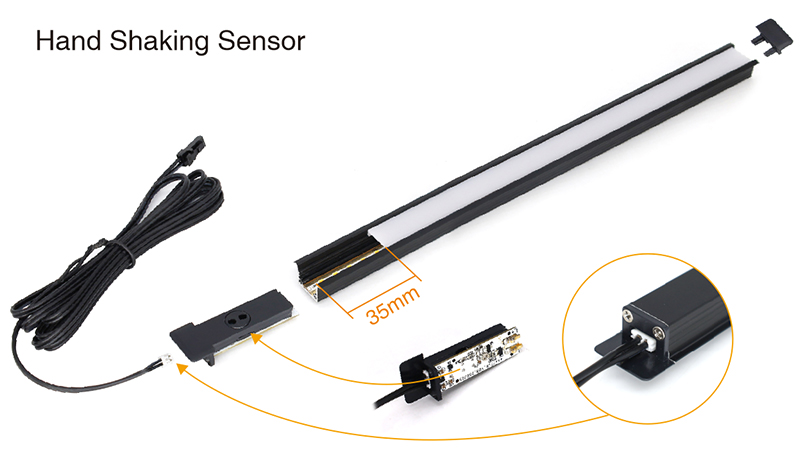

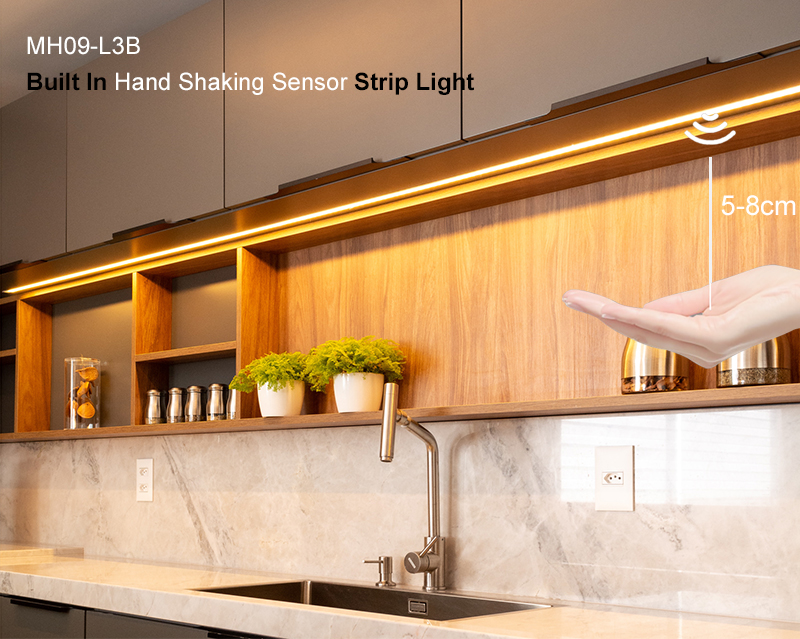

Built-in Hand shaking sensor switch

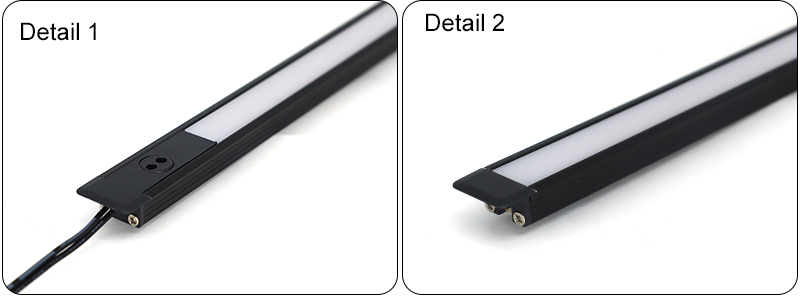

Product more details
1.【Safe and stable voltage design】 Fixed 12V/24V voltage, safe and stable, effectively extend the service life of the lamp, reduce safety hazards, and let you feel at ease when using and living.

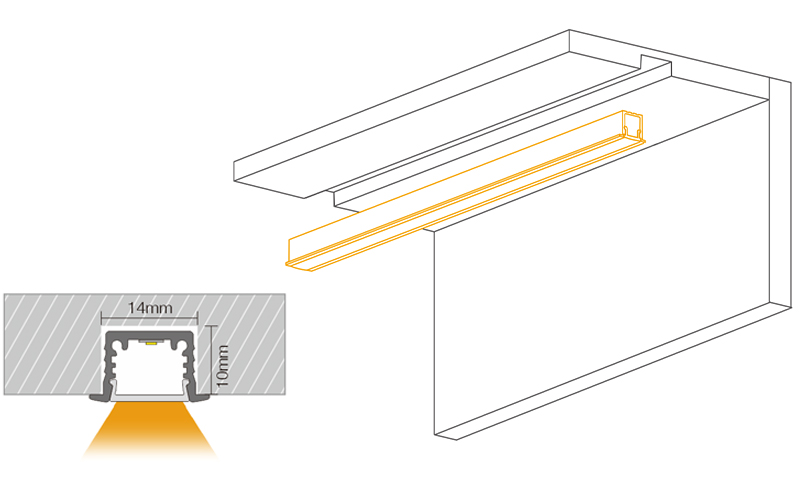

2. Installation method: Embedded installation, just dig a 10X14mm groove on the board, and it can be embedded in wardrobes, cabinets and other cabinets. The groove installation design allows for neat and concealed wiring, creating a clean and professional appearance.
Parameters: SMD soft light strip, CRI>90, lamp bead width 6.8mm, voltage 12V&24V, power 30W, built-in human body induction switch, cable length 1500mm, conventional lamp size 1000mm, customizable style, color, size, color temperature, etc.

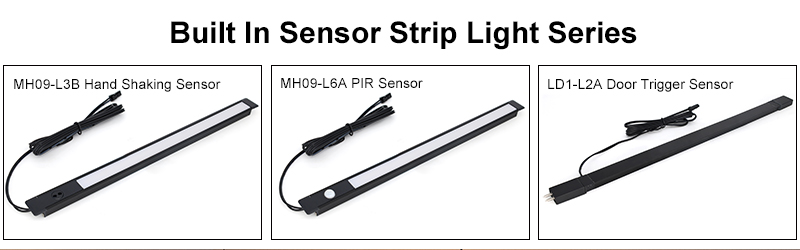

Built-in sensor light bar has a variety of styles to choose from, there is always one that suits you.
More types of different applications, this aluminum LED light strip cutting-free series, we also have other applications. Such as LED welding-free strip light A/B series, etc. (If you want to know about these products, please click on the blue corresponding position, thank you.)
1. High-quality SMD soft light strips are used, with 200 leds per meter, and environmentally friendly flame-retardant PC covers. Due to the high clarity and high light transmittance of the lampshade, the led strip light with switch has soft light, and the anti-glare design and high-quality materials provide soft and comfortable lighting.

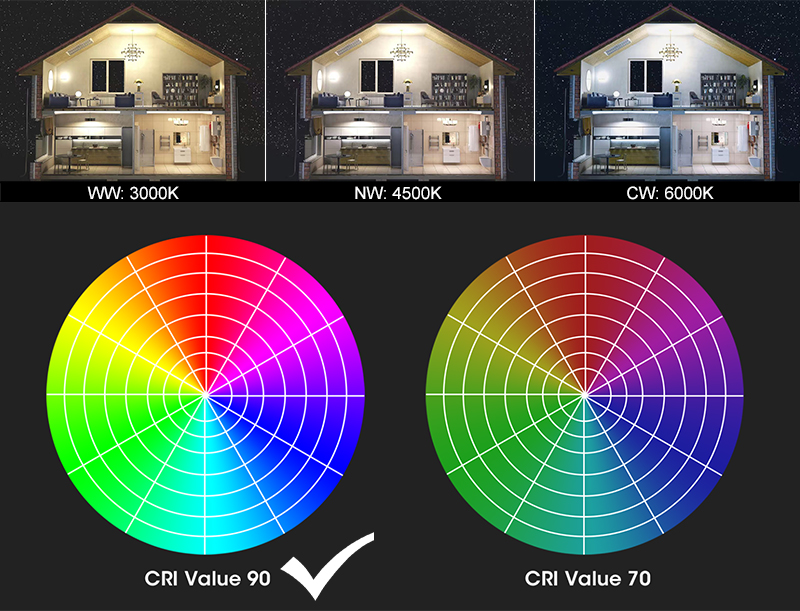

2. Color temperature: Everyone has different adaptability to light or favorite lighting styles, so the LED light strip can be customized to any led color temperature according to your preferences or the characteristics of the cabinet.
3. Color rendering index: All LED lights of the Under cabinet led strip are customized with high-quality LED chips, with a color rendering index of Ra>90, which truly restores the original color of the object.
Cabinet lights for kitchen work under DC12V and DC24V, which is energy-saving and safe, and can be used in wardrobes, cabinets, aisles, stairs and other indoor places. Whether it is the clothes in the wardrobe or the cabinet, under cupboard kitchen lights can provide you with sufficient lighting.

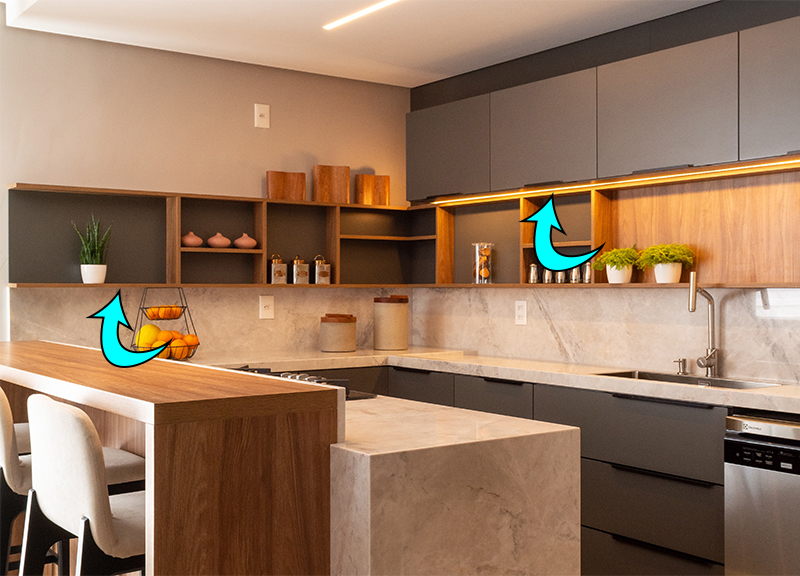

Application scene1:Kitchen under Cabinet lighting

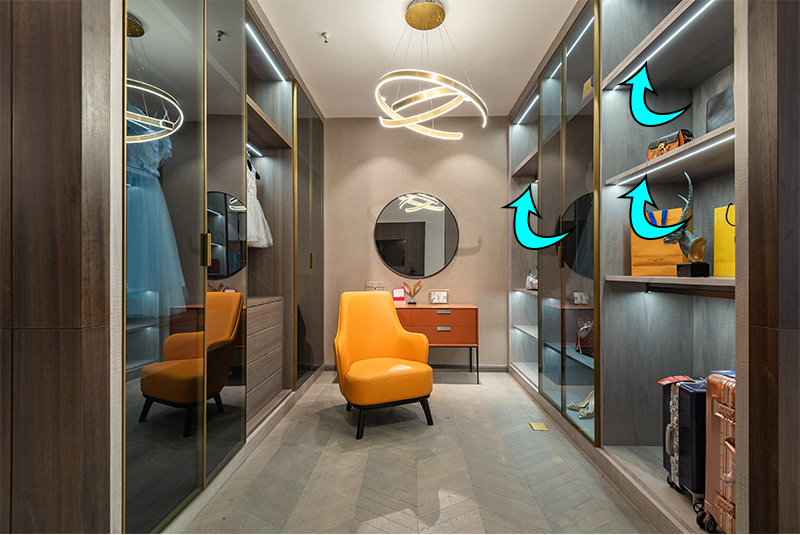

Application scene2: Cloakroom drawer and door-type wardrobes
For this smart under cabinet lighting, after installation, you can directly connect the LED driver to use it, without connecting the switch. Embedded installation, the light strip is flush with the installation surface, smooth and beautiful.
Frequently Asked Questions
Need help? For more info, Pls send your request to us!
We are a factory and trading company, with more than ten years of experience in factory R&D,located in SHENZHEN. Expecting your visit at anytime.
The waterproof index of this light strip is 20, and it cannot be used outdoors. But we can customize waterproof LED light strips. But please note that the power adapter is not waterproof.
The freight will be given by the freight company based on your Gross Weight or CBM.
Yes, we have indoor cutting equipment and can prepare products of any length.
The future will be the era of global intelligence. Weihui lighting will continue to dedicate itsef to the intelligence of cabinet lighting solution, develop smart lighting control system with wireless control, blue-tooth control, Wi-Fi control, etc.
Weihui LED cabinet light, it is simple but " Not Simple".
1. Part One: Led strip light with Hand Sweeping Sensor
| Model | MH09A-L3B | |||||||
| Install style | Embedded Mounted | |||||||
| color | Black | |||||||
| light color | 3000k | |||||||
| Voltage | DC12V/DC24V | |||||||
| Wattage | 20W/m | |||||||
| CRI | >90 | |||||||
| LED Type | SMD2025 | |||||||
| LED Quantity | 200pcs/m | |||||||
2. Part Two: Size information
3. Part Three: Installation

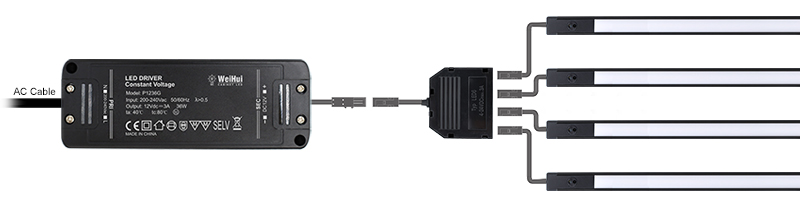

4. Part Four: Connection Diagram
