P12100-T1 12V 100W LED Lighting Power Supply
Short Description:
1. [Technical parameters] Led Lighting Power Supply 170-265V input, DC12V output. The LED used in the voltage-stabilized switching power supply should not exceed 75% of the 12V power supply power.Completely independent power supply system, customizable power cords of different sizes. Designed for home and commercial lighting, the thickness is only 24mm independent power supply.
2. [Overvoltage and overload protection] The led driver supply has functions such as overload, overtemperature, overvoltage, overcurrent, and short circuit. Cut off the circuit in time to prevent equipment damage and safety accidents caused by overcurrent or overvoltage.
3. [Hollow design] The switching led driver adopts a metal shell, which is sturdy and durable. The hollow part increases the contact area with the air, so that the heat can be dissipated into the environment faster and more effectively, and the service life is long.
4. [Quality assurance and price advantage] The price is competitive, the quality is good, and the price is affordable. 3-year warranty, and passed CE/ROHS certification,. Free sample testing is welcome.
12v 100w led power supply for a variety of applications, suitable for high power requirements of the application, 100W power supply can provide reliable power support for as many as possible high power devices, its power is enough to deal with high power domestic and commercial lighting systems, more environmentally friendly and low-carbon.

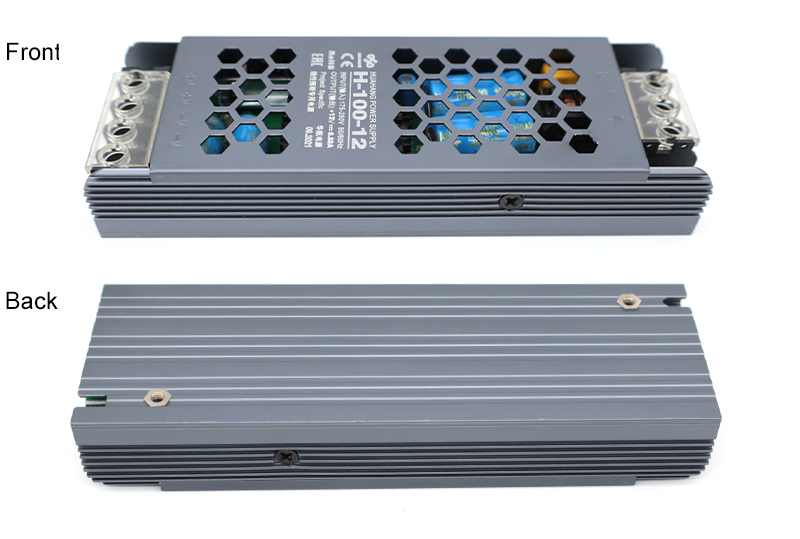

The LED driver is 143X48X24mm in size and only 24mm thick. It is small and light in weight. In places with limited space, reducing weight is crucial.
The 12v adapter locking cable is mainly used to fix the power cord to avoid cable damage or electrical failure caused by shaking of the power cord during the working process.
Safety protection: overload, overheating, overcurrent, overvoltage, short circuit.
The switching power supply LED with voltage stabilization device will not harm the lamps, but is good for safety.

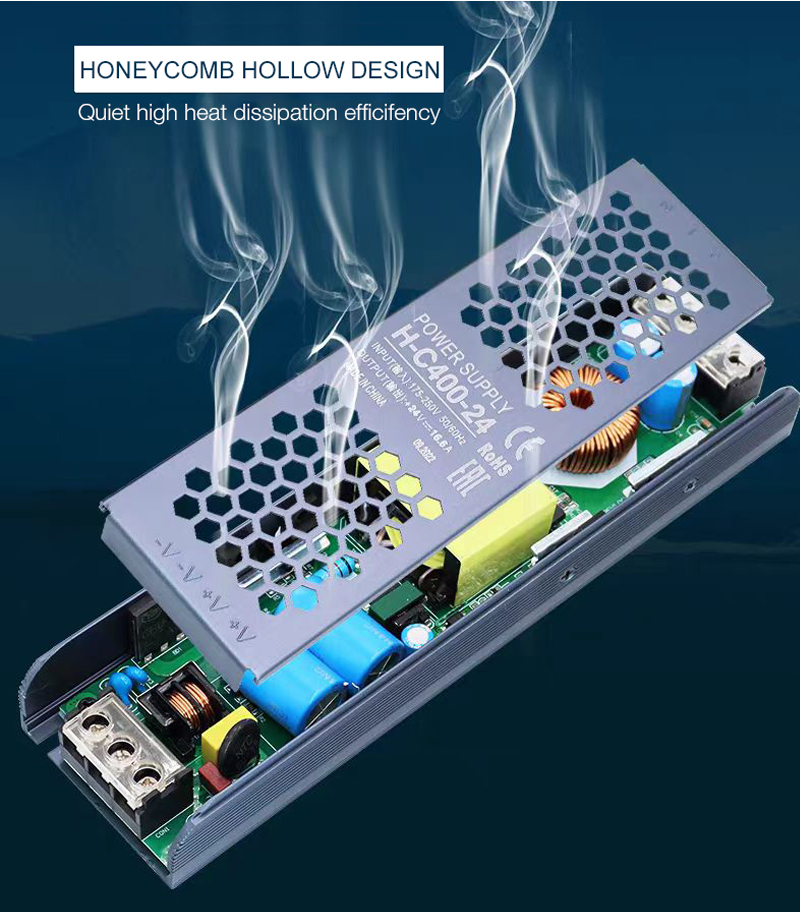

Metal shell is preferred, honeycomb hole heat dissipation design, higher efficiency, good compression performance, hollow process design, faster heat dissipation of honeycomb heat dissipation. The voltage-stabilized switching power supply LED has good heat dissipation and long service life.
The LED power supply provides safe and reliable protection for you and your equipment!

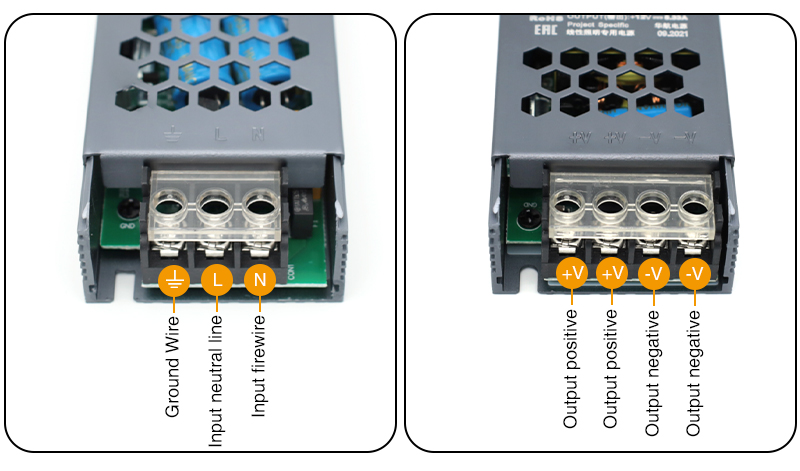

The input port design of the 100-watt driver allows the connection of a variety of standard power cords, whether different plug types, cable sizes or different voltage standards (such as 170 volts to 265 volts worldwide). This compatibility ensures that the power supply unit can work in different regions around the world and can cope with a wide range of power access requirements.
Suitable for 170 to 265 volts in Europe/Middle East/Asia, etc.
Input voltage range, stable and precise output voltage. Suitable for high-power transformers for LED lighting and CCTV camera security systems, communications and home appliance electronic equipment, etc.
1. Part One: Power Supply
| Model | P12100-T1 | |||||||
| Dimensions | 143×48×24mm | |||||||
| Input Voltage | 170-265VAC | |||||||
| Output Voltage | DC 12V | |||||||
| Max Wattage | 100W | |||||||
| Certicification | CE/ROHS | |||||||
| Input Frequency | 50/60HZ | |||||||

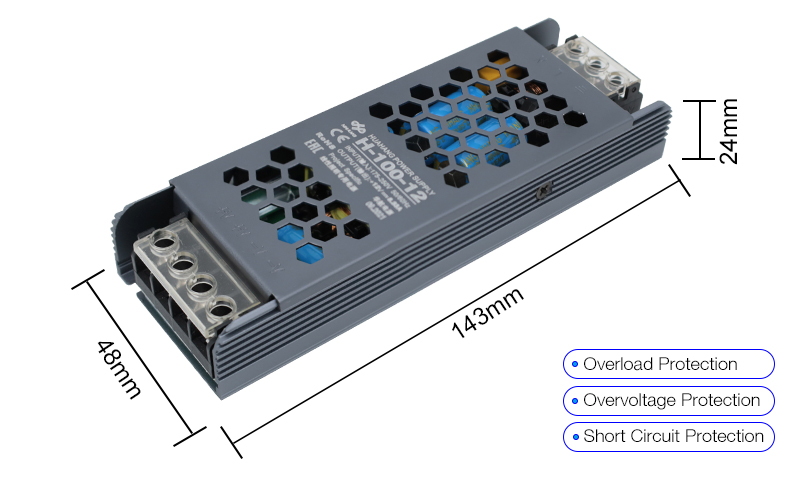

2. Part Two: Size information

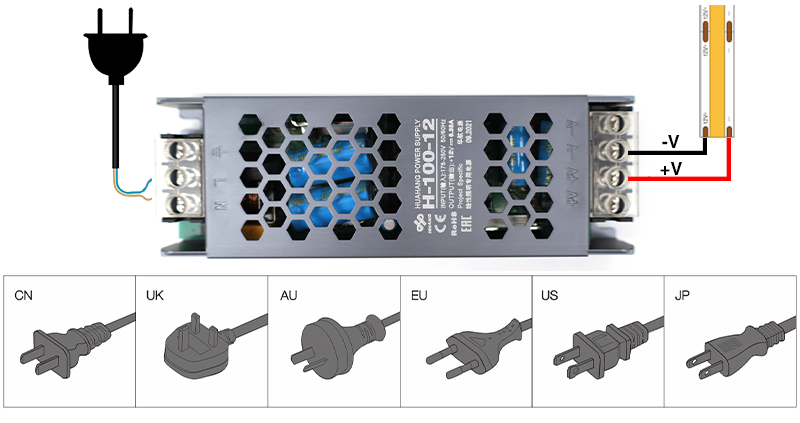

3. Part Three: Connection Diagram
