P12300-T1 12V 300W Constant voltage Led Power Supply
Short Description:
1. 【Specifications】 300W universal input led driver and power supply, universal input: 170V~265V AC; output: 12VDC. This universal voltage-stabilized switching power supply converts AC to DC, providing a stable and reliable power supply for your device.
2. 【High safety】 170V~265V AC to 12V DC Switching Power Supply comes with 5 protection functions: overvoltage, overcurrent, overload, high temperature and short circuit protection. It automatically cuts off the power when overloaded or short-circuited, and automatically recovers after the fault is resolved.
3. 【Heat dissipation and durability】 The honeycomb design of the metal encapsulated shell is conducive to heat dissipation and can extend the service life of the 12v Led Driver. Sturdy and durable, the unique honeycomb appearance design is conducive to heat dissipation and effectively extends the service life of the led power supply.
4. 【Ultra-thin Led driver】 This Led power supply is compact and takes up little space. The thickness is only 18mm, which is easy to hide.
5. 【Certification & Warranty】 Led Transformer is CE/ROHS/Weee/Reach certified. 3-year warranty, free sample testing is welcome.
Supports customized LED adapters of various specifications.
Free sample test is welcome.

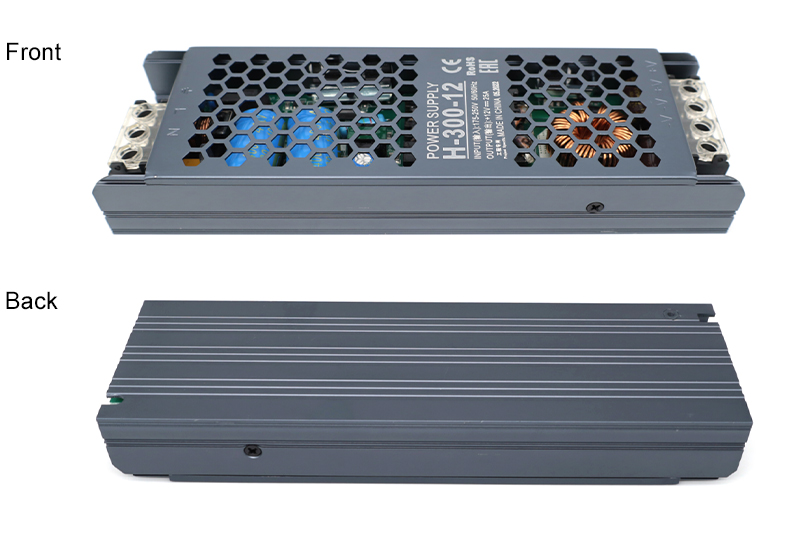

Front and back of 300w led driver and power supply
This LED power supply measures 18mm and is only 208X638X18mm thick. Small in size and light in weight, this compact design is especially suitable for portable electronic devices where space is limited and lightweight is critical.
1. 12v led strip light driver comes with safety protection devices: overload, overheating, overcurrent, overvoltage, and short circuit. Cut off the circuit in time to prevent equipment damage and safety accidents caused by overcurrent or overvoltage.
2. The LED switching power supply with a voltage stabilizer will not only not damage the lamp, but also ensure safety.
Warm Tips: Please pay attention to choose a power supply that is at least 20% larger than the rated power of the equipment. A larger transformer will not damage the lamp, but it is good for safety.

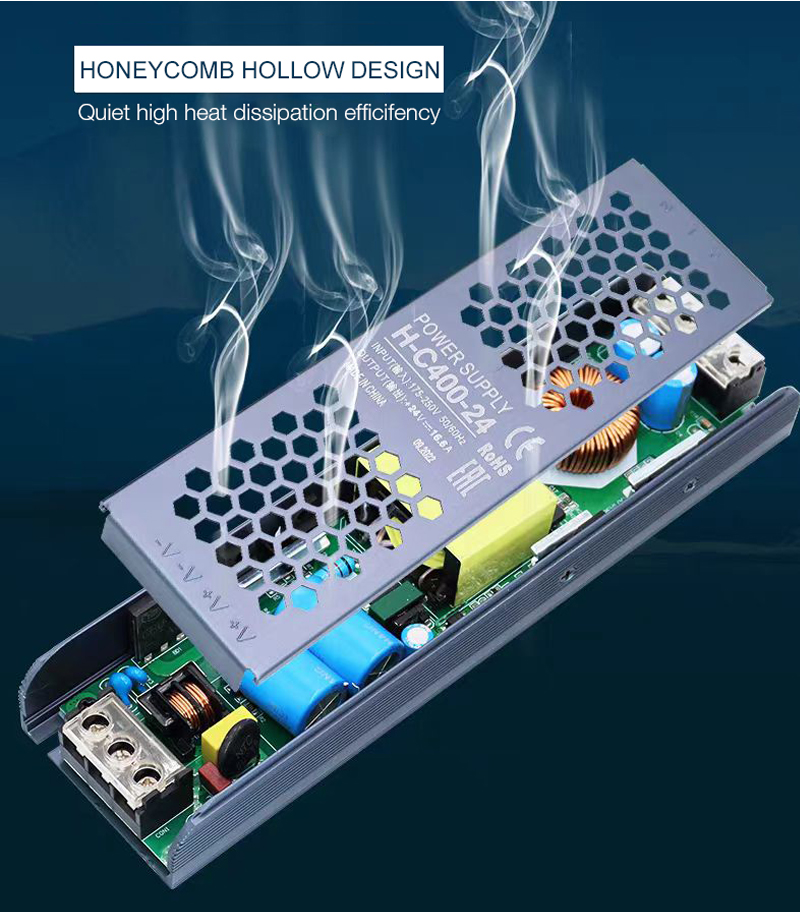

Preferred metal shell, honeycomb radiator hole design, high-performance heat dissipation, better pressure resistance, hollow process design, faster heat dissipation. 12v led strip light driver has good heat dissipation performance and long service life.

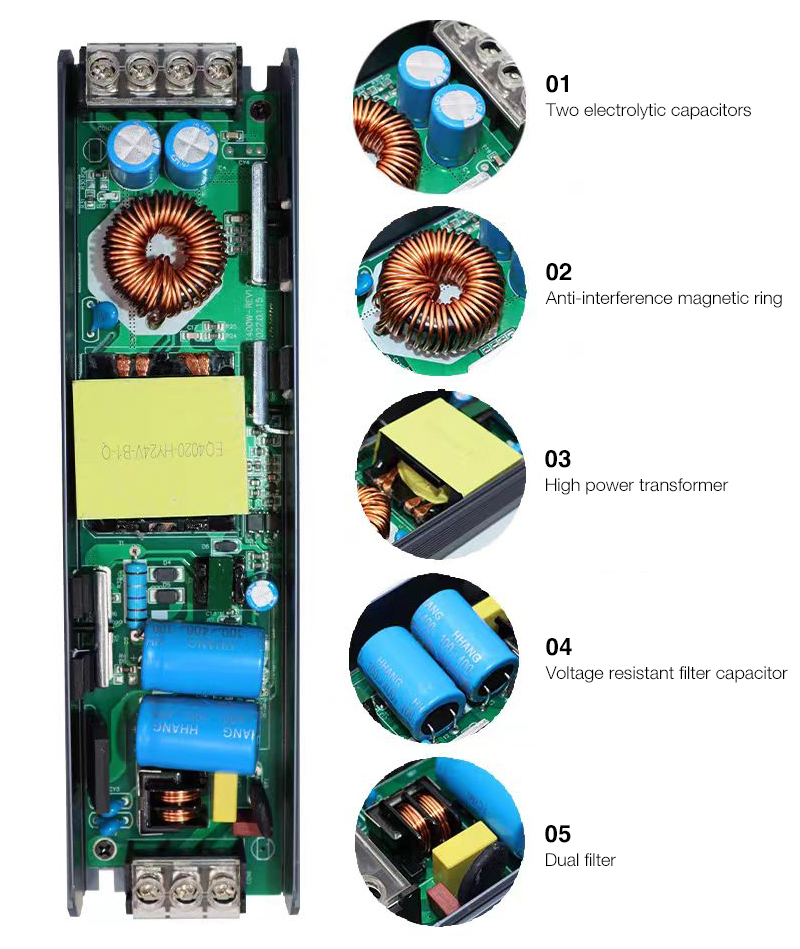

High-quality metal shell, lightweight and ultra-thin body design, stronger anti-interference ability, built-in EMI filter, low output ripple, low noise, sturdy and durable shell, 100% full load aging test. The internal coil of the LED driver is made of pure copper, and its service life is more than twice that of aluminum wire. Led Transformer high-quality components ensure safety and stability, and the LED power supply provides safe and reliable protection for you and your equipment!

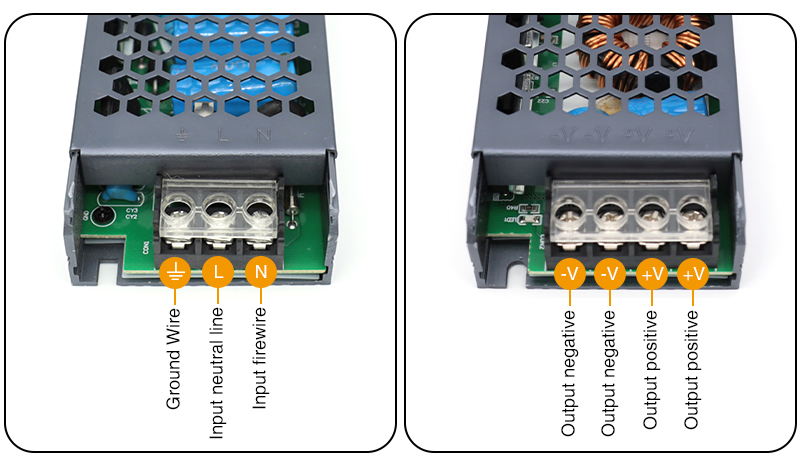

1. The input port design of the 300-watt driver allows the connection of various standard power cords, whether different plug types, cable sizes or different voltage standards (such as 170 volts to 265 volts worldwide). This compatibility ensures that the power supply can work in different regions around the world and can cope with various power access needs.
2.Suitable for 170 to 265 volts in Europe/Middle East/Asia, etc. Switching adapter, this LED transformer is ideal for powering 12V DC LED lights, modules, computer projects, 3D printers, amateur radio transceivers, CCTV cameras, audio amplifiers, wireless routers and video power supplies.
3.Please check the positive and negative poles of the transformer and the wires of the connected LED device before installation. Do not connect them in reverse.
1. Part One: Power Supply
| Model | P12300-T1 | |||||||
| Dimensions | 208×63×18mm | |||||||
| Input Voltage | 170-265VAC | |||||||
| Output Voltage | DC 12V | |||||||
| Max Wattage | 300W | |||||||
| Certicification | CE/ROHS | |||||||

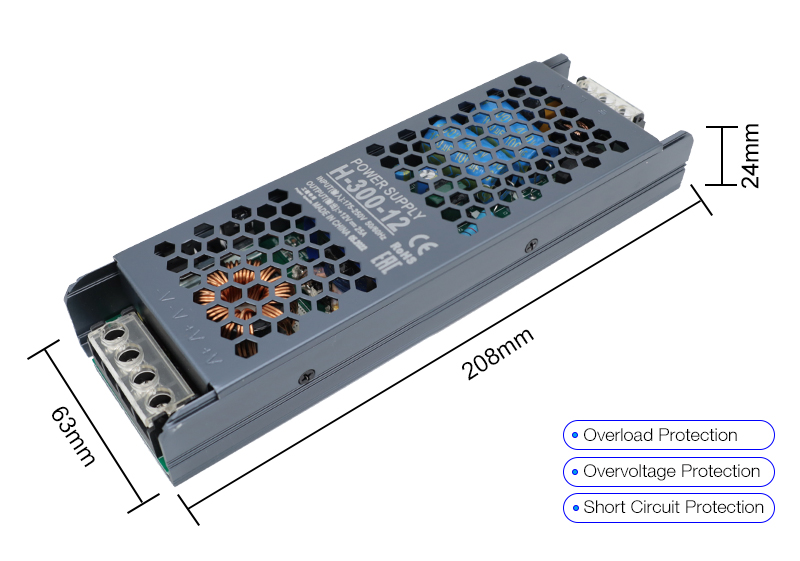

2. Part Two: Size information

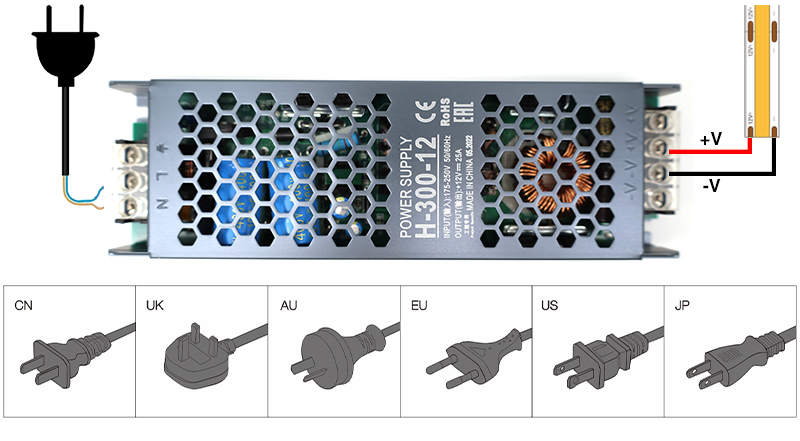

3. Part Three: Connection Diagram
