Recessed Pre-buried Surface Mount Track Light – Mini Floodlight
Short Description:
Highlights:

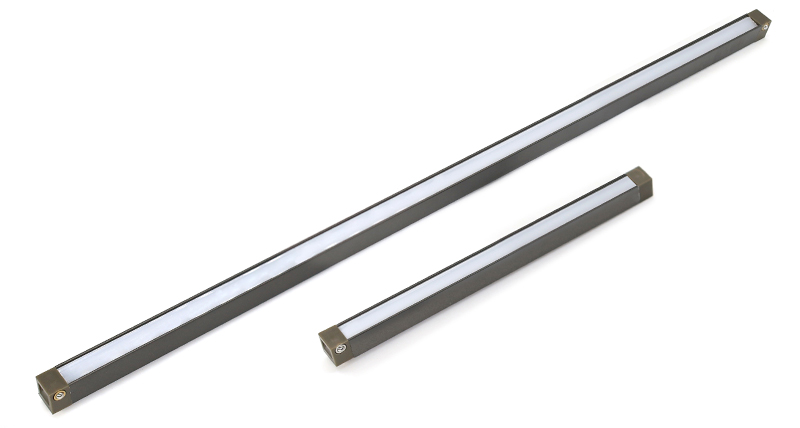

1. 【Ultra-thin Design】 The LED Cabinet Flood Lights boast an exceptionally thin body of only 8.6mm, fitting snugly within the LED rail structure, making them virtually invisible within cabinets or display spaces, enhancing the overall aesthetic.
2. 【Efficient Floodlighting】 Utilizing high-brightness LEDs and a frosted PC diffuser, this lamp provides wide-angle floodlighting, providing soft, non-glare light and eliminating shadows.

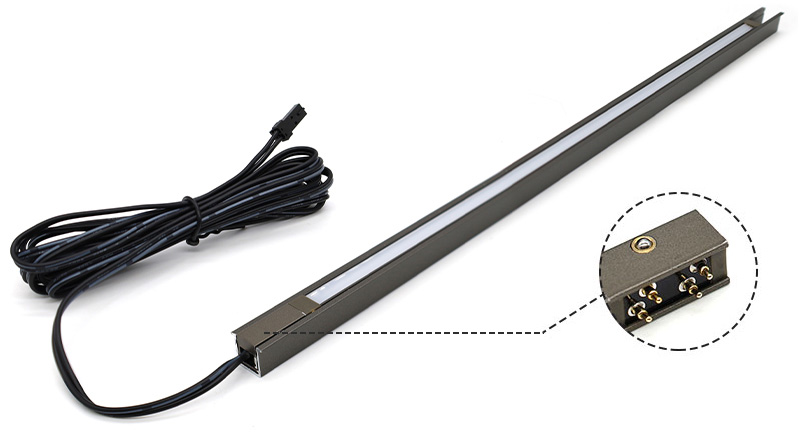

3. 【Polarity-Insensitive】 The lamp can be freely moved along the track. Its internal spring-loaded pin design allows for easy installation and replacement.
4. 【Aluminum Alloy Body】 High-quality anodized aluminum is durable and offers excellent heat dissipation, making it suitable for long-term, continuous use.
( For more details, Pls check Vidio Part or contact our sales manager),Tks.
Product Details:
1. Luminous Surface Material: Frosted PC diffuser for even light distribution without graininess.
2. Lamp Color: Matte Black or Customizable, perfect for mainstream home styles.
Specifications:
| Model | LL1A |
| Name | Indoor LED Track Floodlight |
| Wattage | 2W, 4W, 6W, 8W, 10W |
| CCT | 3000K/4000K/6000K |
| Input | DC 12V |
| Dimensions and Wattage | 2W - L200*W8*H8.6mm 4W - L400*W8*H8.6mm 6W - L600*W8*H8.6mm 8W - L800*W8*H8.6mm 10W - L1000*W8*H8.6mm |
| Housing Color | Black, Silver, Dark grey or Customizable |

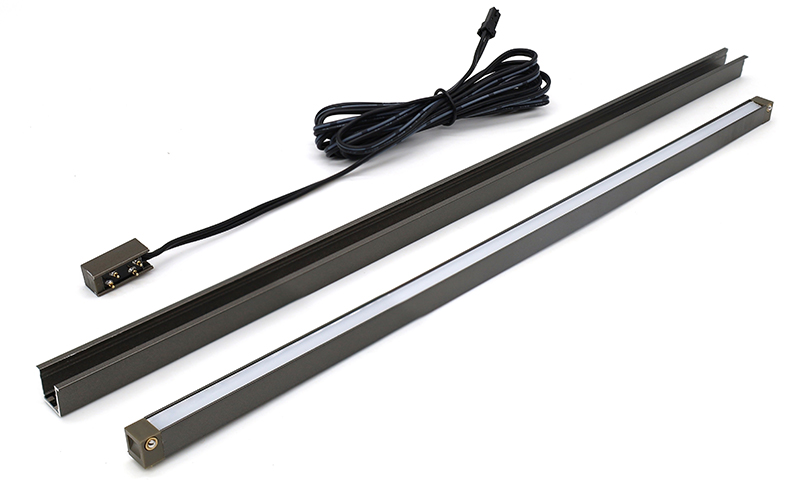

Combined with a 10x10mm recessed track, this fixture allows for modular installation. Combining elegance and modern design, it complements most modern interiors.

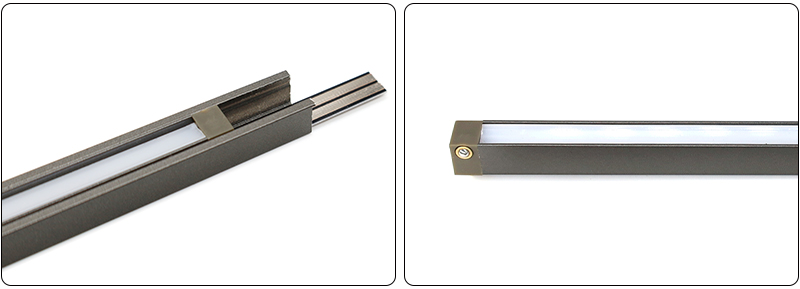

The dual internal fixing design utilizes a spring-loaded pin structure combined with a rail safety clip. With a simple press, the Closet Rail Light module securely attaches to the rail. Snap-on installation allows for easy replacement at any time, even during installation. The clip-on system can support up to 9 kg, significantly enhancing installation stability and effectively preventing the risk of falling due to misoperation, ensuring safe use.
1. The LED Cabinet Flood Lights evenly diffuse light, creating a soft, bright, flicker-free glow that is gentle on the eyes. The light source is deeply concealed, with triple anti-glare technology, allowing the light's effects to be seen without directly viewing the source itself.

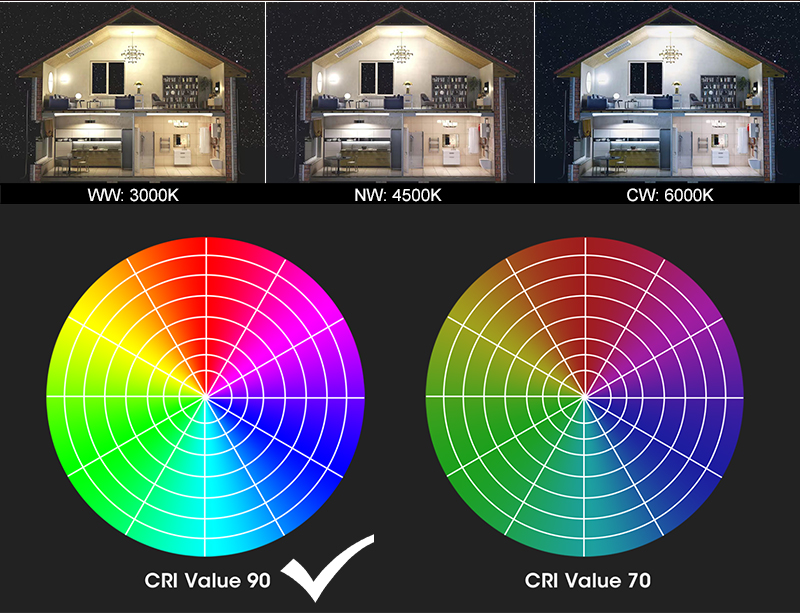

2. Standard Color Temperature: A color temperature reference is available, with various color temperatures available: 3000K, 4000K, and 6000K.
3. Ra ≥ 90, high color rendering index for true colors: High color rendering index ensures that objects appear closer to their original colors, recreating a more realistic and colorful world.
1. This track guide is a key component of Weihui's 10x10mm ultra-thin cabinet track lighting system. Compact and precise, it takes up minimal space, creating a visible light without being visible.

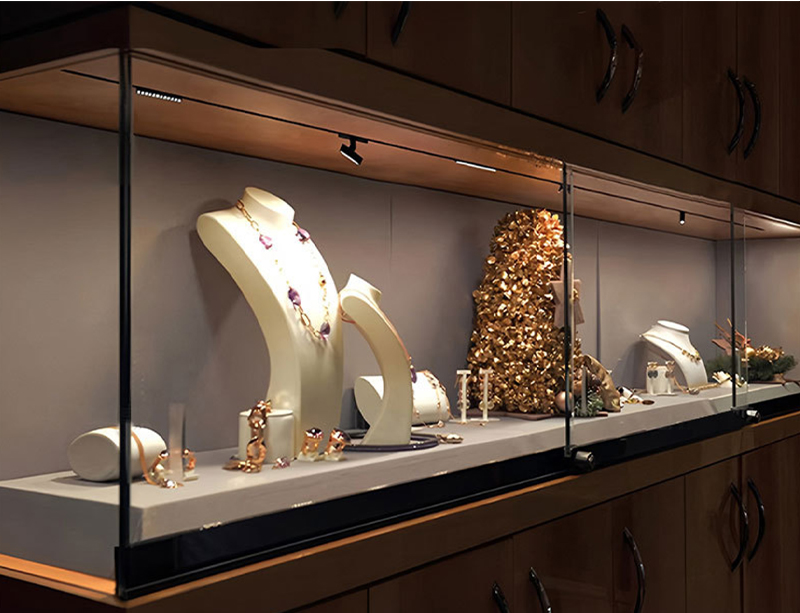

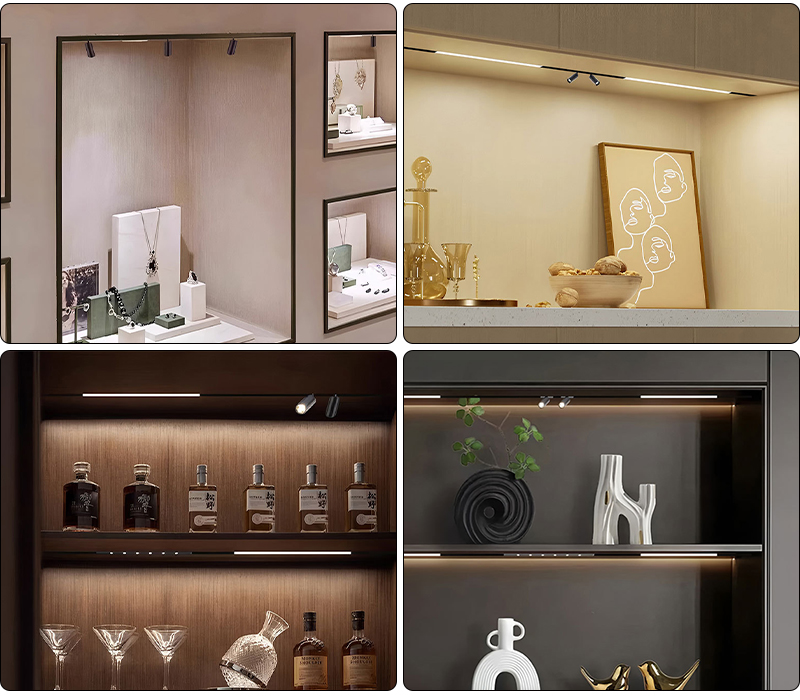

2. It's suitable for various cabinet lighting scenarios (wardrobes, wine cabinets, bookcases, figurine cabinets, etc.) and commercial space lighting upgrades (jewelry display cases, art exhibitions, museums, etc.).

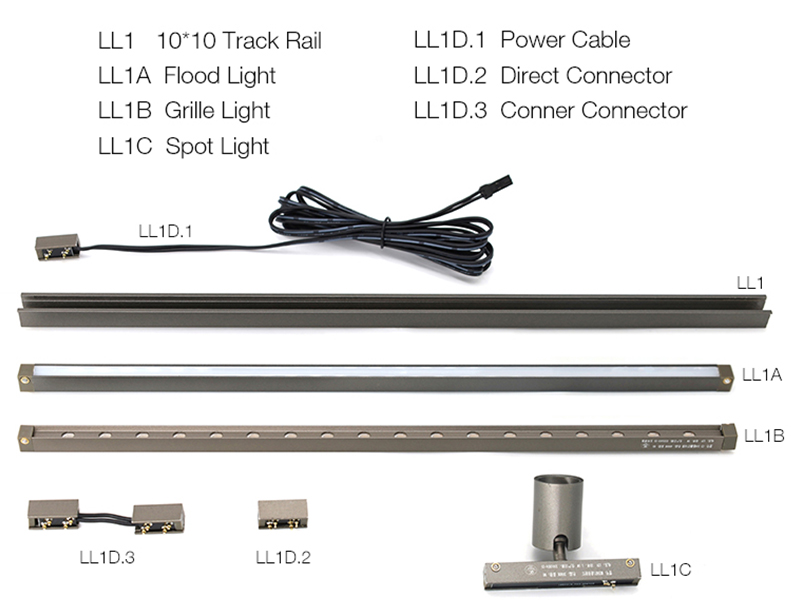

1. The full range of products includes: Tracks, cabinet track spotlights, cabinet track grille lights, cabinet track floodlights, power wiring connectors, direct connectors, butt connectors, and track plugs.
2. These lighting fixtures are modular in design, allowing you to customize your setup to meet your specific needs.
3. The whole cabinet is powered by just one set of power wires, which solves the wiring trouble during installation. The whole series of products have no positive and negative polarity distinction and can be installed and removed at any time, making installation and replacement more convenient.
Frequently Asked Questions
Need help? Pls send your request to us!
We are a factory and trading company, with more than ten years of experience in factory R&D,located in SHENZHEN. Expecting your visit at anytime.
Yes, you can customize the design or choose our design (OEM / ODM is very welcome). Actually Custom-made with small quantity is our unique advantages, such as LED Sensor switches with different programming, We can make it with your request.
Please feel free to contact us by email, phone or send us an inquiry, then we can send you the price list and more information by email: sales@wh-cabinetled.com.
Also contact us directly via Facebook/Whatsapp:+8613425137716
① Series of mini lights: small spotlights, grille lights, floodlights;
② Accessories: tracks, power cable, direct connectors, corner connectors.
For more details, please see the parameters, or contact our sales manager. TEL:+8618123624315 or email: sales@wh-cabinetled.com.
Of course, the maximum length is 3 meters.
1. Part One: 12V Cabinet Track lighting System
| Model | LL1A | ||||||||||||||
| Size | 2W – L200*W8*H8.6mm 4W – L400*W8*H8.6mm 6W – L600*W8*H8.6mm 8W – L800*W8*H8.6mm 10W – L1000*W8*H8.6mm |
||||||||||||||
| Input | DC 12V | ||||||||||||||
| Wattage | 2W, 4W, 6W, 8W, 10W | ||||||||||||||
| Material | Aluminum | ||||||||||||||
| Color | Black, Silver, Dark grey | ||||||||||||||
| Length | Customized | ||||||||||||||
