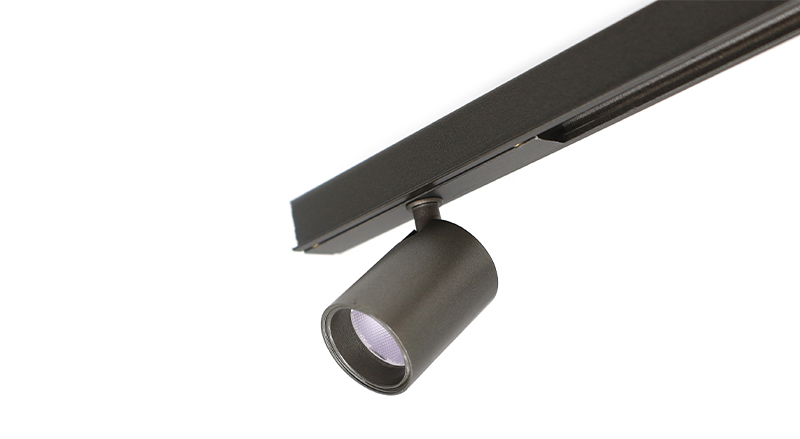

Recessed Track Lighting System – Track Spotlights
Short Description:
Highlights:
1. 【Ultra-small size, precise lighting】 The ultra-mini design features a compact diameter that takes up little space, seamlessly integrates with the track, and provides precise focusing without disrupting the overall lighting layout.

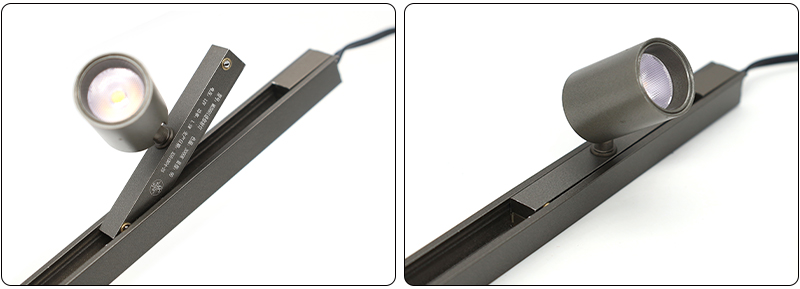

2. 【Adjustable Angle】 The track spotlights feature an 85° vertical tilt and 360° horizontal rotation, offering versatile angle adjustment to meet diverse lighting needs in various scenarios.
3. 【Pogo Pin Structure & Modular Installation】 The modular design allows for a simple press on the spotlight module, and the pogo pins on the bottom of the spotlight engage the track for instant power. Tool-free installation and easy maintenance.
4. 【Low Voltage, Safe and Stable】 The 12V DC power supply system ensures low voltage and is safe to touch without the risk of electric shock, making it suitable for both residential and commercial use.
( For more details, Pls check Vidio Part or contact our sales manager),Tks.
Product Details:
1. 【Low Voltage, Touch Safe】 The LED spotlights can be freely moved on the track, allowing for manual adjustment even while the power is on.
2. 【Uniform Design】 The housing color matches the track system, creating a harmonious and unified overall look and enhancing the aesthetics of the space.
3. 【Soft Lighting】 The built-in optically clear lens creates a uniform, soft light spot with no noticeable edges.
Specifications:
| Model | LL1C |
| Name | Track spotlights |
| Wattage | 1.5W |
| CCT | 3000K/4000K/6000K |
| Input | DC 12V/24V |
| Dimensions | φ19 x 27mm |
| Housing Color | Black, Silver, Dark grey or Customizable |

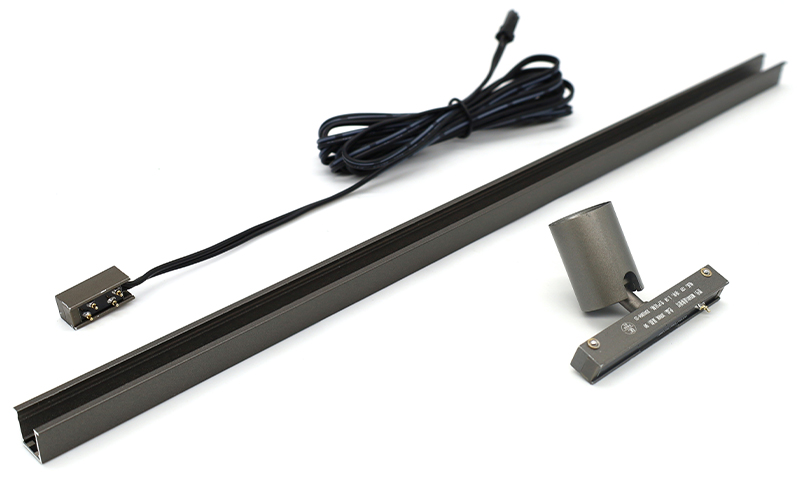

Paired with a 10x10mm recessed track, this spotlight achieves modular installation, combining elegance and modern design to complement most contemporary interiors.

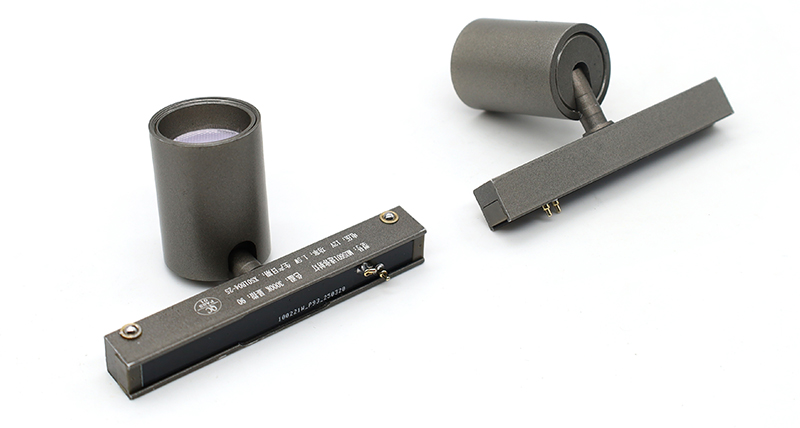

The dual internal fixing design utilizes a spring-loaded pin mechanism and a secure snap-on rail clip. With a simple click, the track lighting heads module securely attaches to the track. Snap-on installation allows for easy replacement at any time, even during installation. The snap-on system can withstand up to 9kg, significantly enhancing installation stability and effectively preventing the risk of drops due to misoperation, ensuring safe use.
1. This spotlight delivers sharp, focused light with high central illumination. The track system conceals the light source, resulting in a soft, non-glare, flicker-free light that creates a comfortable, natural glow even for extended, close-up use. It creates a stable, professional lighting atmosphere and is suitable for accent lighting or decorative accents.

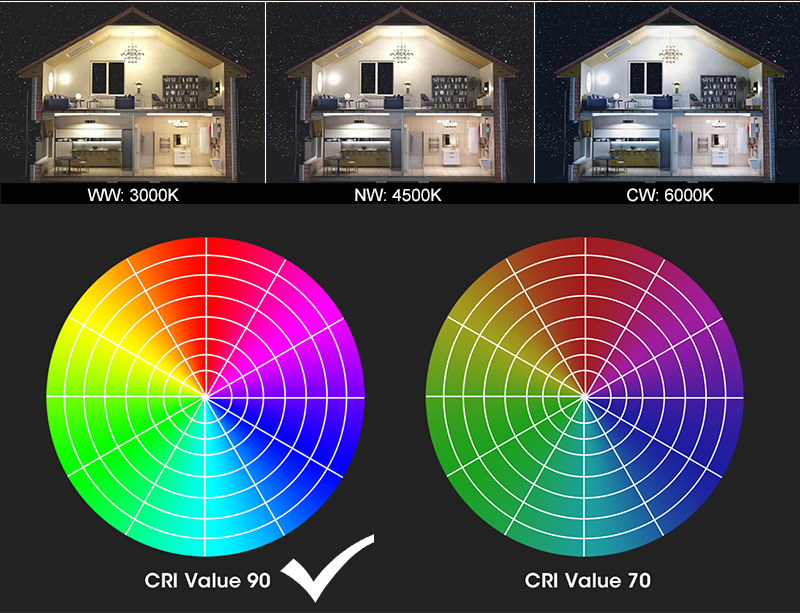

2. Standard color temperature: For reference, Cabinet rail spotlight has a variety of color temperatures to choose from: 3000K, 4000K and 6000K.
3. Ra ≥ 90, high color rendering index (CRI) reveals true colors: A high CRI ensures objects appear closer to their original colors, recreating a more authentic and colorful world.

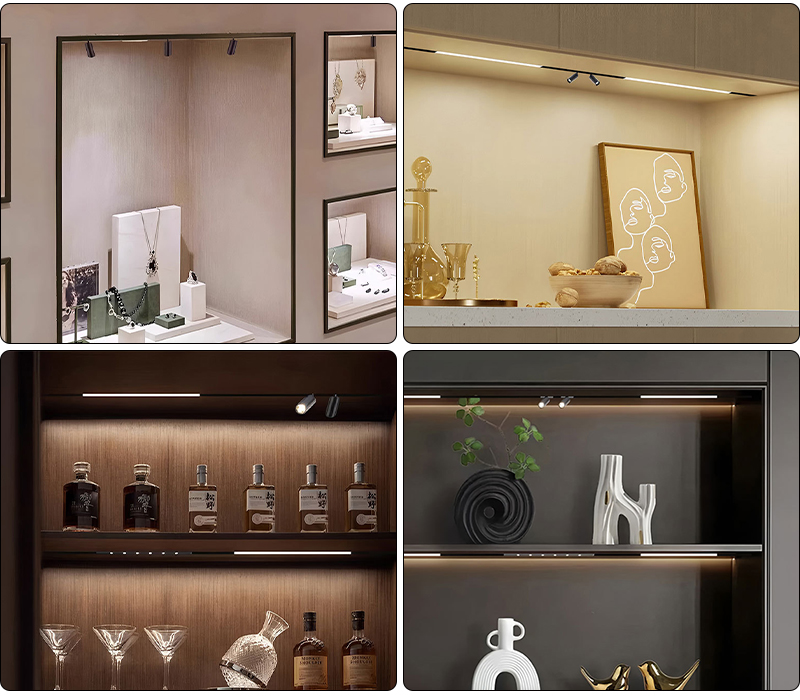

This spotlight ceiling light is a key component of Weihui's 10x10mm ultra-thin cabinet track lighting system. Compact yet effective, it illuminates key areas, ideal for displaying jewelry, artwork, and glass display cases.
1. Cabinets/Wine Cabinets: Illuminates key display areas such as glassware, wine bottles, and collectibles.
2. Wardrobes/Vintage Cabinets: Provides localized lighting to enhance the quality of display.
3. Display Cabinets/Exhibition Halls: Focuses light to highlight product features and enhance visual appeal.
4. Bookshelves/Wall Decorations: Provides decorative lighting to create a premium feel.

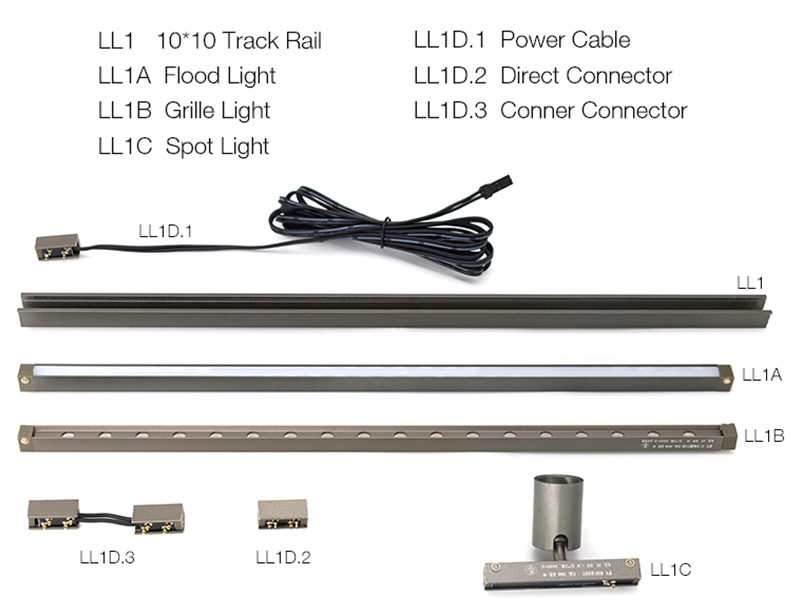

1. The full range of products includes: Tracks, cabinet track spotlights, cabinet track grille lights, cabinet track floodlights, power wiring connectors, direct connectors, butt connectors, and track plugs.
2. These lighting fixtures are modular in design, allowing you to customize your setup to meet your specific needs.
3. The whole cabinet is powered by just one set of power wires, which solves the wiring trouble during installation. The whole series of products have no positive and negative polarity distinction and can be installed and removed at any time, making installation and replacement more convenient.
Frequently Asked Questions
Need help? Pls send your request to us!
We are a factory and trading company, with more than ten years of experience in factory R&D,located in SHENZHEN. Expecting your visit at anytime.
Yes, you can customize the design or choose our design (OEM / ODM is very welcome). Actually Custom-made with small quantity is our unique advantages, such as LED Sensor switches with different programming, We can make it with your request.
Please feel free to contact us by email, phone or send us an inquiry, then we can send you the price list and more information by email: sales@wh-cabinetled.com.
Also contact us directly via Facebook/Whatsapp:+8613425137716
① Series of mini lights: small spotlights, grille lights, floodlights;
② Accessories: tracks, power cable, direct connectors, corner connectors.
For more details, please see the parameters, or contact our sales manager. TEL:+8618123624315 or email: sales@wh-cabinetled.com.
Of course, the maximum length is 3 meters.
1. Part One: 12V Cabinet Track lighting System
| Model | LL1C | ||||||||||||||
| Dimensions and Wattage | 1.5W -φ19 x 27mm | ||||||||||||||
| Input | DC 12V/24V | ||||||||||||||
| Wattage | 1.5W | ||||||||||||||
| Material | Aluminum | ||||||||||||||
| Color | Black, Silver, Dark grey | ||||||||||||||
| Length | Customized | ||||||||||||||
