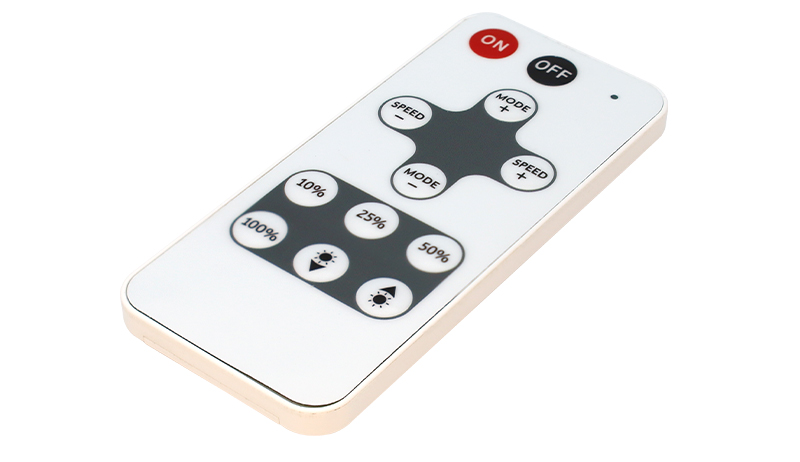

SD4-S1 RF Remote Controller for Single Color Led Strip Light

Short Description:

1. This is a remote control for monochrome LED light strips, which can be used to control monochrome light strips, adjust light brightness, dynamic mode and dynamic speed.

2. It uses white as the main color, 12-key intuitive button layout, simple control, precise dimming, allowing users to easily get started and quickly realize various functional operations.

3. Whether it is a home, office or commercial place, it can bring you a more convenient and smarter lighting control experience. (Need to be used with LED controller receiver)

WELCOME TO ASK FREE SAMPLES FOR TESTING PURPOSE

Send email to us

Product Detail

Technical Data

Video

Download

OEM&ODM Service

Product Tags

Why Choose this item?

Highlights:

1. 【Special for monochrome light strips】 12-key wireless RF controller, designed for monochrome light strips, simple control, precise dimming, one-button switch, and sensitive response.
2. 【Multi-function integration】 Led light remote supports multiple functions such as switch, brightness adjustment, mode switching, flashing speed adjustment, etc., and easily realizes multi-scene control.
3. 【Brightness adjustment】 One-button direct access to brightness gear and stepless dimming coexist, with 10%, 25%, 50%, 100% four-gear brightness presets, one-button switching, energy saving and high efficiency, precise stepless adjustment, and manual fine-tuning of brightness changes to meet different lighting needs.
4. 【Mode and speed function】 The wireless led remote can switch lighting modes, such as gradient, flashing, breathing light, etc., and control the speed in dynamic mode.

5. 【Reliable after-sales service】 With a 3-year after-sales guarantee, you can contact our business service team at any time for easy troubleshooting and replacement, or have any questions about purchase or installation, we will do our best to help you.

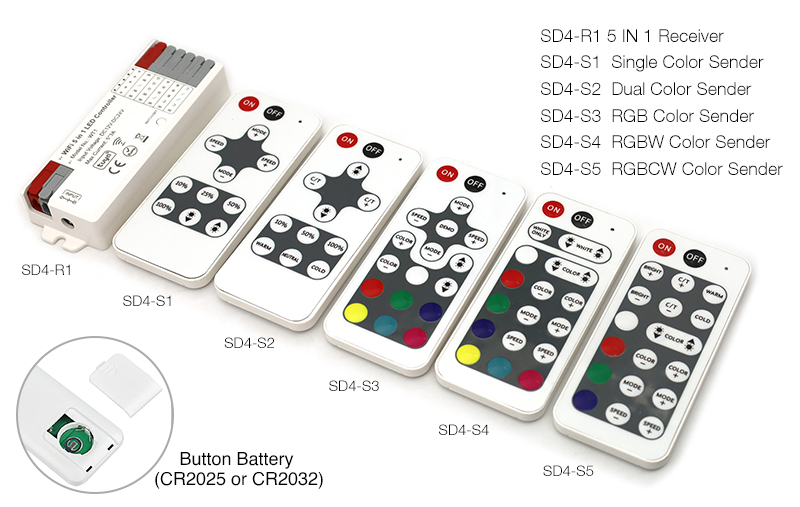

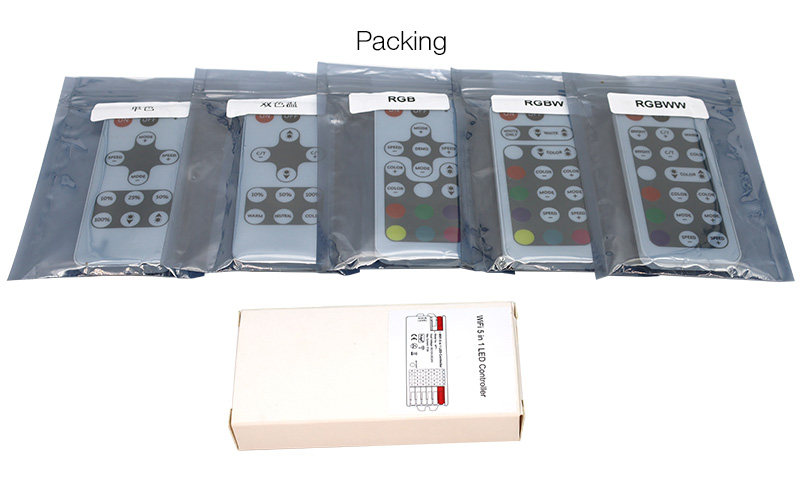

A variety of remote controls are available, packed in anti-static bags. Different LED lights match different types of remote controls, please pay attention to the selection.

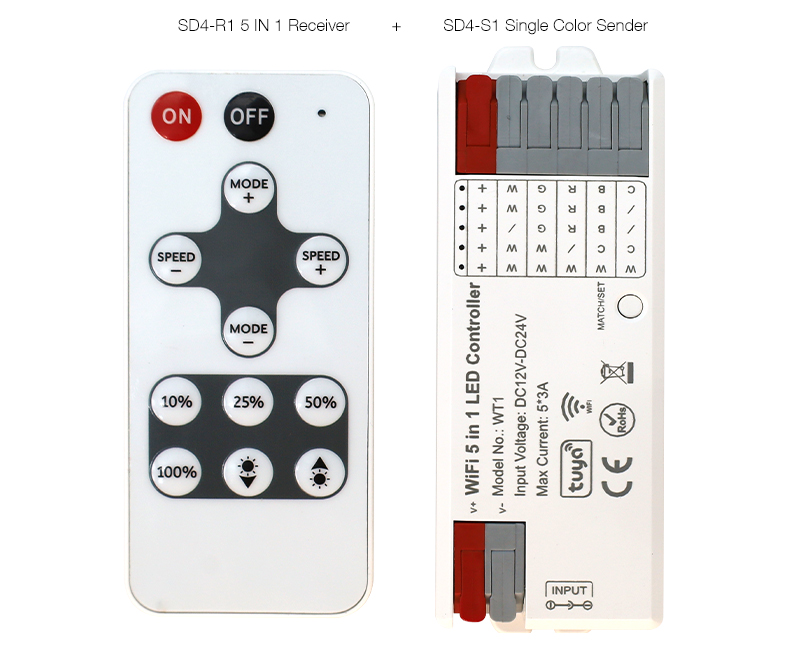

SD4-R1 WiFi 5-in-1 LED Controller is a multi-functional 5-in-1 LED controller receiver that supports five types of LED lights, including monochrome, dual color temperature, RGB, RGBW, RGB+CCT, etc. When replacing the light strip, you need to switch to different color modes.
For more operation details, please see the 5-in-1 smart LED controller receiver.

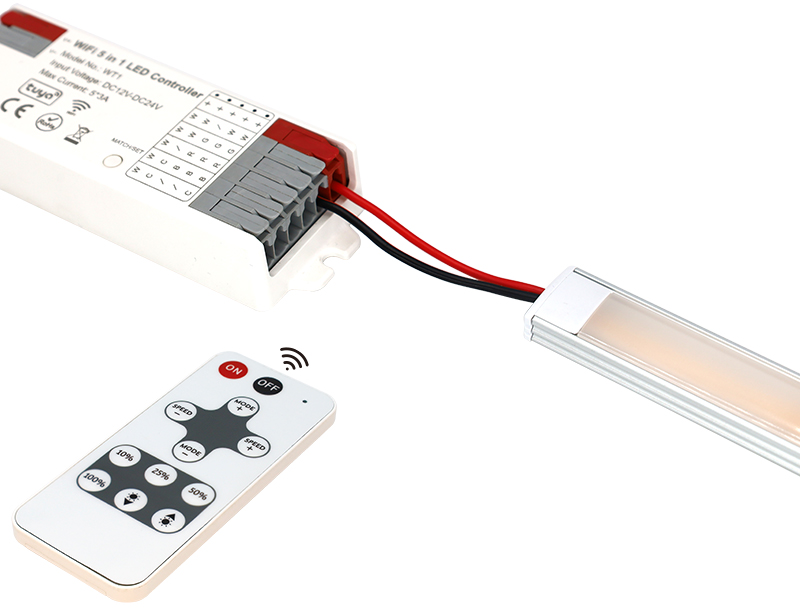

This Remote control dimmer needs to be used with an LED remote control receiver. The quick connection port design of our 5-in-1 LED Controller is convenient for wiring and fast installation. (Note the wiring method of each light strip)

WiFi 5-in-1 LED Controller is also called Tuya smart device, with built-in Tuya smart module, supports WiFi remote control, and can be remotely controlled through Tuya Smart APP, easily realizing intelligent functions such as lighting adjustment, timer switch, scene setting, etc. You can search Tuya Smart in Google Store or scan the code to download the APP.

Product Details

1. Control method: Infrared remote control (IR)
2. Applicable lights: Monochrome LED lights（DIM）
3. Control distance: About 25 meters (barrier-free), easy to use without external power supply
4. Shell material: High-gloss ABS engineering plastic, sturdy and beautiful
5. Power supply method: Built-in button battery (CR2025 or CR2032, easy to replace)
6. Size: 10cm*4.5cm, small and thin, easy to carry and store
7. High compatibility: It can match most LED receivers (infrared receivers), and Weihui's 5-in-1 smart LED controller receiver (model: SD4-R1) is recommended.

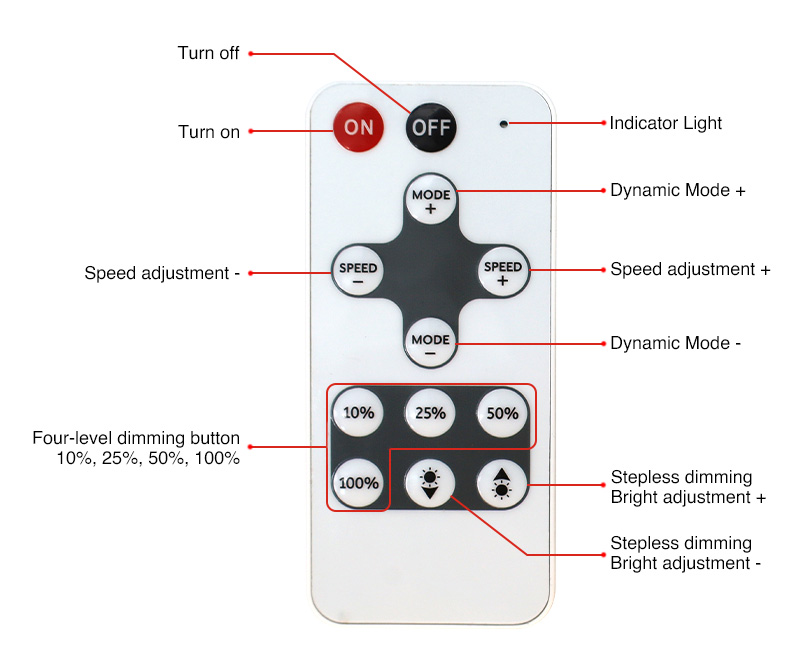

Function Show

This wireless led remote supports turning on and off the lights, and has four preset brightness levels of 10%, 25%, 50%, and 100%, as well as Stepless dimming. It supports various lighting modes and speed adjustments. The 12-key simple design is convenient and fast, with a wide remote control range. Wireless operation enhances convenience.

Application

Whether it is smart home lighting control or display cabinet/display stand lighting adjustment, this monochrome dimming remote control is designed for monochrome light strips. Easily switch the light brightness, light mode and light mode speed to meet your different lighting needs and create an ideal atmosphere. Come and experience this single-color dimming remote control, and let every moment of your life be full of brilliance!

Remote led dimmer needs to be used with a dual-color temperature LED controller receiver that supports infrared remote control. It works best with our infrared receiving LED controller receiver (model: SD4-R1).

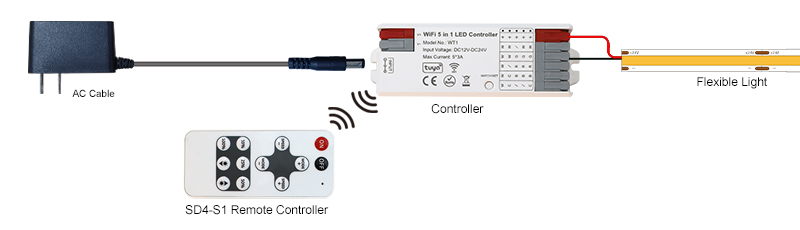

Connection and Lighting solutions

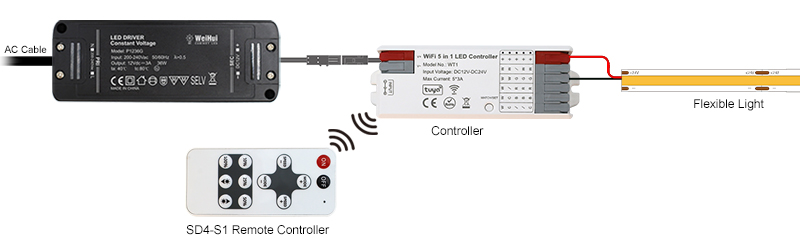

1. This Remote control dimmer needs to be used with an LED remote control receiver. We recommend our 5-in-1 LED Controller, which has a spring-loaded quick-connect port design for easy wiring and quick installation.

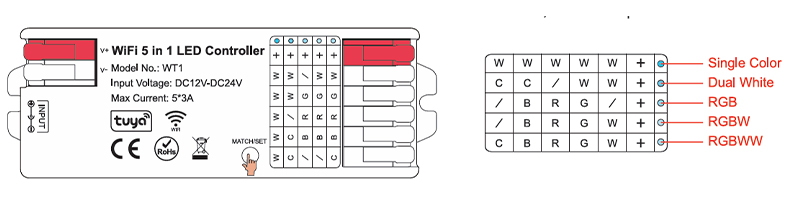

Tips: When replacing the light strip, you need to switch to the color mode corresponding to the controller.

2. There are two ways to wire the power supply of this 5-in-1 LED Controller, which can flexibly cope with various light strip requirements, easily get started, and say goodbye to tediousness! You can choose the light strip you like to connect.

Bare wire + power adapter
