Track and recessed lighting – LED Wardrobe grille lights
Short Description:
Highlights:
1. 【Point Light Design】 The recessed cabinet track light utilizes a precisely arranged, high-brightness LED array, creating a continuous yet spaced lighting effect, combining both lighting and decorative aesthetics.
2. 【Ultra-Thin Structure】 The lamp body is extremely thin, seamlessly integrating with the track without disrupting the overall lines of the furniture, making it suitable for concealed installation.
3. 【Modular Installation】 The LED Wardrobe Grille Lights are compatible with 10x10mm embedded track systems. The modular design facilitates installation and maintenance.
4. 【High Color Rendering】 With a color rendering index (CRI) of ≥90, they accurately reproduce the colors of objects, making them suitable for delicate display environments.
( For more details, Pls check Vidio Part or contact our sales manager),Tks.
Product Details:
1. Housing Material & Color: Anodized aluminum alloy, high-quality and corrosion-resistant. Matte black or customizable, complementing mainstream home styles.
3. Lighting Unit: Innovative light distribution design, each light bead is precisely arranged and evenly spaced, resulting in concentrated light effects and distinct layers of illumination.

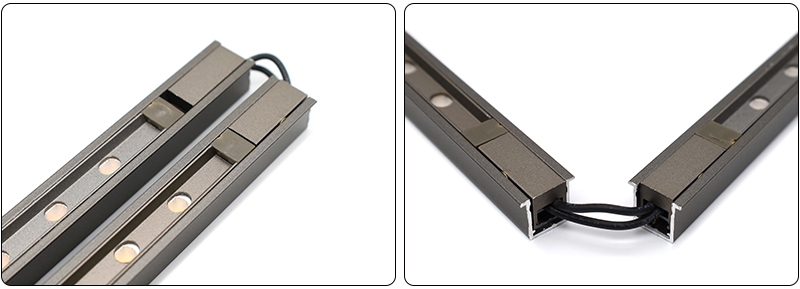

3. Use an L-shaped connector to connect two sections of track, allowing you to power both sections together to create a corner lighting layout.
Specifications:
| Model | LL1A |
| Name | LED Wardrobe Grille Lights |
| Wattage | 2W, 6W |
| CCT | 3000K/4000K/6000K |
| Input | DC 12V |
| Dimensions and Wattage | 2W - L116*W8*H8.6mm - 6 LEDs 6W - L310*W8*H8.6mm - 18 LEDs |
| Housing Color | Black, Silver, Dark grey or Customizable |
Furniture track lighting works with 10x10mm recessed track, enabling modular installation. Combining elegance and modern design, it complements most modern interiors.

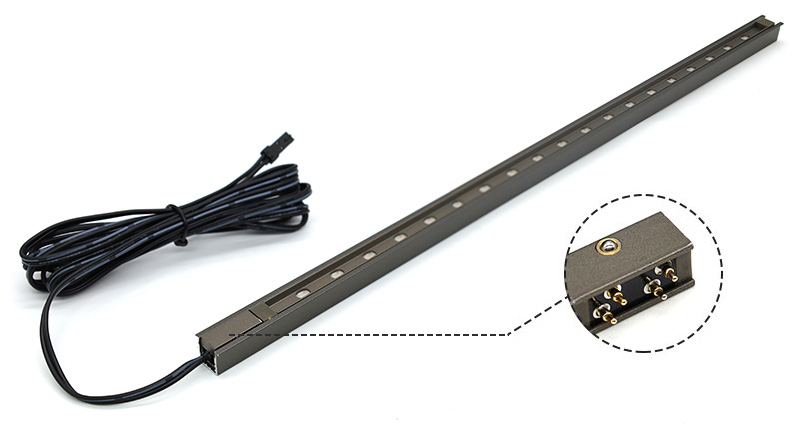

The grille light module features a dual internal fixing design with a spring-loaded pin structure and a safety clip on the rail. With a simple press, the grille light module securely attaches to the rail. Snap-on installation allows for easy replacement at any time, even during installation. The clip-on system can withstand up to 9 kg, significantly improving installation stability and effectively preventing the risk of falling due to misoperation, ensuring safe use.
1. Dotted Floodlight: Creates a wall-washing effect with a clear light spot without noticeable glare. High Layering: Ideal for highlighting textures like wood grain, glass, and metal, enhancing the visual sense of three-dimensionality. Atmosphere: Suitable for non-primary lighting scenarios such as mood lighting and background lighting.

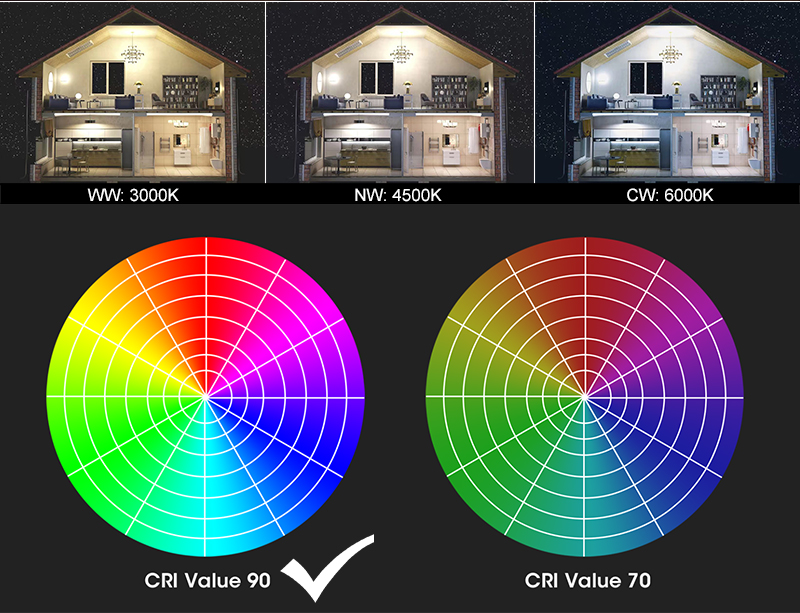

2. Standard Color Temperature: A color temperature reference, allowing for optimal selection of different color temperatures: 3000K, 4000K, and 6000K.
3. Ra ≥ 90, High CRI for Authentic Colors: High CRI ensures true-to-life colors, recreating a more realistic and colorful world.
This cabinet LED track lighting is a key component of Weihui's 10x10mm ultra-thin cabinet track lighting system. Its innovative light distribution design eliminates glare, achieving ideal brightness distribution and uniformity while also providing excellent heat dissipation. Compact and compact, it takes up minimal space, creating a visible light without being visible, creating a sense of illumination in invisible places, making it suitable for a wide range of applications.

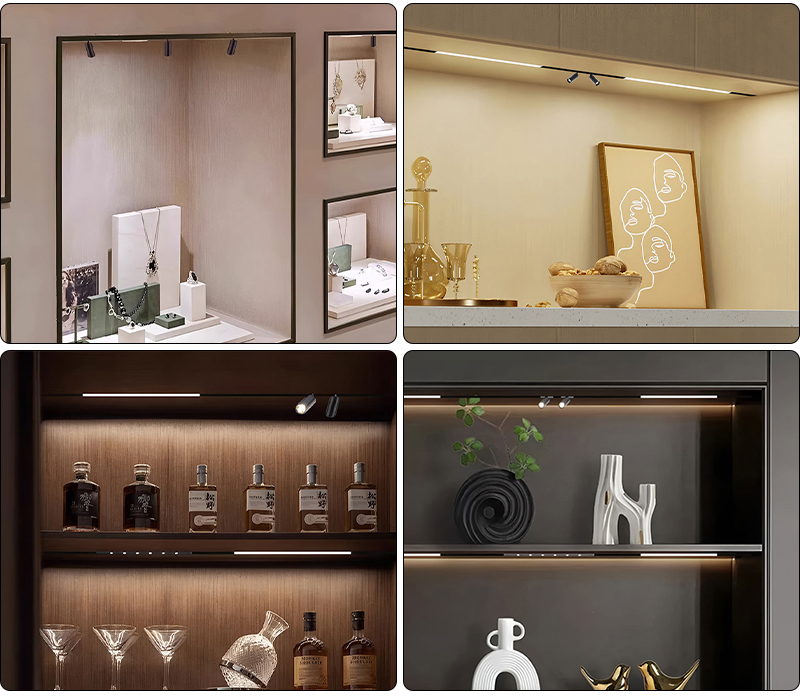

1. High-end cabinet/wardrobe lighting: Enhances the quality and emphasizes the internal structure and materials.

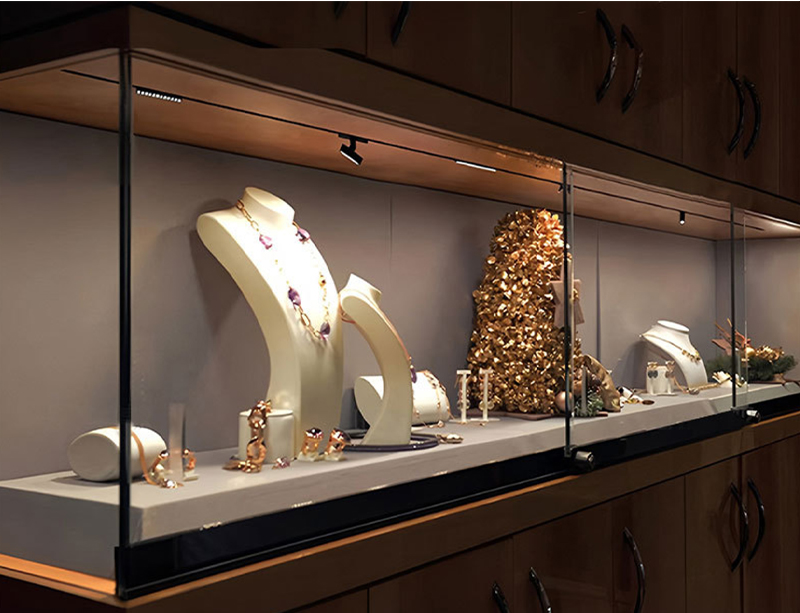

2. Display applications: For jewelry cabinets and art displays, highlight product outlines and the sense of light.
3. Mirror light strips: Create clean, point-like illumination, enhancing spatial depth.
4. Shelf lighting: Suitable for bookshelves and storage racks, creating a rhythmic light pattern and creating a lighter visual effect.

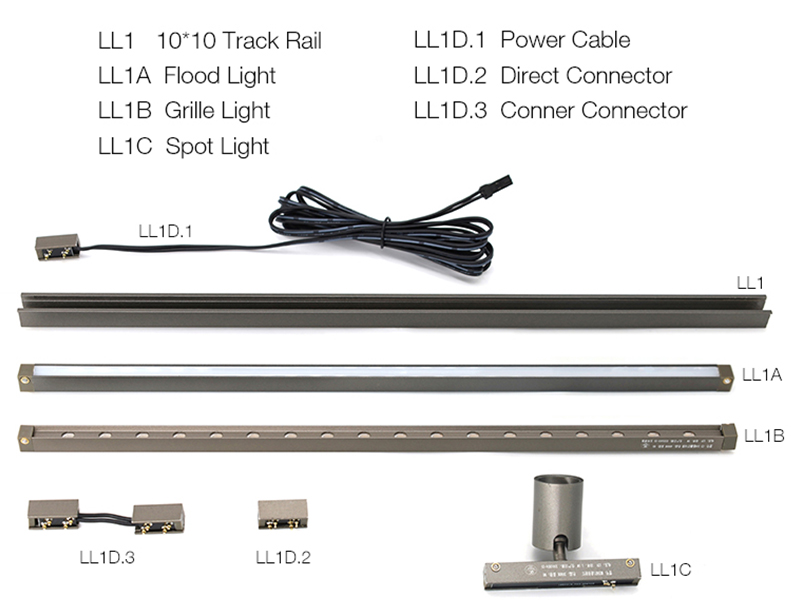

1. The full range of products includes: Tracks, cabinet track spotlights, cabinet track grille lights, cabinet track floodlights, power wiring connectors, direct connectors, butt connectors, and track plugs.
2. These lighting fixtures are modular in design, allowing you to customize your setup to meet your specific needs.
3. The whole cabinet is powered by just one set of power wires, which solves the wiring trouble during installation. The whole series of products have no positive and negative polarity distinction and can be installed and removed at any time, making installation and replacement more convenient.
Frequently Asked Questions
Need help? Pls send your request to us!
We are a factory and trading company, with more than ten years of experience in factory R&D,located in SHENZHEN. Expecting your visit at anytime.
Yes, you can customize the design or choose our design (OEM / ODM is very welcome). Actually Custom-made with small quantity is our unique advantages, such as LED Sensor switches with different programming, We can make it with your request.
Please feel free to contact us by email, phone or send us an inquiry, then we can send you the price list and more information by email: sales@wh-cabinetled.com.
Also contact us directly via Facebook/Whatsapp:+8613425137716
① Series of mini lights: small spotlights, grille lights, floodlights;
② Accessories: tracks, power cable, direct connectors, corner connectors.
For more details, please see the parameters, or contact our sales manager. TEL:+8618123624315 or email: sales@wh-cabinetled.com.
Of course, the maximum length is 3 meters.
1. Part One: 12V Cabinet Track lighting System
| Model | LL1B | ||||||||||||||
| Dimensions and Wattage | 2W – L116*W8*H8.6mm – 6 LEDs 6W – L310*W8*H8.6mm – 18 LEDs |
||||||||||||||
| Input | DC 12V | ||||||||||||||
| Wattage | 2W, 6W | ||||||||||||||
| Material | Aluminum | ||||||||||||||
| Color | Black, Silver, Dark grey | ||||||||||||||
| Length | Customized | ||||||||||||||
