Ultra-Thin Cabinet Track Lighting System – Recessed Cabinet Track
Short Description:
Highlights:
1. 【Minimalist Aesthetic Design】 The thin, lightweight LED conductive track system features intelligent modularity and flexible configurations, offering a variety of lighting styles, including spotlights, linear lights, floodlights, and grille lights.
2. 【Excellent Heat Dissipation and Electrical Conductivity】 The cabinet recessed track is constructed of high-quality aluminum and double-layered thickened red copper, ensuring excellent heat dissipation and electrical conductivity, extending the track's lifespan.

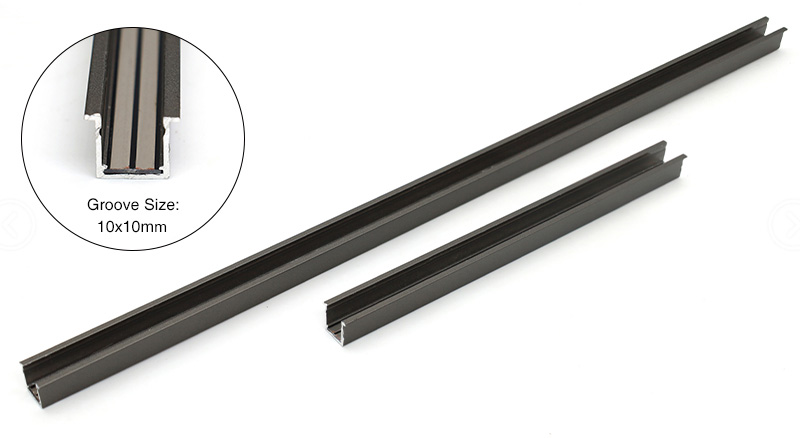

3. 【Embedded Design】 The side panels and shelves are pre-embedded with rails, each with a 10x10mm slot width. The innovative snap-on embedded design, coupled with a double-locking mechanism, ensures long-term use without loosening or deformation. Snap-on installation allows for easy replacemont at any time, even atter installation.
4. 【12V Low-Voltage System】 Safe 12V voltage and stable constant current allow for manual movement and customized lighting, eliminating the risk of electric shock. The lamp operates smoothly and reliably, ensuring consistent brightness from end to end.
5. 【Customized】 The rail length can be tailored to your project. All lamps feature a modular design with a variety of light sources, allowing you to customize your installation to your needs.
( For more details, Pls check Vidio Part or contact our sales manager),Tks.
Product Details:
1. Black oxide finish resists corrosion, rust, and fading, complementing a variety of modern furniture styles for a seamless, concealed installation. (Available in black, silver, and dark gray.)

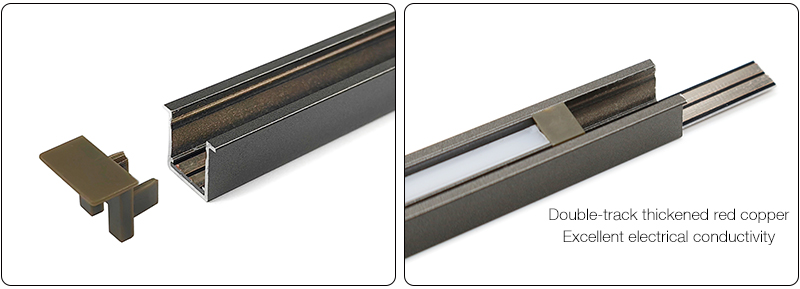

2. 12V DC embedded aluminum rails with dual thickened red copper for excellent heat dissipation and electrical conductivity.

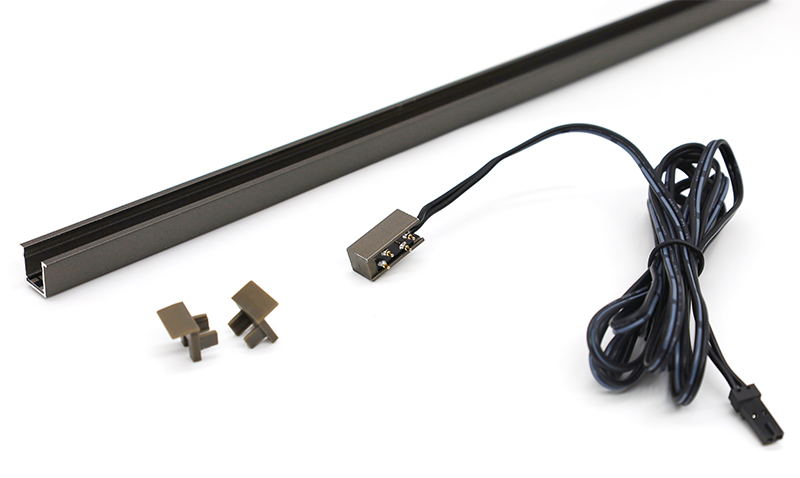

Both rails are equipped with fixed plugs for a more aesthetically pleasing installation. The maximum length of the track bar is 100cm and can be cut to custom sizes.

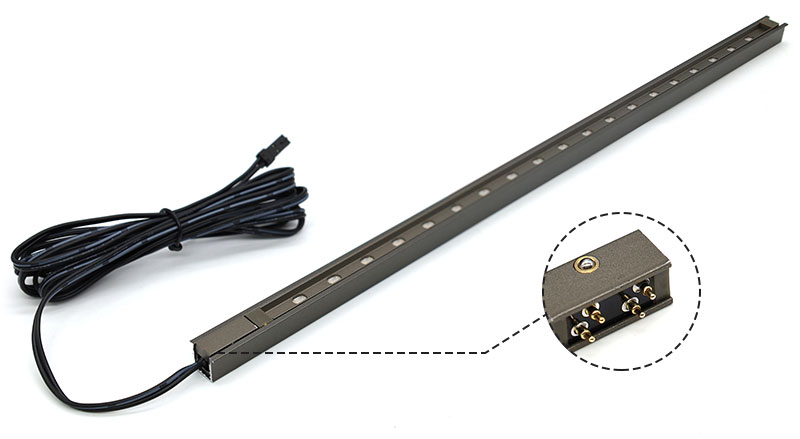

1. The track conductor uses a standard male 813 DuPont connector on one end and a conductive connector on the other, allowing for easy installation with a simple press.
2. Double protection: The conductive connector features an internal spring-loaded pin structure and a safety clip for the track bar. The clip can withstand a full 9kg, effectively reducing the possibility of it falling due to incorrect installation.
This track bar is a key component of Weihui's 10x10mm ultra-thin cabinet track lighting system. It can be freely combined with a variety of light sources to create an integrated multi-light system solution, widely suitable for various cabinet lighting scenarios and commercial space lighting upgrade projects.

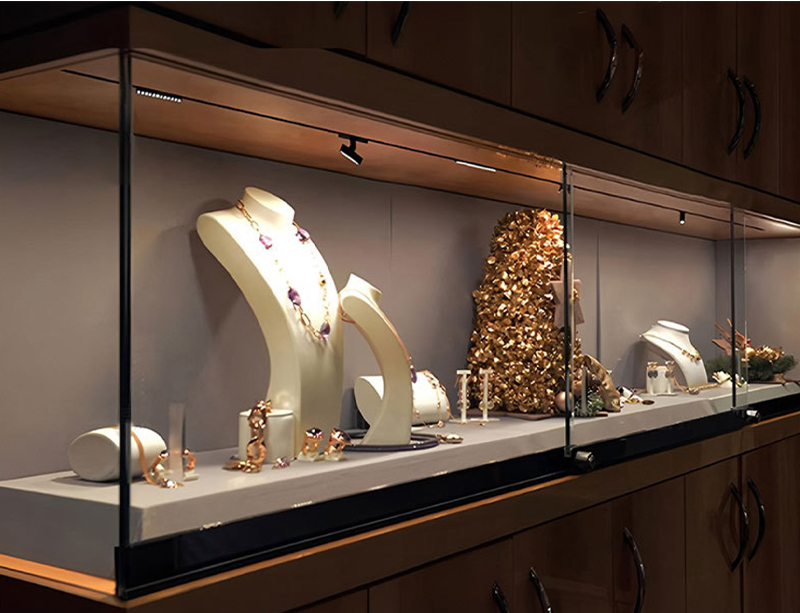

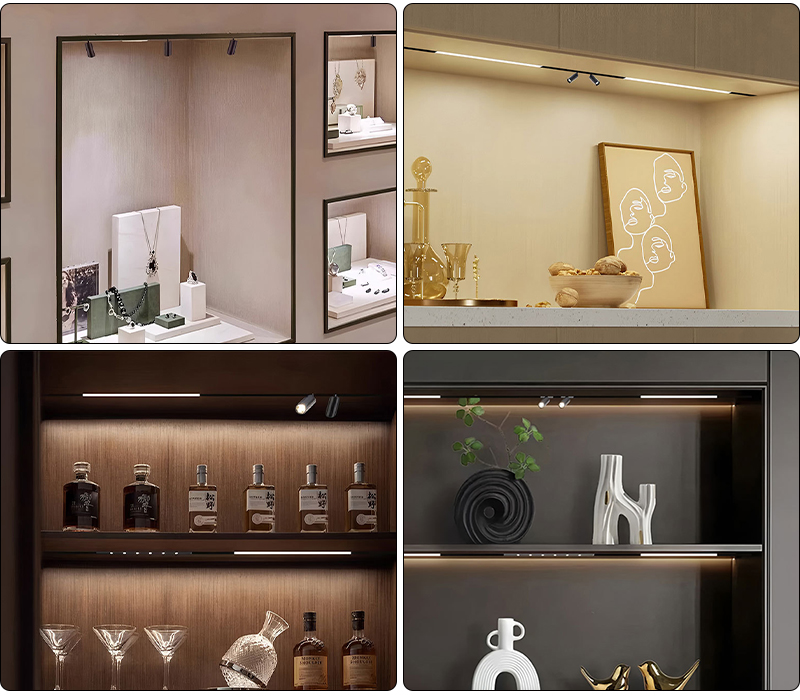

1. The 10x10mm cabinet track lighting system is compact and precise, taking up minimal space. It provides visible light without being visible, creating illumination where none is needed. It is suitable for various cabinet lighting scenarios (wardrobes, wine cabinets, bookcases, figurine cabinets, etc.) and commercial space lighting upgrade projects (jewelry display cases, art exhibitions, museums, etc.).
2. Standard Color Temperature: For reference, choose from a variety of color temperatures, including 3000K, 4000K, and 6000K.
3. Ra ≥ 90, high color rendering index (CRI) for true colors: A high CRI ensures true-to-life colors, recreating a vibrant world.

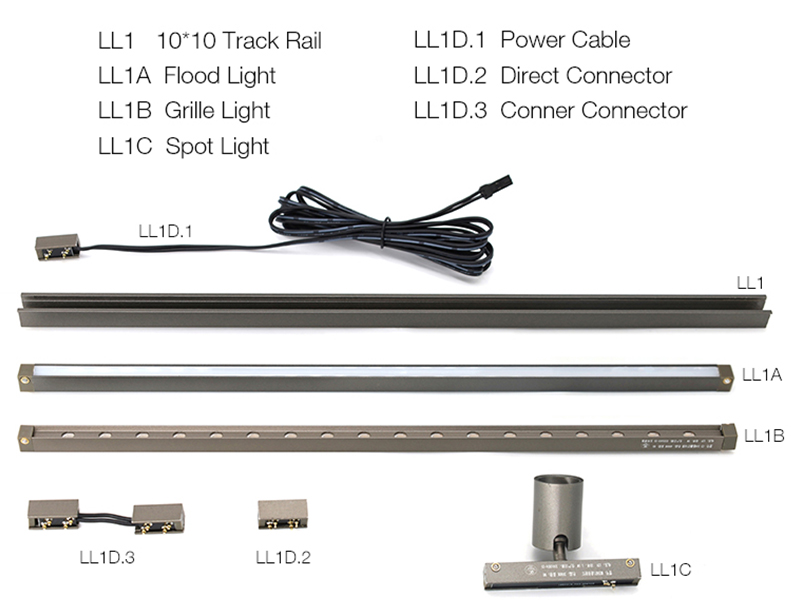

1. Full product line includes: Tracks, cabinet track spotlights, cabinet track grille lights, cabinet track floodlights, power wiring connectors, direct connectors, butt connectors, and track plugs.
2.This series of lighting fixtures features a modular design, allowing you to combine and match them to suit your installation needs. A single power cable powers the entire cabinet, eliminating wiring hassles during installation.
3.All products are polarity-neutral and can be installed and removed at any time, making installation and replacement more convenient.
Frequently Asked Questions
Need help? Pls send your request to us!
We are a factory and trading company, with more than ten years of experience in factory R&D,located in SHENZHEN. Expecting your visit at anytime.
Yes, you can customize the design or choose our design (OEM / ODM is very welcome). Actually Custom-made with small quantity is our unique advantages, such as LED Sensor switches with different programming, We can make it with your request.
Please feel free to contact us by email, phone or send us an inquiry, then we can send you the price list and more information by email: sales@wh-cabinetled.com.
Also contact us directly via Facebook/Whatsapp:+8613425137716
① Series of mini lights: small spotlights, grille lights, floodlights;
② Accessories: tracks, power cable, direct connectors, corner connectors.
For more details, please see the parameters, or contact our sales manager. TEL:+8618123624315 or email: sales@wh-cabinetled.com.
Of course, the maximum length is 3 meters.
1. Part One: 12V Cabinet Track lighting System
| Model | LL1 | ||||||||||||||
| Size | L1000x W9.9x H9.8mm | ||||||||||||||
| Voltage | / | ||||||||||||||
| Wattage | / | ||||||||||||||
| Material | Aluminum | ||||||||||||||
| Color | Black, Silver, Dark grey | ||||||||||||||
| Length | Customized | ||||||||||||||
