4 Way Distributor for LED Strip Lighting System

Short Description:

Distributor Box & DuPont Copper Junction Box & Branch Splitter for LED under Cabinet Lighting

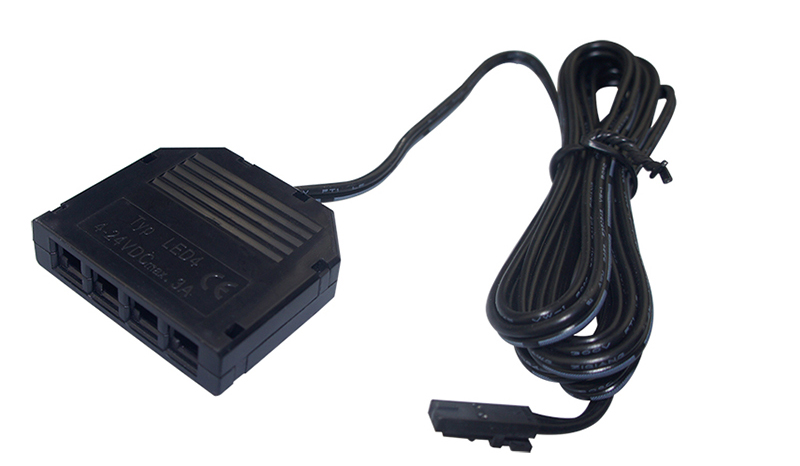

1. 4 Position LED Light Strip Connector offers a wide range of applications, allowing users to easily control multiple light fixtures (light strips) with a single driver.

2. This 4-way junction box features a standard DuPont plug design with quick-connect functionality and a special anti-reverse plug-in feature, making wiring convenient and efficient. It provides up to three wiring ports, effectively improving wiring neatness and scalability, making it widely used in home cabinet lighting.

3. The DuPont Copper Junction Box is available with 3, 4, or 6 ports. You can connect all or some of the ports of the distributor to a light fixture to meet your installation needs. Cabinet Lighting Connection Box is suitable for connecting various lighting fixtures, including LED downlights, LED cabinet lights, LED spotlights, LED decorative lights, single-color flexible light strips, rigid light strips, and more.

Accept customized services.

FREE SAMPLES FOR TESTING PURPOSE!

Send email to us

Product Detail

Technical Data

Video

Download

OEM&ODM Service

Product Tags

Highlights & Advantages:

1. Simplified Wiring Layout: The strip light distributor box has four connection ports, allowing you to connect multiple lighting fixtures simultaneously, reducing wiring and the number of power adapters required.

2. DuPont Socket Design: Standard DuPont sockets offer a high degree of compatibility, easy plugging and unplugging, and stable contact.
3. Long-Cable Configuration: 1800mm of wiring allows for flexible wiring in various installation scenarios.

Product Details

1. Available in both white and black variants, this cable distributor can handle a maximum current of 3A for each output.Cable length: 1800mm with UL Approved cables, 20AWG

2. 4-Channel Output Interface: The Strip Light Distributor Box can connect multiple lighting fixtures simultaneously, simplifying wiring layout.
3. Flame-retardant Housing: Made of black engineering plastic, durable and safe.

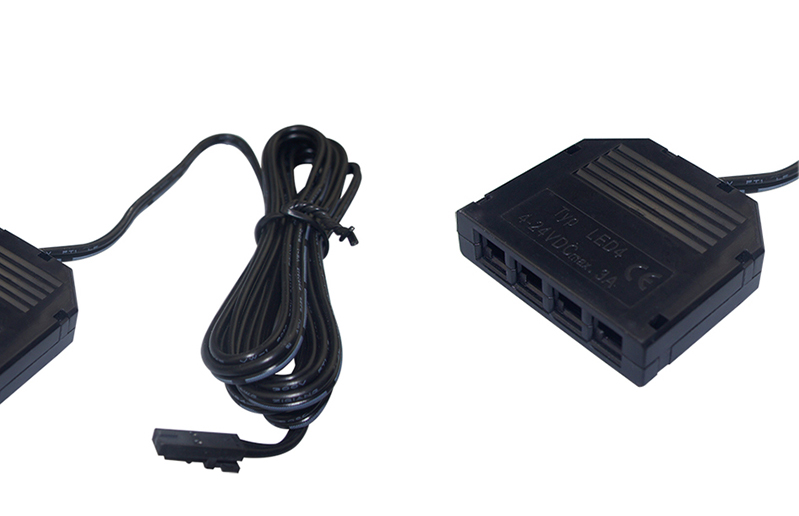

DuPont 4-Port LED Strip Light Breakout Box

Main Features

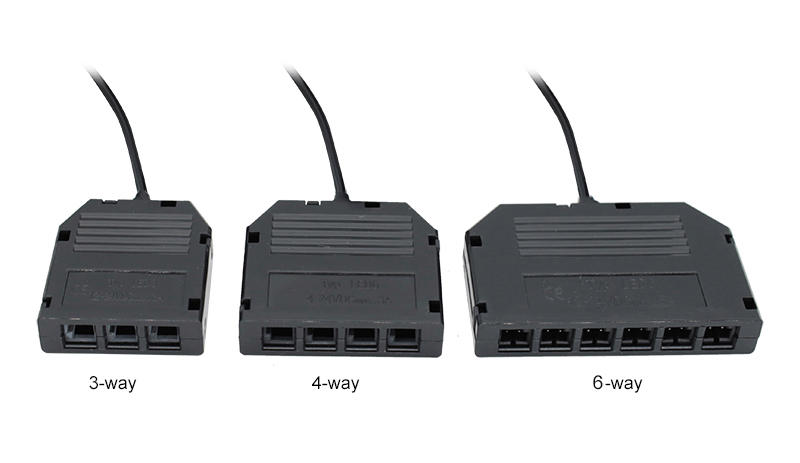

Available in 3 Ways/ 4 Ways/ 6 Ways,More requirements can be customized.

Application

1. In general, The Distributor for LED Strip Lighting System is connected between LED Strip light and LED Driver.

2. DC12V-24V LED Dupont Distributor suitable for lighting connection of cabinet lamps, wardrobe lamps,wine cabinet lamps, cabinet lamps, lamp strips, lighting lamps, etc.

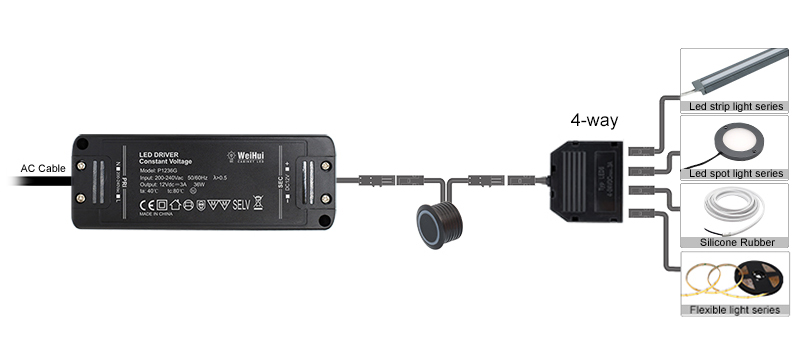

Here a example as below

Previous: PCBA Hand Sweeping Sensor Switch for LED cabinet lighting (Tr6)

Next:

1. Part One: LED Distributor

Model			MF01-4way
Dimensions			41.5×38×10mm
Input			Dupont 2Pin Male Plug(parallel connection)
output interface			4-bit port
Inter facetype			DuPont line
Length			1800mm
AWG			20
Color			Black/White
Packing			10pcs/bag
