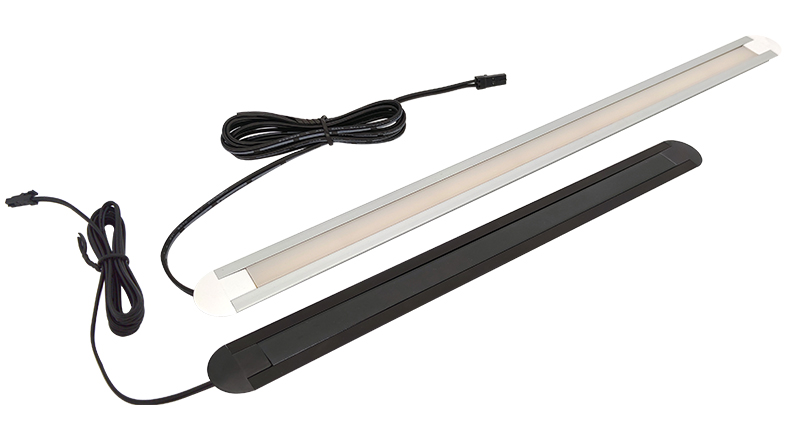

A05 Black Recessed Lighting for Cabinet
Short Description:
Product advantages:
1. 【High-quality aluminum profile】 Made of high-quality aluminum alloy, black tin-sprayed coating throughout, high-end luxury, anti-corrosion, no rust, no discoloration.
2. 【Environmentally friendly PC mask】 Adopt environmentally friendly flame-retardant PC cover, which has the advantages of high clarity and high light transmittance, protecting the LED from dust.
3. 【Easy to install】 Embedded installation, only need to open a 15mmd groove to embed COB style all black strip light in wardrobes, cabinets and other cabinets. In addition, the groove installation design can achieve neat and concealed wiring, creating a clean and professional appearance.
4. 【Technical parameters】 Input voltage 12V, lamp beads 320LEDs/m, using High-quality COB lamp beads, power 10W/m, safe voltage. (Please refer to the technical data section for details), thank you.
5. 【Built-in switch】 Built-in switches can be installed according to needs, including PIR sensor switch, touch sensor switch, hand-sweep sensor switch.

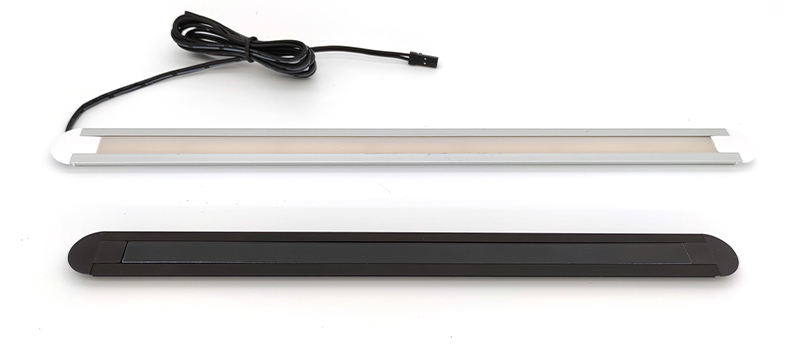

Flexible Length Aluminum Recessed Mounted Black LED Linear Profile Furniture Light For COB Strips, All black led cabinet lamp with motion sensor.
1. Cable length: 1500mm (Black).
2. Recessed all black led strip lights can be effortlessly cut to specific lengths with a fine-toothed hacksaw or miter saw. Channel steel can be easily trimmed to the required length with a hacksaw or grinder, and the cover can be cut with a utility knife and scissors.

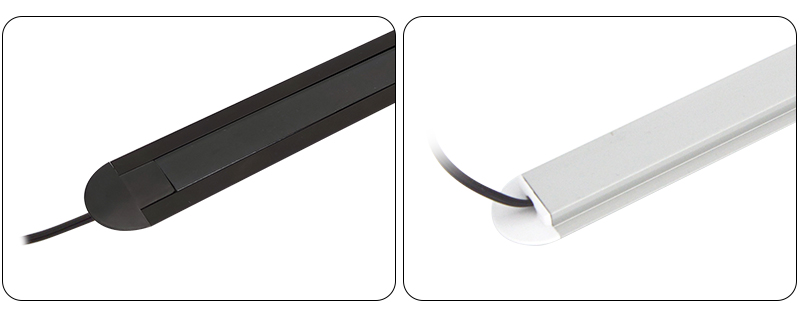

With its unique oblong shape and all-black finish, it adds a touch of sophistication to any space. One of the standout features of recessed channel lighting is its ultra-thin design, which makes it ideal for recessed mounting. It seamlessly blends into your furniture, creating a sleek and seamless look. The Al profile and PC cover ensure durability, while also providing a smooth and even light distribution. And if you're looking to customize the color to match your decor, our custom-made color options are available.
The closet lights lights produce a high-quality illumination that is free from any dots on the surface. This COB LED technology guarantees a bright and uniform light output, perfect for illuminating your wardrobe or cabinet. With three color temperature options - 3000k, 4000k, or 6000k - you can create the desired ambiance or task lighting for your specific needs. Plus, with a color rendering index (CRI) above 90, it accurately reveals the true colors of your clothes or belongings.

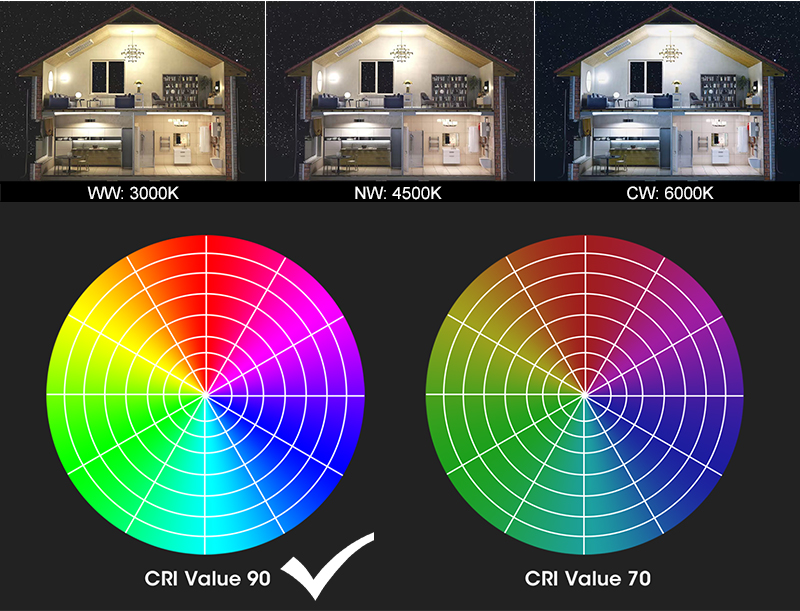

Picture: Color temperature
The closet strip light is also customizable in terms of length. Whether you need a short strip for a small cabinet or a longer one for a spacious wardrobe, we can create a custom-made length up to 3000mm to fit your exact specifications.

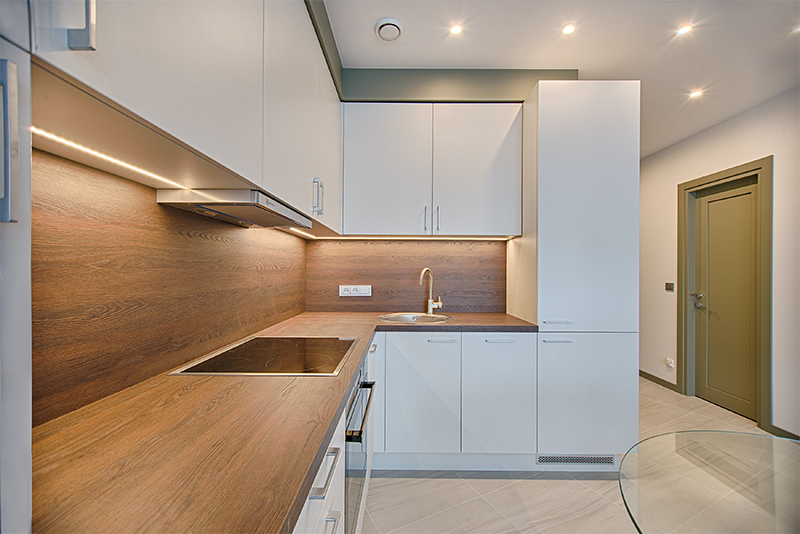

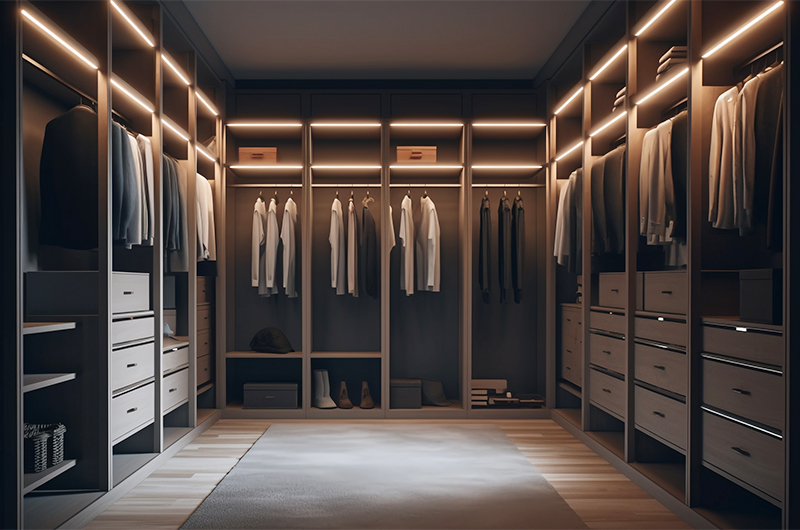

Scenario 1:

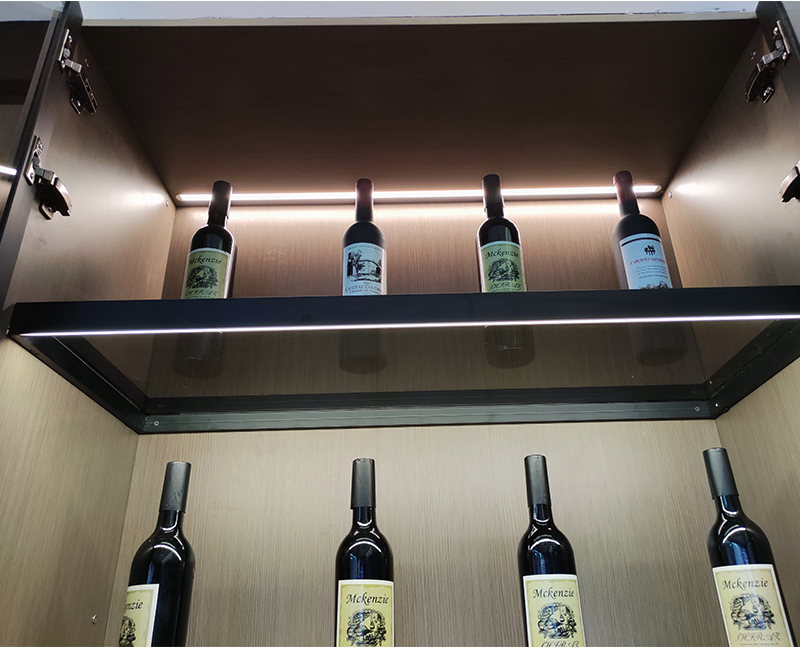

Scenario 2:
For closet lights lights, You need to connect LED sensor switch and LED driver to be as a set. Take a example, You can use flexible strip ight with door trigger sensors in a wardrobe. When you open the wardrobe, The light wil be on. When you close the wardrobe The light will be off.
Drawing of two connection examples( For more details, Pls check Download-User Manual Part).

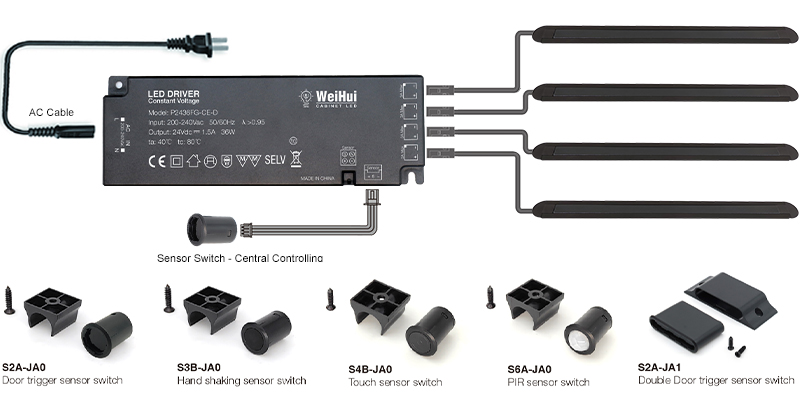

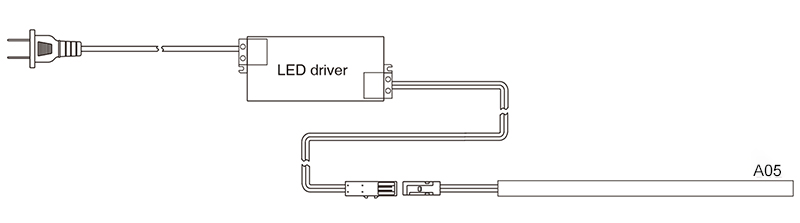

Eexample1:Connect to Common LED Driver(Picture Followed.)

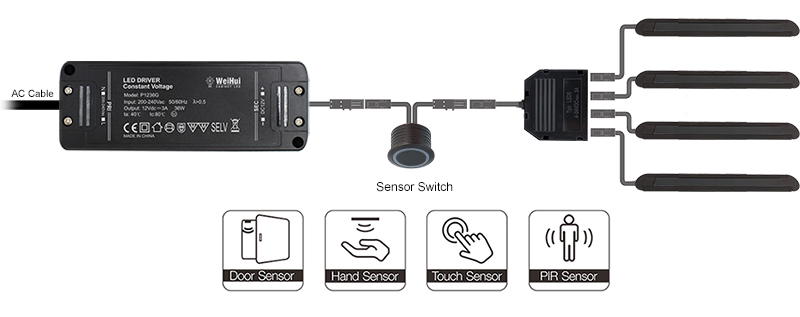

Example 2: Connect to Smart LED Driver
1. Part One: All Black Strip Light Parameters
| Model | A05 | |||||||
| Install style | Recessed Mounting | |||||||
| Color | Black | |||||||
| Color Temperature | 3000k/4000k/6000k | |||||||
| Voltage | DC12V | |||||||
| Wattage | 10W/m | |||||||
| CRI | >90 | |||||||
| LED Type | COB | |||||||
| LED Quantity | 320pcs/m | |||||||

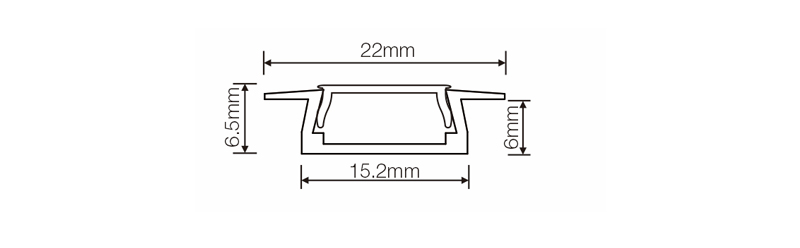

2. Part Two: Size information

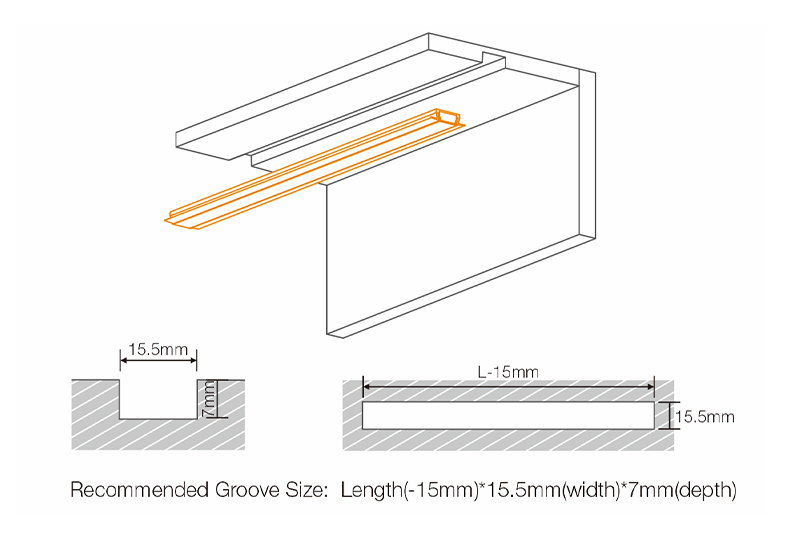

3. Part Three: Installation
4. Part Four: Connection Diagram
