CCT Adjustable PCBA Sensor for LED cabinet lighting (Tr5)
Short Description:
Advantages:

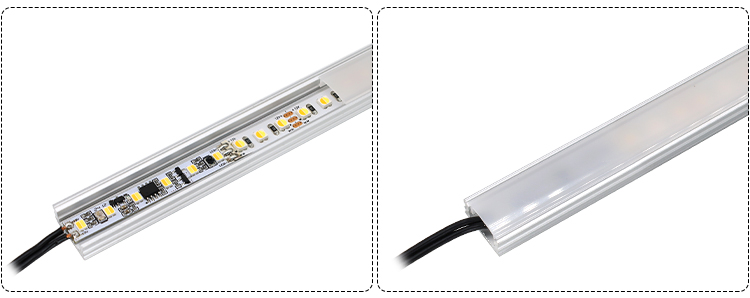

1. 【Nake Board PCBA Construction】 The PCBA is compact and can be directly soldered (or wired) to the LED light board. It can be integrated into the aluminum profile slot for a compact design and easy installation.
2. 【No Dark Spots】 The LED chips are directly integrated into the sensor switch PCBA board, along with the integrated LED light source and control circuitry. This serves as both a switch sensor and a light, delivering uniform light distribution without dark spots, improving lighting quality.
3. 【No Slotting or Holes Required】 The Hand Sensor Switch PCBA Module is directly soldered to the LED light board, eliminating the need for additional slotting. The Hand Sweep PCBA can be easily installed through a mask.
4. 【Contactless Sensing】 The Color Adjustable Sensor Switch for Light utilizes infrared sensing technology, allowing for control simply by swiping your hand across the sensing area. Highly sensitive hand-sweep sensing provides fast response. The bare board sensing distance is 15-20cm, while the mask-mounted sensing distance is 5-8cm.
5. 【Customization Supported】 The Sensor Switch PCBA Board can be customized based on your needs, including size, functions (touch, hand-sweep, PIR sensing), single color, dual color temperature, dimming, sensing distance, sensing time, and more.
Parameter:
| Item Name | Feature Description |
| Model | Tr5 |
| Name | CCT Adjustable PCBA Sensor |
| Woking Voltage | DC12V/24V |
| Maximum Load | 40W |

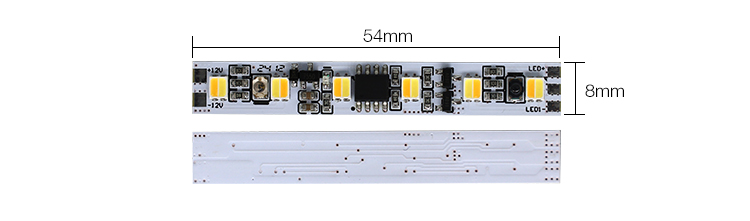

| Size | 54x8mm |
| Function | ON/OFF/Stepless Dimmer/CCT adjustment |
| Detecting Range | 5-8cm(With Mask) / 15-20cm(Nake Board) |
| Feature | Power-off Memory |
More Details:
1. No dark Area： The board features integrated high-brightness LED chips for uniform illumination without dark areas..
2. Only 8mm wide: The PCBA Hand Sweep Sensor Switch Module is only 8mm wide, highly adaptable and suitable for a wide range of applications.
3. SMT technology: High-density wiring and compact layout ensure stable signal transmission.
4. Clear solder pad interface: The Cabinet smart sensing module features clear pad interfaces, making soldering the light board quick and easy, reducing installation complexity.

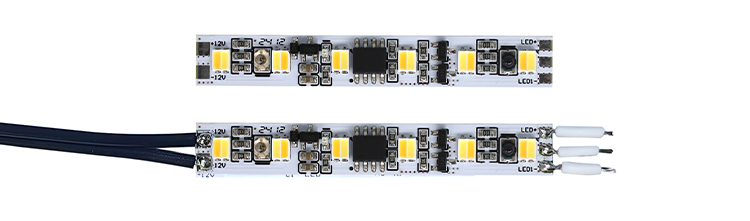

The PCBA Series Sensing Module is available in two formats: One is a NAKE Board, and the other is a NAKE Board with L813 male connector and solder wires. For more product details, please contact our sales manager.
The PCBA series sensing modules are available in a variety of styles, including 5cm and 8cm sizes, single-color dimming and dual-color dimming options. LEDs are also available with the infrared sensor directly integrated into the PCBA module. With a variety of styles, there's always one that suits you. Customization is also possible.
1. Hand-sweep on/off control: A light swipe of your hand within the sensing area (5-8cm) switches the LED light on and off.
2. Dimmer function: A long hold adjusts the brightness, supporting stepless dimming and maintaining 8-second adaptive sensitivity.
3. CCT adjustment function: When the light is off, hold your hand within the sensing area for 3 seconds to display the first color temperature. No operation for 5 seconds locks the current color temperature. Another short swipe turns the light off. Hold your hand within the sensing area for another 3 seconds to display the second color temperature. The color temperature cycles through warm light, cool light, and natural light.
4. Power-off memory function: After a power outage, the brightness and status before the power outage are restored upon power-on (the pre-power-off status must be maintained for 3 seconds), improving the user experience.
1. The CCT Adjustable PCBA Sensor is widely used in various home lighting scenarios, especially for fixtures with limited installation space and a simple and aesthetically pleasing design. It can be directly soldered to the LED light board, enabling concealed installation without requiring holes, seamlessly integrating into the fixture structure.

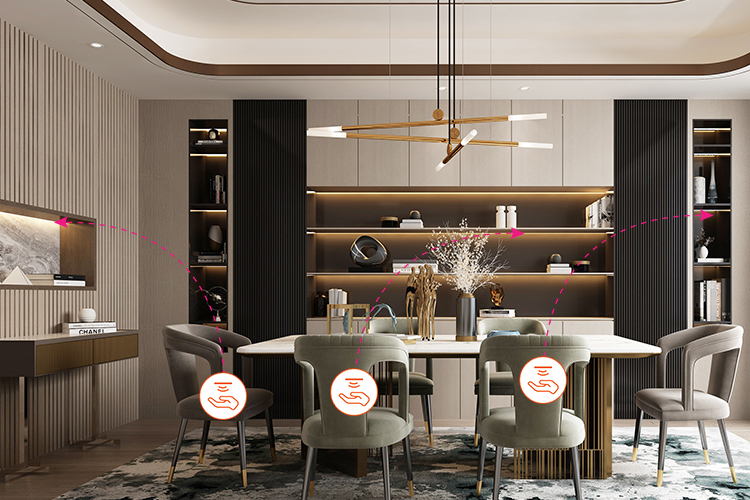

2. The DC 12V/24V Hand Sweep Sensor Switch Module is suitable for cabinet lighting, wardrobe lighting, bookcases, wine cabinets, display cabinets, smart home lighting, commercial showcases, and other scenarios, meeting the high-end lighting needs of modern homes and commercial spaces.
Scenario 1: Cabinets...

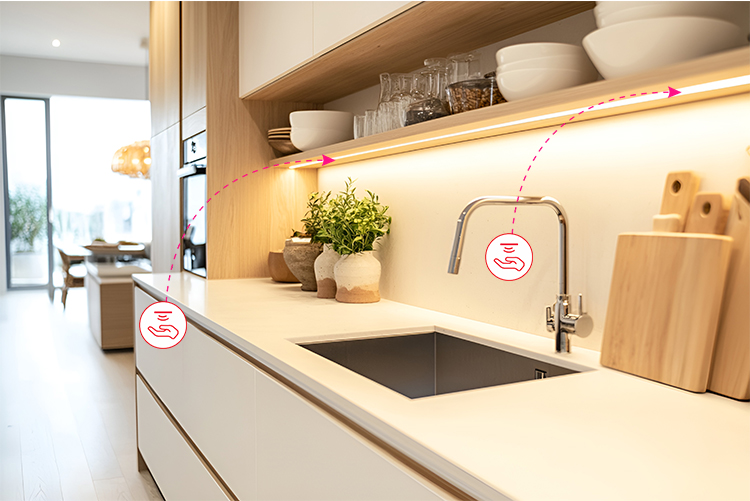

Scenario 2: Kitchen storage cabinets, wine cabinets
| Model | Tr5 | |||||||
| Function | ON/OFF/Stepless Dimmer/CCT Adjustment | |||||||
| Size | 54X8mm | |||||||
| Working Voltage | DC 12V&24V | |||||||
| Maximum Load | 40W | |||||||
| Detecting Range (With Mask) | 5-8cm | |||||||
| Detecting Range (Nake Board) | 15-20cm | |||||||
| Feature | Power-off Memory | |||||||
