F01C Recessed Led Shelf Light of Down Direction Shinning
Short Description:
Advantages：
1. 【High-quality profile】 The led shelf light is made of high-quality aluminum, with an elegant and low-key appearance, a rust-proof and corrosion-resistant protective shell, which extends the service life of the cabinet light, and can be customized with silver and black finishes, suitable for cabinet partitions.
2. 【Lighting effect】 High-quality lamp beads, uniform light emission, combined with frosted diffuser, make the light soft and uniform without glare, and no dazzling light. Downward light emission provides special lighting for your display cabinet.
3. 【Easy to install】 Recessed shelf lighting is suitable for 18mm thick boards, cut off the 27mm wide front board, embedded installation on the partition, hidden on the edge of the cabinet, the minimalist appearance perfectly integrates into the modern home, illuminating the space without being abrupt.
4. 【Convenient control】Hand-sweep sensor switch and touch sensor switch can be set to achieve convenient control of led shelf strip lights.
5. 【Support customized services and warranty】 Support large-scale customized services to meet your business needs! 5-year warranty, if you have any questions or installation needs, please ask Weihui for help.
( For more details, Pls check VIDEO Part),Tks.
Aluminum profile & Milky cover
Product more details
1. The product includes profile lamp tubes and light strips and cables, the light strip is up to 1500mm, 12v voltage, and 120pcs/m of lamp beads.
2. 3 color temperatures are available: 3000k, 4000k, or 6000k, color rendering index>90, strong restoration, rich colors, making objects more realistic and vivid.
3.Installation way:it's recessed mounting by groove,we recommended groove size is Φ12*3.5 mm,need to cut off 27mm width of the front board,suitable for all wooden cabinets.
1.Super Slim Counter Light, warm white light is comfortable, daylight white light is natural and bright, cold white light is efficient and focused, and provides lighting in one direction downward to better achieve your accent lighting.
2. Different scenes require different lighting effects. Therefore, we provide three color temperature options: 3000k, 4000k or 6000k to meet your various lighting needs. 12VDC installation under shelf led strip, display index CRI>90, guarantees excellent color rendering, making your items look vibrant and real life.
Picture:color temperature
1. Our embedded LED strip shelf lights are suitable for all wooden cabinets. Whether you want to illuminate your favorite collection of books, display your precious collections, or display your exquisite tableware, or exquisite clothing, it can meet your lighting needs.
2.In addition,We have other shelf light styles,such as,LED SHELF LIGHT SERIES .(If you want to know these products,please click on the corresponding location with blue color,Tks.)
Regarding our shelf lighting for bookshelf, we provide two connection and lighting solutions. The first is to directly connect to a regular driver for power supply. The second is to connect the LED smart sensor switch and the LED smart driver into a group to achieve different control effects.

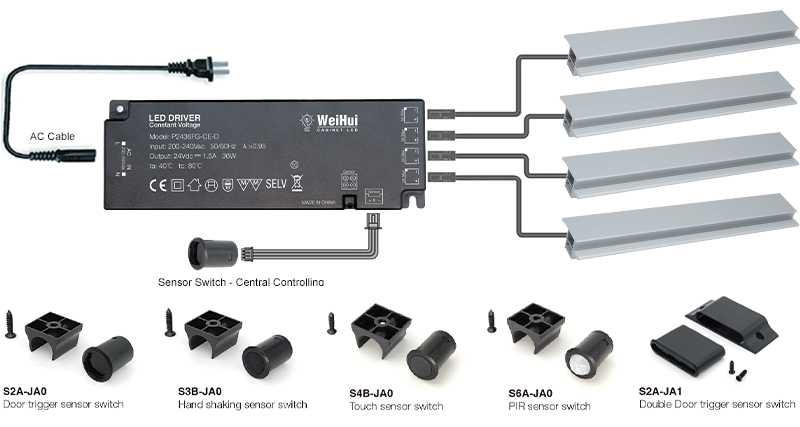

Example 1: Ordinary LED driver + LED sensor switch (Below)

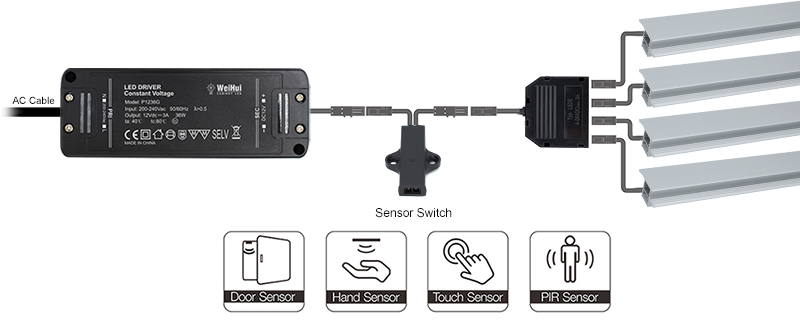

Example 2: Smart LED Driver + LED Sensor Switch
Q1: Is Weihui a manufacturer or a trading company?
We are a factory and trading company, with more than ten years of experience in factory R&D,located in SHENZHEN. Expecting your visit at anytime.
Q2: What is the lead time?
3-7 working days for samples if in stock.
Bulk orders or customized design for 15-20 working days.
Q3.What is the led shelf light suitable for?
Perfect for kitchen, cabinet, counter, closet, workbench, desk, pantry and more.
Q4: What are the advantages of WEIHUI and its items ?
1.WEIHUI has more than 10 years LED factory research and development experience.
2.We have a professional R&D team and launch new products every month.
3.Provide three or Five-year warranty service, quality guaranteed.
4. WEIHUI provides a variety of smart LED lights, which could satisfy different customers' demands. Also we could meet the requirements of high –quality and high cost –effective.
5.Custom-made/ no MOQ and OEM available.
6.Only focus on complete solutions on cabinet & furniture lighting;
7.Our products have passed CE, EMC RoHS WEEE, ERP and other certifications.
1. Part One: LED Shelf Light Parameters
| Model | F01C | |||||
| Installation Style | Surfaced Mounting | |||||
| Wattage | 10W/m | |||||
| Voltage | 12VDC | |||||
| LED Type | COB | |||||
| LED Quantity | 320pcs/m | |||||
| CRI | >90 | |||||

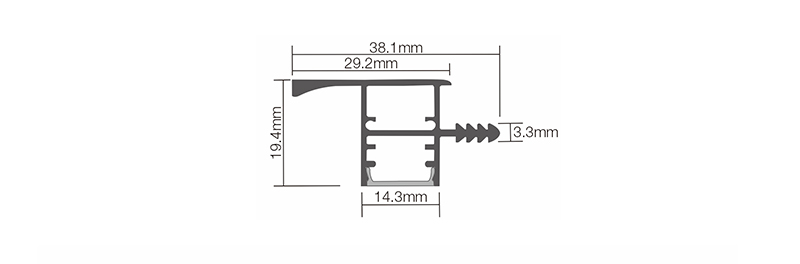

2. Part Two: Size information

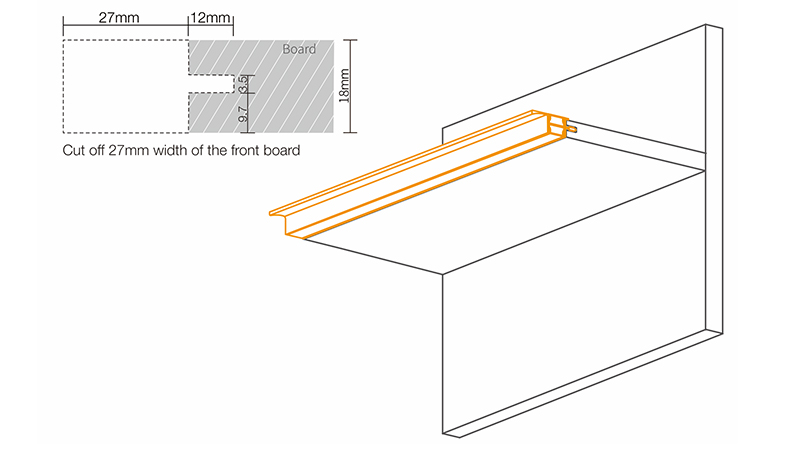

3. Part Three: Installation

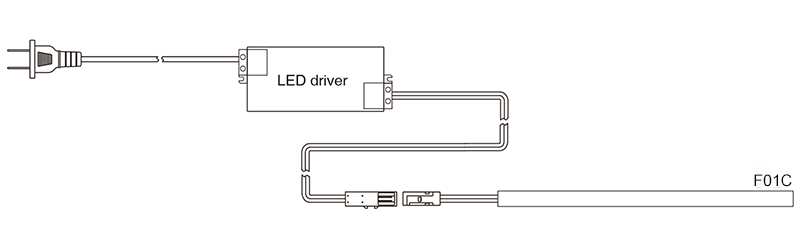

4. Part Four: Connection Diagram
