FC384W5-1 5MM Width 12V Led Strip Lights

Short Description:

3000K COB warm white strip light, 384 lamp beads per meter built-in, making the light strip uniform and soft, covered with yellow silicone material chips, the light effect is smooth. The color rendering index (CRI) is as high as 90+, making the light color close to the true color of natural light. Suitable for various indoor lighting.

WELCOME TO ASK FREE SAMPLES FOR TESTING PURPOSE！

Send email to us

Product Detail

Technical Data

Video

Download

OEM&ODM Service

Product Tags

Advantages & Features

1. 【Perfect design】 5mm led strip light, cutting size 20.83mm, 384leds/M; 10W/M, Luminous Efficacy is 90Lm/W, color rendering index is as high as 90+, flexible led strip lights are narrow in size, easy to hide, and beautiful to install.
2. 【Adapt to various quick connectors】 Quick connectors such as PCB to PCB, PCB to cable, L-type connector, T-type connector, etc. The maximum running length is up to 10 meters at 24 volts without voltage drop.
3. 【Easy to use】 Our High Density Tape Lights Cabinet Lamp uses strong self-adhesive 3M adhesive, which can be peeled off and pasted, without any welding experience or tools, for quick and easy installation.
4. 【Customizable color temperature】 The color temperature of ceiling strip lights is mainly 3000K/4000K/6000K. If you have other needs, you can also customize other forms of color temperature.
5. 【Safety guarantee】 Our light strips are certified by CE/ROHS and have a service life of up to 60,000 hours. Our customer service team is always available to provide you with convenient troubleshooting, replacement services, or answer any questions about purchase or installation.

Technical Specifications

The following Data are basic for COB strip light
We support customization of Warm White Strip Light of different sizes, different quantities, different color temperatures, different wattages, etc.

Item Number	Product Name	Voltage	LEDs	PCB width	Copper thickness	Cutting Length
FC384W5-1	COB-384 Series	12V	384	5mm	35/35um	20.83mm
Item Number	Product Name	Power(watt/meter)	CRI	Efficiency	CCT (Kelvin)	Feature
FC384W8-6	COB-384 Series	10w/m	CRI>90	90Lm/W	3000K/4000K/6000K	ROLL TO ROLL

Color Rendering Index >90, truly restore the original color of the object and reduce distortion.

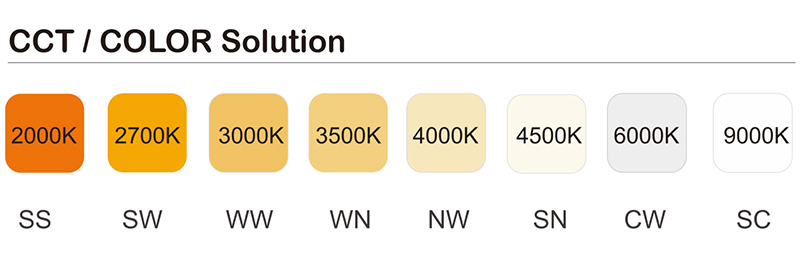

Color Temperature is welcome to customize:Support color temperature customization 2200K-6500k, single color/dual color/RGB/RGBW/RGBCCT, etc.

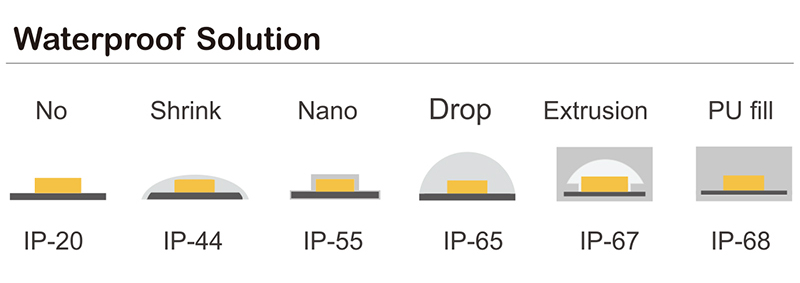

Waterproof IP Level: This led strip light has a waterproof IP rating of IP20, and can be customized for outdoor, humid or special environments with waterproof and dustproof ratings.

Product Details

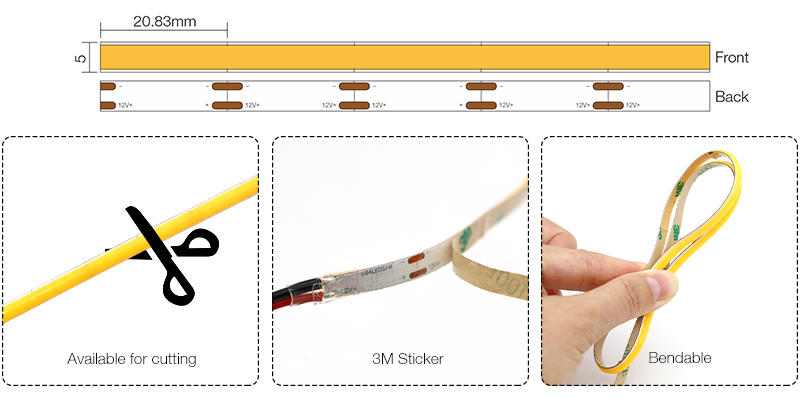

1. 【Flexible DIY】 These COB LED strips are very flexible! You can cut the strip lights every 20.83mm at the cutting marks on the strip lights, or you can also reconnect the light strips at these cutting marks by welding or using quick connectors. Excellent flexibility allows you to get the perfect solution for your DIY project!
2. 【High-quality 3M adhesive】 High-quality strong 3M tape makes Led lights easier to install, waterproof, strong adhesion, compact structure, small size, no additional packaging and support required, and time-saving and labor-saving installation.

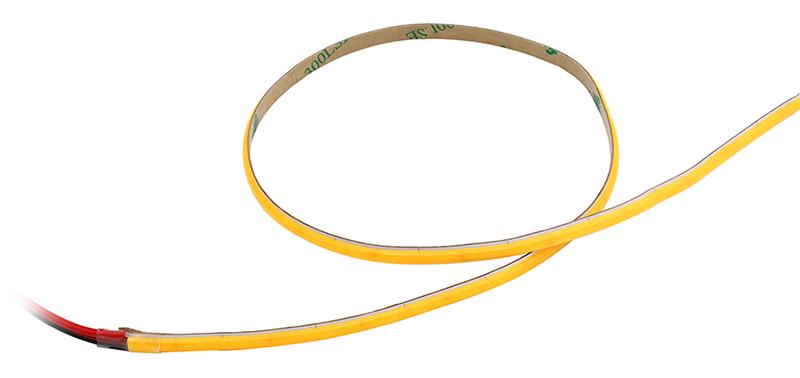

3. 【Soft and bendable】 Flexible led lights can be bent and can be concave into various shapes to meet customers' complex installation needs.

Application

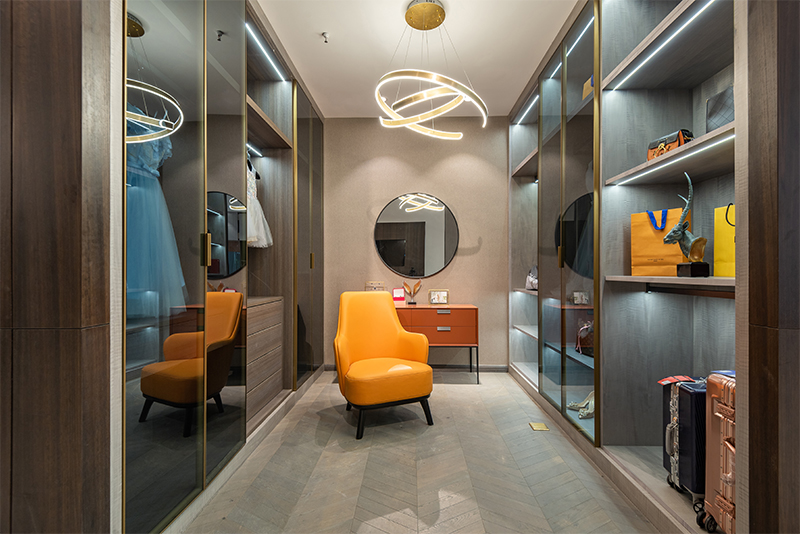

【Wide range of applications】 Our warm white LED light strips can be installed in various corners that need light decoration, suitable for various indoor applications such as living rooms, corridors, bedrooms, under cabinet lighting, accent lighting, skirting lights, shelf lighting, recessed lighting and other commercial and residential lighting projects. It can illuminate the area, reduce shadows and enhance the atmosphere.

COB LED light strips are the ultimate in energy saving, high brightness and uniform lighting. Inlaid in cabinets, ceilings or walls, it not only increases the practicality of the space, but also enhances the overall beauty. Compared with traditional lighting, COB light strips significantly reduce energy consumption and meet green environmental protection requirements.

Connection and Lighting solutions

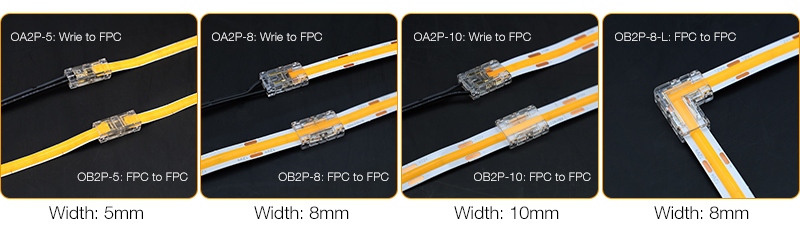

【Various Quick Connector】Applicable to various quick connector, Welding Free Design
【PCB to PCB】 For connecting two pieces of different COB strips, such as 5mm/8mm/10mm,etc
【PCB to Cable】Used to light up the COB strip, connect the COB strip and wire
【L-type Connector】Used to extend Right Angle Connection COB Strip.
【T-type Connector】Used to extend T Connector COB Strip.

When we use COB led strip lights in kitchen cabinet or furniture, We can combine with smart led drivers and sensor switches. Here it is a example of Centrol control smart system

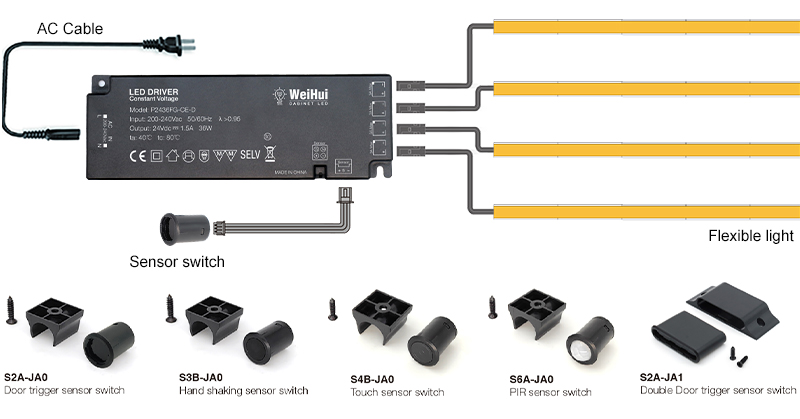

Smart LED Driver System with different sensors( Centrol Control)

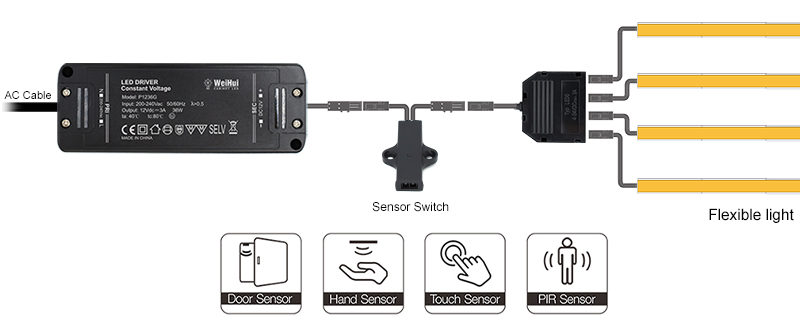

Smart led driver system-Separate Control

FAQ

Frequently Asked Questions

Need help? Be sure to visit our support forums for answers to your questions!

Q1: Is Weihui a manufacturer or a trading company?

A: We are a factory and trading company, with more than ten years of experience in factory R&D,located in SHENZHEN. Expecting your visit at anytime.

Q2: What kinds of transportation will Weihui choose to delivery the products?

A: We support various transportation by air& Sea & Railway,etc

Q3: How to deal with the faulty?

A: Firstly, Our strict quality control system guarantees the defective rate less than 0.2%
Secondly, We have a three-year warranty period，during the guarantee period, we will re-send the products or
refund based on our discussion.

Q4: Can the light strip be customized?

A: Yes, our light strip can be customized, whether it is color temperature, size, voltage, or wattage, customization is welcome.
