FC576W10-2 10MM Width 12V Dream Color RGB COB LED Strip light
Short Description:
1. 【Seamless light】 High-density lamp bead design, 576 LEDs/m, bright RGB colors, uniform and soft light distribution, high density, no dark spots, Support stepless dimming.

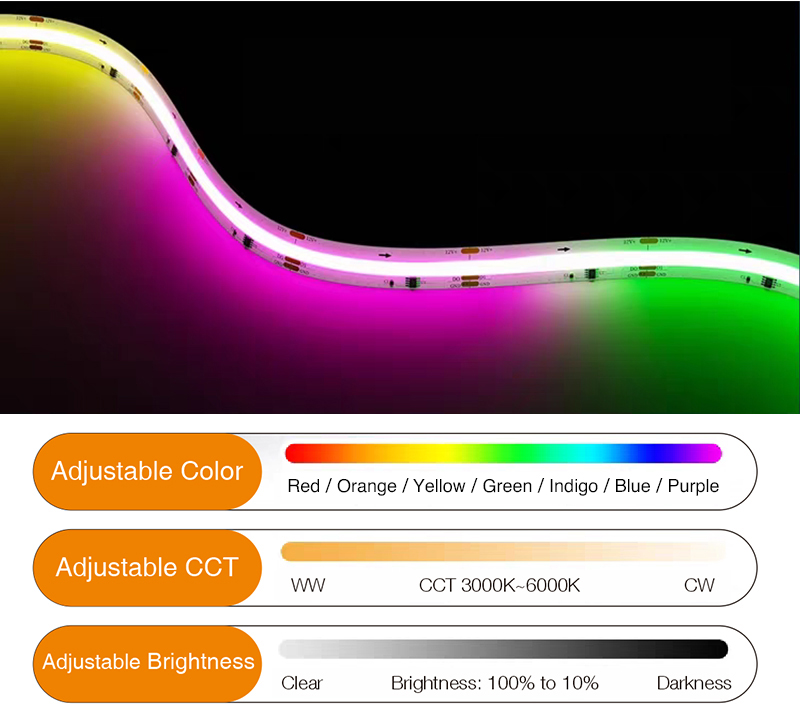

2. 【Amazing lighting effects】 16 million color effects, not only can adjust various static colors, but also achieve a variety of dynamic effects such as gradient, jump, running, breathing, etc.
3. 【Music Sync Mode】 The COB Running Water Flowing LED Strip Light supports a variety of music collection methods, such as mobile phone microphone, player streaming, etc., and can automatically adjust the light and spectrum according to the ambient sound.
4. 【No flicker】 High-quality COB LED light strip, stable light, no flicker when recording videos with mobile phones or cameras.
5. 【Dimming function】 When paired with LED dimming switches and controllers, it can achieve stepless dimming and color adjustment functions.
Available in Single Color, Dual Color, RGB, RGBW, RGBCW and other light strip options, we must have the right COB light strip for you.
• Roll: 5M/roll, 576 LEDs/m, Length is customizable.
• Color rendering index: >90+
• 3M adhesive backing, suitable for the surface best suited to the surrounding reflective surface or application
• Max run: 12V-5 meters, small voltage drop. If you are worried about the impact of voltage drop, you can inject voltage at the end of the long light strip to eliminate the voltage drop.
• Cutting length: one cutting unit per 62.5mm
• 10mm strip width: suitable for most places
• Power: 8.0w/m
• Voltage: DC 12V low-voltage light strip, safe and touchable, with good heat dissipation performance.
• Whether it is direct lighting or exposed installation, or using a diffuser, the light is soft and not dazzling
• Certificate & Warranty: RoHS, CE and other certifications, 3-year warranty

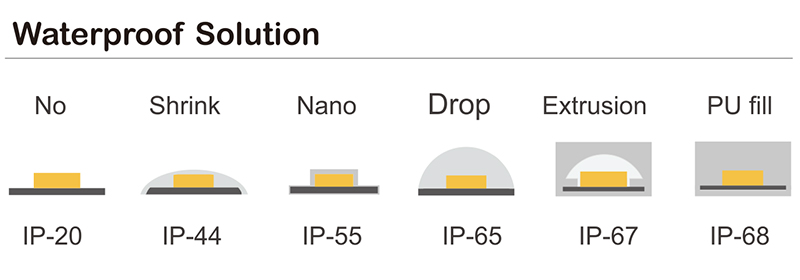

Waterproof level: Choose our RGB light strips for indoor and outdoor installation or use in wet environments. The waterproof level can be customized.

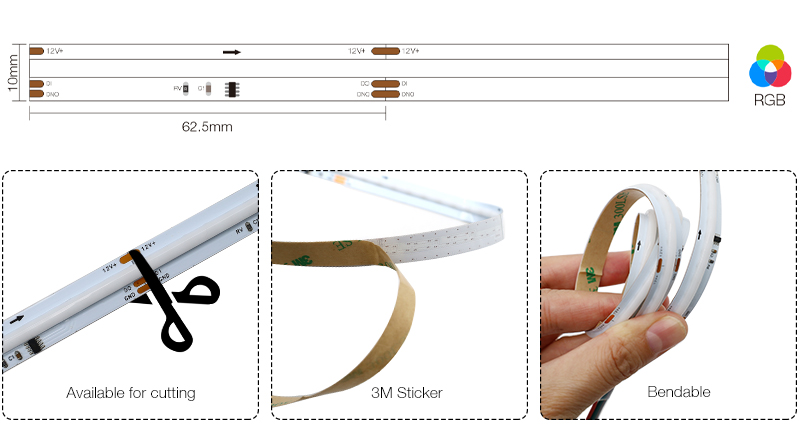

1. The light strip can be cut, one cutting unit every 62.5mm.
2. Easy to install, please tear off the tape film on the back before installation.
3. Bendable, it is more bendable than any other SMD light strip, and can be easily made into any shape.
1. With the right controller, not only can you adjust a variety of static colors, but also achieve a variety of dynamic marquee lighting effects, such as: rainbow/wave/snake type, etc. Inject vibrant colors into your space. Flexible and cuttable design, perfect for narrow spaces, these lights are flexible, so you can bend them to the angle you want. Cut along the solder joint to get the perfect strip light length for your application.

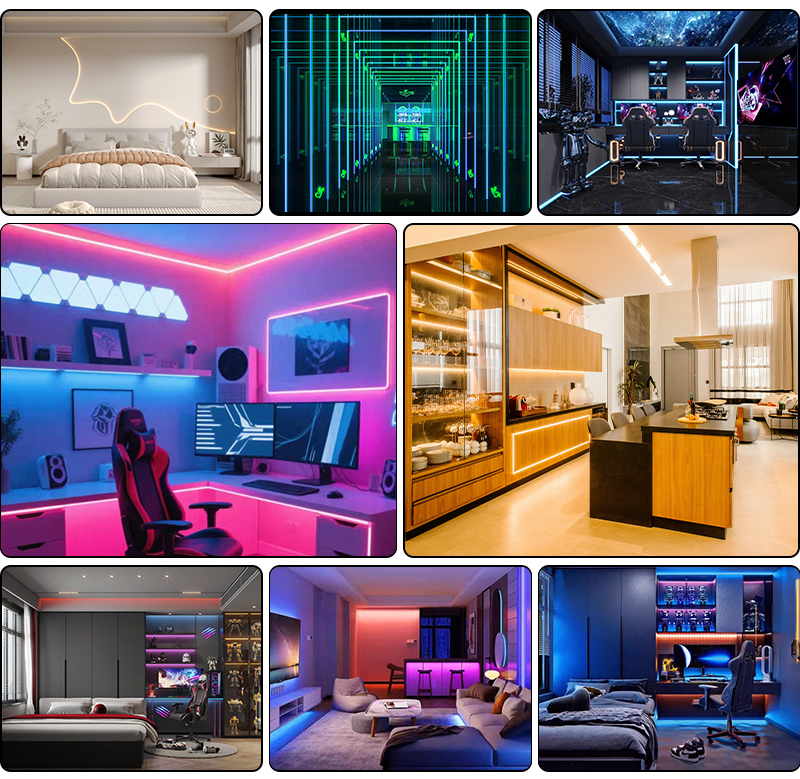

2. Colorful, dreamy atmosphere lights, great help for your life entertainment! It not only makes you relax, but also enriches your life! RGB smart COB LED light strips are very suitable for installation in many scenes such as home, bar, entertainment hall, coffee shop, party, dance, etc.
Tips:
Tips: The colour changing led strip comes with a strong 3M self-adhesive backing. Before installation, please ensure that the installation surface is thoroughly cleaned and dry.
The light strip can be cut and reconnected, suitable for various quick connectors, and no welding is required.

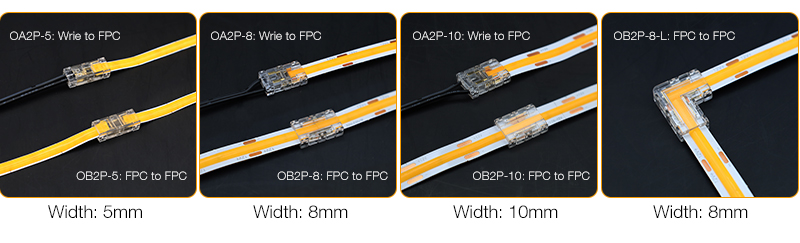

【PCB to PCB】 For connecting two pieces of different COB strips, such as 5mm/8mm/10mm,etc
【PCB to Cable】Used to light up the COB strip, connect the COB strip and wire
【L-type Connector】Used to extend Right Angle Connection COB Strip.
【T-type Connector】Used to extend T Connector COB Strip.

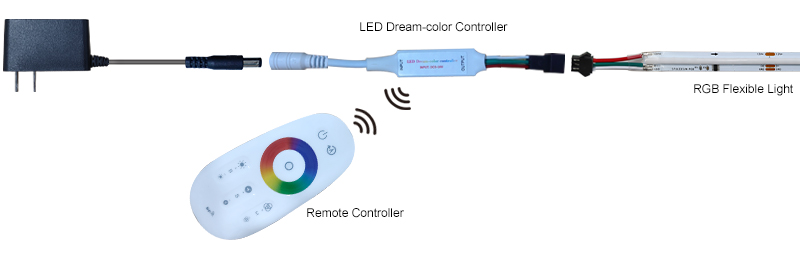

When we use COB RGB light strips in cabinets or other home places, you can use it with dimming and color adjustment controllers to customize color tones and settings. To give full play to the effect of the light strip. As a one-stop cabinet lighting solution provider, we also provide matching wireless RGB horse racing controllers (LED Dream-color Controller and Remote Controller, model: SD3-S1-R1), bringing you a more convenient and intelligent lighting experience.
Fully furnished, please start your action.
Frequently Asked Questions
We are a factory and trading company, with more than ten years of experience in factory R&D,located in SHENZHEN. Expecting your visit at anytime.
Yes, you can customize the design or choose our design (OEM / ODM is very welcome). Actually Custom-made with small quantity is our unique advantages, such as LED Sensor switches with different programming, We can make it with your request.
Yes, Free samples are available with small quantities.
For prototypes, The sample fee will be returned to you when order is confirmed.
1. Formulate corresponding company inspection standards to suppiers, production departments and qualty control center, etc.
2. Control strictly the quality of raw material, inspection production in multiple directions.
3. 100% Inspection and aging testing for finished product, storage rate no less than 97%
4. All inspections have records and responsible persons. All records are reasonable and well-documented.
5. All employees would be given professional training bofore officially working. Perodic training update.
The best LED Light strips should have features such as high brightness, accurate color rendering, uniform light, flexible control, long life, fast installation, and stable use". For example, our FC720W12-2 LED light strip is one of the best-performing LED light strips we recommend for rooms. It can be up to 10 meters long, can be spliced, and has 720 LED beads per meter, which can provide optimal flexibility and brightness.
1. Part One: RGB COB LED Strip Light Parameters
| Model | FC576W10-2 | |||||||
| Color Temperature | CCT 3000K~6000K | |||||||
| Voltage | DC12V | |||||||
| Wattage | 8.0w/m | |||||||
| LED Type | COB | |||||||
| LED Quantity | 576pcs/m | |||||||
| PCB Thickness | 10mm | |||||||
| Length of Each Group | 62.5mm | |||||||
2. Part Two: Size information
3. Part Three: Installation
4. Part Four: Connection Diagram
