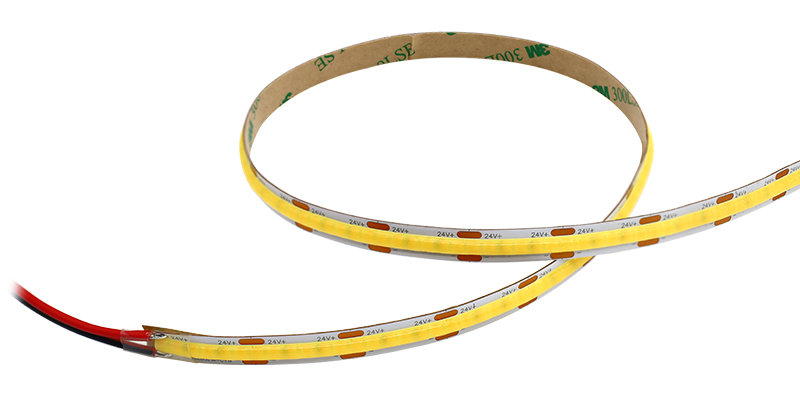

FC600W8-1 8MM COB Led Strip Lights with CCT Change for Shelves
Short Description:
1.【Super Bright and Uniform Lighting】 24V CCT strip lights adopt advanced COB technology, 180 degree beam angle design, 50% wider lighting, uniform lighting, no dark area.
2.【Professional Visual Effect】This 2700K-6500K Dimmable White Cuttable LED Tape Lights has a color rendering index (CRI) of up to 90+, which can show the natural tones of objects, with strong reduction and rich colors.
3.【Lead-free Material and ROHS Certification】Designed with lead-free materials, Weihui's COB LED Strip Lights are more environmentally friendly than other products and protect your health. ROHS certification, the quality is more trustworthy!
4.【Flexible and Easy to Install】Can be cut every 20mm along the middle of the copper sheet metal. Can be reconnected or soldered with Weihui's 8mm quick connector (connectors sold separately). You can also bend it and even DIY more shapes. Super sticky double-sided adhesive backing makes the installation more secure!
5.【Excellent Effect】This COB LED Strip Light is powered by low voltage, and there is almost no brightness attenuation at the end of the 1000mm strip light, and the voltage drop is small.
6.【Support Customized Service and Warranty】Support large-scale customized services to meet your business needs! 5-year warranty, if you have any questions or installation needs, please ask Weihui for help.

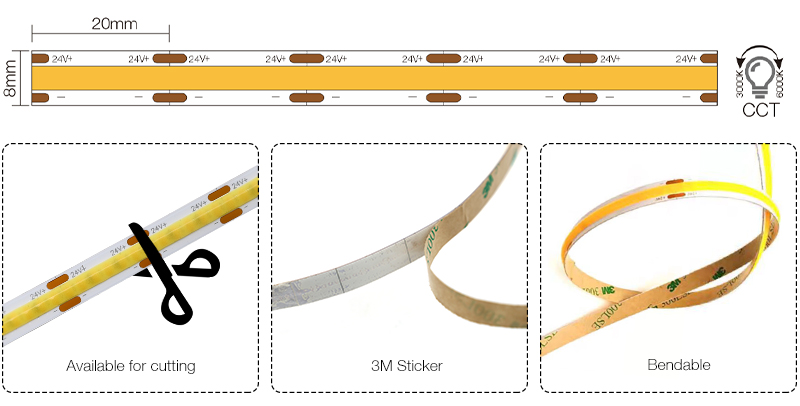

The cutting size of 20mm can be cut arbitrarily, solving the pain point of customized length.
The following Data are basic for COB strip light
We can make different quantity/Different Watt/Different Volt,etc
| Item Number | Product Name | Voltage | LEDs | PCB width | Copper thickness | Cutting Length |
| FC600W8-1 | COB-600 Series | 24V | 600 | 5mm | 25/25um | 20mm |
| Item Number | Product Name | Power(watt/meter) | CRI | Efficiency | CCT (Kelvin) | Feature |
| FC600W8-1 | COB-600 Series | 7+7w/m | CRI>90 | 60Lm/W - 80Lm/W | 2700K-6500K CCT | CUSTOM-MADE |
Color Rendering Index >90, the object's color is more real, natural, reduce color distortion.

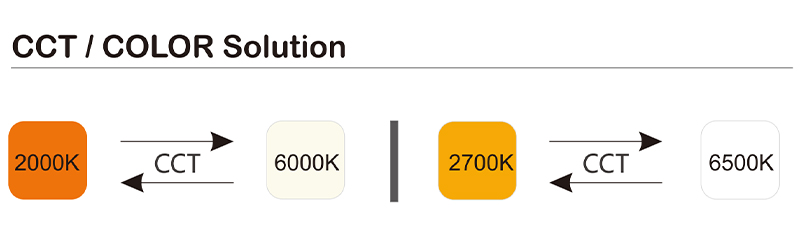

Color Temperature is welcome to customize from 2200K to 6500k.
Single color/Dual Color/RGB/RGBW/RGBCCT.etc

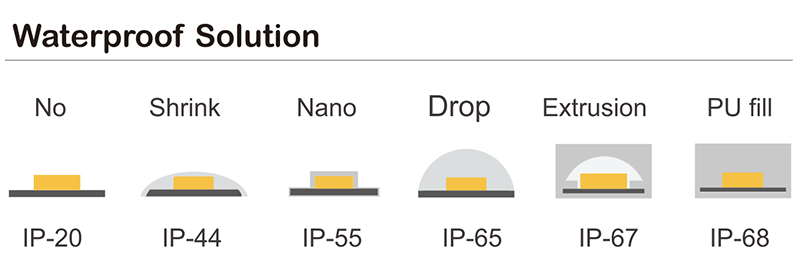

Waterproof IP Level, This COB strip is IP20 and can be customized with a waterproof and dustproof rating for outdoor, wet or special environments.

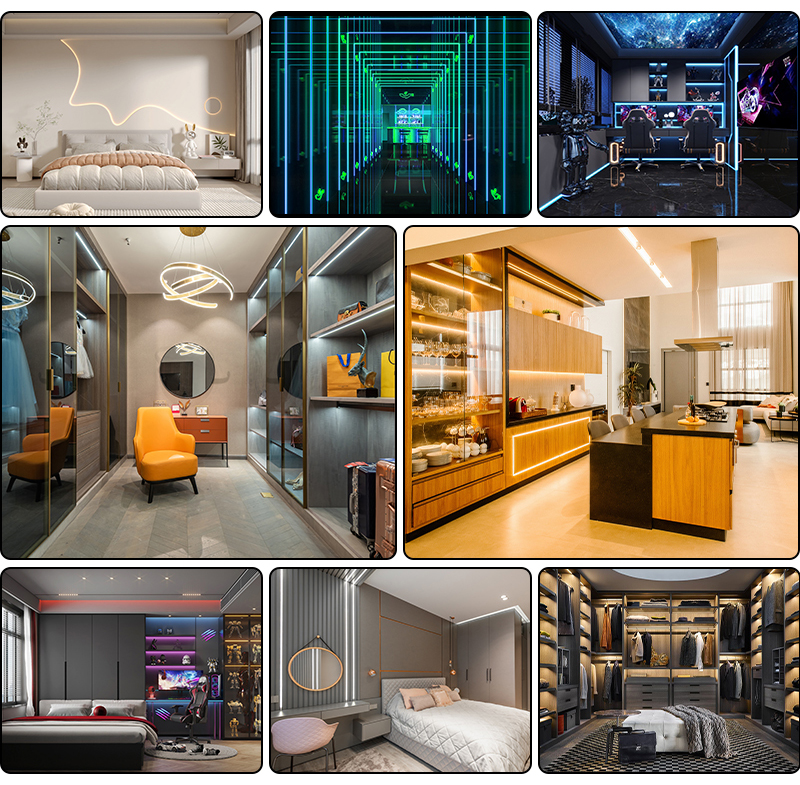

Widely used: 24V COB LED strip lights are widely used. You can use these recessed led strip lighting as auxiliary lighting in dark areas to enhance the layering of the space! It is suitable for home lighting such as kitchen cabinets, bedrooms, ceilings, stairs, restaurants, etc.

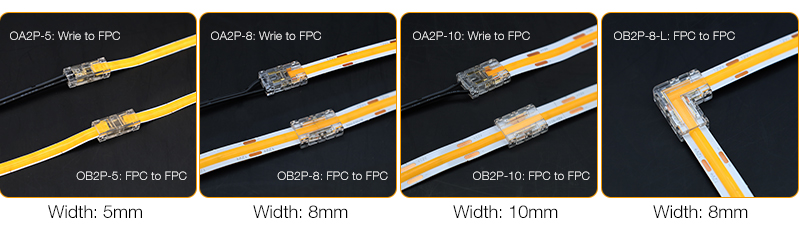

【Various Quick Connector】Applicable to various quick connector, Welding Free Design
【PCB to PCB】 For connecting two pieces of different COB strips, such as 5mm/8mm/10mm,etc
【PCB to Cable】Used to light up the COB strip, connect the COB strip and wire
【L-type Connector】Used to extend Right Angle Connection COB Strip.
【T-type Connector】Used to extend T Connector COB Strip.
When we use COB led strip lights in kitchen cabinet or furniture, We can combine with smart led drivers and sensor switches. Here it is a example of Centrol control smart system.

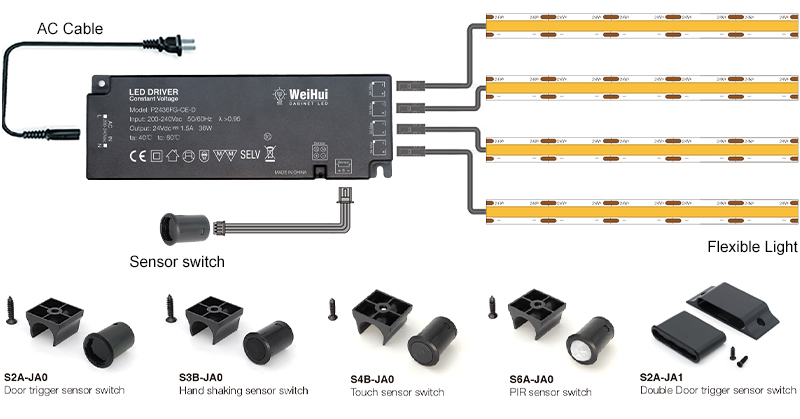

Smart LED Driver System with different sensors( Centrol Control)

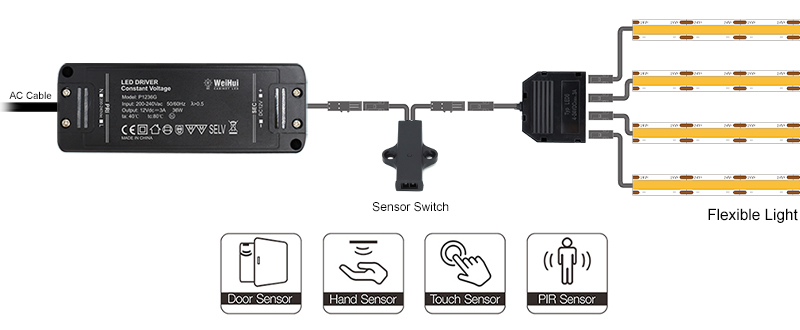

Smart led driver system-Separate Control
Q1: Is Weihui a manufacturer or a trading company?
We are a factory and trading company, with more than ten years of experience in factory R&D,located in SHENZHEN. Expecting your visit at anytime.
Q2: Can you costomize products according to our request?
Yes, you can customize the design or choose our design (OEM / ODM is very welcome). Actually Custom-made with small quantity is our unique advantages, such as LED Sensor switches with different programming, We can make it with your request.
Q3: What can you buy from Weihui?
1. Induction switch: infrared switch, touch switch, wireless induction switch, human body switch, mirror touch switch, hidden switch, radar induction switch, high voltage switch, mechanical switch, All kinds of sensor switches in cabinet wardrobe lighting.
2. LED lights: drawer lights, cabinet lights, Wardrobe light, shelf lights, welding-free lights, anti-glare strip lights, black strip lights, silicone light strips, battery cabinet lights, panel lights, Puck lights, jewelry lights;
3. Power supply: Cabinet smart led drivers, Line in adpters, Big Watt SMPS, etc.
4. Accessories: Distribution box, Y cab; DuPont extension cable, Sensor head extension cable, wire clip, Custom-made led show panel for fair, Show box for client visiting,etc
Q4: How to get Weihui price list?
Please feel free to contact us by email, phone or send us an inquiry, then we can send you the price list and more information by email: sales@wh-cabinetled.com.
Also contact us directly via Facebook/Whatsapp:+8613425137716
1. Part One: COB Flexible Light Parameters
| Model | FC600W8-1 | |||||||
| Color Temperature | 2700K-6500K CCT | |||||||
| Voltage | DC24V | |||||||
| Wattage | 7+7w/m | |||||||
| LED Type | COB | |||||||
| LED Quantity | 600pcs/m | |||||||
| PCB Thickness | 8mm | |||||||
| Length of Each Group | 20mm | |||||||
2. Part Two: Size information and Installation
3. Part Three: Connection Diagram
