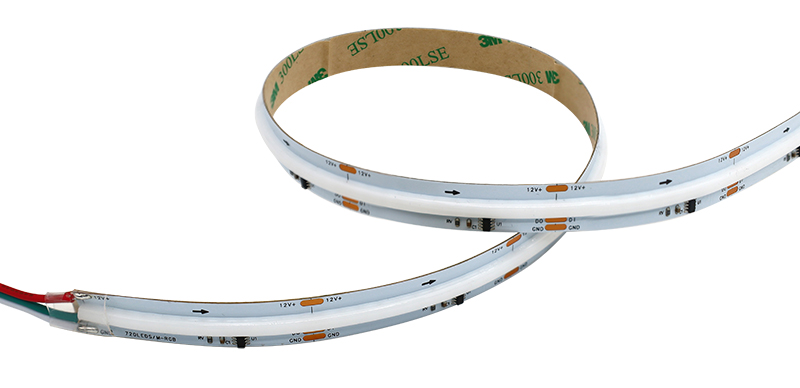

FC720W12-1 12MM Width 12V RGB Atmosphere Light Strip
Short Description:
1. 【New gen COB packaging technology】 720leds /m are tightly packaged together, due to COB technology, the lighting effect is smoother and the lumens are higher.
2. 【Dreamlike Colors】 16 million color combinations, with a dedicated controller, can present hundreds of lighting effects such as colorful curtain rising/flowing water/raindrops/jumping flashes.
3. 【Stepless Dimming】 0-100 brightness adjustment, creating a delicate transition experience from soft night light to high-brightness main light. 3000K-6000K color temperature adjustment.
4. 【Light Follows Rhythm】 The ambient light strip can intelligently sense the rhythm of the music, move with the sound, ignite the atmosphere of every moment, and make the audio-visual experience more shocking.
Available in Single Color, Dual Color, RGB, RGBW, RGBCW and other light strip options, we must have the right COB light strip for you.
• Roll: 5M/roll, 720 LEDs/m, Length is customizable.
• Color rendering index: >90+
• 3M adhesive backing, suitable for the surface best suited to the surrounding reflective surface or application
• Max run: 12V-5 meters, small voltage drop. If you are worried about the impact of voltage drop, you can inject voltage at the end of the long light strip to eliminate the voltage drop.
• Cutting length: one cutting unit per 50mm
• 10mm strip width: suitable for most places
• Power: 10.0w/m
• Voltage: DC 12V low-voltage addressable rgb led strip, safe and touchable, with good heat dissipation performance.
• Whether it is direct lighting or exposed installation, or using a diffuser, the moving led strip lights is soft and not dazzling
• Certificate & Warranty: RoHS, CE and other certifications, 3-year warranty

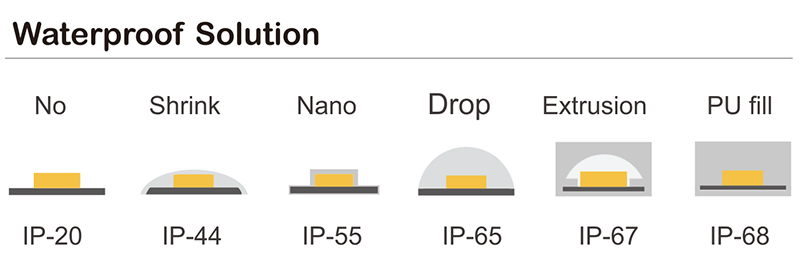

Waterproof level: Choose our RGB light strips for indoor and outdoor installation or use in wet environments. The waterproof level can be customized.
1. The running light led strip can be cut, one cutting unit every 50mm.
2. Easy to install, please tear off the tape film on the back before installation.
3. Bendable, it is more bendable than any other SMD light strip and can be easily made into any shape.
1. Compared with traditional SMD RGB light strips, COB RGB light strips have higher brightness and more uniform luminous effects, avoiding the problem of dark shadows between lamp beads, and the color performance is softer and more dreamy. Infuse your space with a truly flexible, delicate and amazing lighting experience.
2. 12V WS2811 COB RGB LED Strip can be used as home auxiliary lighting to enhance the layering of the space! Therefore, this series of LED strip lights is very suitable for high-end business offices, and can also be installed in kitchen cabinets, bedrooms, ceilings, stairs, dining bars, TV backlights and other places! Excellent RGB effect, it is an important decoration for parties, Christmas, Halloween, Thanksgiving, etc.!
Tips: The Horse Race Sequential LED comes with a strong 3M self-adhesive backing. Before installation, please ensure that the installation surface is thoroughly cleaned and dry.

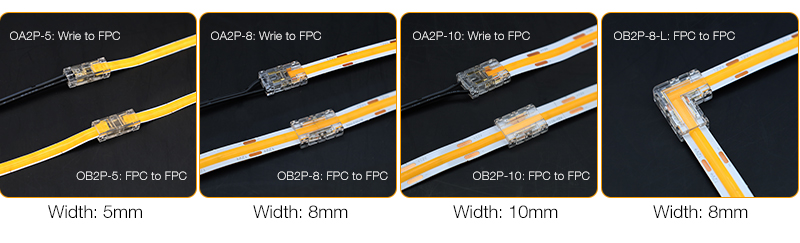

The light strip can be cut and reconnected, suitable for various quick connectors, and no welding is required.
【PCB to PCB】 For connecting two pieces of different COB strips, such as 5mm/8mm/10mm,etc
【PCB to Cable】Used to light up the COB strip, connect the COB strip and wire
【L-type Connector】Used to extend Right Angle Connection COB Strip.
【T-type Connector】Used to extend T Connector COB Strip.

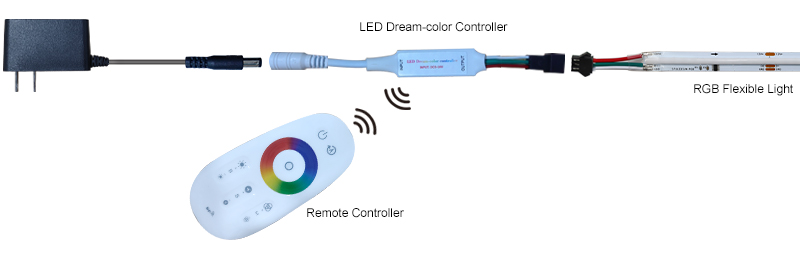

When we use COB RGB light strips in cabinets or other home places, you can use it with dimming and color adjustment controllers to customize color tones and settings. To give full play to the effect of the light strip. As a one-stop cabinet lighting solution provider, we also provide matching wireless RGB horse racing controllers (LED Dream-color Controller and Remote Controller, model: SD3-S1-R1), bringing you a more convenient and intelligent lighting experience.
Fully furnished, please start your action.
Frequently Asked Questions
We are a factory and trading company, with more than ten years of experience in factory R&D,located in SHENZHEN. Expecting your visit at anytime.
1. Be sure to slowly peel off the 3M adhesive protective paper layer on the strip light.
2. Use a dust-free cloth to remove dust and oil from the mounting surface.
3. Install the strip light on a dry, clean surface.
4. Do not touch the adhesive surface with your fingers. Press for 10 to 30 seconds after applying the tape.
5. The ideal operating temperature range of the strip light is -20°C to 40°C (-68°F to 104°F). If the mounting temperature is below 10°C, use a hair dryer to heat the glue before sticking the strip light.
Please feel free to contact us by email, phone or send us an inquiry, then we can send you the price list and more information by email: sales@wh-cabinetled.com.
Also contact us directly via Facebook/Whatsapp:+8613425137716
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Air and sea shipping are also optional. Or you can deliver the goods through your own freight forwarder.
Light strips are often called LED light strips, LED tape light, or LED strip lights. These are long, narrow, flexible strips with embedded light-emitting diodes that can provide ideal lighting effects. LED light strips are often used for decorative purposes, accent lighting, or functional lighting in various scenarios.
1. Part One: RGB COB LED Strip Light Parameters
| Model | FC720W12-1 | |||||||
| Color Temperature | CCT 3000K~6000K | |||||||
| Voltage | DC12V | |||||||
| Wattage | 10.0w/m | |||||||
| LED Type | COB | |||||||
| LED Quantity | 720pcs/m | |||||||
| PCB Thickness | 12mm | |||||||
| Length of Each Group | 50mm | |||||||
2. Part Two: Size information
3. Part Three: Installation
4. Part Four: Connection Diagram
