S5B-A0-P6 Multi-Circuit Junction Box-Wireless LED Dimmer Receiver
Short Description:
Highlights:
1. 【Six-Output, Centralized Control for More Efficient Control】 The multi junction box provides up to six output ports, supporting simultaneous connection of six LED light groups. This allows for multi-light linkage, simplifies wiring, and improves installation efficiency. 2. 【Wireless Receiver, Flexible Pairing】 LED light strip receiver can be used with Weihui's wireless dimming and color-changing receiver to achieve unified control of multiple lights, dimming brightness, and adjusting color temperature, enhancing the user experience.
3. 【Sleek Appearance, Easy Wiring】 Modular design uses standard DuPont male and female connectors for plug-and-play convenience and efficiency.
4. 【High Load Capacity, Stable Operation】 Supports a maximum current of 8A, meeting the needs of high-power light strips and fixtures. Multi output receiver features low power consumption, sensitive sensing, low heat generation, and stable reliability.
5. 【Technical Options】 The wireless led dimmer receiver is available in standard and upgraded versions. The standard version saves brightness and color temperature after power failure, while the upgraded version saves status, brightness, and color temperature after power failure.
Product Details:
1. Dual inputs share current load and extend lamp life.
2. Black flame-retardant ABS material, durable and heat-resistant.
3. SET button for quick remote pairing and simple operation.
4. Six output ports and plug-in terminals for easy installation and maintenance.
Features:
| Item Name | Feature Description |
| Model | S5B-A0-P6 |
| Name | Multi-port junction box and Wireless led light strip receiver |
| Woking Voltage | DC12V/24V |
| Maximum Load | 72W |
| Control Method | GFSK, smooth and seamless dimming, no visible flicker |
| Size | 76x47x15mm, small and light |
| Function | 5%-100% dimming and CCT adjustment (requires use with S5B-A0-P3) |
| Technical Options | Power-off retention for brightness and color temperature, optional power-off retention for status, brightness, and color temperature |
The dimmer switch can fully play its dimming function only by combining with this led light strip receiver. If you need to connect more light strips, this Splitter Box Connector can also help you. It has 6 terminals to meet your lighting needs.
This wireless dimming receiver can be used with Weihui's wireless switch controller (model: S5B-A0-P3) to achieve synchronized lighting in multiple zones, creating a high-end home ambiance. It offers wide compatibility and is suitable for a wide range of applications, including controlling decorative lighting in wardrobes, wine cabinets, kitchens, and more.
For more applications, please contact our sales managers or refer to our datasheet.

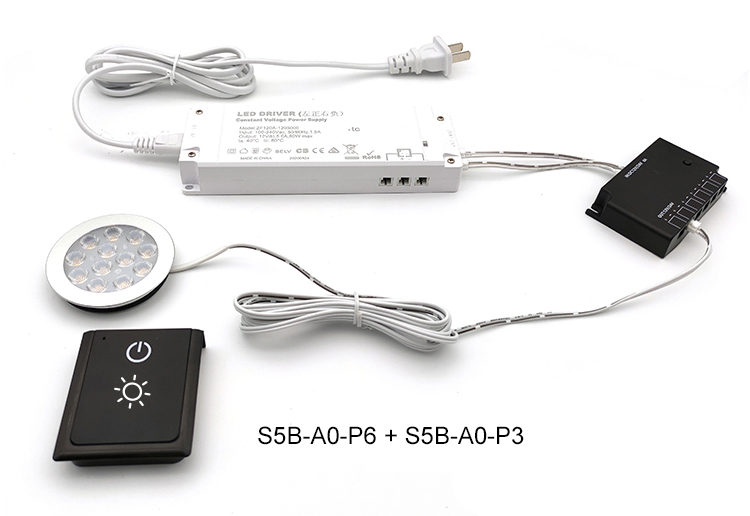

Scenario 1: Wireless Dimming Receiver + Dimming & CCT Adjustment Wireless Controller (Model: S5B-A0-P3)
*This wireless led dimmer receiver uses standard DuPont cable connectors for plug-and-play operation, eliminating the need for soldering. We recommend using a two-color light strip to maximize the receiver's functionality. In addition to One-to-one control (One switch controls one receiver), there are two other control methods:
1. One-to-multi control: One sender can control multiple receivers (theoretically, unlimited within the receiving range).
2. Multi-to-one control: One receiver can be controlled by multiple senders (<5).
To learn more, please consult our sales manager or download the product brochure.

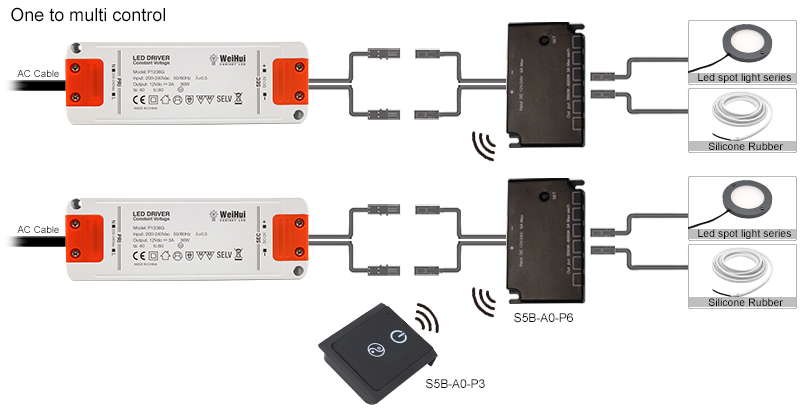

One-to-multi control

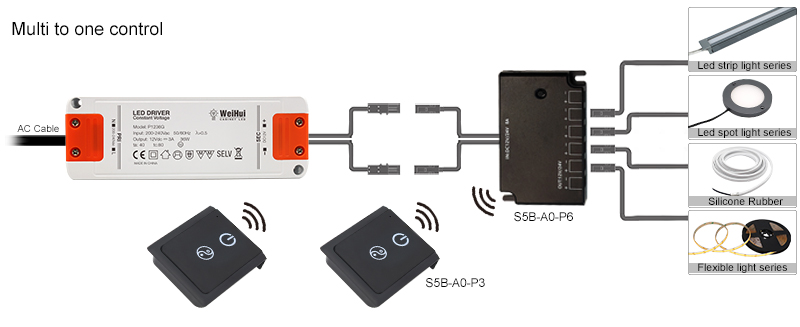

Multi-to-one control
1. Part One: Smart Wireless Remote Controller Parameters
| Model | S5B-A0-P6 | |||||||
| Function | wireless led dimmer receiver & Breakout Box | |||||||
| Size | 76X47X15mm | |||||||
| Working Voltage | DC 12V&24V | |||||||
| Maximum Load | 72W | |||||||
| Launch Distance | 20m(Without barrier) | |||||||
| Protection Rating | IP20 | |||||||

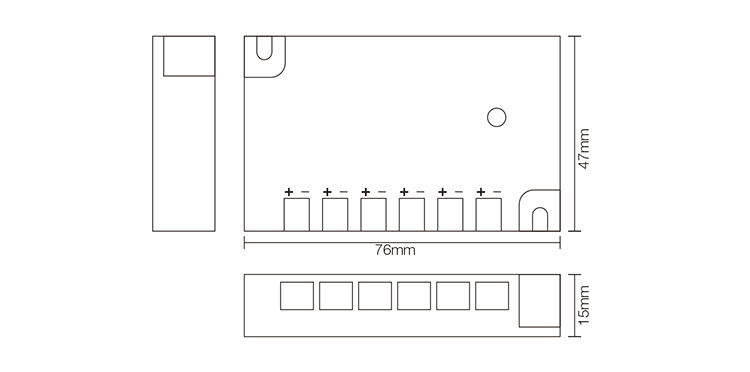

2. Part Two: Size information

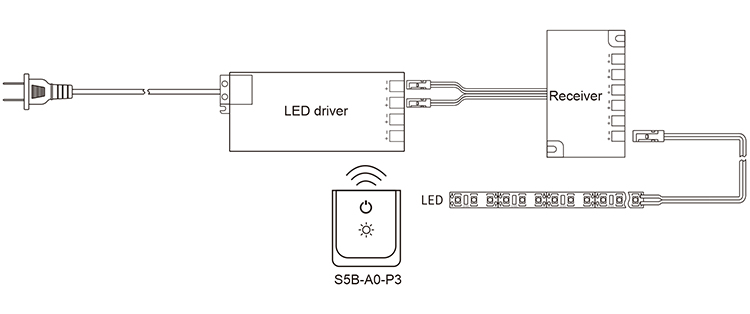

3. Part Four: Connection Diagram
