S5B-A0-P4 Wireless LED control receiver
Short Description:
Advantages:
1. 【Wireless Reception, Sensitive Sensing】 Dimmer receiver supports linkage with wireless switch controllers, eliminating the need for complex wiring and can receive signals up to 20 meters (unobstructed), making it easy to create a smart lighting system.
2. 【Plug and Play, Strong Compatibility】 LED strip receiver uses L813 male and L815 female connectors, is compatible with 12V/24V LED lamps, and is compatible with Weihui's full range of cabinet lights, shelf lights, light strips, and other products.
3. 【Precise Dimming, Stable and Flicker-Free】 Control receiver uses GFSK continuous phase frequency shift keying modulation technology for smooth brightness adjustment without noticeable flicker, protecting eyesight.
4. 【Compact Size, Concealed Installation】 The black plastic housing features a simple appearance, making it easy to hide inside cabinets, light troughs, or furniture without affecting the overall aesthetics.
5. 【Technical Options】 The wireless receiver is available in standard and upgraded versions. The standard version features power-off brightness retention, while the upgraded version features status and brightness retention.
Features:
| Item Name | Feature Description |
| Model | S5B-A0-P4 |

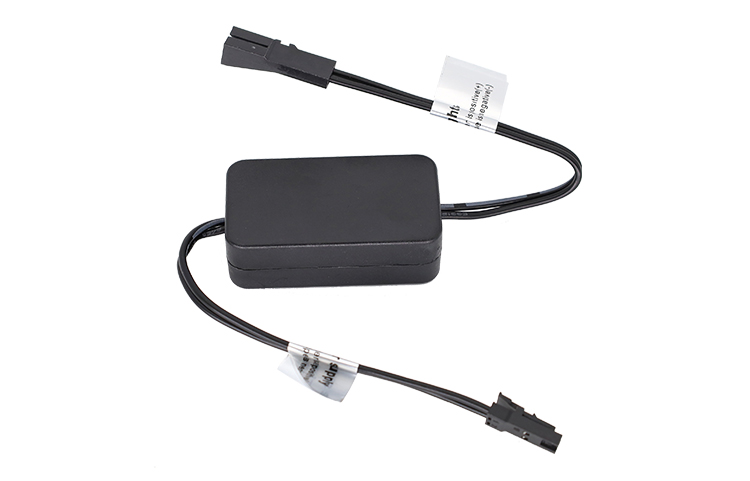

| Name | Wireless Dimmer Receiver |
| Woking Voltage | DC12V/24V |
| Maximum Load | 60W |
| Control Method | GFSK |
| Size | 47x26x15mm, small and light |
| Function | 5%-100% dimming gradient (requires use with S5B-A0-P1 or S5B-A0-P2) |
| Technical Options | Available with status and brightness retention and power-off brightness retention. |
The dimmer switch can fully play its dimming function only by combining with this wireless receiver.
This wireless dimming receiver can be used with various wireless switch controllers. Compatible with various smart devices, including motion sensors and touch switches, it can adjust lighting. Flexible connection options make it suitable for both home and commercial lighting scenarios. For more applications, please contact our sales manager or refer to our datasheet.

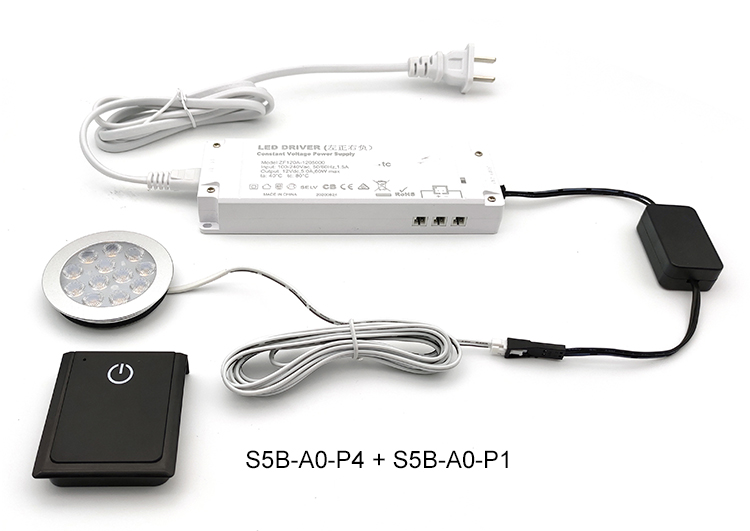

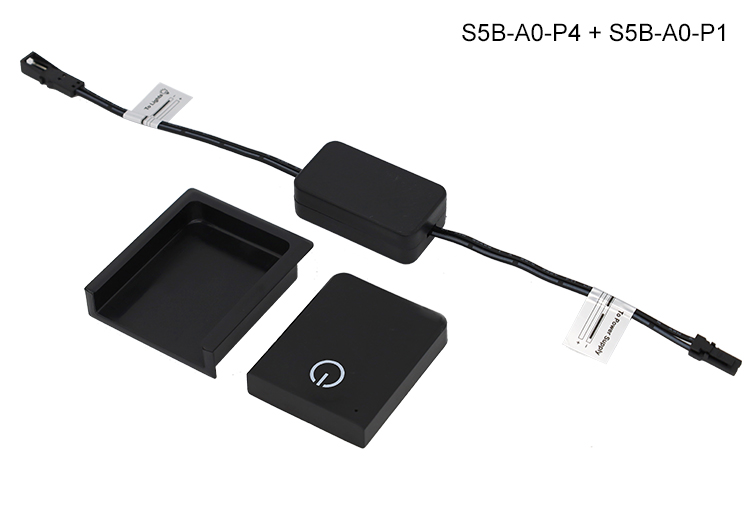

Scenario 1: Wireless Dimming Receiver + Single Touch Wireless Controller (Model: S5B-A0-P2)

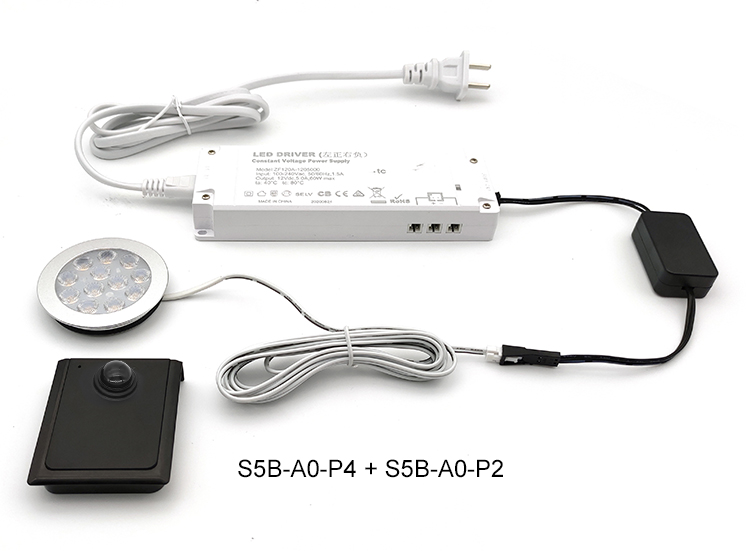

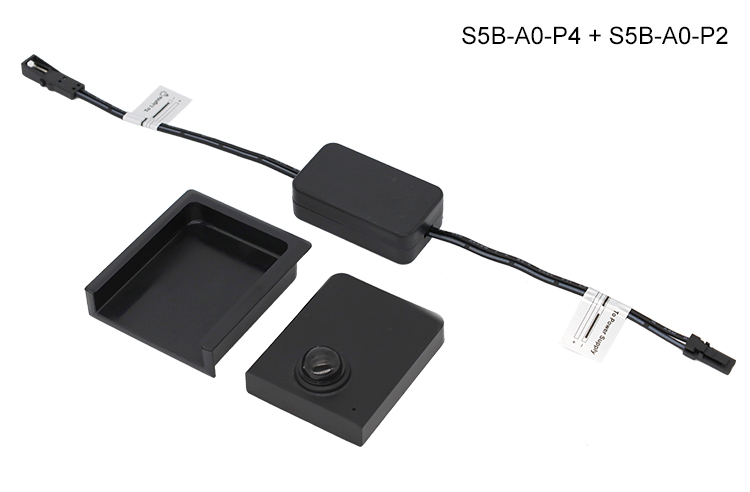

Scenario 2: Wireless Dimming Receiver + Wireless Motion Sensor Controller (Model: S5B-A0-P2)
*This dimmer receiver uses standard DuPont cable connectors for plug-and-play operation, no soldering required. The receiver offers three connection methods:In addition to One-to-one control (One switch controls one receiver), there are two other control methods:
1. One-to-multi control: One sender can control multiple receivers (theoretically, unlimited within the receiving range).
2. Multi-to-one control: One receiver can be controlled by multiple senders (<5).
To learn more, please consult our sales manager or download the product brochure.

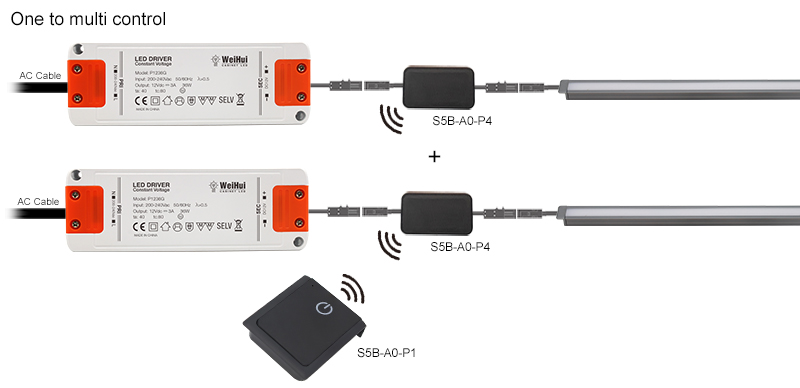

One-to-multi control

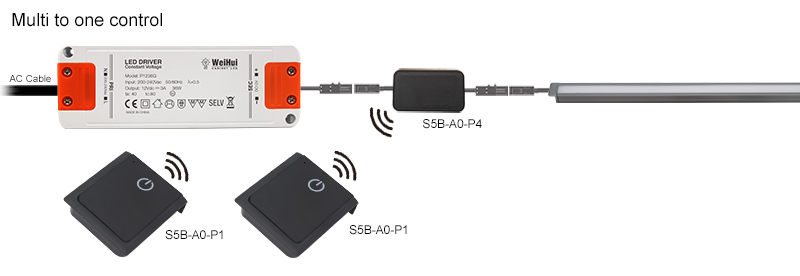

Multi-to-one control
1. Part One: Smart Wireless Remote Controller Parameters
| Model | S5B-A0-P4 | |||||||
| Function | Wireless dimming receiver | |||||||
| Size | 47X26X15mm | |||||||
| Working Voltage | DC 12V&24V | |||||||
| Maximum Load | 60W | |||||||
| Launch Distance | 20m(Without barrier) | |||||||
| Protection Rating | IP20 | |||||||

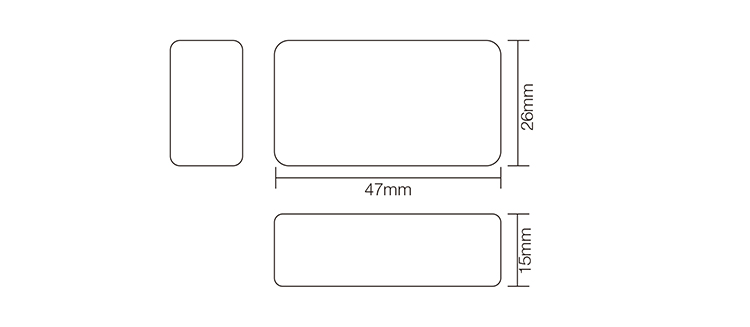

2. Part Two: Size information

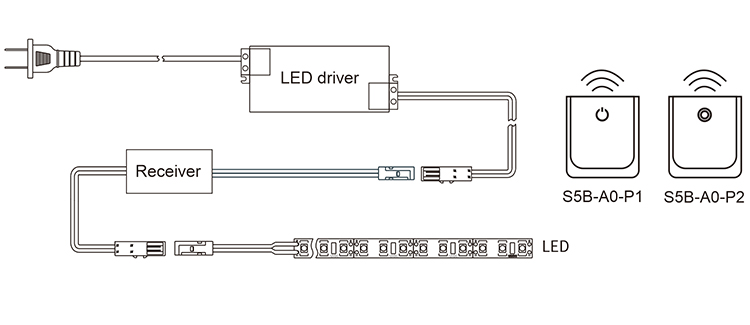

3. Part Four: Connection Diagram
