SD4-R1 Wireless controller-Tuya Dimmer Switch
Short Description:
Highlights:
1.【5-in-1 compatible design】WiFi 5-in-1 LED Controller supports 5 output modes: monochrome (DIM), dual color temperature (CCT), RGB, RGBW, RGB+CCT. One device can be compatible with multiple light strips, greatly improving flexibility and saving inventory and procurement costs.
2.【Multiple control methods】Remote receiver supports WiFi Tuya/Smart Life APP, remote control, and voice assistant triple control, and can easily access mainstream smart systems. (RF remote control, compatible with Weihui's SD4 series remote control)
3. 【Support Tuya/Smart Life platform】 Remote control can be achieved through Tuya or Smart Life APP, easily realizing intelligent functions such as lighting adjustment, timer switch, scene setting, etc.

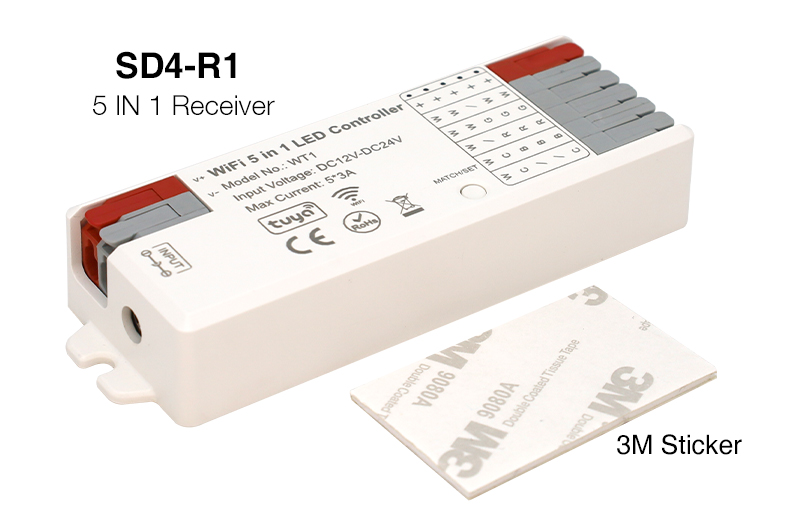

4. 【Easy installation】 The Led Controller adopts a spring-type terminal design, which is fast, safe and stable to connect. It comes with 3M adhesive backing, which supports quick pasting and installation without tools.
Warm Tips: Please use it in DC12-24V system.
Features:
| Item Name | Feature Description |
| Control method | WiFi smart APP, RF receiver, voice assistant |
| Applicable lights | DIM / CCT / RGB / RGBW / RGB+CCT light strip |
| Installation method | 3M adhesive or wall mounting hole |
| Shell material | Flame-retardant ABS engineering plastic |
| Wiring method | Engineering-grade wiring method, anti-loosening, strong anti-interference ability, standard interface design, easy to use with LED power supply or driver |
| Size | 11.2cm*3.9cm, small and light, easy to carry and store |
| Voltage & current | Constant voltage DC12V~DC24V, maximum output current: 5 channels × 3A |
| High compatibility | Can match most remote controls, recommend Weihui's SD4 series remote control. |

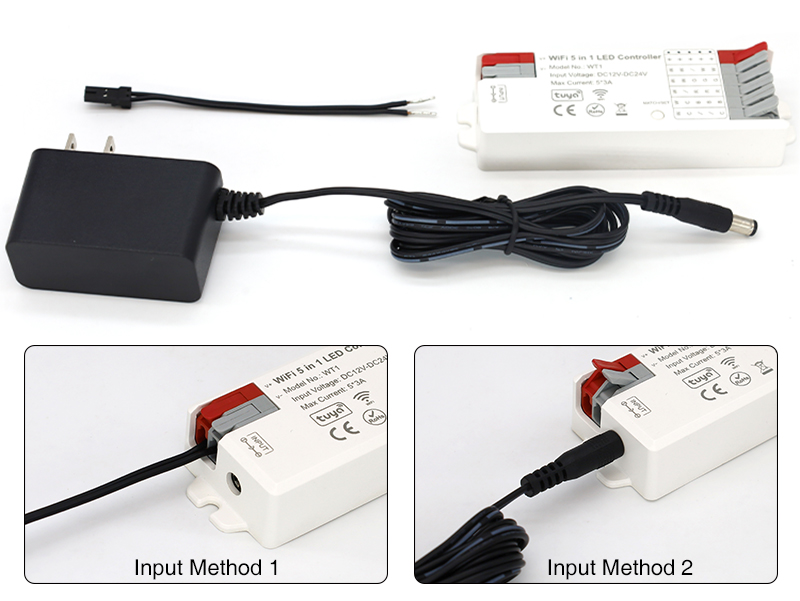

2 input methods:
This remote receiver has two power input methods, one is to use a DC5.5x2.1cm wall power supply, and the other is to connect a bare wire input. (Tip: This product does not include a wall power supply and bare wires. You need to purchase them together. Please consult our sales manager)
5 output modes:
WiFi 5-in-1 LED Controller has five output modes, monochrome mode, dual color temperature mode, RGB mode, RGBW mode, RGB+CCT mode, corresponding to monochrome light strip, dual color temperature light strip, RGB light strip, RGBW light strip, RGB+CCT light strip respectively. If you change the light strip, you need to re-switch the color mode of the 5-in-1 LED Controller and re-pair the controller or reconnect the Tuya smart APP or voice assistant.

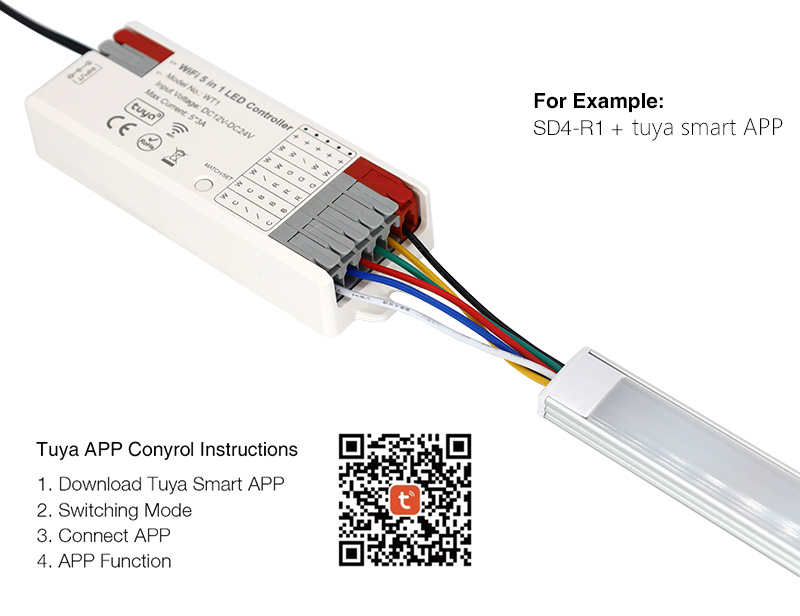

Tuya smart device:
WiFi 5-in-1 LED Controller is also called Tuya smart device. It has a built-in Tuya smart module and supports WiFi remote control. It can be remotely controlled through the Tuya Smart APP to easily realize smart functions such as lighting adjustment, timer switch, scene setting, etc. You can search Tuya Smart through the Google Store or scan the code to download the APP.

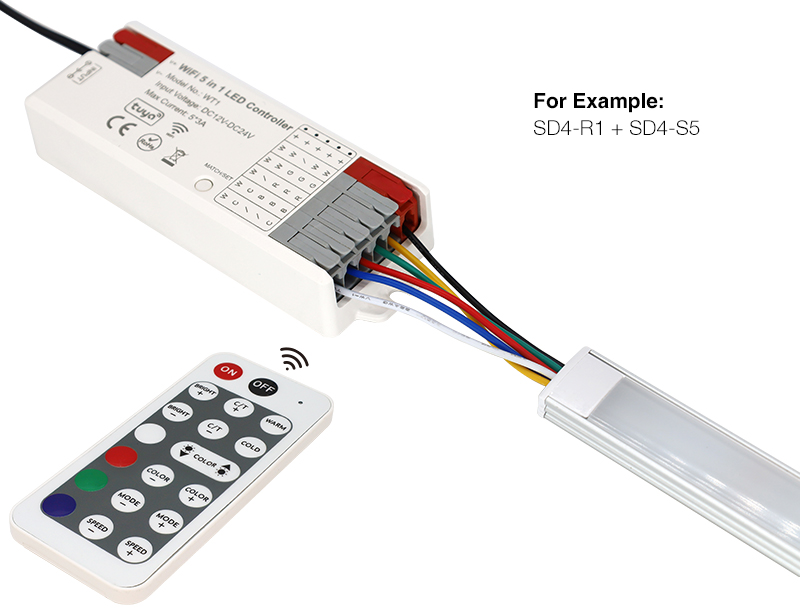

1. LED Controller is compatible with most RFled light remotes on the market, but we recommend using it with our company's SD4 series RF led light remote for better results and more convenient after-sales service.
2. Tuya ecosystem is compatible and can be easily connected to mainstream smart systems. Using Tuya APP will allow you to find that you can not only adjust the brightness, color temperature, and color of the lights, but also use sound or music to control the lights, turn on/off the lights, dim the lights, and adjust the colors. You can also create various atmospheres based on different music; you can also use the timing function to set the time to turn on and off the lights.

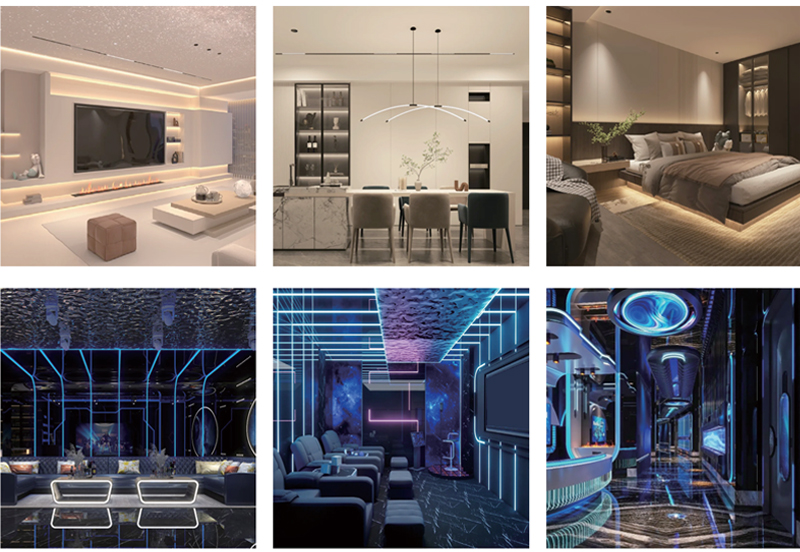

5-in-1 LED controller receiver is widely used in a variety of lighting scenarios. It is suitable for smart lighting environments such as living rooms, bedrooms, study rooms, cabinets, etc. It can also be used for display cabinet lights, background lights, atmosphere lights and other systems in commercial spaces. It can also be easily integrated into smart gateways and is compatible with tuya APP remote control and voice assistant linkage. This control receiver is particularly confident for DIY smart lighting projects and high-end customized home lighting solutions to meet diversified light control needs.

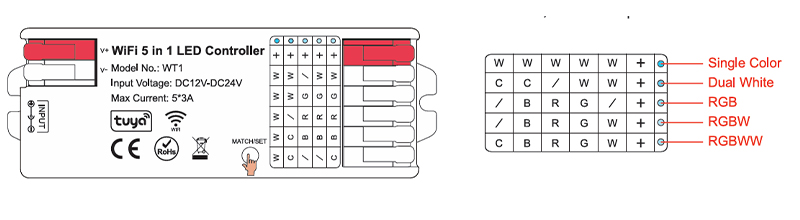

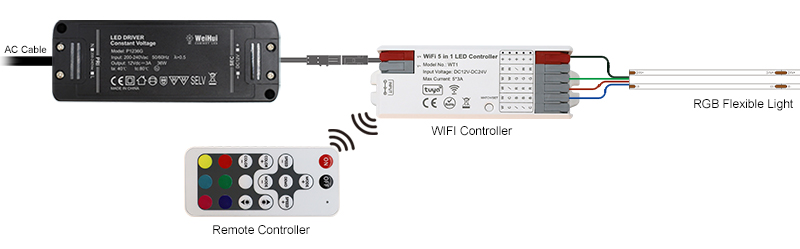

1. The quick connection port design of this 5-in-1 LED Controller is convenient for wiring and fast installation. (Note the wiring method of each light strip)

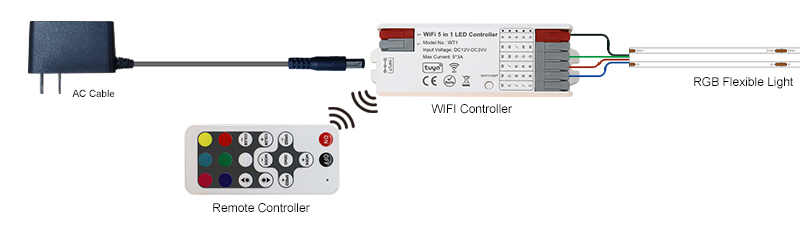

2. There are two ways to connect the power supply of this 5-in-1 LED Controller, which can flexibly respond to various light strip needs, easily get started, and say goodbye to cumbersome! You can choose the light strip you like to connect.
Bare wire + power adapter
DC5.5x2.1cm wall power supply
1. Part One: Smart Wireless Remote Controller Parameters
| Model | SD4-R1 | |||||||
| Working current | 5*3A | |||||||
| Input voltage | 12V-24V | |||||||
| Material | PC material | |||||||
| Feature | With RF Remote and Tuya App Controled/Solderless Connector | |||||||
| Color | White | |||||||
| Application | Suitable For Single Color/CCT/RGB/RGBW/RGB+CCT Led Strips | |||||||
