SD4-S3 RGB RF Wireless 18-keys RGB Controller

Short Description:

1. Remote control is a high-performance smart remote control designed for controlling RGB light strips.
2. The remote control is equipped with 18 function buttons, providing a wealth of lighting control options. It uses infrared wireless control, is easy to operate and responsive.
3. It has a variety of preset light colors, brightness adjustment, 30 lighting modes and speed adjustment functions, allowing users to easily create a variety of lighting effects, which is widely used in home and commercial lighting decoration interpretation.

(Need to be used with LED controller receiver)

WELCOME TO ASK FREE SAMPLES FOR TESTING PURPOSE

Send email to us

Product Detail

Technical Data

Video

Download

OEM&ODM Service

Product Tags

Why Choose this item?

Highlights:

1. 【Appearance design】 18-key wireless RF controller, designed for RGB light strips, simple white shell, modern design style, reasonable button layout, easy to operate. The fine button design makes each function clearly visible, suitable for users to control accurately.
2. 【Multi-function integration】 led rgb remote control supports multiple functions such as switch, brightness adjustment, stepless dimming, 30 lighting modes switching, speed adjustment, color mode adjustment, etc. Providing a full range of lighting control, and easily realizing multi-scene control.
3.【One-click to light color】The remote control is equipped with multiple color buttons, including 7 basic colors: red, green, blue, yellow, cyan, purple, and white. Users can easily switch the desired color with one click to meet different lighting needs.
4.【High compatibility】The remote control is compatible with most RGB light strips and RGB lighting systems, and can meet a wide range of user needs.

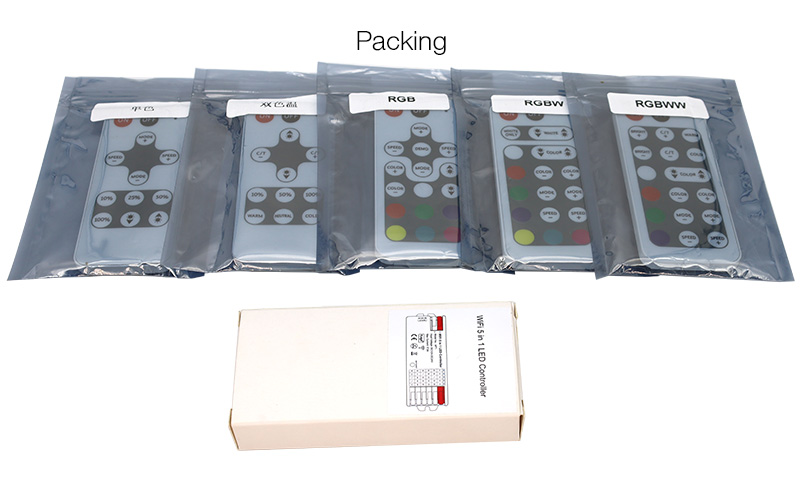

A variety of remote controls are available, packed in anti-static bags. Different LED lights match different types of remote controls, please choose carefully.

SD4-R1 WiFi 5-in-1 LED Controller is a multi-functional 5-in-1 LED controller receiver that supports five types of LED lights, including monochrome, dual color temperature, RGB, RGBW, RGB+CCT, etc. When replacing the light strip, you need to switch to different color modes.
For more operation details, please see the 5-in-1 smart LED controller receiver.

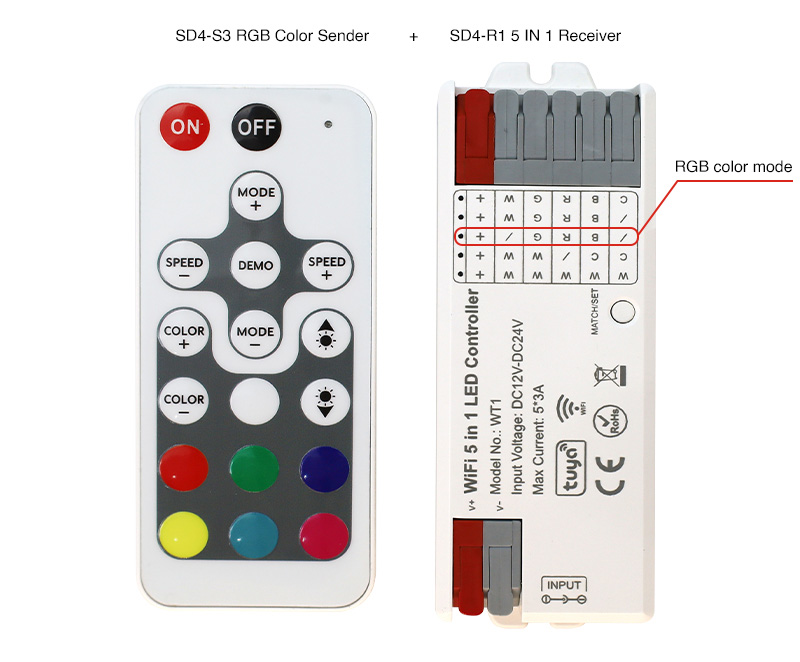

This RGB remote control needs to be used with an LED remote control receiver to connect to the RGB color mode. Our 5-in-1 LED Controller's quick connection port design is convenient for wiring and fast installation. (Note the wiring method of each light strip)

WiFi 5-in-1 LED Controller is also called Tuya smart device, with built-in Tuya smart module, supports WiFi remote control, and can be remotely controlled through Tuya Smart APP, easily realizing intelligent functions such as lighting adjustment, timer switch, scene setting, etc. You can search Tuya Smart in Google Store or scan the code to download the APP. For more operation details, please see WiFi 5-in-1 LED Controller.

Product Details

1. Control method: Infrared remote control (IR)
2. Applicable lamps: RGB LED light strip (RGB)
3. Control distance: About 25 meters (barrier-free)
4. Shell material: High-gloss ABS engineering plastic, sturdy and beautiful
5. Power supply method: Built-in button battery (CR2025 or CR2032, easy to replace)
6. Size: 10cm*4.5cm, small and thin, easy to carry and store
7. High compatibility: It can match most LED receivers (infrared receivers), and Weihui's 5-in-1 smart LED controller receiver (model: SD4-R1) is recommended.

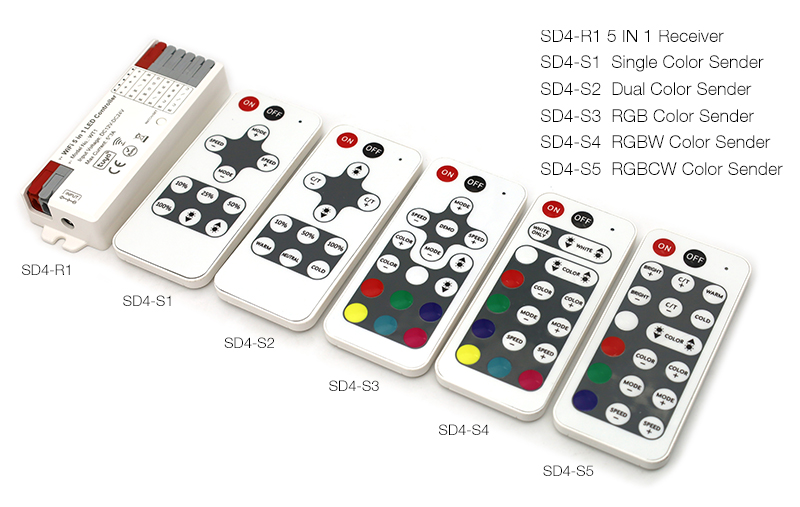

8. Wide selection of styles: There are five remote control types: single color, dual color temperature, RGB, RGBW, RGB+CCT.

This remote switch provides an intuitive and convenient way to control LED lights, allowing users to create customized lighting atmospheres with ease.

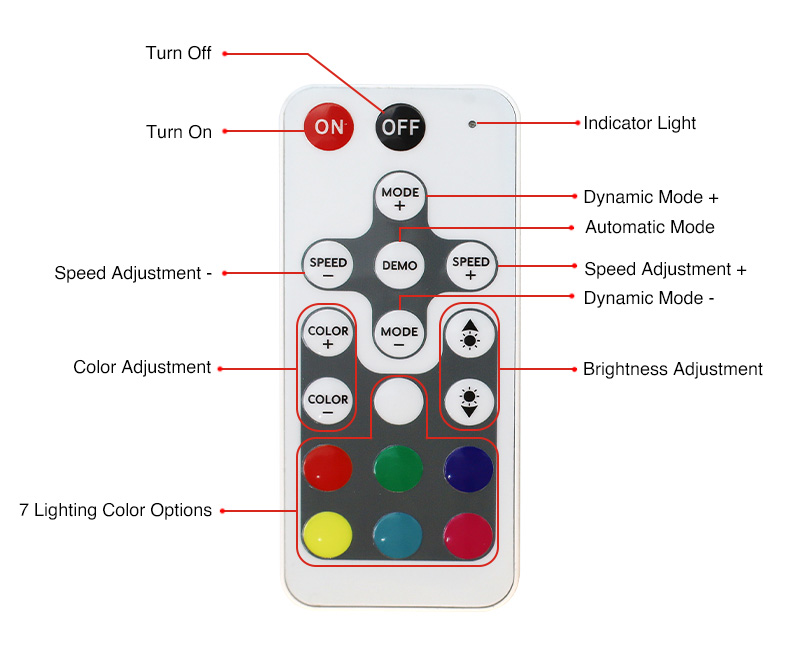

Function Show

The basic functions of this wireless RF LED dimmer power control include light color control, stepless dimming, dynamic mode (such as jump, breathing, etc.), dynamic speed, automatic mode demonstration and other dimming functions. 18-key intuitive design, convenient and fast, wide remote control range, easy operation.

Application

1. This RGB led lights remote provides a more convenient and personalized RGB lighting control experience with its simple appearance design and powerful functions. Whether it is for home, commercial or stage applications, it can help users easily achieve sufficient brightness and color changes, enhance the atmosphere of the space, and is a must-have for DIY lighting system upgrades.

2. RGB led light remote needs to be used with a dual-color temperature LED controller receiver that supports infrared remote control. It works best with our company's infrared receiving LED controller receiver (model: SD4-R1).

Connection and Lighting solutions

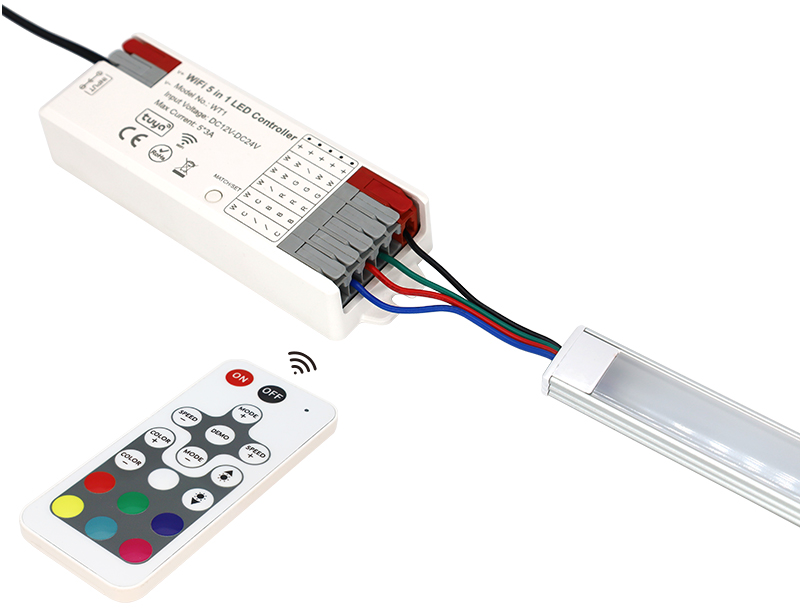

1. This Remote control dimmer needs to be used with an LED remote control receiver. We recommend our 5-in-1 LED Controller, which has a spring-loaded quick-connect port design for easy wiring and quick installation.

Tips: When replacing the light strip, you need to switch to the color mode corresponding to the controller.

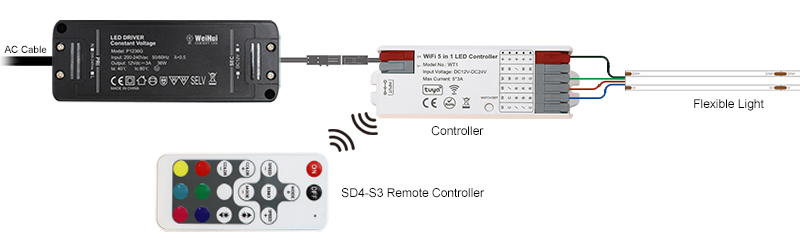

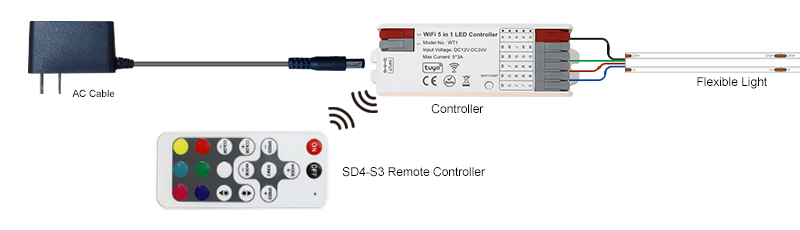

2. There are two ways to wire the power supply of this 5-in-1 LED Controller, which can flexibly respond to various light strip needs, easily get started, and say goodbye to tediousness! You can choose the light strip you like to connect.
