SD4-S4 Wireless RGBW Remote Controller

Short Description:

1. SD4-S4 is a high-performance multi-function wireless remote control designed for RGBW light strips. Its unique feature is that it supports both RGB full-color control and independent white light adjustment (White Only).
2. With a simple and modern appearance design and intuitive button layout, it can realize one-touch switching of multiple light colors, brightness adjustment, 30 lighting modes switching, dynamic light speed adjustment etc. Easy to operate and responsive.
3. Used in conjunction with the SD4-R1 controller, it can achieve precise control of RGBW lights through wireless signals. It is suitable for home lighting, commercial space, stage atmosphere, exhibition display and other scenes, and can easily create an ideal lighting atmosphere.

WELCOME TO ASK FREE SAMPLES FOR TESTING PURPOSE

Send email to us

Product Detail

Technical Data

Video

Download

OEM&ODM Service

Product Tags

Why Choose this item?

Highlights:

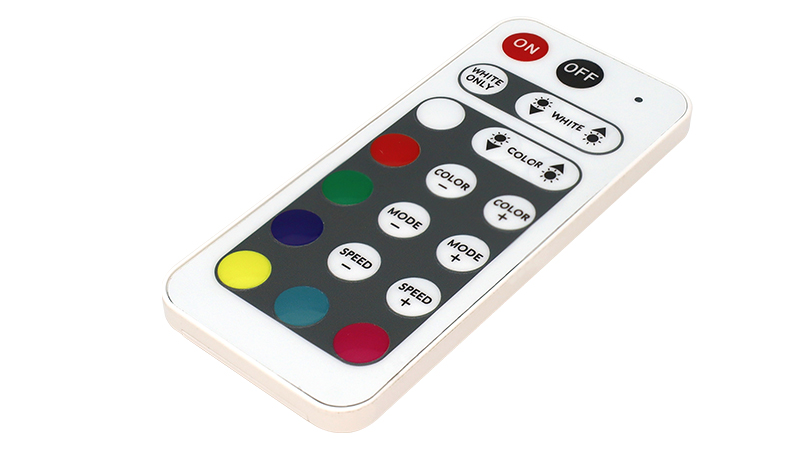

1. 【Appearance Design】 The remote control adopts a modern white shell, with a simple and stylish design, clear button arrangement, and intuitive operation. Its compact size and ergonomic design make it comfortable to hold for a long time.
2. 【Full-color RGB Lighting】 Supports RGB color adjustment and preset light colors that can be reached with one click, providing users with a richer light effect experience to meet the diverse needs of different scenes.
3. 【Independent white light control】 In addition to RGB color adjustment, there is also a dedicated "WHITE ONLY" control. The "WHITE" button is used to adjust the brightness of the white light to create a clear and natural lighting effect.
4. 【Multiple lighting modes 】 The remote control also provides lighting adjustment functions such as stepless dimming, brightness adjustment, dynamic lighting mode and speed adjustment. Users can customize options according to the occasion to create different atmosphere effects.
5. 【Simple On/Off Operation】ON and OFF buttons allow instant control of the LED lights.Convenient and efficient for everyday use.

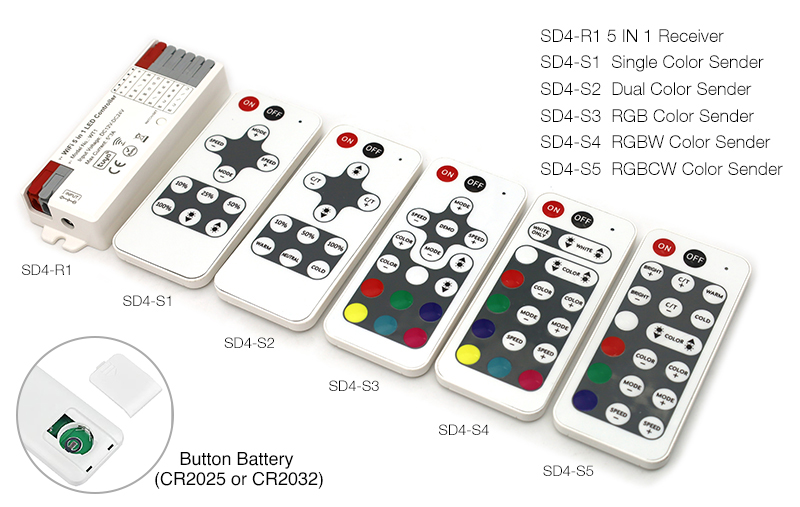

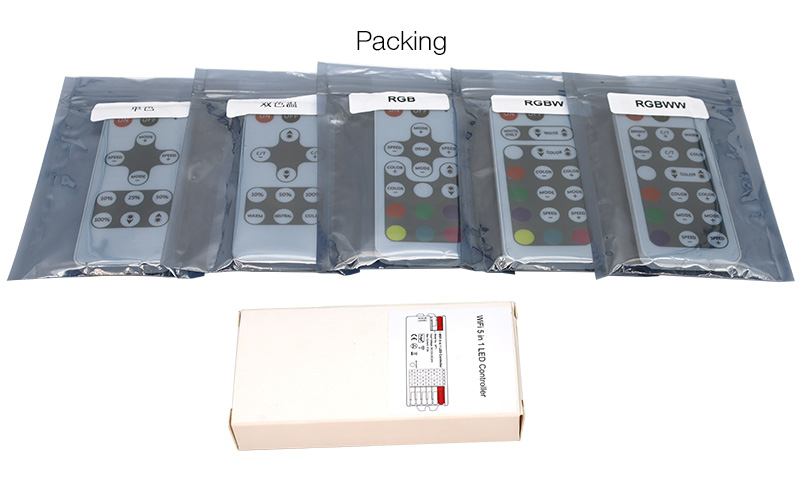

A variety of remote controls are available, packaged in electrostatic bags. Different LED lights match different types of remote controls, please pay attention to the selection.

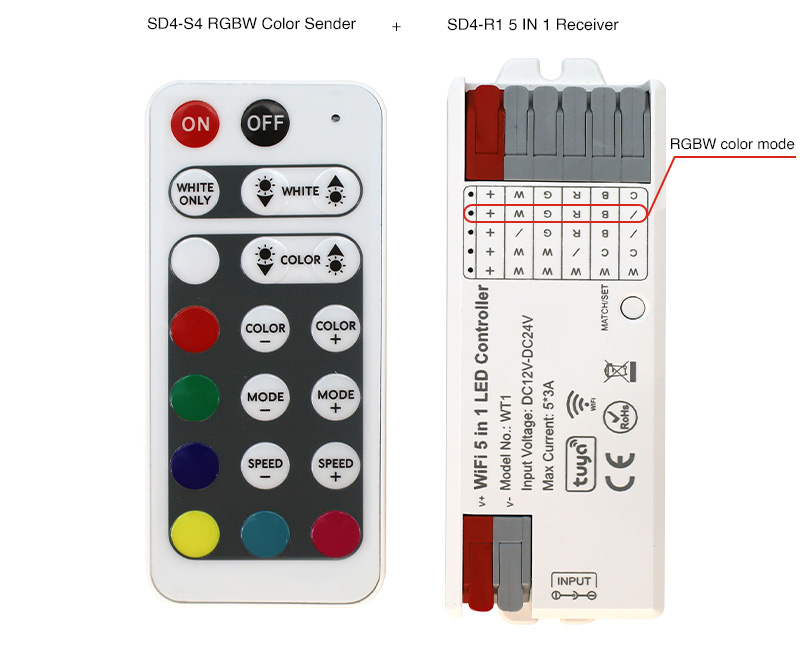

1. SD4-R1 WiFi 5-in-1 LED Controller is a multi-functional 5-in-1 LED controller receiver that supports five types of LED lights, including monochrome, dual color temperature, RGB, RGBW, RGB+CCT, etc. When changing the light strip, you need to switch to different color modes.
For more operation details, please see the 5-in-1 smart LED controller receiver.

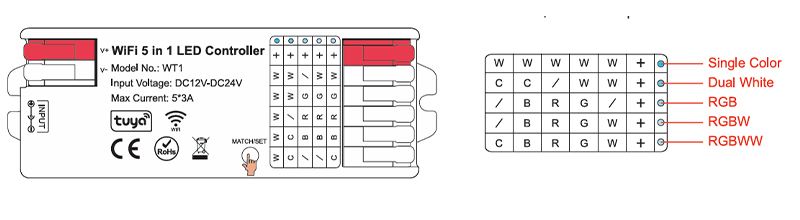

2. This RGBW remote control needs to be used with an LED remote control receiver to connect to the RGBW color mode. Our 5-in-1 LED Controller's quick connection port design makes wiring easy and installation fast. (Note the wiring method for each light strip)

WiFi 5-in-1 LED Controller is also called Tuya smart device. It has built-in Tuya smart module and supports WiFi remote control. It can be remotely controlled through Tuya Smart APP, and easily realize intelligent functions such as lighting adjustment, timer switch, scene setting, etc. You can search Tuya Smart through Google Store or scan the code to download the APP. For more operation details, please see WiFi 5-in-1 LED Controller.

Product Details

1. Control method: infrared remote control (IR)
2. Applicable lights: RGBW LED strip lights (RGBW)
3. Control distance: about 25 meters (barrier-free)
4. Shell material: high-gloss ABS engineering plastic, sturdy and beautiful
5. Power supply method: built-in button battery (CR2025 or CR2032, easy to replace)
6. Size: 10cm*4.5cm, small and thin, easy to carry and store
7. High compatibility: It can match most LED receivers (infrared receivers), and Weihui's 5-in-1 smart LED controller receiver (model: SD4-R1) is recommended.
8. Wide selection of styles: There are five remote control types: single color, dual color temperature, RGB, RGBW, RGB+CCT

Compatible with LED strip lights and decorative lighting, it is ideal for homes, parties, and commercial spaces. The remote operates via IR or RF technology and is powered by a CR2025/CR2032 battery, ensuring long-lasting performance and convenient lighting control.

Function Show

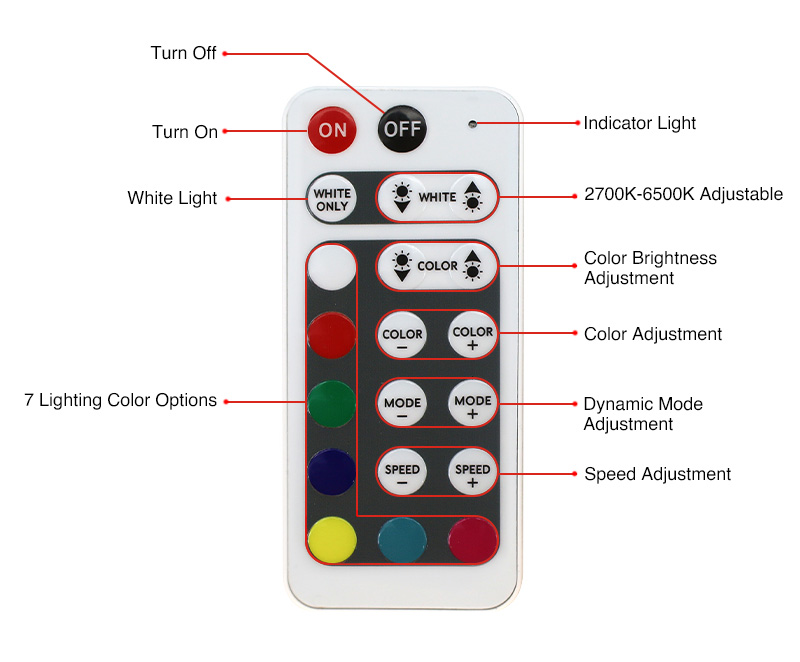

The special function of this remote light dimmer is independent white light control, independent WHITE and WHITE ONLY buttons, support turning on white light or mixed use. And support power switch control, with light color control, stepless dimming, dynamic mode (such as jump, breathing, etc.), dynamic speed and other dimming functions. The button design is intuitive, convenient and fast, with a wide remote control range and easy operation.

Application

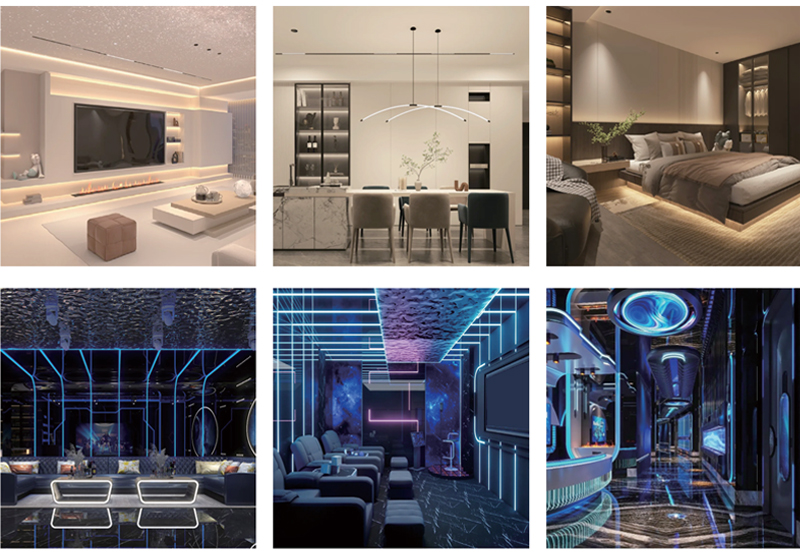

1. This rgbw remote provides users with an ideal RGBW lighting solution with its simple and efficient design, rich function settings and powerful lighting control capabilities. It allows you to achieve multi-color switching, dynamic lighting mode and unique white light adjustment. Whether it is home lighting, commercial venues, stage lighting or festival lighting, it can meet the needs of various occasions, create different lighting effects, and greatly enhance the atmosphere of the space.

2. RGBW led light remote needs to be used with a dual-color temperature LED controller receiver that supports infrared remote control. It works best with our infrared receiving LED controller receiver (model: SD4-R1).

Connection and Lighting solutions

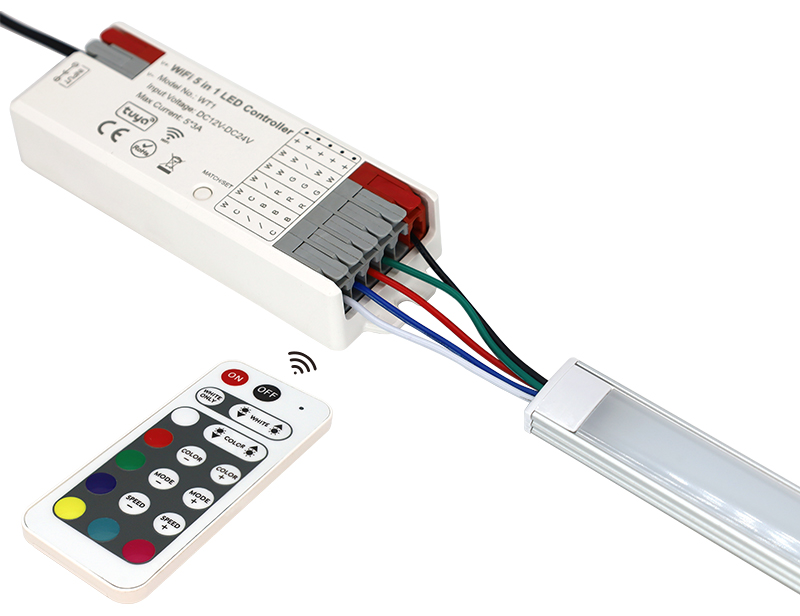

1. This led RF remote needs to be used with an LED remote control receiver. We recommend our 5-in-1 LED Controller, which has a spring-loaded quick-connect port design for easy wiring and quick installation.

Tips: When replacing the light strip, you need to switch to the color mode corresponding to the controller.

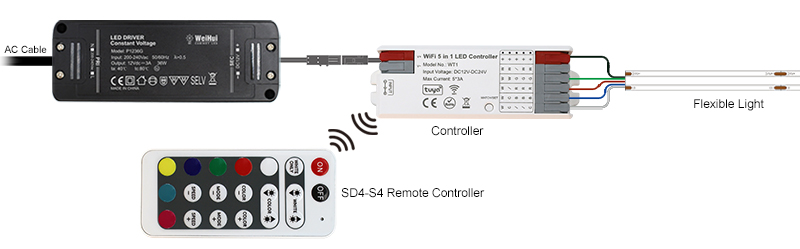

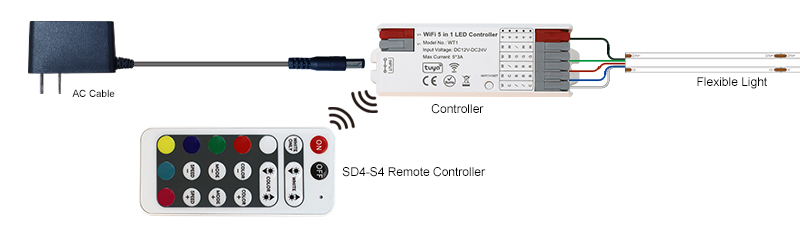

2. This 5-in-1 LED Controller has two ways to connect the power supply, which can flexibly meet the needs of various light strips, making it easy to get started and say goodbye to tediousness! You can choose the light strip you like to connect.
