S5B-A0-P3 Dimmer & CCT Adjusting Wireless Controller
Short Description:
Advantages:
1. 【 Characteristic 】Cabinet Light Switch, no wiring installation, more convenient to use.
2. 【 High sensitivity】20m barrier-free launch distance, wider range of use.
3. 【Ultra-long standby time】Built-in cr2032 button battery, standby time up to 1.5 years.
4. 【Wide application】 one sender can control multiple receivvers,used for local decorative lighting control in wadrobes,wine cabinets,kitchens,etc.
5. 【Diversity】rich functions and diverse installation methods make the switch more advantageous.
6. 【Reliable after-sales service】 With a 3-year after-sales guarantee, you can contact our business service team at any time for easy troubleshooting and replacement, or have any questions about purchase or installation, we will do our best to help you.
Built-in CR2032 button battery,low power consumption,low heat generation,tstable and reliable.Standby time up to 1.5 years.
The decoder clear key can be paired with the corresponding receiver at any time, and the magnetic mounting accessories are also configured for more diverse installation methods.
Combined with the junction box receiver, more light strips can be controlled.
With a touch, you can turn the light on or off. By long pressing the touch switch, you can adjust the brightness of the light, and the cct adjusting function to create the perfect atmosphere for any occasion. The Controller Wireless has a sensing distance of up to 20 meters and also has a gating function, which can also be installed in cabinet door applications. With a remote control, you can easily control your lights from anywhere in the room.
Ideal for homes, offices, and hotels. Control lights from anywhere in the room. Perfect for the elderly or disabled.The built-in gating function of the Led Wireless 12v Light Sensor can also be applied to the cabinet door.
Scenario 1: Wardrobe application
Scenario 2: Desktop application
*This wireless led dimmer receiver uses standard DuPont cable connectors for plug-and-play operation, eliminating the need for soldering. It has on, off, dimming and color adjustment and magnet door sensor functions. Equipped with a multi-output receiver, a switch can control multiple light bars.
In addition to One-to-one control (One switch controls one receiver), there are two other control methods:
1. One-to-multi control: One sender can control multiple receivers (theoretically, unlimited within the receiving range).
2. Multi-to-one control: One receiver can be controlled by multiple senders (<5).
For more info, Pls send your request to us! We would be happy to provide free samples upon request for your evaluation.
1. Part One: Smart Wireless Remote Controller Parameters
| Model | S5B-A0-P3 | |||||||
| Function | Touch Sensor | |||||||
| Size | 56x50x13mm | |||||||
| Working Voltage | 2.3-3.6V (Battery type: CR2032) | |||||||
| Working Frequency | 2.4 GHZ | |||||||
| Launch Distance | 20m(Without barrier) | |||||||
| Protection Rating | IP20 | |||||||

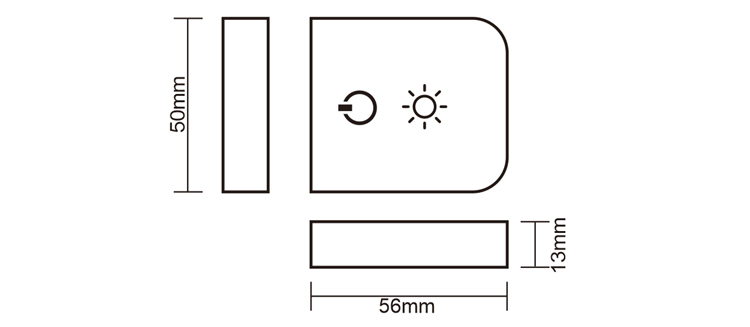

2. Part Two: Size information
3. Part Three: Installation

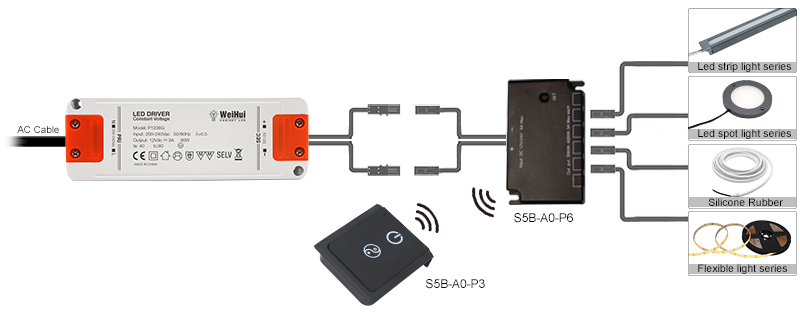

4. Part Four: Connection Diagram
