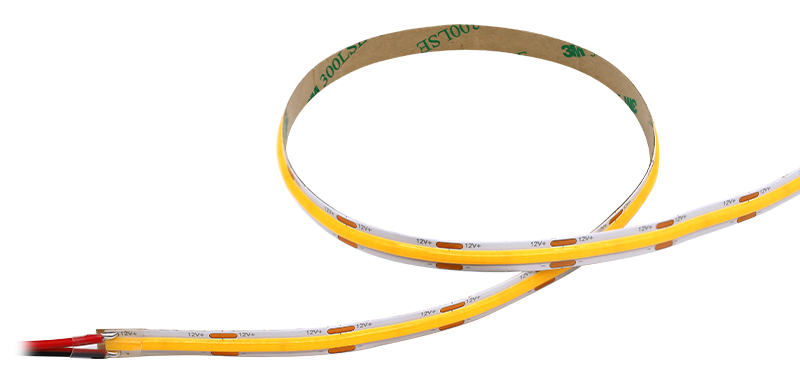

FC480W8-8 8MM Width Dotless Led Strip Lights

Short Description:

Weihui launches a new generation of COB (chip on board) LED lights, 480 LEDs/m, high efficiency 90Lm/W. Super smooth lighting and higher brightness. Enhance your home decor with LED strip lights. These lights are perfect for bedrooms, studios, cabinets and more. Elevate your space with style and convenience. This COB LED strip offers customizable subdivisions, which can be customized according to your needs.
WELCOME TO ASK FREE SAMPLES FOR TESTING PURPOSE！

Send email to us

Product Detail

Technical Data

Video

Download

OEM&ODM Service

Product Tags

Advantages & Features

1. 【High brightness】 6000K white COB led strip, 5 meters long COB led strip, 480 LED beads per meter, lower power consumption, 180 degree beam angle design, 50% larger lighting range. . Multiple chips on COB led, uniform lighting, no need to worry about black spots.
2. 【Safe voltage】 Flexible led lights strip is powered by 24V low voltage, which reduces the degree of danger.

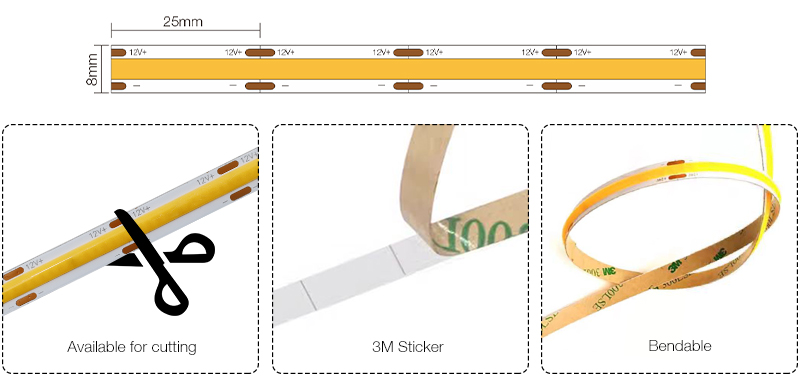

3. 【Cutable and DIY】 Flexible led lights can be cut freely (please cut along the solder joints), COB led strip is an ideal choice for DIY lighting.
4. 【Soft and bendable】 Long strip lights are soft and strong, and are not easy to break when bent. Note that when installing the LED light strip, it cannot be folded.
5. 【Customizable】 LED strip lights can be customized. Whether it is size or color temperature, it can be customized according to your needs to meet your rigid needs.
6. 【After-sales warranty】 Passed CE/ROHS and other certifications. We provide three-year warranty service. If you still have problems, please contact us and we will solve it within one working day.

Technical Specifications

The following Data are basic for COB strip light
We support customization of Warm White Strip Light of different sizes, different quantities, different color temperatures, different wattages, etc.

Item Number	Product Name	Voltage	LEDs	PCB width	Copper thickness	Cutting Length
FC480W8-8	COB-480 Series	12V	480	8mm	28/28um	25mm
Item Number	Product Name	Power(watt/meter)	CRI	Efficiency	CCT (Kelvin)	Feature
FC480W8-8	COB-480 Series	10w/m	CRI>90	90Lm/W	3000K/4000K/6000K	ROLL TO ROLL

Color Rendering Index >90, truly restore the original color of the object and reduce distortion.

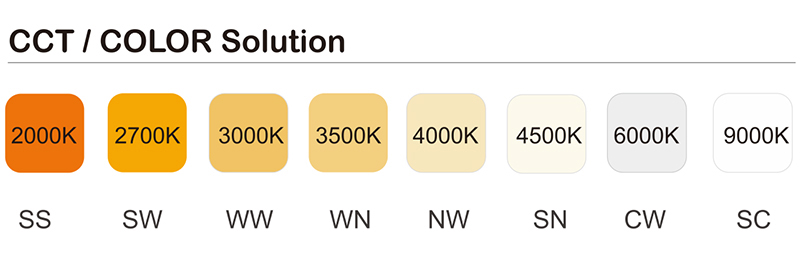

Color Temperature is welcome to customize:Support color temperature customization 2200K-6500k, single color/dual color/RGB/RGBW/RGBCCT, etc.

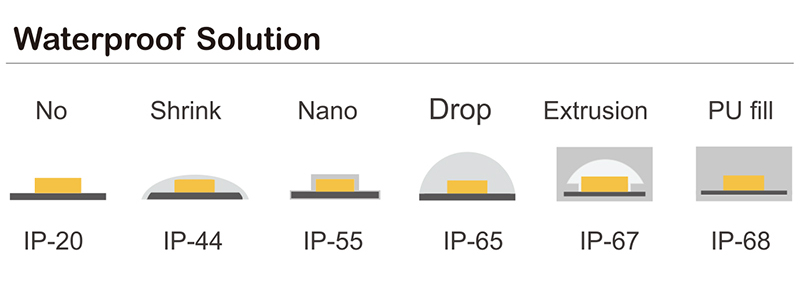

Waterproof IP Level: This led strip light has a waterproof IP rating of IP20, and can be customized for outdoor, humid or special environments with waterproof and dustproof ratings.

Product Details

1. 【Flexible DIY】 The ceiling led strip solder joints can be cut, and the light strips can also be connected in series through quick-connect terminals. Note: The cuttable length of each light strip is different.
2. 【High-quality 3M adhesive】 8mm led strips are equipped with a strong adhesive backing. Warm reminder: Please clean and dry the installation surface thoroughly before installation.
3. 【Soft and bendable】 Flexible led lights can be bent and can be concave into various shapes to meet the customer's complex installation needs. The excellent flexibility of led light strips allows you to get the perfect solution for your DIY project!

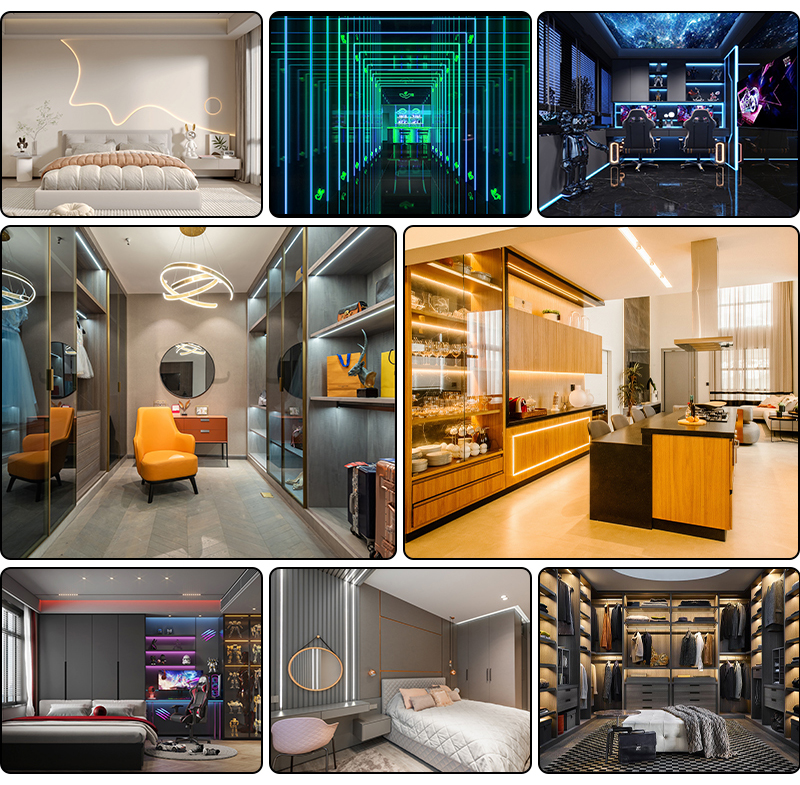

Application

【Wide range of applications】 Led light strips, 180° beam angle design, 50% larger lighting range, multiple chips on board, uniform lighting, say goodbye to dark spots! Unlike traditional SMD LED strips, each LED on the COB LED strip is very close, so when the strip is working, you see continuous linear light instead of individual lamp beads!

Our warm white LED strips can be installed in various corners that need light decoration, suitable for various indoor applications, such as living rooms, corridors, bedrooms, kitchens, accent lighting, cabinet lighting, stairs, mirrors, corridors, DIY backlighting, DIY lighting, special purposes and other commercial and residential lighting projects. It can illuminate the area, reduce shadows and enhance the atmosphere.

COB LED strips are the ultimate in energy saving, high brightness and uniform lighting. Inlaid in cabinets, ceilings or walls, it not only increases the practicality of the space, but also enhances the overall beauty. Compared with traditional lighting, COB light strips significantly reduce energy consumption and meet green environmental protection requirements.

Connection and Lighting solutions

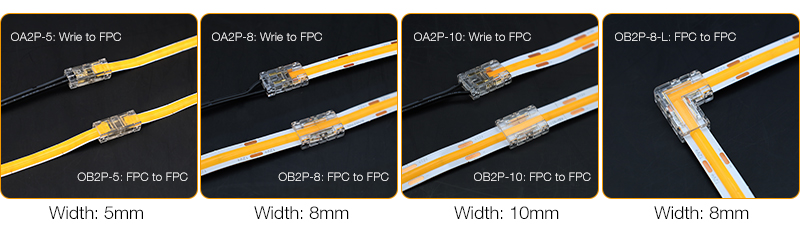

【Various Quick Connector】Applicable to various quick connector, Welding Free Design
【PCB to PCB】 For connecting two pieces of different COB strips, such as 5mm/8mm/10mm,etc
【PCB to Cable】Used to light up the COB strip, connect the COB strip and wire
【L-type Connector】Used to extend Right Angle Connection COB Strip.
【T-type Connector】Used to extend T Connector COB Strip.

When we use COB led strip lights in kitchen cabinet or furniture, We can combine with smart led drivers and sensor switches. Here it is a example of Centrol control smart system

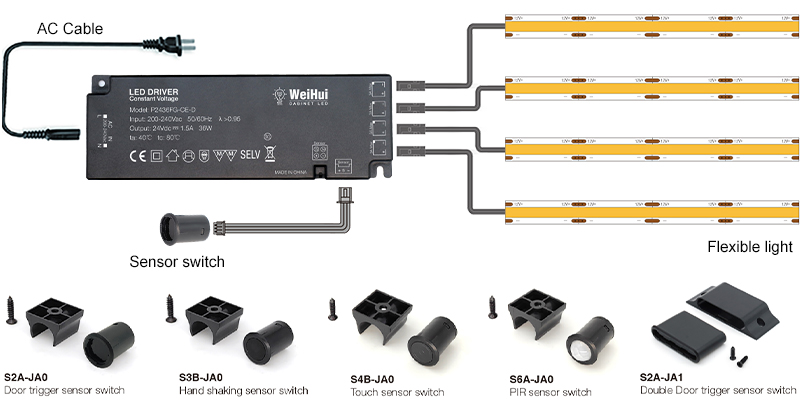

Smart LED Driver System with different sensors( Centrol Control)

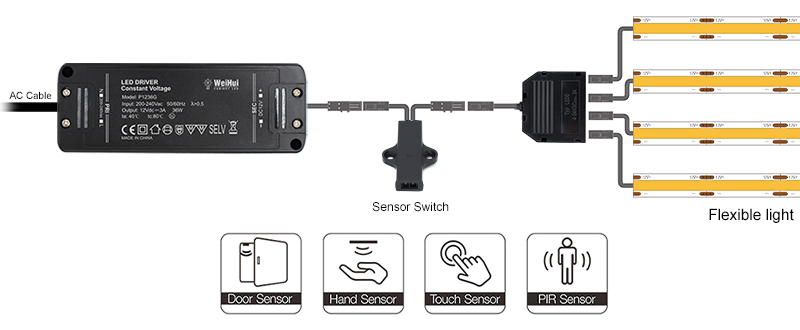

Smart led driver system-Separate Control

FAQ

Frequently Asked Questions

Need help? Be sure to visit our support forums for answers to your questions!

Q1: Is Weihui a manufacturer or a trading company?

A: We are a factory and trading company, with more than ten years of experience in factory R&D,located in SHENZHEN. Expecting your visit at anytime.

Q2: Can I also buy LED power supply from you?

A: Yes, we are one stop solution supplier for cabinet lighting solutions. You can buy all parts including led driver/power supply from Weihui Directly. One stop solutions is also much better for after service too.

Q3: How do we develop new products?

A: 1. Market research;
2. Project establishment and formulation of project plan;
3. Project design and review, cost budget estimation;
4. Product design, prototype making and testing;
5. Trial production in small batches;
6. Market feedback.

Q4: Can I extend the light strip or connect two or more light strips in series?

A: Yes, but please note that the maximum length of a 24V light strip is 10m. If you connect a light strip longer than 10m, there may be a voltage drop or the last part of the light strip may go out."

Q5: How to install strip lights at corners? Can cob light strips be bent?

A: If you don't want to cut at corners or use quick connectors, you can bend the strip lights. Be careful to avoid folding the soft light strips, as it may cause overheating or damage the life of the product. For more details, you can communicate with us online or offline.
