FC576W8-2 RGB 8MM Width COB flexible light
Short Description:
1. 【Light strip design】 Multicolor led strip uses RGB+ CCT COB LED strip lights made of double-layer pure copper PCB board, which has better conductivity and heat dissipation effect. Coloured led strips are not easy to crack, durable, and have a service life of more than 65,000 hours!
2. 【Fantasy Lighting】 RGB COB light strips not only provide excellent auxiliary lighting for your space, but also provide colorful multi-mode entertainment lighting! RGB three colors mix 16 million different colors, and can show multiple colors at the same time, and the mixed colors produce a variety of amazing fantasy colors.
3. 【Various Quick Connector】 Quick connector, such as 'PCB to PCB', 'PCB to Cable', 'L-type Connector', 'T-type Connector' and so on. Allows you to install your lighting project faster.
4. 【Professional R&D customization】 Professional R&D team, customized according to your needs. It can support waterproof customization, color temperature customization, RGB dimmable, durable, high-quality led strip lights.
5. 【Competitive advantage】 Competitive price, good quality, affordable price. 3-year warranty, please rest assured to buy.
The following Data are basic for COB strip light
We can make different quantity/Different Watt/Different Volt,etc
| Item Number | Product Name | Voltage | LEDs | PCB width | Copper thickness | Cutting Length |
| FC576W8-1 | COB-576 Series | 24V | 576 | 8mm | 18/35um | 62.50mm |
| Item Number | Product Name | Power(watt/meter) | CRI | Efficiency | CCT (Kelvin) | Feature |
| FC576W8-1 | COB-576 Series | 10w/m | CRI>90 | 40Lm/W | RGB | CUSTOM-MADE |
The color rendering index of Flexible Tape Ribbon LED Light is Ra>90, the color is bright, the light is uniform, the color of the object is more real and natural, and the color distortion is reduced.

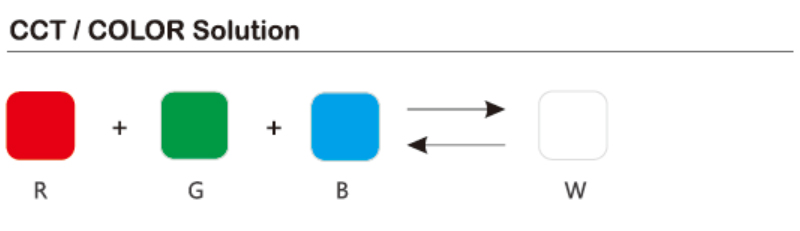

Color temperature from 2200K to 6500k Customization is welcome: single color/dual color/RGB/RGBW/RGBCW, etc.

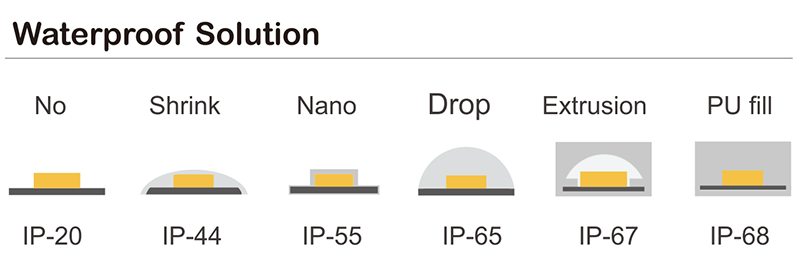

【Waterproof IP Rating】 The waterproof rating of this RGB cob light is IP20, of course you can customize the waterproof and dustproof rating according to your needs to suit special humid environments such as outdoor.

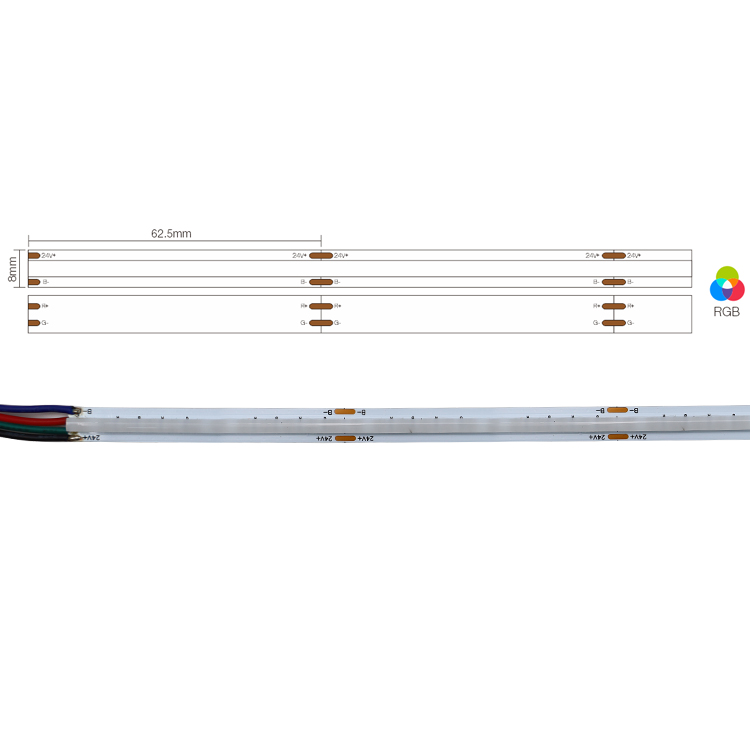

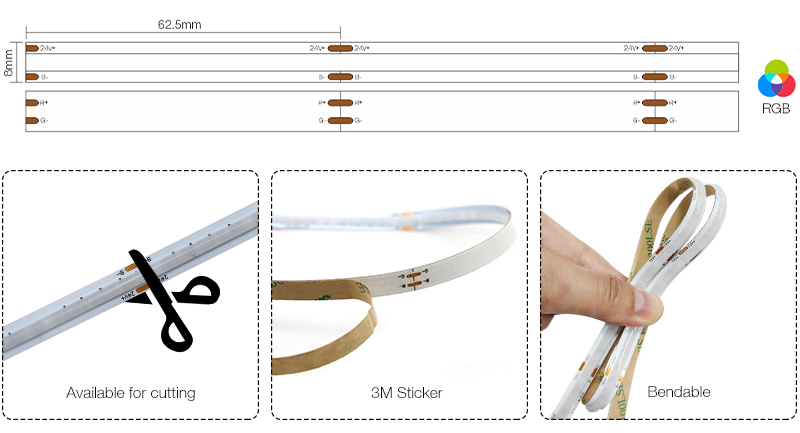

【62.50mm Cut Size】 RGB COB LED strip light, cuttable, the spacing between the two cutting marks is 62.50mm. You can connect the strip light at the cutting mark by welding or using a quick connector.
【High Quality 3M Adhesive】 3M Adhesive has strong adhesion, compact structure, small size, no additional use of screws and other fixed installation, easy and quick installation.

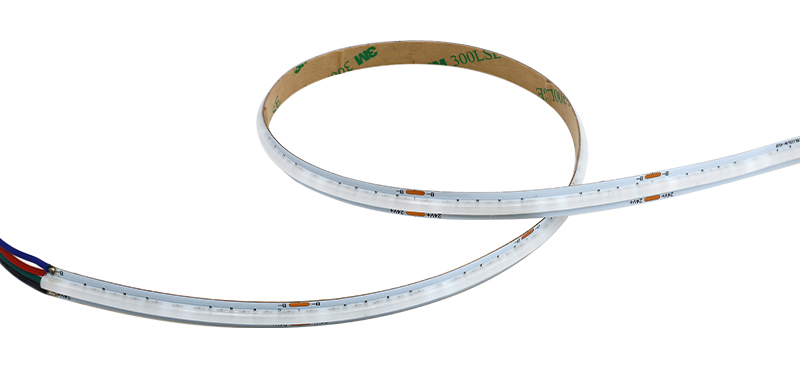

【Soft And Bendable】 RGB COB LED Strip is soft, flexible, and bendable, perfect for your DIY projects.

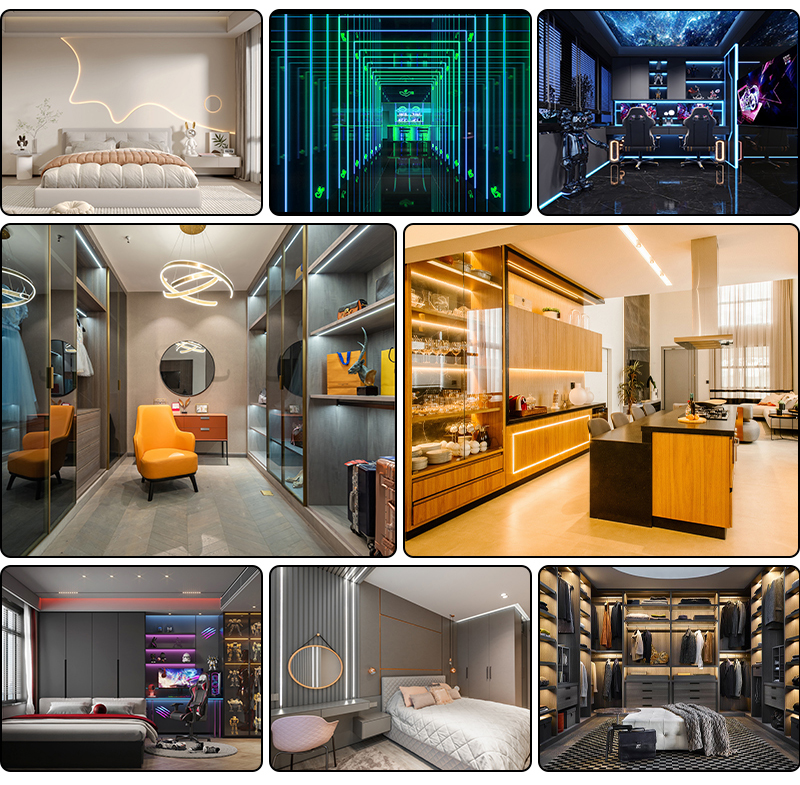

Colorful RGB led strip lights can provide great help for your life entertainment! It not only makes you relax, but also enriches your life! RGB COB LED light strips are very suitable for installation in many scenes such as homes, bars, entertainment halls, coffee shops, parties, dances, etc.
Cob Led light strips are narrow in size and small in installation location, and can even be hidden, so that you can see the light but not the light. For example, install multicolor led strips on the ceiling, cabinet bottom, skirting, cabinet corners, etc. The light strips have no shadows, illuminate the area, and enhance the atmosphere.

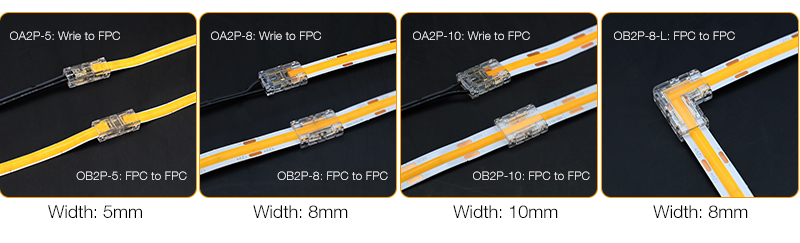

【Various Quick Connector】Applicable to various quick connector, Welding Free Design
【PCB to PCB】 For connecting two pieces of different RGB led strip, such as 5mm/8mm/10mm,etc
【PCB to Cable】Used to light up the RGB led strip, connect the RGB led strip and wire
【L-type Connector】Used to extend Right Angle Connection RGB led strip.
【T-type Connector】Used to extend T Connector RGB led strip.
When we use RGB led strip lights in kitchen cabinet or furniture, We can combine with smart led drivers and sensor switches. Here it is a example of Centrol control smart system

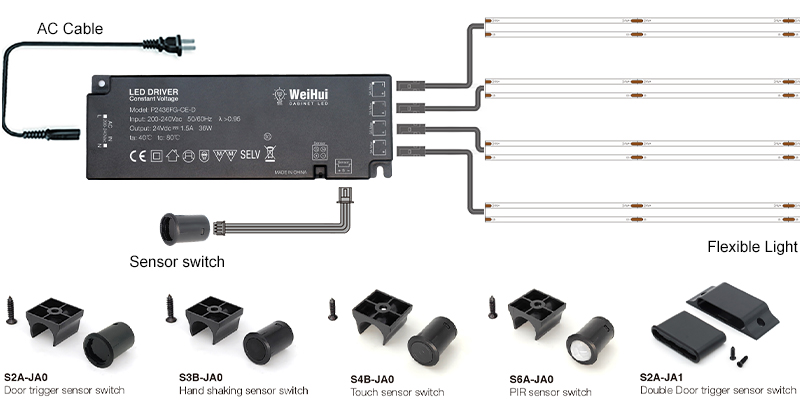

Smart LED Driver System with different sensors( Centrol Control)

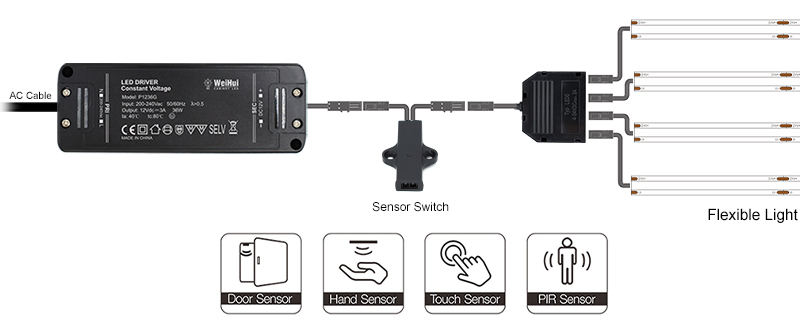

Smart led driver system-Separate Control
We are a factory and trading company, with more than ten years of experience in factory R&D,located in SHENZHEN. Expecting your visit at anytime.
3-7 working days for samples if in stock.
Bulk orders or customized design for 15-20 working days.
Yes, our light strip can be customized, whether it is color temperature, size, voltage, or wattage, customization is welcome.
The waterproof index of this light strip is 20, and it cannot be used outdoors. But we can customize waterproof LED light strips. But please note that the power adapter is not waterproof.
If you don't want to cut at corners or use quick connectors, you can bend the strip lights. Be careful to avoid folding the soft light strips, as it may cause overheating or damage the life of the product. For more details, you can communicate with us online or offline.
1. Part One: COB Flexible Light Parameters
| Model | FC576W8-2 | |||||||
| Color Temperature | RGB | |||||||
| Voltage | DC24V | |||||||
| Wattage | 10W/m | |||||||
| LED Type | COB | |||||||
| LED Quantity | 576pcs/m | |||||||
| PCB Thickness | 8mm | |||||||
| Length of Each Group | 62.5mm | |||||||
2. Part Two: Size information
3. Part Three: Installation
4. Part Four: Connection Diagram
