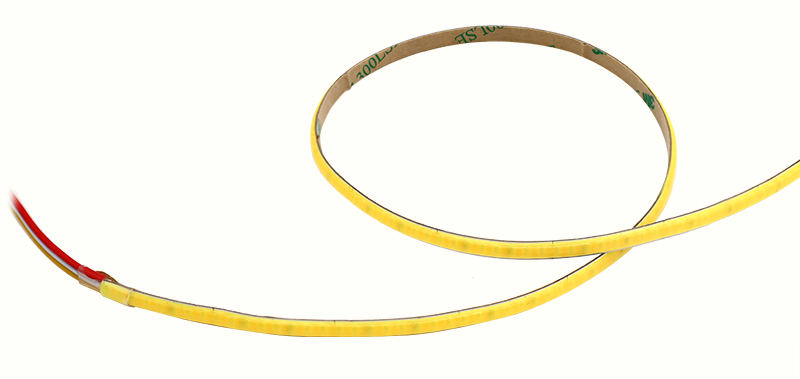

FC608W5-2 5MM 24V COB IP Rated Led Strip
Short Description:
1.【Super Bright and Uniform Lighting】 24V electric strip lights use COB technology to make the LED array packing density higher, no black spots, and higher luminous efficiency. The light is uniform and soft, no UV, comfortable and soft.
2.【High-density lamp beads】 High-density lamp beads 600LEDs/M, COB LED light strips can reach a brightness of 6000 lumens, 180° beam angle, 50% wider lighting, multiple chips on the board can achieve uniform lighting, which can meet most lighting needs.
3.【High color rendering index】KS led strip light has a color rendering index of up to 90+, strong reduction and rich colors, which helps to express the true colors of life with soft light and more eye protection.
4.【Durable and long life】Good quality led strip lights are made of high-quality materials and a true double-layer PCB board makes this COB LED light strip durable with a service life of more than 50000 hours.
5.【Ultra-thin design and easy installation】Suitable for narrow space or curved surface installation, providing greater flexibility and creativity. Electric strip lights are equipped with double-sided adhesive, no screws are required, and the 3M backing can be directly attached to any dry and flat surface. It can be bent into any shape and can also be cut into any length.
6.【Support customized service and warranty】Support large-scale customized services to meet your business needs! 5-year warranty, if you have any questions or installation needs, please ask Weihui for help.

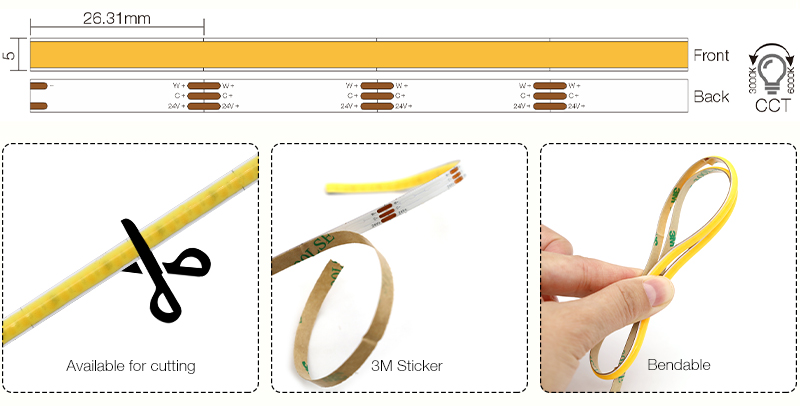

The cutting size of 26.31mm can be cut arbitrarily, solving the pain point of customized length.
The following Data are basic for COB strip light
We can make different quantity/Different Watt/Different Volt,etc
| Item Number | Product Name | Voltage | LEDs | PCB width | Copper thickness | Cutting Length |
| FC608W5-2 | COB-608 Series | 24V | 608 | 5mm | 35/35um | 26.31mm |
| Item Number | Product Name | Power(watt/meter) | CRI | Efficiency | CCT (Kelvin) | Feature |
| FC600W5-2 | COB-608 Series | 6+6w/m | CRI>90 | 80Lm/W-100Lm/W | 2700K-6500K CCT | CUSTOM-MADE |
Color Rendering Index >90, the object's color is more real, natural, reduce color distortion.

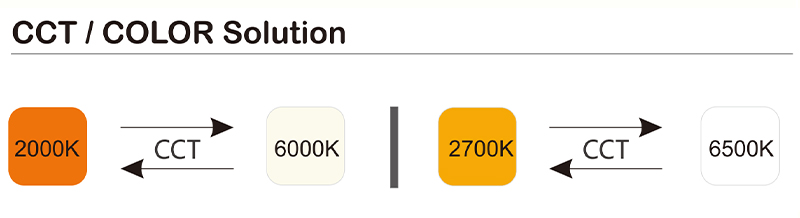

Color Temperature is welcome to customize from 2200K to 6500k.
Single color/Dual Color/RGB/RGBW/RGBCCT.etc

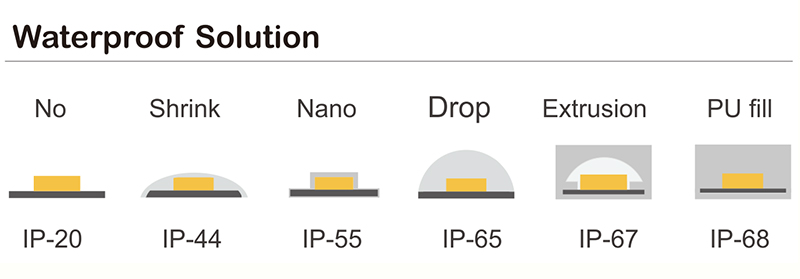

Waterproof IP Level, This COB strip is IP20 and can be customized with a waterproof and dustproof rating for outdoor, wet or special environments.
Our Dual Color strip light is ideal for a variety of indoor applications, such as living rooms, corridors, bedrooms, under-cabinet lighting, accent lighting, toe kick lights, shelf lighting, cove lighting and other commercial and residential lighting projects.

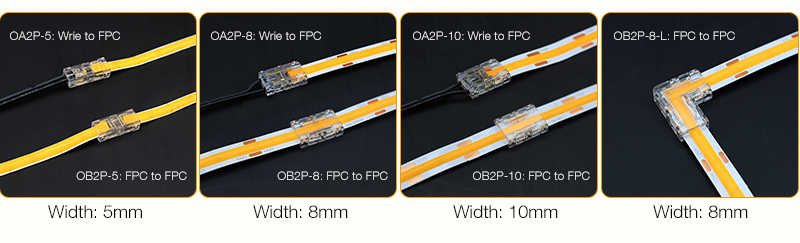

【Various Quick Connector】Applicable to various quick connector, Welding Free Design
【PCB to PCB】 For connecting two pieces of different COB strips, such as 5mm/8mm/10mm,etc
【PCB to Cable】Used to light up the COB strip, connect the COB strip and wire
【L-type Connector】Used to extend Right Angle Connection COB Strip.
【T-type Connector】Used to extend T Connector COB Strip.
When we use COB led strip lights in kitchen cabinet or furniture, We can combine with smart led drivers and sensor switches. Here it is a example of Centrol control smart system.

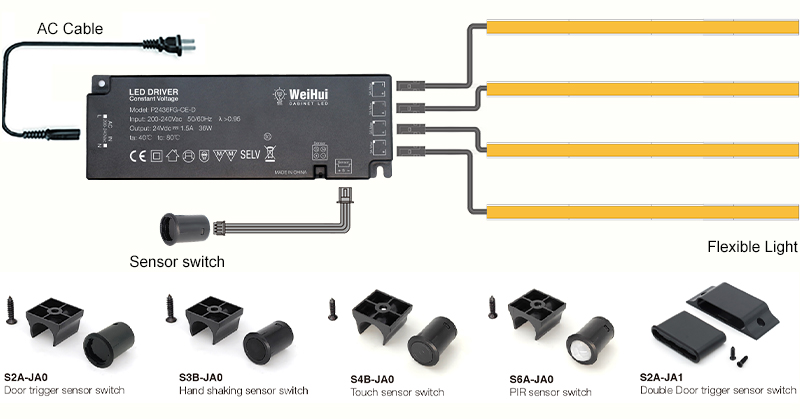

Smart LED Driver System with different sensors( Centrol Control)

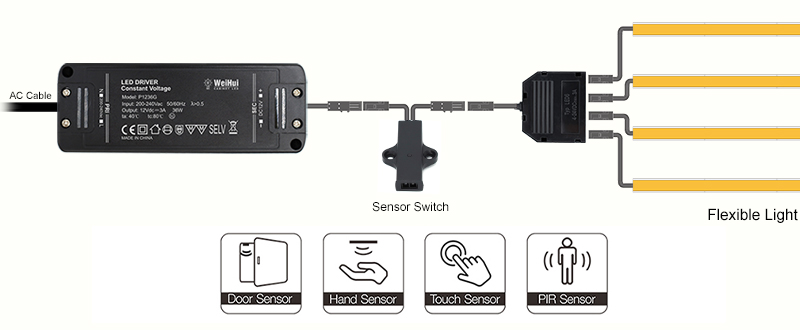

Smart led driver system-Separate Control
Q1: Is Weihui a manufacturer or a trading company?
We are a factory and trading company, with more than ten years of experience in factory R&D,located in SHENZHEN. Expecting your visit at anytime.
Q2: Can Weihui deliver as ordered? How can I trust Weihui?
Yes, we will. The core of our company is honesty and credit. We welcome customers or his agents or his third parties to come to our factory for detailed inspection. We protect customers' designs, sales area competition, design ideas and all your certification information.
Q3: How do Weihui build a long-term and good relationship with our business?
1. We will ensure the interests of customers with good quality and competitive price;
2. We treat every customer as a friend, do business sincerely, and make friends with everyone, no matter where they come from.
3. Most of Weihui Client are more than 5 Years cooperation time, About 30% more clients have 10 years cooperation experience with WeiHui Founder Nikki.
Q4: Do Weihui have any MOQ limit?
Yes, we can offer low MOQ, That is One of our main advantages too.
1. Part One: COB Flexible Light Parameters
| Model | FC608W5-2 | |||||||
| Color Temperature | 2700K-6500K CCT | |||||||
| Voltage | DC24V | |||||||
| Wattage | 7+7w/m | |||||||
| LED Type | COB | |||||||
| LED Quantity | 608pcs/m | |||||||
| PCB Thickness | 5mm | |||||||
| Length of Each Group | 26.31mm | |||||||
2. Part Two: Size information and Installation
3. Part Three: Connection Diagram
