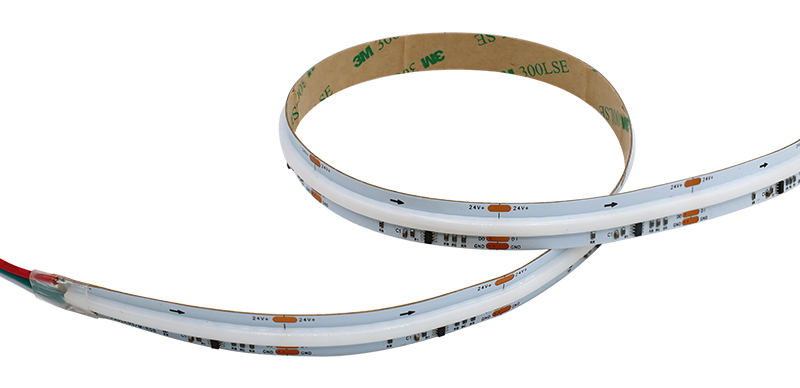

FC720W12-2 12MM Width 12V RGB COB led strip
Short Description:
1. 【16 million colors】 RGB multi colour strip light has 16 million colors. You can change the color of the light strip according to your mood, or choose from a variety of preset color modes to create a party atmosphere.
2. 【Stepless dimming】 Supports stepless dimming design, the brightness can be adjusted freely, and you can create the ideal light effect at will. With the color temperature adjustment of 3000K-6000K, it can meet the lighting needs of different times and scenes.
3. 【Compatible with multiple control methods】 It can be used with different controllers. For example, the smart Tuya APP, RF remote control, etc. Realize functions such as on/off, change color, adjust brightness, set timing, and support music mode.
4. 【Cutable and connectable】RGB cob led strip is a flexible combination light strip that can be cut along the solder joint (50mm/unit), and also supports end-to-end series connection.
Available in Single Color, Dual Color, RGB, RGBW, RGBCW and other light strip options, we must have the right COB light strip for you.
• Roll: 5M/roll, 720 LEDs/m, Length is customizable.
• Color rendering index: >90+
• 3M adhesive backing, flexible self-adhesive and self-installation
• Max run: 24V-10 meters, small voltage drop. If you are worried about the impact of voltage drop, you can inject voltage at the end of the long light strip to eliminate the voltage drop.
• Cutting length: one cutting unit per 50mm
• 10mm strip width: suitable for most places
• Power: 19.0w/m
• Voltage: DC 24V low-voltage multicolor light strip, safe and touchable, good heat dissipation performance.
• Certificate & Warranty: RoHS, CE and other certifications, 3-year warranty

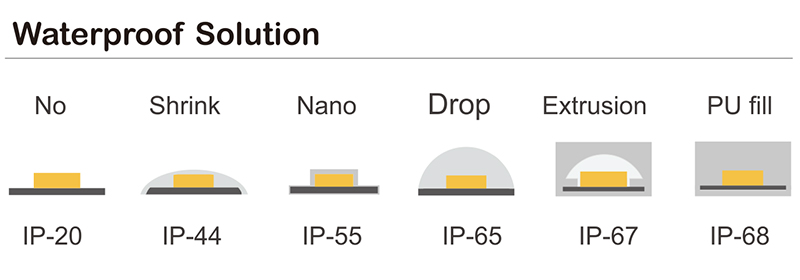

Waterproof level: Choose our multicolor light strip for indoor and outdoor installation or use in wet environments. The waterproof level can be customized.
1. The LED Running Water Strip Light is flexible and can be cut, but be careful to cut at the copper wire mark (50mm/unit).
2. Easy to install, please tear off the tape film on the back before installation.
3. Bendable, it is more bendable than any other SMD light strip and can be easily made into any shape.
The RGB COB Strip light makes the game more exciting; it is dynamic and static, and the color is endless, creating a wonderful commercial space.
1. The LED color change lamp has a variety of scene modes, and the magical mixed colors can produce a variety of wonderful colors. The light changes with the rhythm of the music, easily transforming your space into a style that suits your mood and indoor activities.
2. Whether it is direct lighting or exposed installation, or using a diffusion cover, the addressable cob led strip is soft and not dazzling. Suitable for home decoration, such as TV backlight, kitchen, desk, staircase, bar, wine bottle rack, corridor, ceiling, etc., to create a warm and romantic atmosphere for your life.
Tips: The 24v led strip light comes with a strong 3M self-adhesive backing. Before installation, please ensure that the installation surface is thoroughly cleaned and dry.

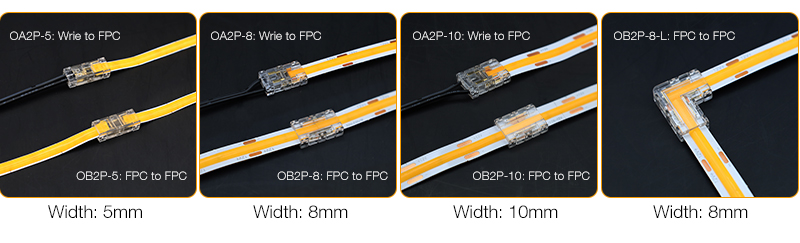

The light strip can be cut and reconnected, suitable for various quick connectors, and no welding is required.
【PCB to PCB】 For connecting two pieces of different COB strips, such as 5mm/8mm/10mm,etc
【PCB to Cable】Used to light up the COB strip, connect the COB strip and wire
【L-type Connector】Used to extend Right Angle Connection COB Strip.
【T-type Connector】Used to extend T Connector COB Strip.

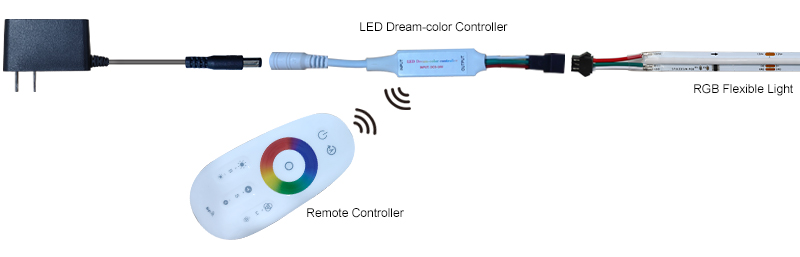

When using motion led light strip in cabinets or other home spaces, you need to pair them with a dimming and color adjustment controller or APP to give full play to their excellent lighting effects. As a professional one-stop cabinet lighting solution provider, we also provide compatible wireless RGB controllers (LED Dream-color Controller and Remote Controller, model: SD3-S1-R1) to bring you a more convenient and intelligent lighting experience.
Fully furnished, please start your action.
Frequently Asked Questions
We are a factory and trading company, with more than ten years of experience in factory R&D,located in SHENZHEN. Expecting your visit at anytime.
3-7 working days for samples if in stock.
Bulk orders or customized design for 15-20 working days.
Please feel free to contact us by email, phone or send us an inquiry, then we can send you the price list and more information by email: sales@wh-cabinetled.com.
Also contact us directly via Facebook/Whatsapp:+8613425137716
Color temperature refers to the appearance of light emitted by a light source, measured in Kelvin (K). It describes whether the light is warm 2700K – 3000K (yellow), neutral 3000-5000K (white) or cool >5000K (blue). There is no good or bad color temperature, it all depends on your needs, mood and personal preference.
We have many types of light strips: COB light strips, SMD light strips, SCOB light strips, etc., which can be divided into:
1. Single Color LED light strips (Single Color): composed of chips of only one color, such as warm white, cold white, red, blue, etc., can only emit a single fixed color light, with stable light effect, low cost, and easy installation. It is suitable for basic lighting, cabinet lights, local lighting, stair lights, etc.
2. Dual Color LED Light Strips (CCT Tunable or Dual White): composed of two LED chips, cold white (C) + warm white (W), with adjustable color temperature (usually from 2700K~6500K), adjust the white light atmosphere, adapt to morning and evening/situation changes, suitable for home main lighting, bedrooms, living rooms, office places, etc.
3. RGB LED Light strip: It is composed of three-color chips of red (R), green (G), and blue (B), which can mix a variety of colors and support color change and dynamic lighting effects. It does not support pure white light, and white is an approximate color of RGB mixing. It is suitable for atmosphere lighting, decorative lighting, parties, e-sports rooms, etc.
4.2. RGBW LED light strip: It is composed of four LED chips of red, green, blue + independent white light (C). RGB mixed color + independent white light has richer colors and can achieve purer and more natural white light. It is suitable for multi-functional lighting, such as home atmosphere lighting + main lighting, commercial space, etc.
5.RGBCW LED light strip: It is composed of five LED chips of red, green, blue + cold white (C) + warm white (W). It can adjust the color temperature (cold and warm white) + colorful RGB. It has the most comprehensive functions and strong scene adaptability. It is suitable for high-end smart lighting, hotels, exhibition halls, and home lighting.
1. Part One: RGB COB LED Strip Light Parameters
| Model | FC720W12-2 | |||||||
| Color Temperature | CCT 3000K~6000K | |||||||
| Voltage | DC24V | |||||||
| Wattage | 19.0w/m | |||||||
| LED Type | COB | |||||||
| LED Quantity | 720pcs/m | |||||||
| PCB Thickness | 12mm | |||||||
| Length of Each Group | 50mm | |||||||

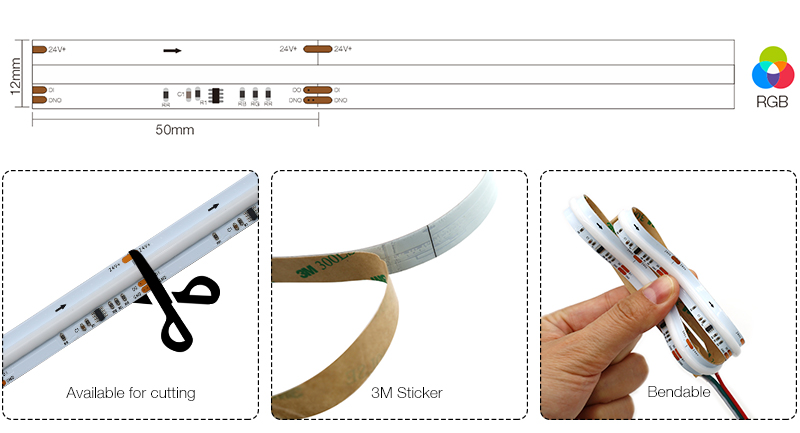

2. Part Two: Size information
3. Part Three: Installation
4. Part Four: Connection Diagram
