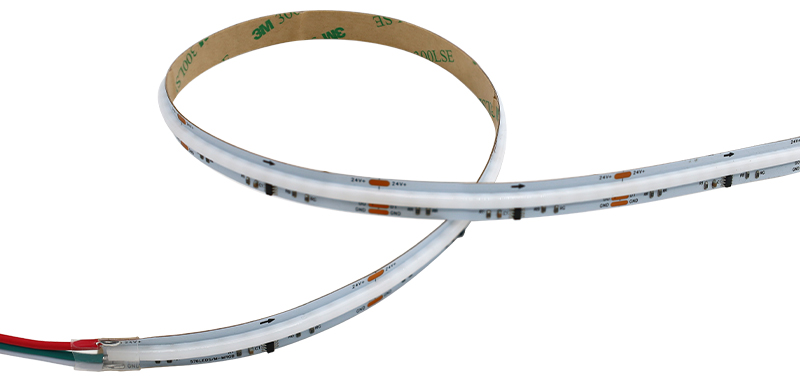

FC720W10-2 10MM Width 24V Smart RGB COB Led Strip
Short Description:
1. 【High-density luminescence, uniform light】 COB packaging technology, 720 LED chips/meter high and dense arrangement, continuous and uniform light emission, no point particles, no light spot phenomenon.

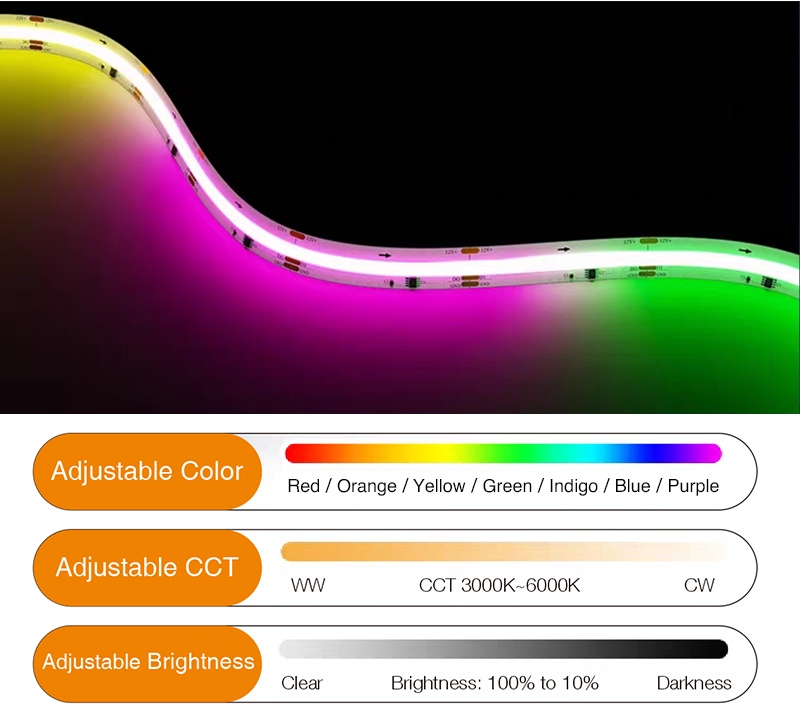

2. 【Colorful】 RGB full-color system, with the controller or APP, can adjust 16 million colors, easily realize full color gamut flexible color adjustment, 3000K-6000K color temperature adjustment, adapt to various atmosphere scenes.
3. 【Dynamic lighting effect and music rhythm】 Supports a variety of dynamic modes (such as rainbow, flowing water, breathing, jumping), and can respond to the rhythm of music to achieve the "light follows the rhythm" effect.
4. 【Stepless dimming】 Supports stepless dimming design, the brightness can be adjusted freely, and the ideal light effect can be created at will to meet the lighting needs of different times and scenes.
Available in Single Color, Dual Color, RGB, RGBW, RGBCW and other light strip options, we must have the right COB light strip for you.
• Roll: 5M/roll, 720 LEDs/m, Length is customizable.
• Color rendering index: >90+
• 3M adhesive backing, flexible self-adhesive and self-installation
• Max run: 24V-10 meters, small voltage drop. If you are worried about the impact of voltage drop, you can inject voltage at the end of the long light strip to eliminate the voltage drop.
• Cutting length: one cutting unit per 50mm
• 10mm strip width: suitable for most places
• Power: 19.0w/m
• Voltage: DC 24V low-voltage multicolor light strip, safe and touchable, good heat dissipation performance.
• Certificate & Warranty: RoHS, CE and other certifications, 3-year warranty

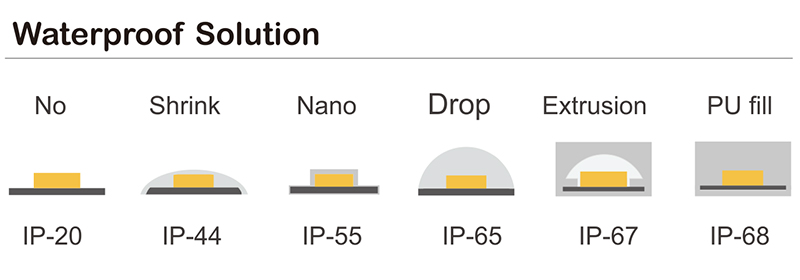

Waterproof level: Choose our multicolor light strip for indoor and outdoor installation or use in wet environments. The waterproof level can be customized.
1. The smart rgb led strip can be cut, one cutting unit every 62.5mm.
2. Easy to install, please tear off the tape film on the back before installation.
3. Strong flexibility, adapt to various installation needs, can easily fit cabinets, curved structures, furniture edges and other complex locations.

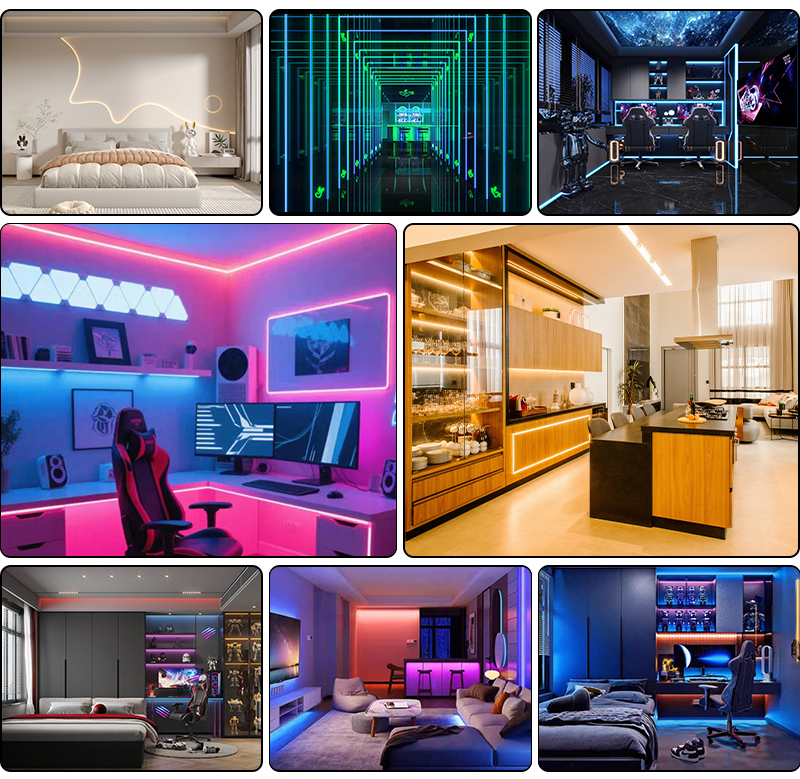

The colored led light strip makes the game more exciting; it is dynamic and static, and the color is endless, creating a wonderful commercial space.
1. Relying on the new generation of COB flip-chip packaging technology, the 24v strip light can achieve flexible control of 16 million+ colors, and supports a variety of dynamic modes and voice-controlled rhythms. Through high-density LED arrangement and stepless dimming function, it ensures that the light effect is uniform and the color temperature is accurate in complex lighting environments. The dreamy light effect meets the needs of professional-level light effect customization.
2. Music rhythm mode, the light flashes intelligently with the rhythm of the music, and it is easy to create multiple application scenarios such as game e-sports, commercial display, smart home, immersive experience space, etc. Whether it is to create a cool shop window or personalized home decoration, a light strip can light up the whole space!
Tips: The 10mm led strip comes with a strong 3M self-adhesive backing. Before installation, please ensure that the installation surface is thoroughly cleaned and dry.

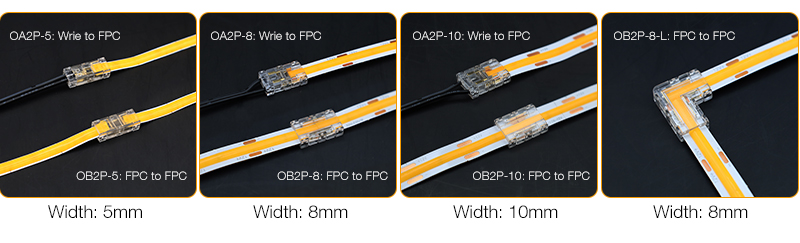

The light strip can be cut and reconnected, suitable for various quick connectors, and no welding is required.
【PCB to PCB】 For connecting two pieces of different COB strips, such as 5mm/8mm/10mm,etc
【PCB to Cable】Used to light up the COB strip, connect the COB strip and wire
【L-type Connector】Used to extend Right Angle Connection COB Strip.
【T-type Connector】Used to extend T Connector COB Strip.

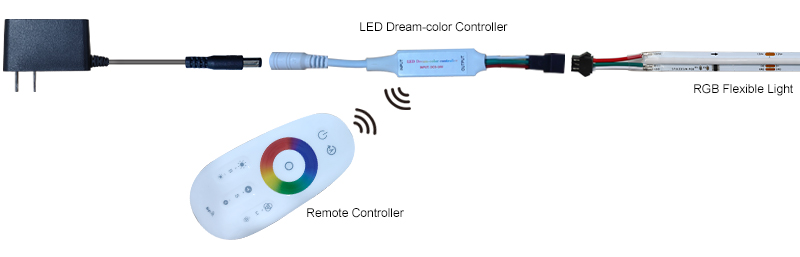

When using 24v rgb led strips in cabinets or other home spaces, you need to pair them with a dimming and color adjustment controller or APP to give full play to their excellent lighting effects. As a professional one-stop cabinet lighting solution provider, we also provide compatible wireless RGB controllers (LED Dream-color Controller and Remote Controller, model: SD3-S1-R1) to bring you a more convenient and intelligent lighting experience.
Fully furnished, please start your action.
Frequently Asked Questions
We are a factory and trading company, with more than ten years of experience in factory R&D,located in SHENZHEN. Expecting your visit at anytime.
3-7 working days for samples if in stock.
Bulk orders or customized design for 15-20 working days.
12V and 24V light strips are the same in structure and basic principles. The main differences are reflected in electrical performance, usage scenarios, wiring difficulty and cost. For example, in terms of voltage drop, 12V light strips have more obvious voltage drop and begin to decay after 3 meters; 12V voltage drop is not so obvious and can support 5~10 meters or even longer.
Color temperature refers to the appearance of light emitted by a light source, measured in Kelvin (K). It describes whether the light is warm 2700K – 3000K (yellow), neutral 3000-5000K (white) or cool >5000K (blue). There is no good or bad color temperature, it all depends on your needs, mood and personal preference.
No, different light strips correspond to different voltages. It may be 12 volts or 24 volts. Please refer to the product detail page for information on the relevant parameters of each light strip.
1. Part One: RGB COB LED Strip Light Parameters
| Model | FC720W10-2 | |||||||
| Color Temperature | CCT 3000K~6000K | |||||||
| Voltage | DC24V | |||||||
| Wattage | 19.0w/m | |||||||
| LED Type | COB | |||||||
| LED Quantity | 720pcs/m | |||||||
| PCB Thickness | 10mm | |||||||
| Length of Each Group | 50mm | |||||||

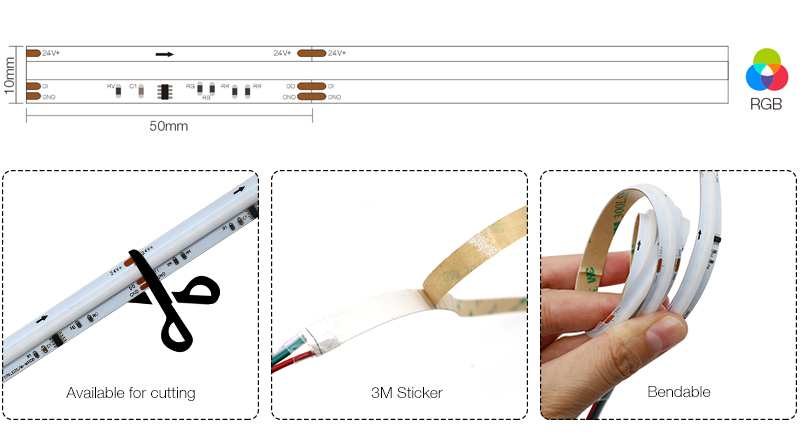

2. Part Two: Size information
3. Part Three: Installation
4. Part Four: Connection Diagram
